7.5kw Separator Built- in Industrial Dust Collector, Fume Extractor for Laser Cutting
VN Series Separator Built-in Type Industrial Dust CollectorStructure Diagram Product Description VN series is an industrial dust collector focusing on the laser cutting industry. It has the characteristics of large air volume, pulse jet cleaning, stable and reliable design. Applications An effective......
Send Inquiry
Product Description

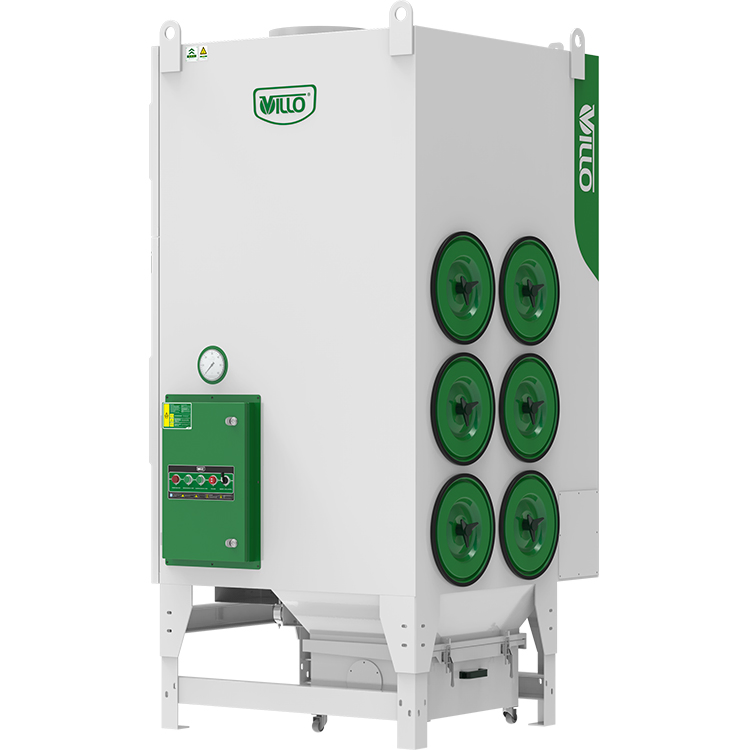

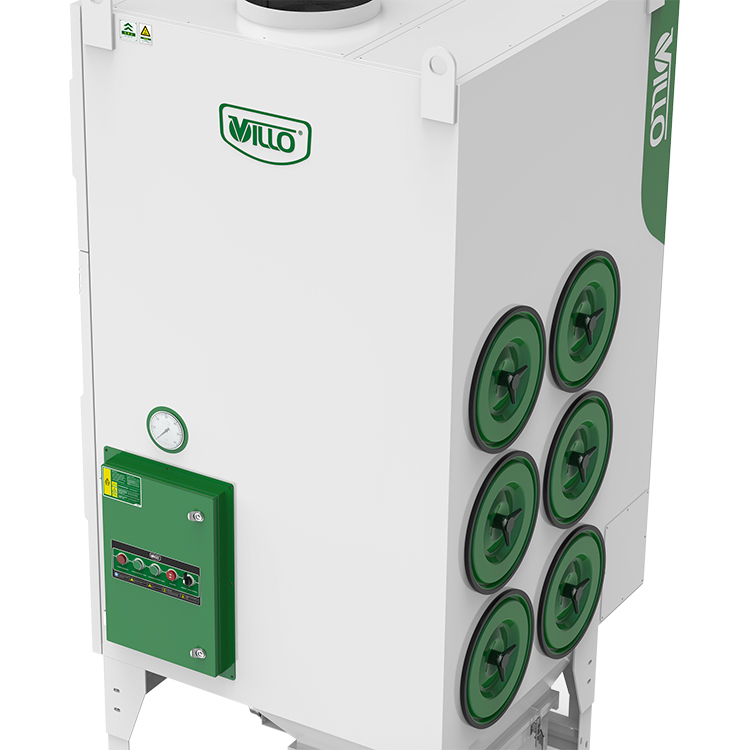

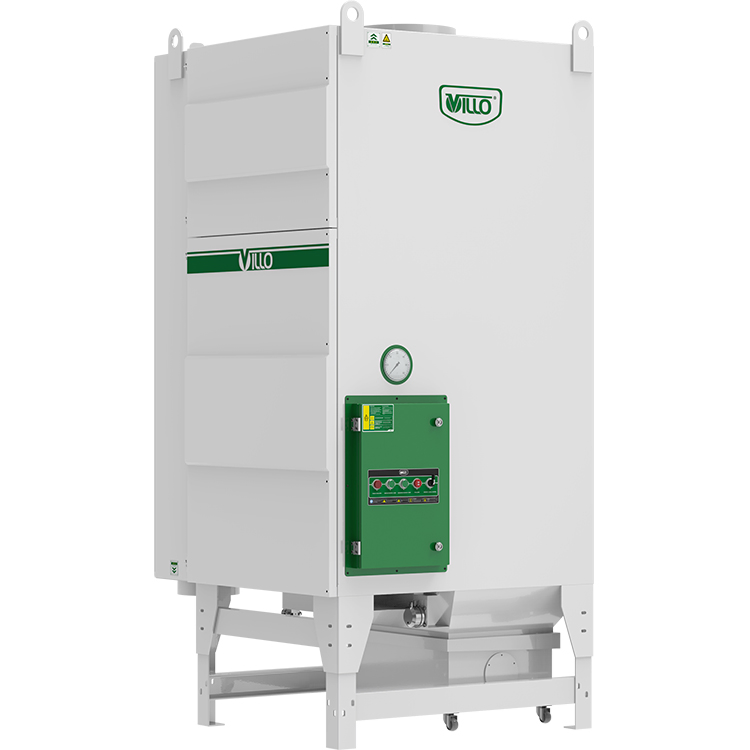

VN Series Separator Built-in Type Industrial Dust Collector

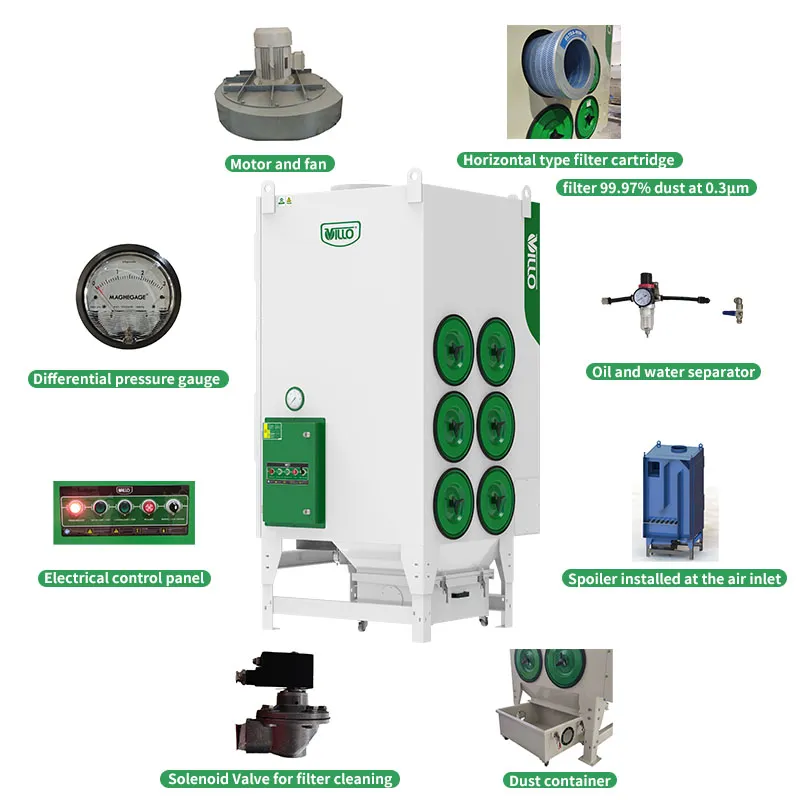

Structure Diagram
Product Description
VN series is an industrial dust collector focusing on the laser cutting industry. It has the characteristics of large air volume, pulse jet cleaning, stable and reliable design.
Applications
An effective solution for machine processes such as sheet metal laser cutting, grinding, sandblasting and other operations.
Features
1. The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
Technical Parameters

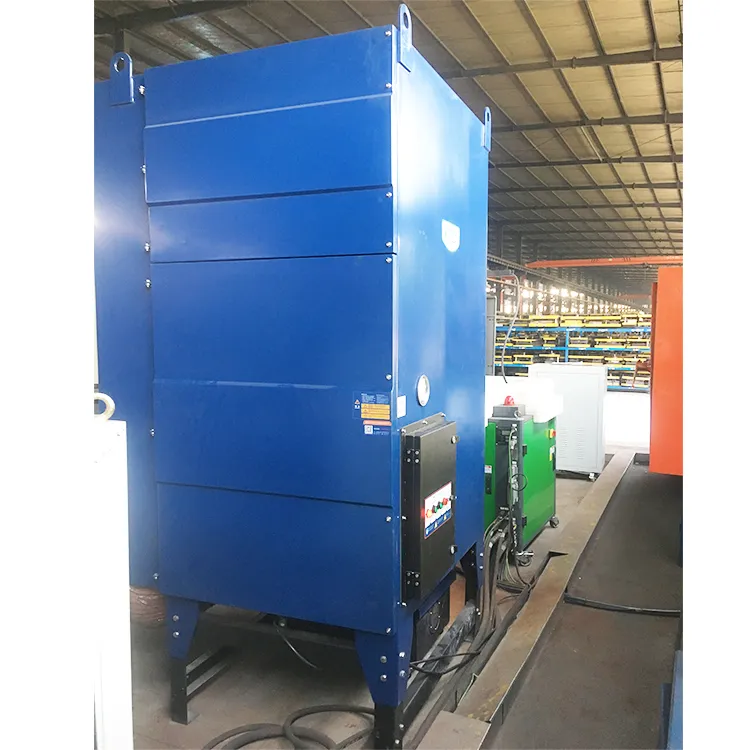

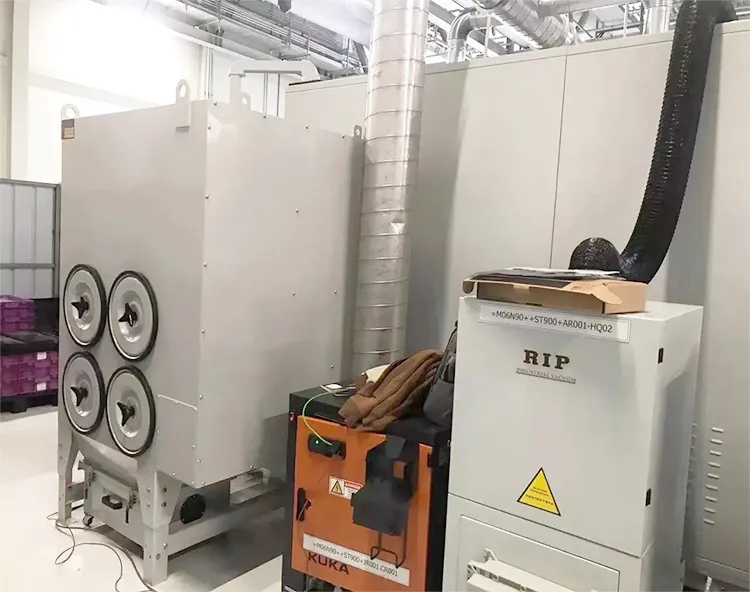

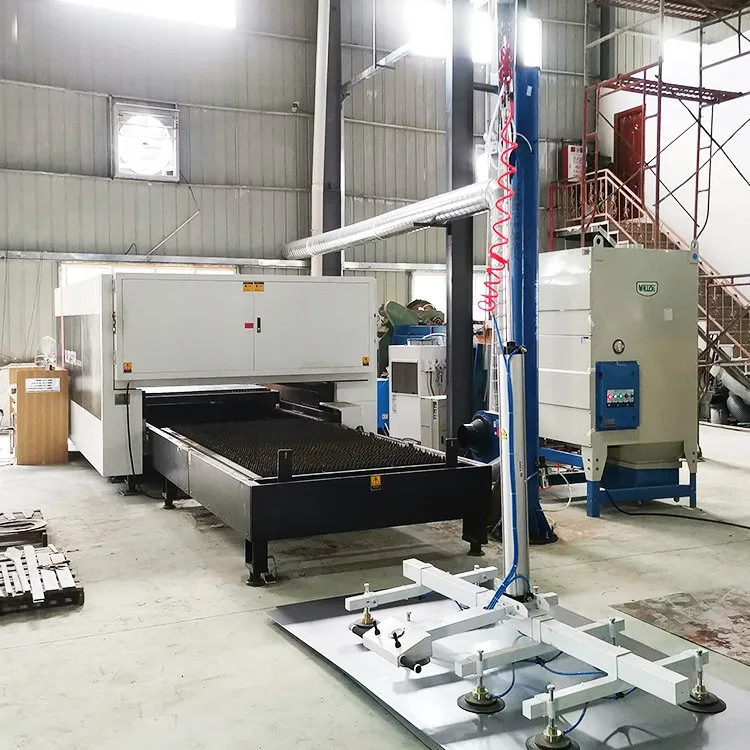

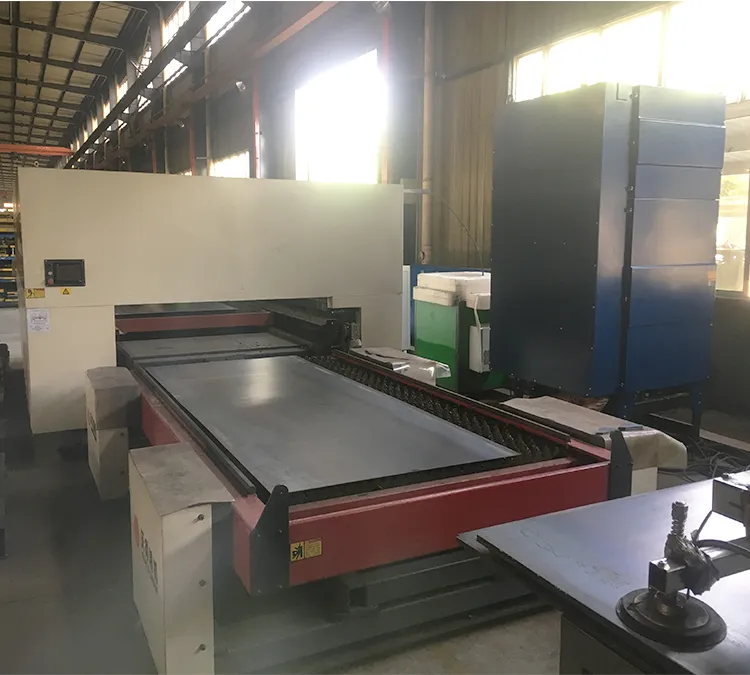

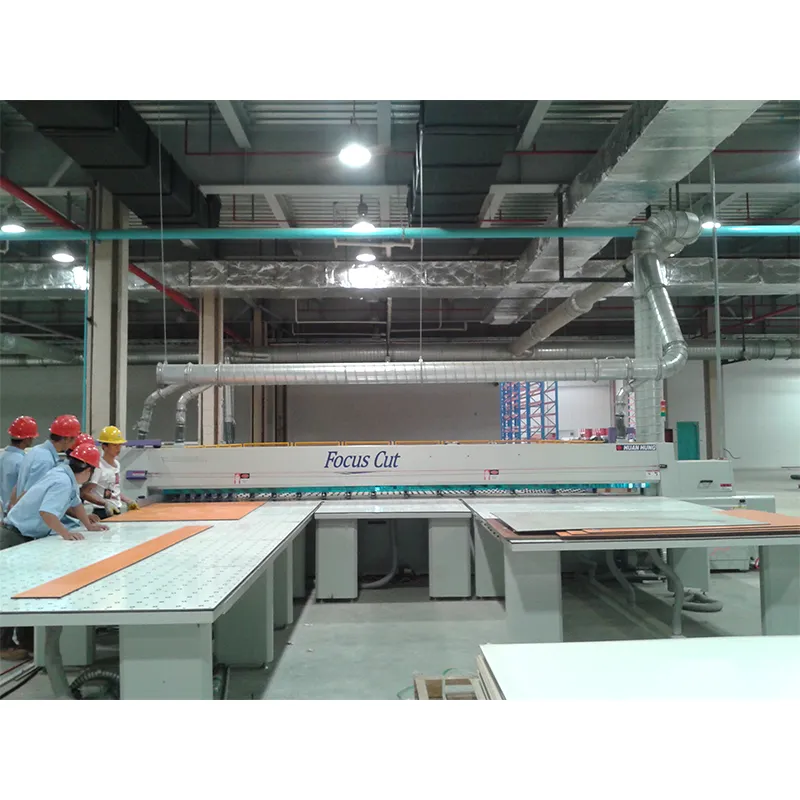

Application Case
Certifications
Our Company
Structure Diagram
Product Description
VN series is an industrial dust collector focusing on the laser cutting industry. It has the characteristics of large air volume, pulse jet cleaning, stable and reliable design.
Applications
An effective solution for machine processes such as sheet metal laser cutting, grinding, sandblasting and other operations.
Features
1. The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
2. Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.
3. Easy installation of horizontal type filter, can reduce the time to replace the filter.
4. Spoiler installed at the air inlet let the dust particles to fall directly in to the dust container. This avoids to install an additional cyclone separator.
3. Easy installation of horizontal type filter, can reduce the time to replace the filter.
4. Spoiler installed at the air inlet let the dust particles to fall directly in to the dust container. This avoids to install an additional cyclone separator.
Technical Parameters
| Model | VN-4500 | VN-6500 | VN-8500 |
| Voltage(V/HZ) | 380 / 50 | ||
| Power(kW)/ (HP) | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 |
| Starting current (A) | 90 | 110 | 130 |
| Rated current(A) | 11 | 14.5 | 21.5 |
| Max air flow(m³/h)/ ( CFM ) | 4500 / 2650 | 6500 / 3825 | 8500 / 5000 |
| Max air pressure (Pa)/(mmH2O) | 4500 / 459 | 4500 / 459 | 4500 / 459 |
| Filter area(m²)/ ( sq.ft ) | 94 / 1012 | 141 / 1518 | 141 / 1518 |
| Dia. air inlet (mm) / (in) | Ø 250 / 10 | Ø 250 / 10 | Ø 300 / 12 |
| Noise dB (A) | 75±2 | 76±2 | 77±2 |
| Filter efficiency | 99% | ||
| Filter cleaning method | Pulse jet | ||
| Dimension [LxWxH] (mm) / (in) | 1290*1390*2285 / 50.8*54.7*90.0 | 1290*1390*2735 / 50.8*54.7*107.7 | 1495*1565*3060 / 58.9*61.7*120.5 |
| It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | |||
