Air Conditioning En779 F5, F6, F7 Honeycomb Carbon Air Filter
AdvantagesColumnar activated carbon granule with a special chemical formula treatment.High adsorption capacity, light in weight, easy to install. Material InstructionsMedia: Columnar activated carbon granular.Frame: ABS plastic.Temperature: Maximum 90°C in continuous service.ApplicationEspec......
Send Inquiry
Product Description
Advantages
Columnar activated carbon granule with a special chemical formula treatment.
High adsorption capacity, light in weight, easy to install.
Material Instructions
Media: Columnar activated carbon granular.
Frame: ABS plastic.
Temperature: Maximum 90°C in continuous service.
Application
Especially designed for central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air.
A variety of special activated carbon materials can be provided according to the actual needs, effectively absorb gases such as VOC, acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.

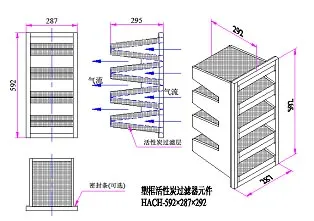

Structure Drawings
| Common Specifications | |||||||||||
| Model | Dimensions W×H×D (mm) | Structural Style | Removal Efficiency (%) | Carbon Content (kg) | Weight (kg) | Pressure Drop (Pa) @ Air Flow (m3/h) | |||||
| Honeycomb Type | Filled Type | Honeycomb Type | Filled Type | ||||||||
| HACH2412-4V | 592×287×292 | 4V ABS/GL Frame 25mm Header | 85~95 | 4.0 | 5.0 | 8.0~9.0 | 180@1800 | 230@1800 | |||
| HACH2424-4V | 592×592×292 | 8.5 | / | 16.5~17 | 180@3600 | 230@3600 | |||||
Note: HEFIL makes various of other models' HACH filter not listed in above table. Please consult with us if you need.

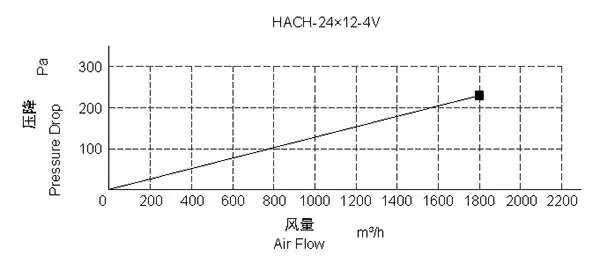

The Pressure Drop and Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
