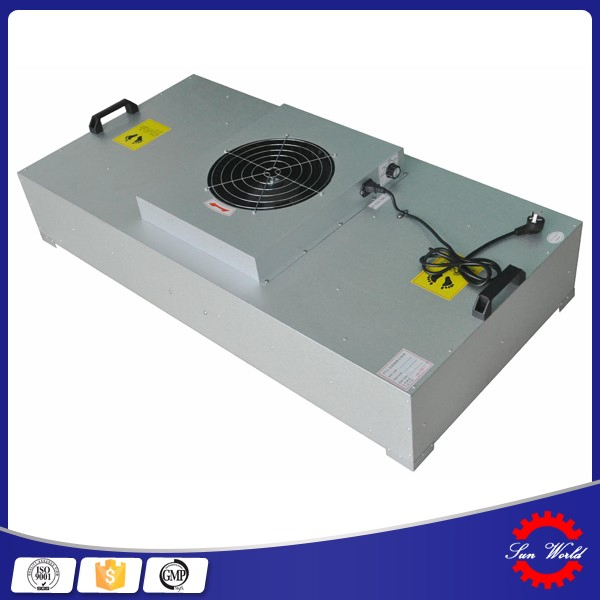

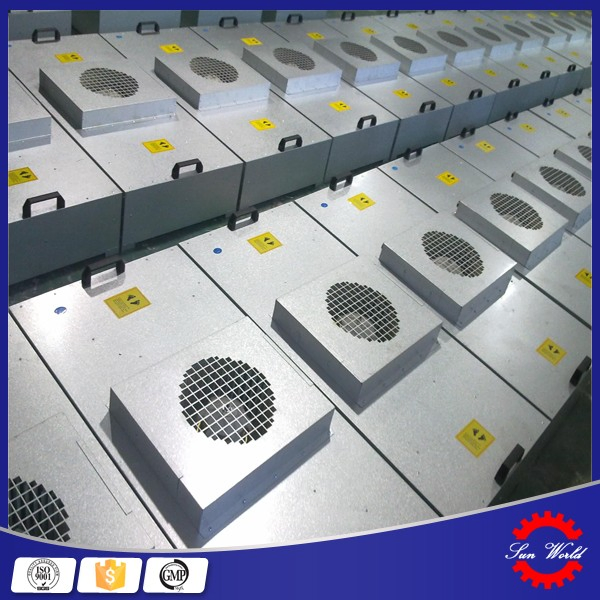

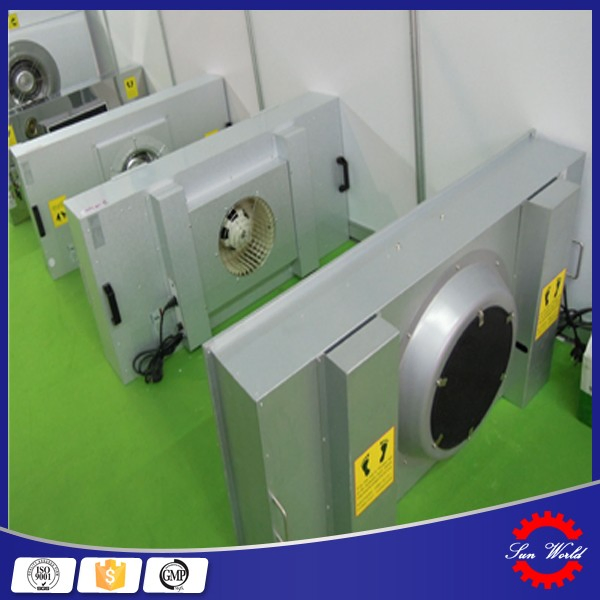

Clean Room Stainless Steel FFU with HEPA
Clean room HEPA ceiling ffu & fan filter unit A,Product InformationFFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s......
Send Inquiry
Product Description
Clean room HEPA ceiling ffu & fan filter unit
A,Product Information
FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s±20%.
B,Product Feature
Long-lift span, low noise, maintenance-free, small vibration, and adjustable speed, It can control thousand unit together.
C,Strict monitoring
It is tested according to the standard of ISO14644-1 before package.
D,Applications
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
OEM
Customized design is available.
Company information
Our Company is located in the beautiful seashore city, Qinhuangdao and is specialized in manufacturing pharmaceutical machinery and packing machinery. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in North American countries and France, the Netherlands, Australia, India, Pakistan, Russia and many other countries and regions. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
A,Product Information
FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s±20%.
B,Product Feature
Long-lift span, low noise, maintenance-free, small vibration, and adjustable speed, It can control thousand unit together.
C,Strict monitoring
It is tested according to the standard of ISO14644-1 before package.
D,Applications
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
OEM
Customized design is available.
| Model | FFU2*2 | FFU-2*4 | FFU-4*4 | |
| Module size(W x L x Hmm) | 615*615*250 | 1175*575*250 | 1175*1175*250 | |
| Air flow | 900 | 1000 | 1200 | |
| Average velocity(m/s) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | |
| Pressure(pa) | 97(10mmAq) | 97(10mmAq) | 97(10mmAq) | |
| Power(W) | 100 | 175 | 250 | |
| Weight(kg) | 27.5 | 34 | 45.5 | |
| Noise dB | 52 | 52 | 52 | |
| HEPA Filter | Size | 610*610*70 | 1170*570*70 | 1170*1170*70 |
| Efficiency | 99.99% @0.3μm | 99.99% @0.3μm | 99.99% @0.3μm | |
| Frame | High-quality aluminum | High-quality aluminum | High-quality aluminum | |
| Pressure | 180pa 0.45m/s | 180pa 0.45m/s | 180pa 0.45m/s | |
