F7 Medium Efficiency Skeleton Panel Air Filter for Clean Room and Hospital
F7 Medium Efficiency Skeleton Panel Air Filter for Clean Room and HospitalProduct show:Application:Mainly used for central air conditioning ventilation system intermediate filtration, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.Features:1.Low resistan......
Send Inquiry
Product Description
F7 Medium Efficiency Skeleton Panel Air Filter for Clean Room and Hospital

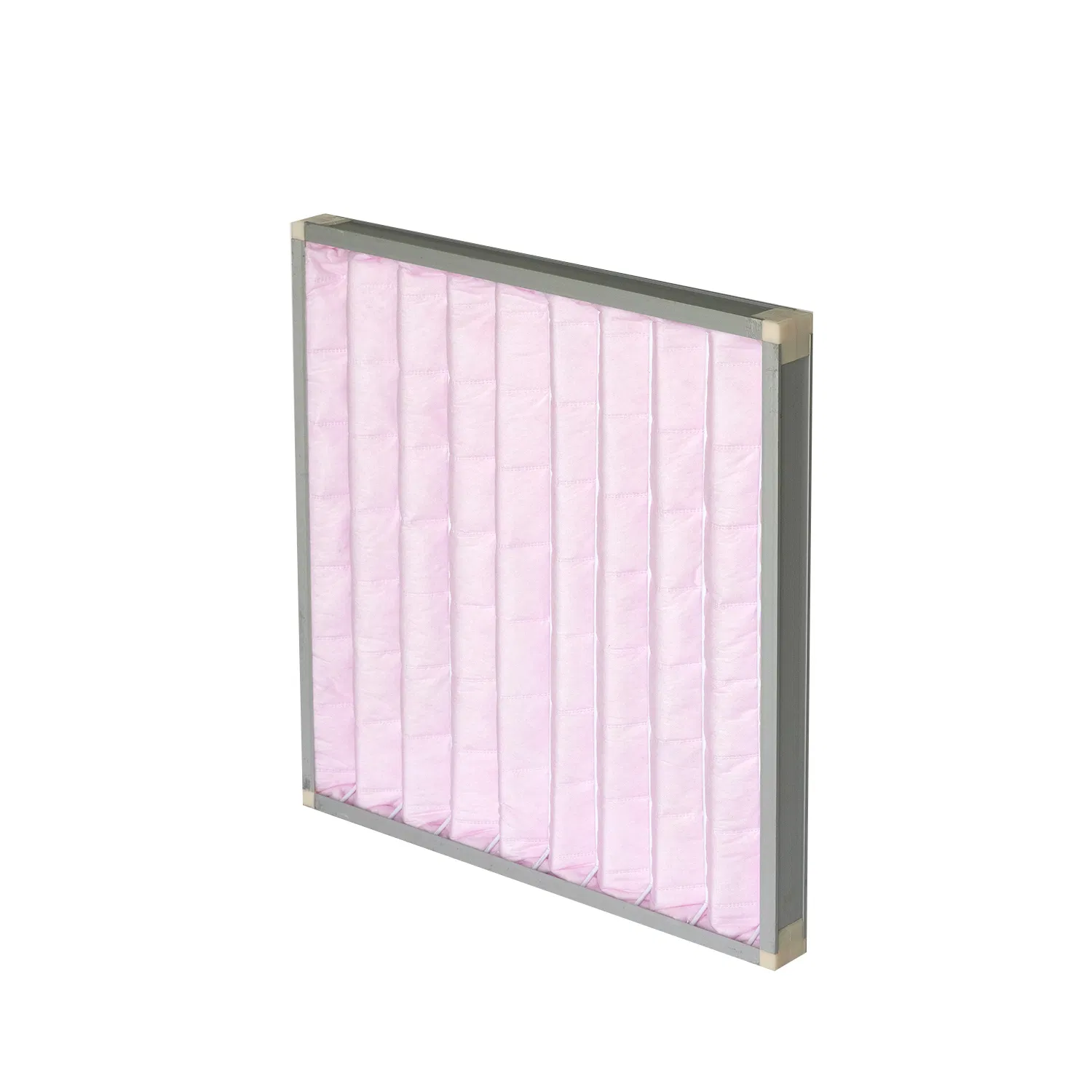

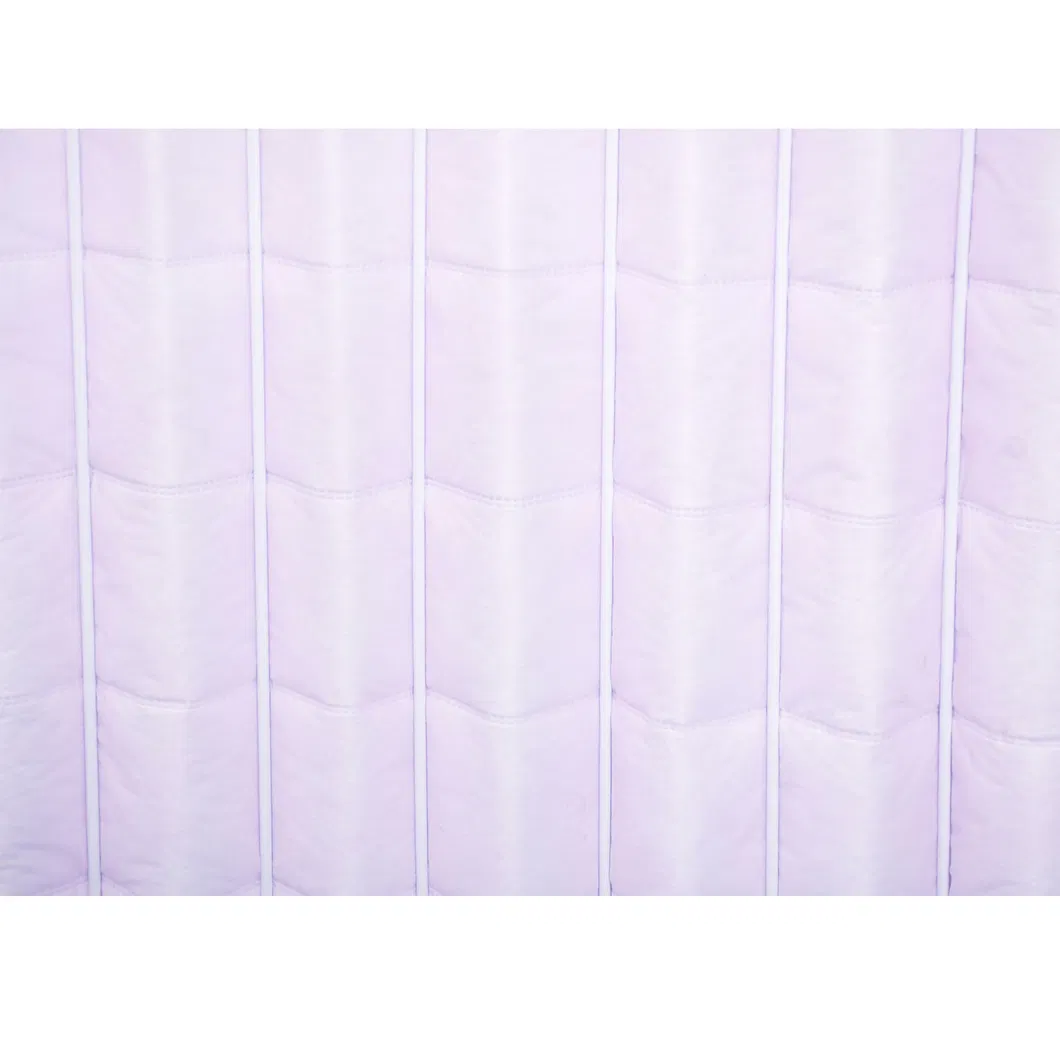

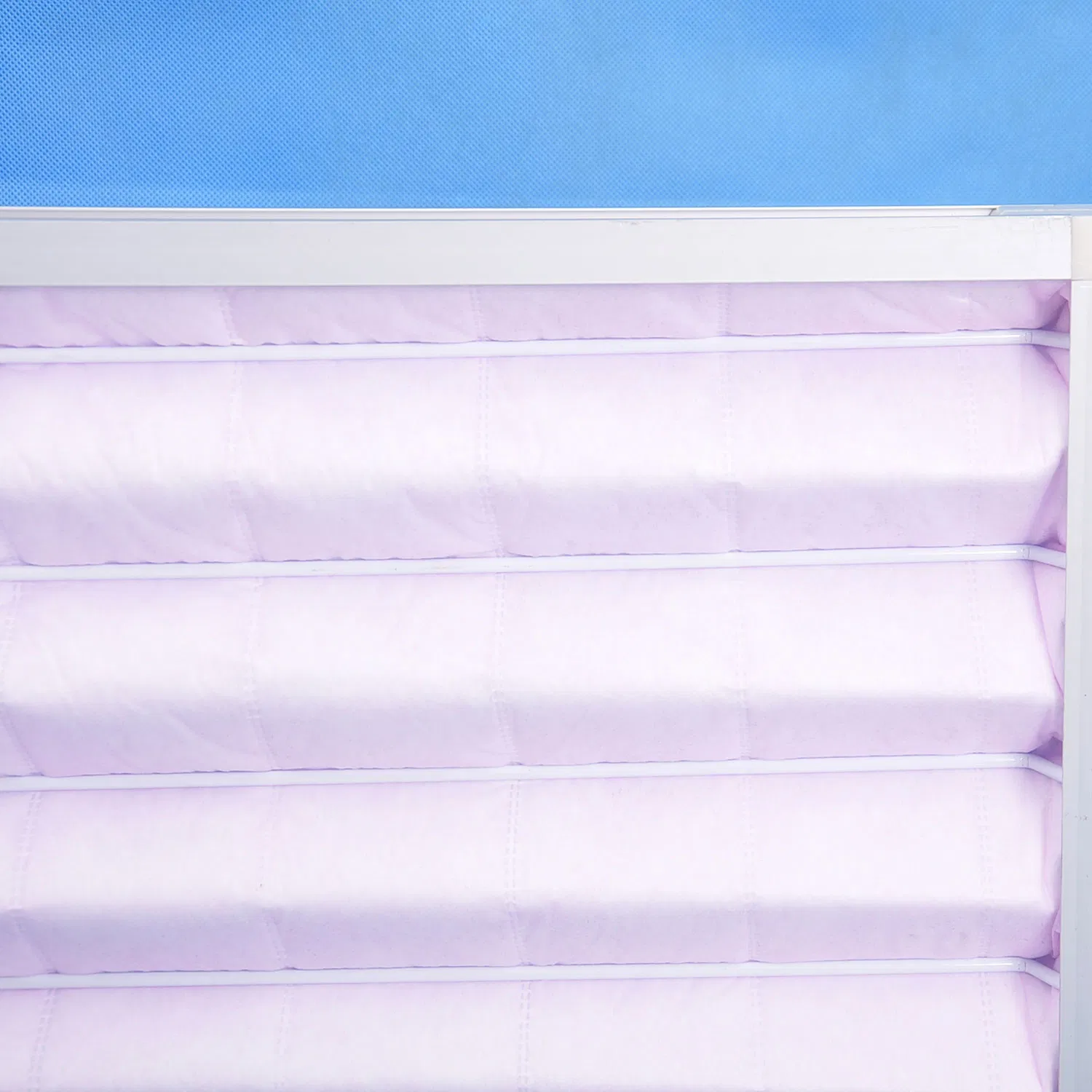

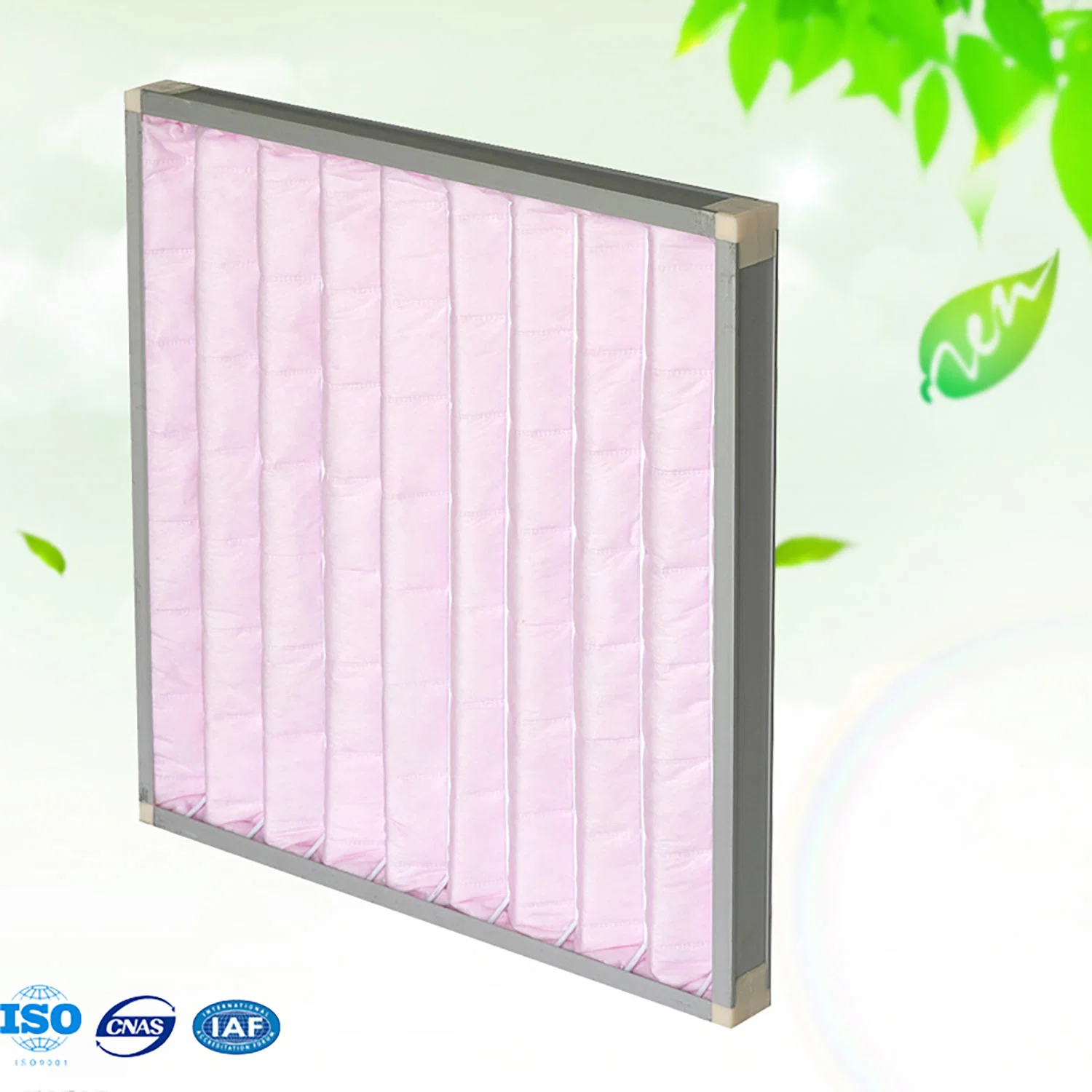

Product show:
Application:
Mainly used for central air conditioning ventilation system intermediate filtration, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.
Features:
Frame : Galvanized steel/Extruded Aluminum
Medium : Synthetic fiber
Skeleton: Galvanized steel, two layers' skeletons
Filter class:F5/F6/F7/F8/F9
Maximum final pressure drop :450pa
Maximum temperature :70ºC
Maximum relative humidity:90%
Specification size:
Tips: Customized according to customer specifications and requirements.

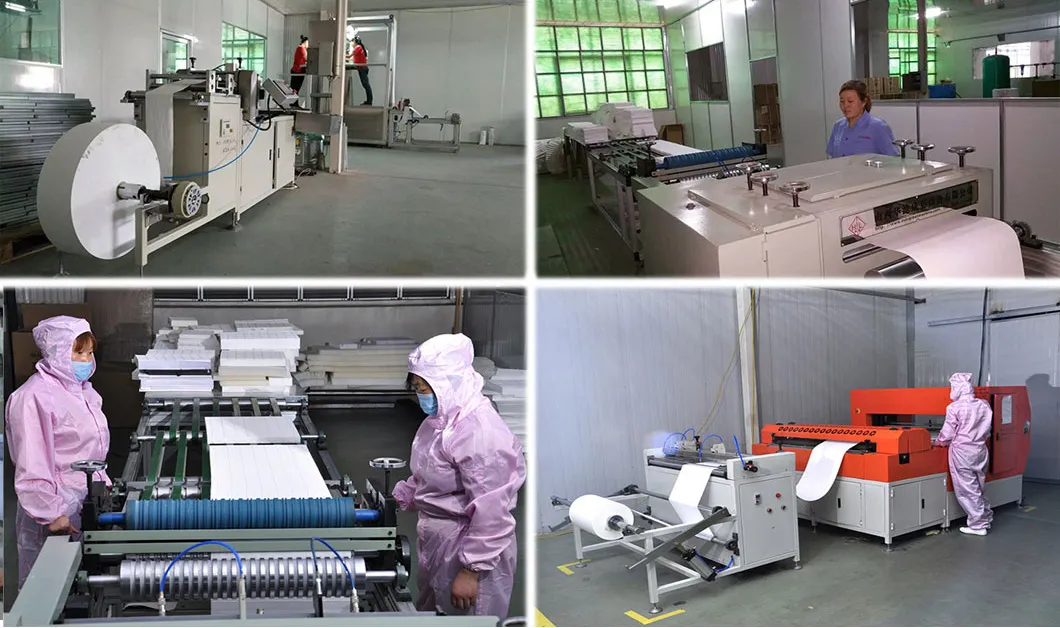

Our Workshop
Our Team
FAQ:
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
Product show:
Application:
Mainly used for central air conditioning ventilation system intermediate filtration, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.
Features:
1.Low resistance , large air flow
2.Long service life
3.Repeatable cleaning
Specification:2.Long service life
3.Repeatable cleaning
Frame : Galvanized steel/Extruded Aluminum
Medium : Synthetic fiber
Skeleton: Galvanized steel, two layers' skeletons
Filter class:F5/F6/F7/F8/F9
Maximum final pressure drop :450pa
Maximum temperature :70ºC
Maximum relative humidity:90%
Specification size:
| Efficiency Specification W*H*D(mm) | Rated Air Volume (m^3/h) | Initial Resistance (≤Pa) | Final Resistance (Pa) | Effective Filtration Area(m^2) | Filtration Efficiency |
| 592*592*46 | 630 | 50 | 250-300 | 0.97 | F5 |
| 592*592*46 | 630 | 65 | 250-300 | 0.97 | F6 |
| 592*592*46 | 630 | 80 | 300-400 | 0.97 | F7 |
| 592*592*46 | 630 | 105 | 300-400 | 0.97 | F8 |
| 592*592*46 | 630 | 120 | 400-450 | 0.97 | F9 |
| 287*592*46 | 330 | 50 | 250-300 | 0.52 | F5 |
| 287*592*46 | 330 | 65 | 250-300 | 0.52 | F6 |
| 287*592*46 | 330 | 80 | 300-400 | 0.52 | F7 |
| 287*592*46 | 330 | 105 | 300-400 | 0.52 | F8 |
Our Workshop
Our Team
FAQ:
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
