FFU with High Efficiency 99.99% HEPA Filter
ProductFFU is a high clean instrument for clean room, especially for semiconductor, LCD industry. It is installed on the ceiling and it matches for the requirement of big quantity in the clean room. Customized design is available.FFU is short for Fan Filter Unit, which is a kind of air supply devic......
Send Inquiry
Product Description
Product
FFU is a high clean instrument for clean room, especially for semiconductor, LCD industry. It is installed on the ceiling and it matches for the requirement of big quantity in the clean room. Customized design is available.

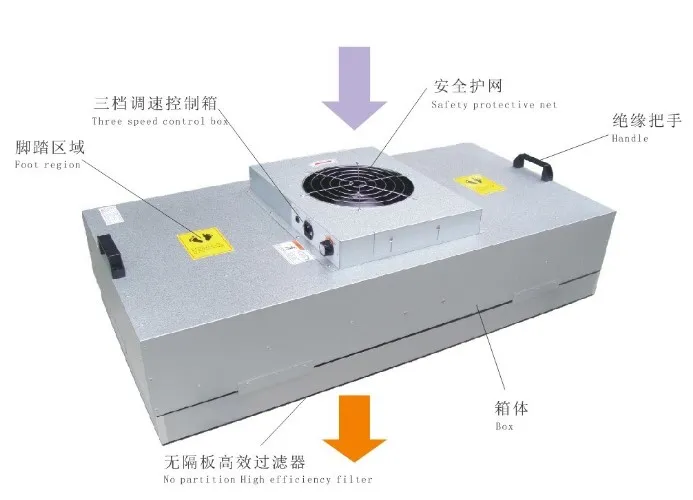

FFU is short for Fan Filter Unit, which is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.
FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25%to100% cover rate), general dimension is 2'*4' or 4'*4'.
Application: Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.
1. Nice appearance, human centered design
Add Stainless handle, easy installation and delivery, perpendicular design;
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
4. Flexible, diversified design
Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair;
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ± 10%
Features:
These filter modules were developed to meet industry requirements For large cleanrooms with individually conducted modules. Each unit is Entirely factory-sealed, with all metal to metal joints bonded to Prevent leakage. The low profile housing and light weight of the modules Make for easy installation. The modules are typically installed in heavy Duty ceiling grids, suspended from the building structure. Housings with Four suspension points for attachment of hangers are standard for gasket Seal applications. They are available with custom efficiencies ranging up To 99.9995% on 0.3 micron size particles and come in a variety of sizes, Offering flexibility for any installation.
FAQ
Q1: What's the MOQ?
A1: Our MOQ is 10 pieces.
Q2: Can I make other different size?
A2: Yes, custom size is available
Q3:Can you send samples?
A3: Yes, we can send you sample free of charge, but the freight should be on your account.
Q4: What' s the payment terms can you accept?
A4: T/T, L/C, Western Union,Paypal.
Q5: How about the shipment?
A5: By sea.
Q6: How long is the lead time?
A6: About 3-10 days.
Q7: Are you a factory or trading company?
A7: We are a professional factory, specialized in manufacturing colored steel sandwich boards and air filters only.
Q8:Can we visit your factory?
A8:Surely you can. If you could inform us your air flight no, we can pick you up at Baiyun airport of Guangzhou.
Contact us
Contact Person: serena
Mobile: 0086-18588505850
Tel: +0086-20-61189702
Guangzhou Xincheng Purifying Equipment Co., Limited
FFU is a high clean instrument for clean room, especially for semiconductor, LCD industry. It is installed on the ceiling and it matches for the requirement of big quantity in the clean room. Customized design is available.
FFU is short for Fan Filter Unit, which is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.
FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25%to100% cover rate), general dimension is 2'*4' or 4'*4'.
Application: Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.
1. Nice appearance, human centered design
Add Stainless handle, easy installation and delivery, perpendicular design;
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
4. Flexible, diversified design
Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair;
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ± 10%
Features:
These filter modules were developed to meet industry requirements For large cleanrooms with individually conducted modules. Each unit is Entirely factory-sealed, with all metal to metal joints bonded to Prevent leakage. The low profile housing and light weight of the modules Make for easy installation. The modules are typically installed in heavy Duty ceiling grids, suspended from the building structure. Housings with Four suspension points for attachment of hangers are standard for gasket Seal applications. They are available with custom efficiencies ranging up To 99.9995% on 0.3 micron size particles and come in a variety of sizes, Offering flexibility for any installation.
| Model | JJ-4x2 | JJ-4x4 | JJ-2x2 | |||
| Dimension | mm | 1175*575*250 | 1175*1175*350 | 575*575*250 | ||
| Air flow | M 3 /h | 1400 | 2350 | 800 | ||
| External static pressure | Pa | 98 | 98 | 98 | ||
| Main body | - | Standard | Cold rolled steel plate with powder coated | |||
| option | Stainless steel(SUS304) Galvanized steel | |||||
| Power supply | Standard | V/Hz | 220V 50/60Hz | |||
| Option | V/Hz | Pls contact us if you have any other requirement about the power. | ||||
| Filter | Efficiency | - | HEPA Over 99.99% @ 0.3um | |||
| - | ULPA Over 99.9995% @ 0.1um | |||||
| Frame | - | Aluminum | ||||
| Power dissipation | W | 120 | 245 | 90 | ||
| Weight | Kg | 25 | 45 | 15 | ||
| Shock | m/s 2 | ≤0.4 | ≤1.1 | ≤0.4 | ||
| Noise | Db(a) | ≤55 | ≤55 | ≤55 | ||
| Option | - | Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter | ||||
FAQ
Q1: What's the MOQ?
A1: Our MOQ is 10 pieces.
Q2: Can I make other different size?
A2: Yes, custom size is available
Q3:Can you send samples?
A3: Yes, we can send you sample free of charge, but the freight should be on your account.
Q4: What' s the payment terms can you accept?
A4: T/T, L/C, Western Union,Paypal.
Q5: How about the shipment?
A5: By sea.
Q6: How long is the lead time?
A6: About 3-10 days.
Q7: Are you a factory or trading company?
A7: We are a professional factory, specialized in manufacturing colored steel sandwich boards and air filters only.
Q8:Can we visit your factory?
A8:Surely you can. If you could inform us your air flight no, we can pick you up at Baiyun airport of Guangzhou.
Contact us
Contact Person: serena
Mobile: 0086-18588505850
Tel: +0086-20-61189702
Guangzhou Xincheng Purifying Equipment Co., Limited
