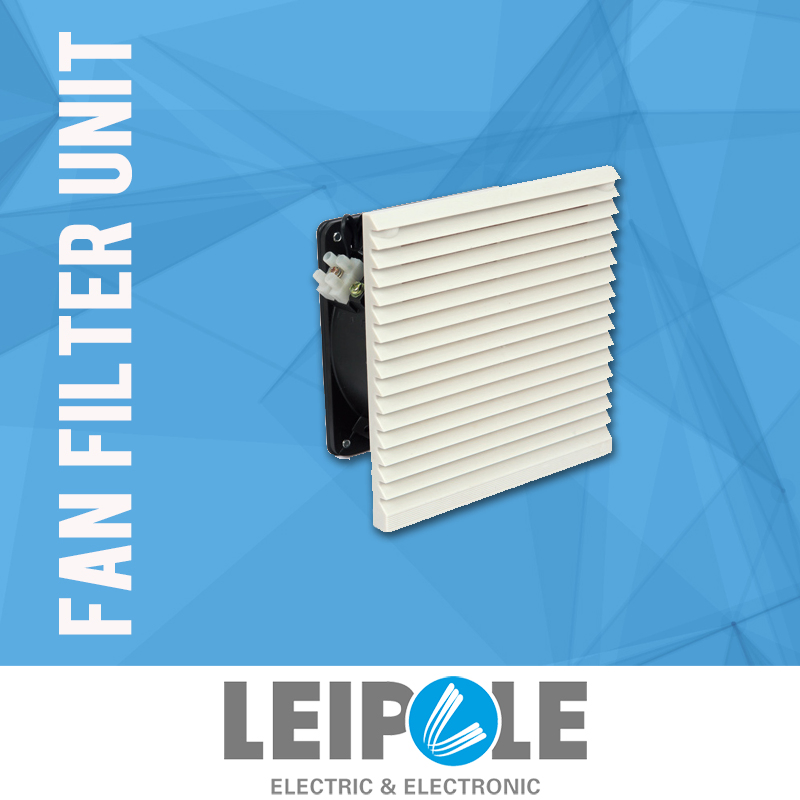

Fkl6622 Cabinet Enclosure Panel Ventilator Axial Fan Filter
ModelFKL6622.230FKL6622.115FKL6622.024Standard fanF2E-120S-230F2E-120S-115SP-1203824HRated voltage(V/Hz)230/50/60115/50/6024(DC)Air flow,free blowing55/66 m³/hAir flow with export filters1 X FKL 6622.300:43/50m³/h1 X FKL 6622.300:48/55m³/hAxial fanautomatically shield pole......
Send Inquiry
Product Description
| Model | FKL6622.230 | FKL6622.115 | FKL6622.024 |
| Standard fan | F2E-120S-230 | F2E-120S-115 | SP-1203824H |
| Rated voltage(V/Hz) | 230/50/60 | 115/50/60 | 24(DC) |
| Air flow,free blowing | 55/66 m³/h | ||
| Air flow with export filters | 1 X FKL 6622.300:43/50m³/h | ||
| 1 X FKL 6622.300:48/55m³/h | |||
| Axial fan | automatically shield pole motor | DC Motor | |
| Rated current(A) | 0.12 | 0.24 | 0.30 |
| 0.10 | 0.23 | ||
| Power(W) | 19/14 | 18/15 | 3.5 |
| Noise level(dB) | 43/50 | ||
| operating temperature range | -10°C to +55°C | ||
| Exit filter | FKL6622.300 | ||
| Special voltages available on request/Technical modifications reserved | |||
| Colour | Model | Order No | |
| RAL7035 | FKL6622.230 | 2013.026 | |
| FKL6622.115 | 2013.027 | ||
| FKL6622.024 | 2013.028 | ||
| FKL6622.300 | 2013.029 | ||
| RAL7032 | FKL6622.230 | 2013.005 | |
| FKL6622.115 | 2013.006 | ||
| FKL6622.024 | 2013.007 | ||
| FKL6622.300 | 2013.008 | ||
A: LEIPOLE is a leading manufacture produce terminal blocks, fan filters, thermostats, heaters, and transformer. It also provides other panel accessories such as cabinet lighting, bus bar system, distribution boxes and cable glands to meet various customers from different industry fields.
How can we ensure product quality from Leipole?
A: LEIPOLE believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality. We also provide 12 months warranty into operation.
Where can we buy Leipole products?
A: LEIPOLE has been building its sales network throughout the world. You can buy from your local distributors from our 11 partners in different countries and regions. For those clients who are unable to buy in their local, we can provide direct sales from our office in China or nearest distributor.
I am interested in becoming a distributor of Leipole Electric, how can I apply?
A: LEIPOLE welcomes every potential customers to work together in the future, please apply for the distributor by sending email to us.
