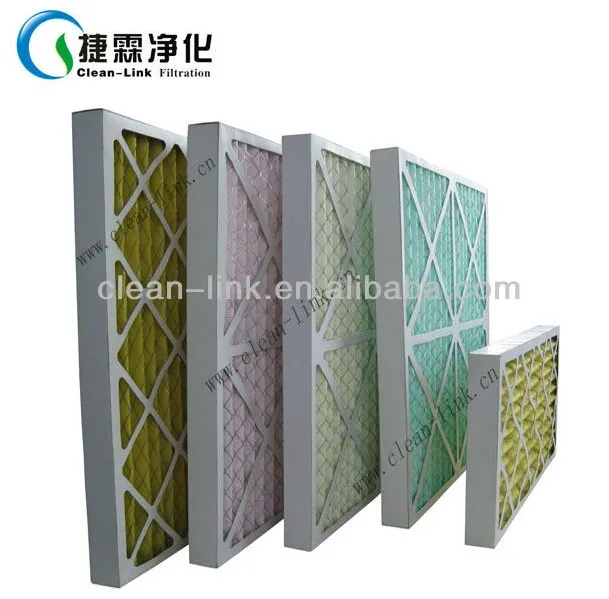

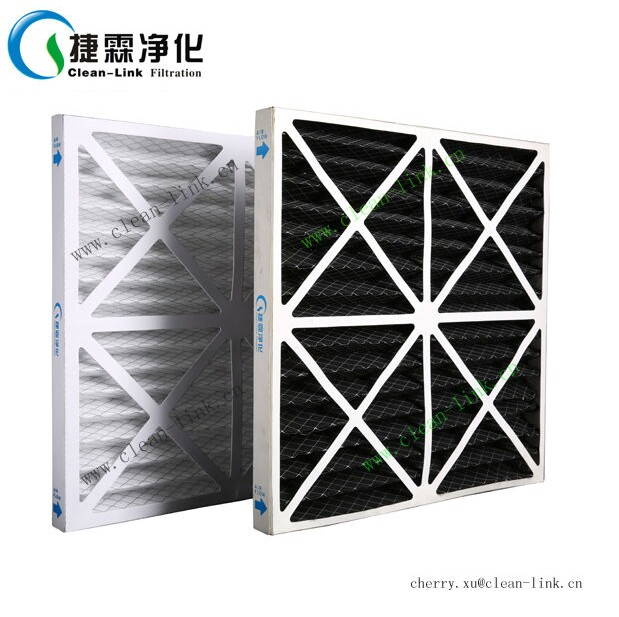

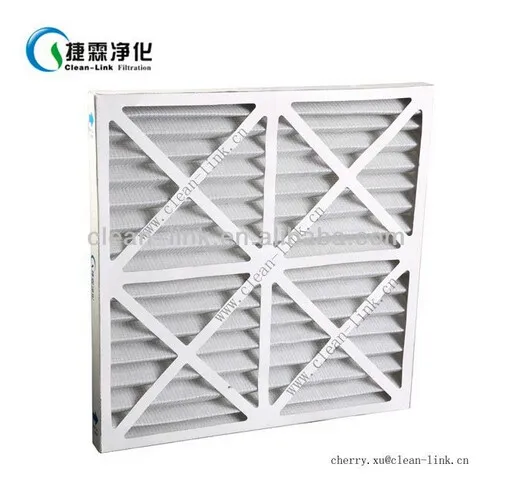

Foldaway Paper Frame Filter, Air Filter with Cardboard
Product DescriptionSpeciality: 1)The filtration material is made from non-woven fabrics, and the synthetic fiber; 2)The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times filtration area......
Send Inquiry
Product Description
Product Description
Speciality:
1)The filtration material is made from non-woven fabrics, and the synthetic fiber;
2)The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace.
3)The moisture-proof 100%;
4)Heat resistance 80º C
5)Filter class: F8
Using:
Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.
Remark:
Different size can be customsized
| Normal size | Size W*H*D(mm) | Rated air flow(m³/h) | ||
| 1.5m/s | 2.5m/s | 3.0m/s | ||
| 24*24*1 | 595*595*22 | 2040 | 3400 | - |
| 20*24*1 | 495*595*22 | 1785 | 2975 | - |
| 20*20*1 | 495*495*22 | 1445 | 2380 | - |
| 16*24*1 | 395*595*22 | 1350 | 2200 | - |
| 24*24*2 | 595*595*44 | 2040 | 3400 | 4250 |
| 20*24*2 | 495*595*44 | 1700 | 2805 | 3570 |
| 20*20*2 | 495*495*44 | 1445 | 2380 | 2975 |
| 16*24*2 | 390*595*44 | 1445 | 2380 | 2675 |
| 16*20*2 | 390*495*44 | 1105 | 1870 | 2380 |
| 16*24*2 | 287*595*44 | 1020 | 1700 | 2125 |
| 24*24*4 | 595*595*90 | 2040 | 3400 | 4250 |
| 20*20*4 | 495*495*90 | 1455 | 2380 | 2975 |
| 12*24*4 | 287*595*90 | 1020 | 1700 | 2125 |
