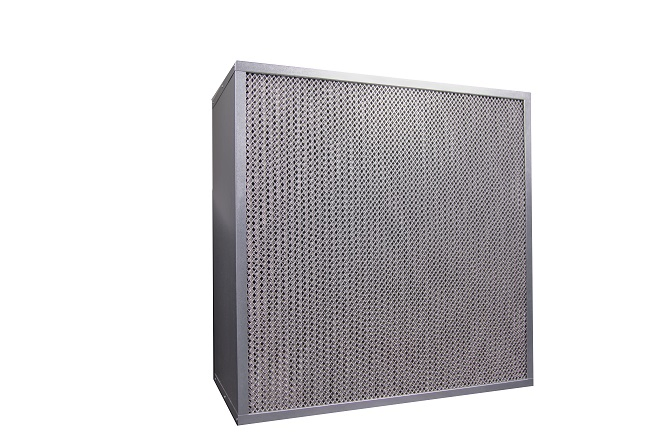

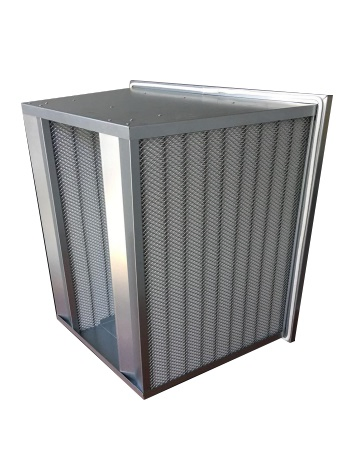

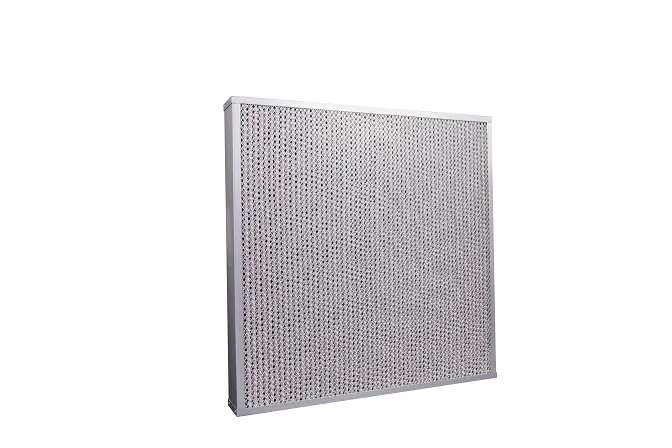

H11 , H12, H13, H14 Aluminum Separator Air Filter for Commercial Building HVAC System, Surface Treatment, Air Purifier and Operating Room
Feature and applications:Various filter areas and temperature options to meet with different air volume and temperature conditions for use. Applicable for intermediate and high filtration of pharmacy,electronic,food and common air-conditioning ventilation system.Materials and operating conditions:Fr......
Send Inquiry
Product Description

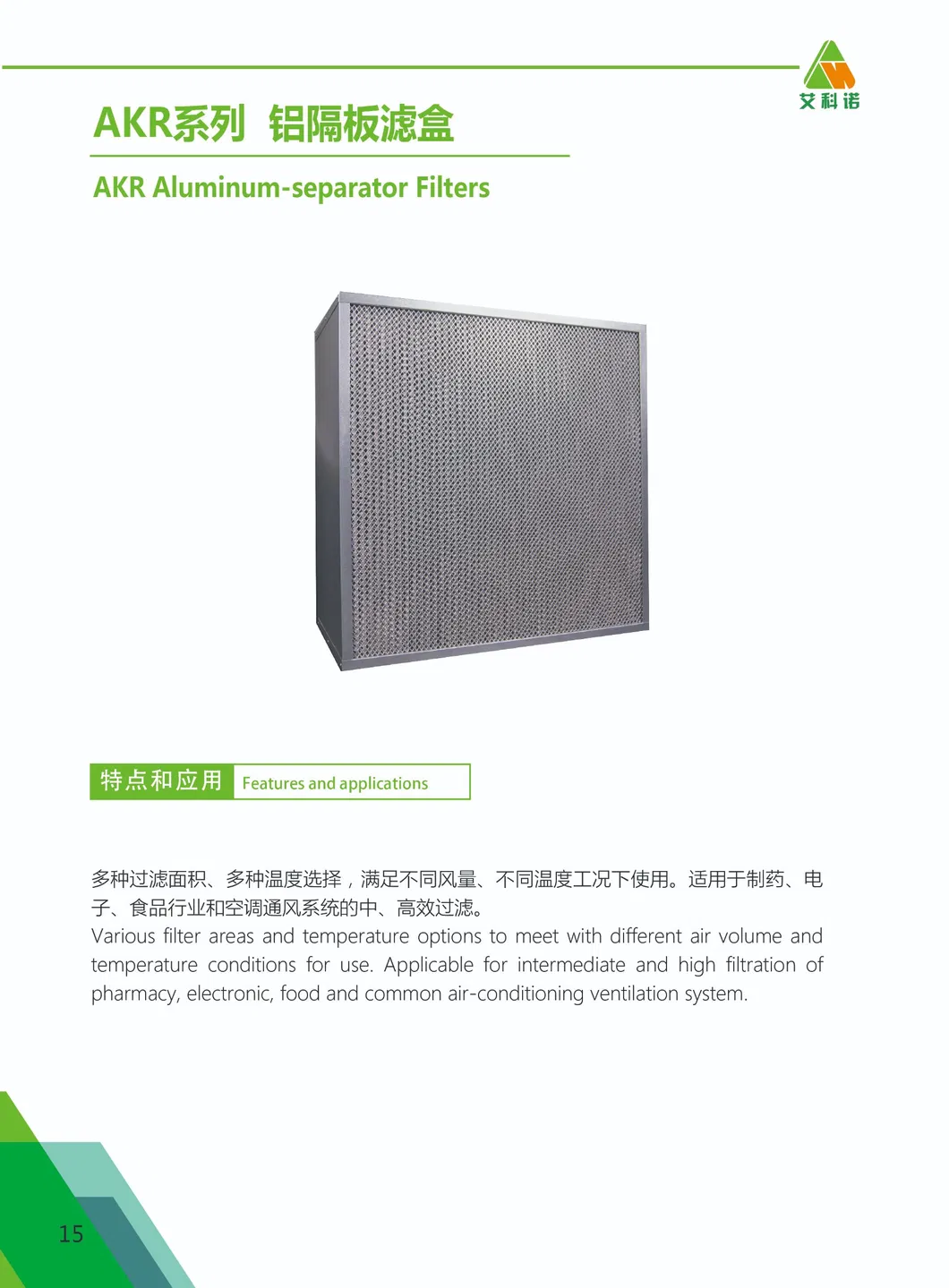

Feature and applications:
Various filter areas and temperature options to meet with different air volume and temperature conditions for use. Applicable for intermediate and high filtration of pharmacy,electronic,food and common air-conditioning ventilation system.
Materials and operating conditions:
Frame material : Galvanized sheet; stainless steel; MDF; Anodized aluminum;
Medium: Micro glassfiber;
Max.working temperature : 80ºC ,180ºC, 250ºC, 300ºC, 450ºC;
Max.working Rel.Humidity: 100%
Standard specifications:
Other sizes can be made;
Recommended final resistance: 250Pa(Medium) ,450Pa(HEPA);
Aluminum separators must be in the vertical direction when operation or shipment.
Various filter areas and temperature options to meet with different air volume and temperature conditions for use. Applicable for intermediate and high filtration of pharmacy,electronic,food and common air-conditioning ventilation system.
Materials and operating conditions:
Frame material : Galvanized sheet; stainless steel; MDF; Anodized aluminum;
Medium: Micro glassfiber;
Max.working temperature : 80ºC ,180ºC, 250ºC, 300ºC, 450ºC;
Max.working Rel.Humidity: 100%

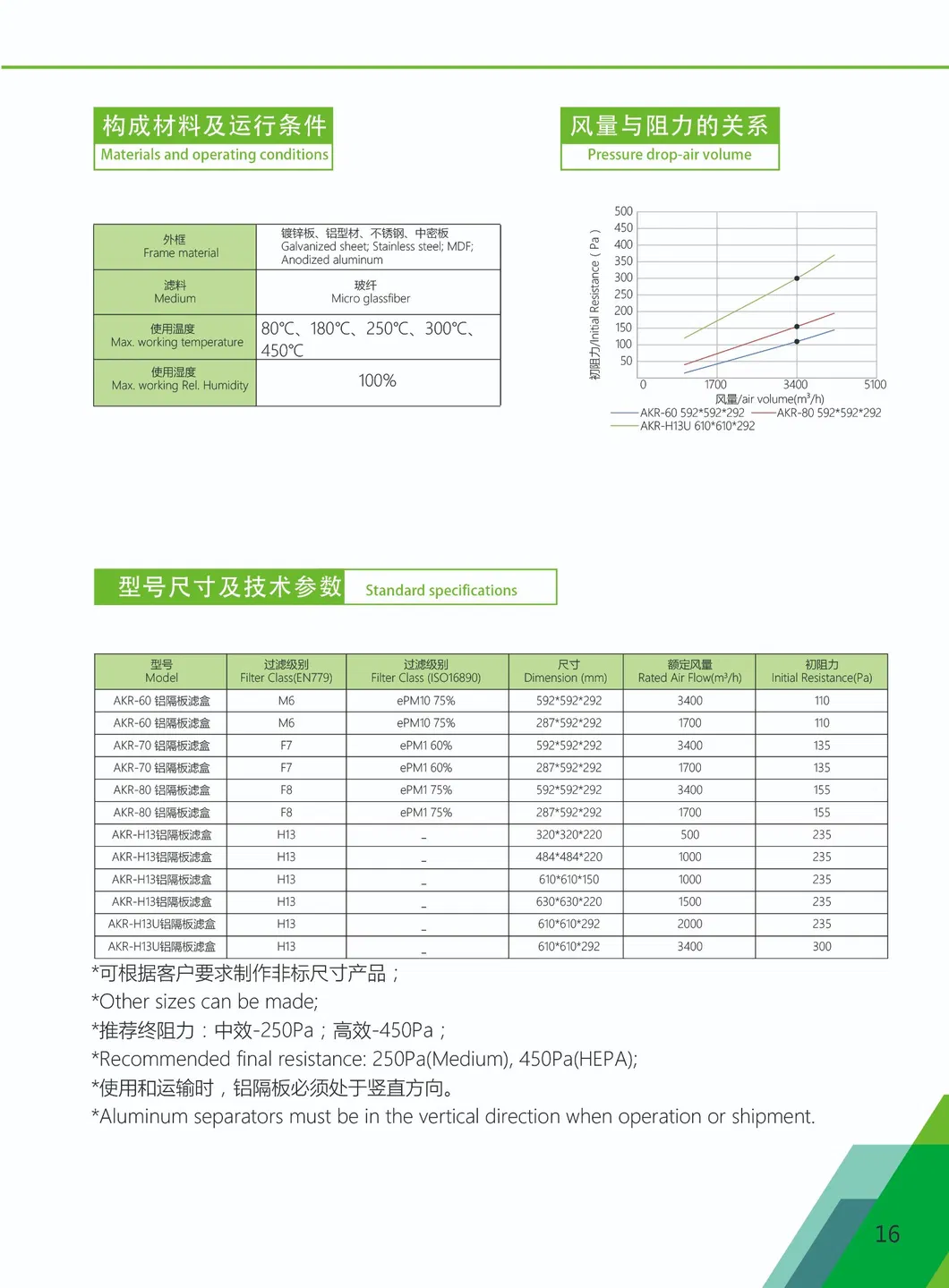

Standard specifications:
| Model | Filter Class (EN779) | Filter Class (ISO16890) | Dimension (mm) | Rated Air Flow (m3/h) | Initial Resistance (Pa) |
| AKR-60 | M6 | ePM10 75% | 592*592*292 | 3400 | 110 |
| AKR-60 | M6 | ePM10 75% | 287*592*292 | 1700 | 110 |
| AKR-70 | F7 | ePM10 60% | 592*592*292 | 3400 | 135 |
| AKR-70 | F7 | ePM10 60% | 287*592*292 | 1700 | 135 |
| AKR-80 | F8 | ePM10 75% | 592*592*292 | 3400 | 155 |
| AKR-80 | F8 | ePM10 75% | 287*592*292 | 1700 | 155 |
| AKR-H13 | H13 | - | 320*320*220 | 500 | 235 |
| AKR-H13 | H13 | - | 484*484*220 | 1000 | 235 |
| AKR-H13 | H13 | - | 610*610*150 | 1000 | 235 |
| AKR-H13 | H13 | - | 630*630*220 | 1500 | 235 |
| AKR-H13U | H13 | - | 610*610*292 | 2000 | 235 |
| AKR-H13U | H13 | - | 610*610*292 | 3400 | 300 |
Other sizes can be made;
Recommended final resistance: 250Pa(Medium) ,450Pa(HEPA);
Aluminum separators must be in the vertical direction when operation or shipment.
