Product Description

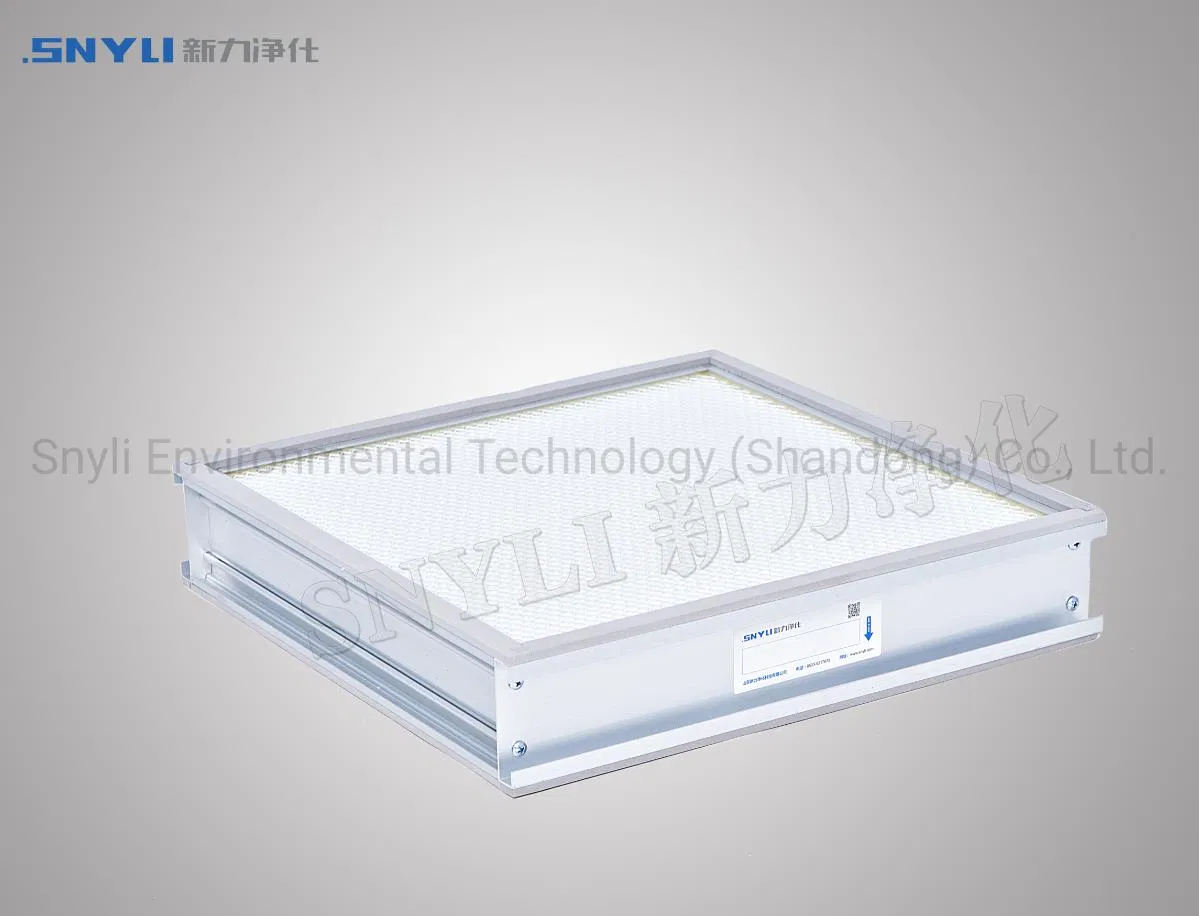

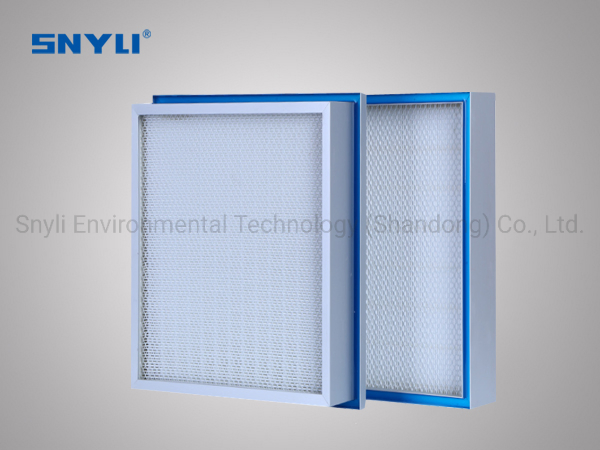

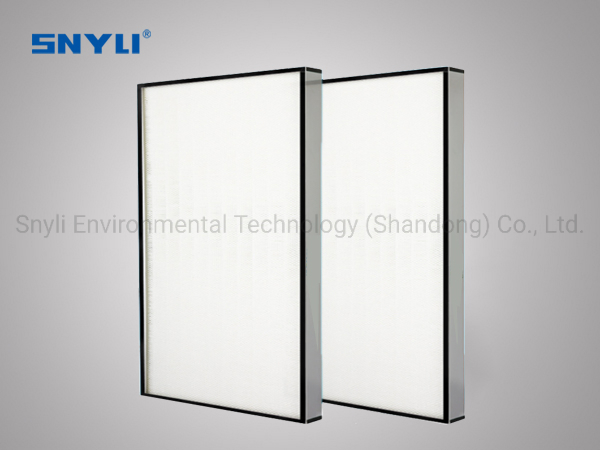

Mini pleat standard capacity HEPA filter (H10-H14)

PRODUCT INTRODUCTION

Application: Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow devices,and other clean room equipments.

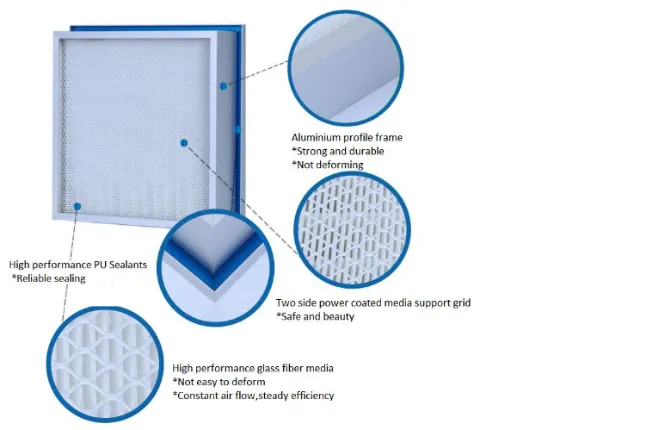

Frame: Anodized aluminum profile
Media: Ultra fine glass fiber
Media guard:Aluminium mesh/Painting fished expanded mesh
Fiber class according to EN1822:2009 : H12-H14
Fiber class according to ASHRAE 52.2-2007:MERV17-MERV19
Efficiency: 99.999%,99.995%,99.99% at 0.3μm
(DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available

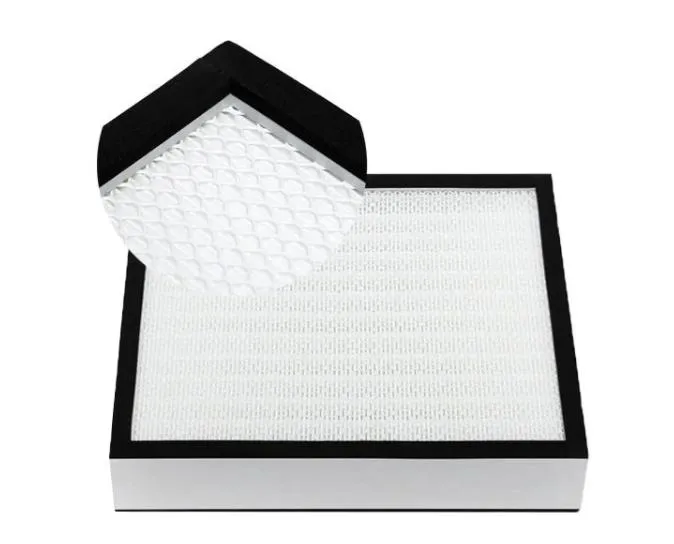

H12 H13 H14 Mini-Pleated HEPA Air Filter for Pharmaceutical / Semiconductor Cleanroom

ADVANTAGES

* Mini pleat design ensures low resistance to airflow
* Seamless sealing technology
* Uniform air flow, high efficiency,low resistance
* Anti-aging technology,long service life

H12 H13 H14 Mini-Pleated HEPA Air Filter for Pharmaceutical / Semiconductor Cleanroom

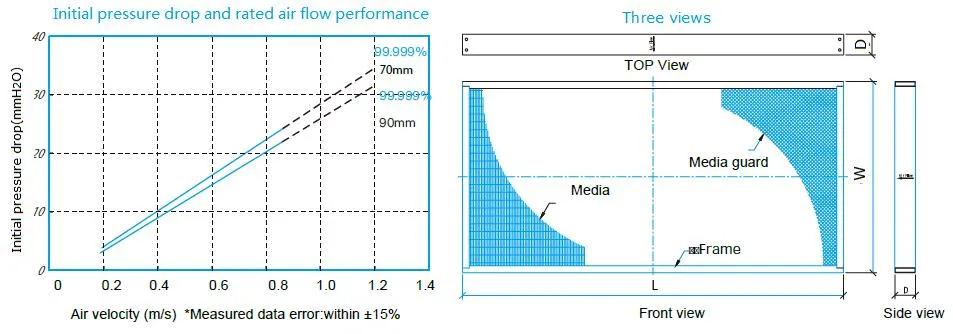

COMMON DIMENSIONS

Model	Nominal size	Actual size W×H×D(mm)	Air flow (m³/h)	Initial pressure drop(Pa)	Final pressure drop(Pa)
H4MS48448470	20×20×3	484×484×70	630	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
H4MS63063070	25×25×3	630×630×70	1100	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
H4MS570117070	23×47×3	570×1170×70	1000	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
H4MS1170117070	47×47×3	1170×1170×70	2100	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
H4MS48448490	20×20×4	484×484×90	630	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
H4MS63063090	25×25×4	630×630×90	1100	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
H4MS570117090	23×70×4	570×1170×90	1000	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance
H4MS1170117090	70×70×4	1170×1170×90	2100	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance

_{^{Company introduction:}}

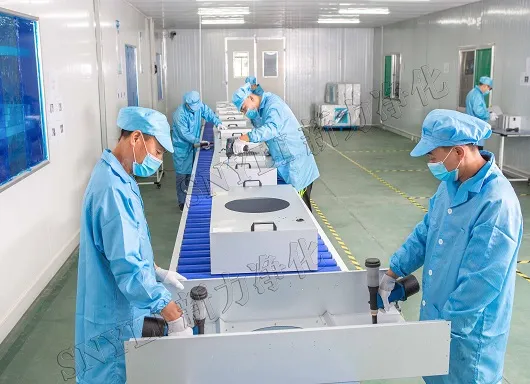

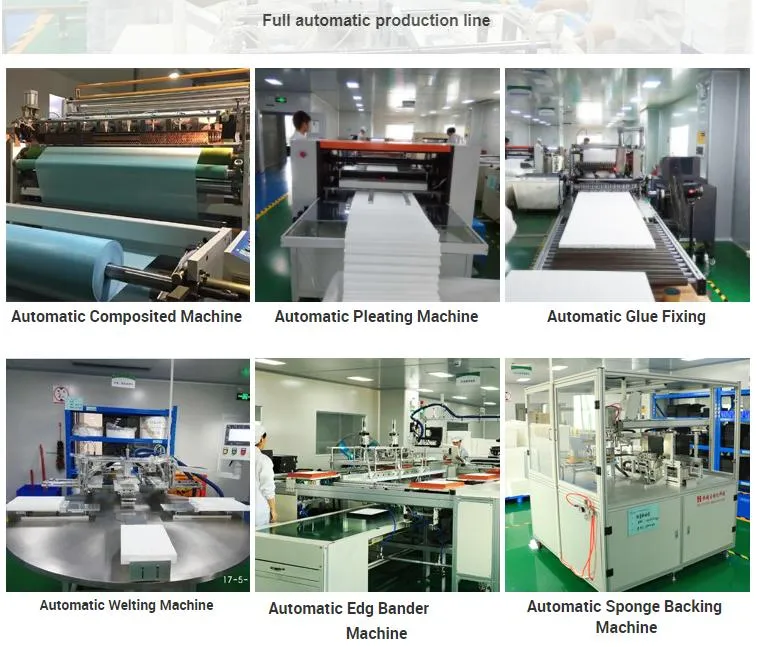

Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
The main products are primary, middle and high-efficiency air filters, FFU, air supply, winding filter, laminar flow hood, air shower, etc., product applications involve semiconductor, electronics, biology, medicine, clean room, textile, food and coating industries, and are committed to the overall clean room solution.

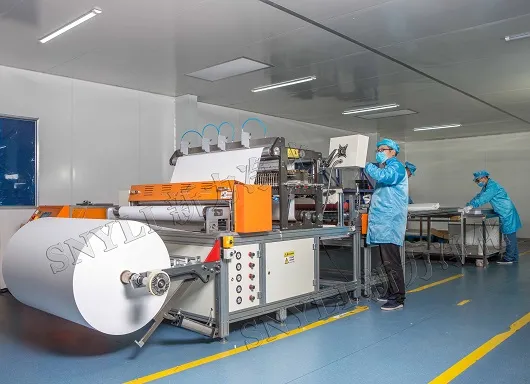

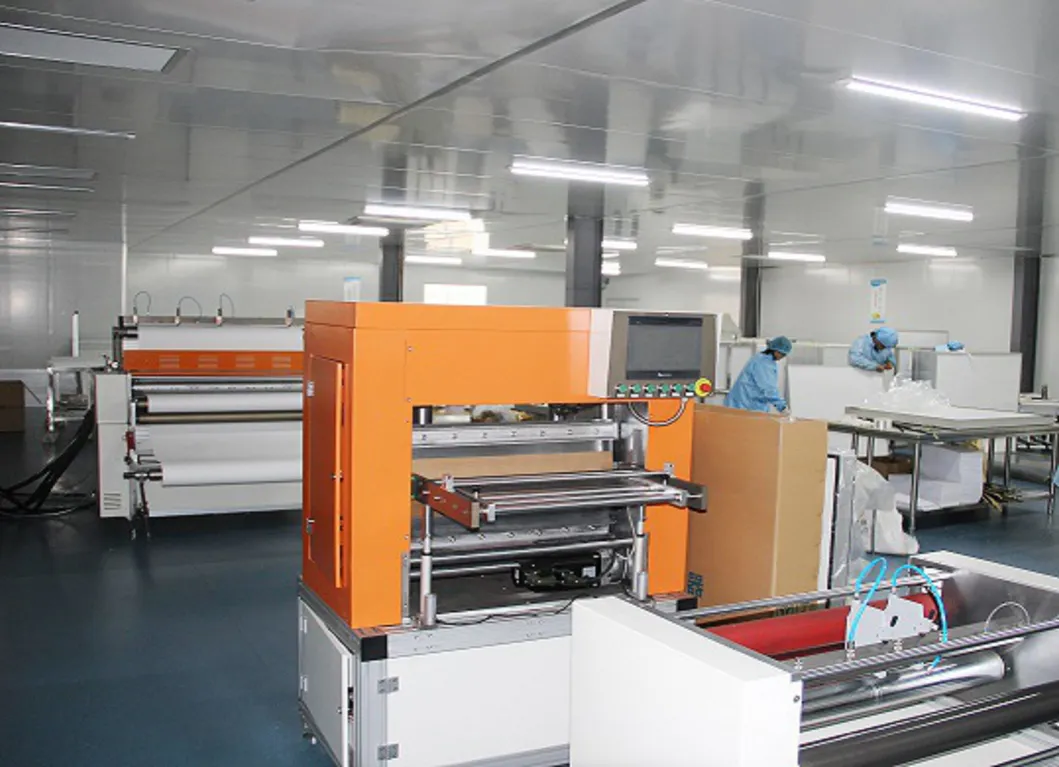

Snyli has the most advanced automatic laser scanning leak detector, and has established a filter comprehensive performance test bench in line with European standard EN779 / EN1822 to ensure the performance test of all filter products.
Close cooperation and continuous development of new products through technological improvements and upgrades, has now developed into a famous professional
manufacturer in the northern region China, and has grown into a well-known brand in the air purification industry.
_^FAQ
Q1.Are you a manufacture or trading company?
A:We are a manufacure.
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.

Q2: Where are air filters commonly used?
A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.

Q3: What are your testing criteria?
A: EN779:2012 ISO9001

Q4: What is the international standard for air filters?
Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17)
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
