Product Description

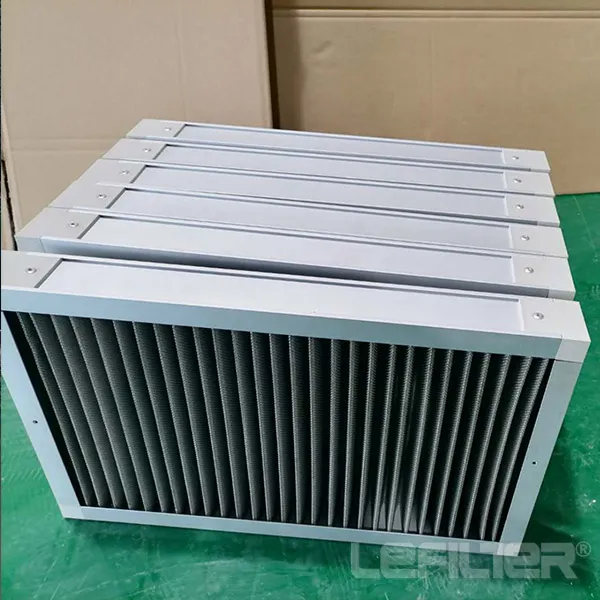

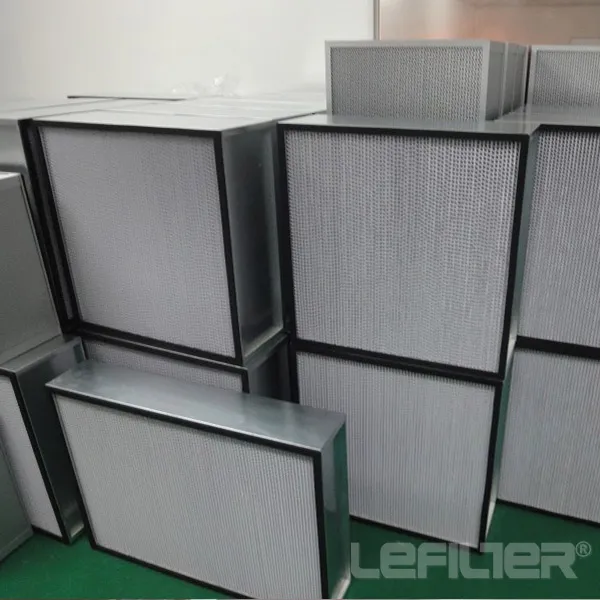

High Efficiency Filter with Baffle
Product Features
- Filter efficiency grade F8-H14 is available
- H13-the filtration efficiency of the particle with or greater than 0.3µm is above 99.99%
- H10-the filtration efficiency of the particle with or greater than 0.5µm is over 95%
- F8-the filtration efficiency of the particle with or greater than 1.0µm is over 80%
- Special glass fiber filter paper featuring high efficiency, low resistance, large dust holding capacity, uniform wind speed is selected as filter material

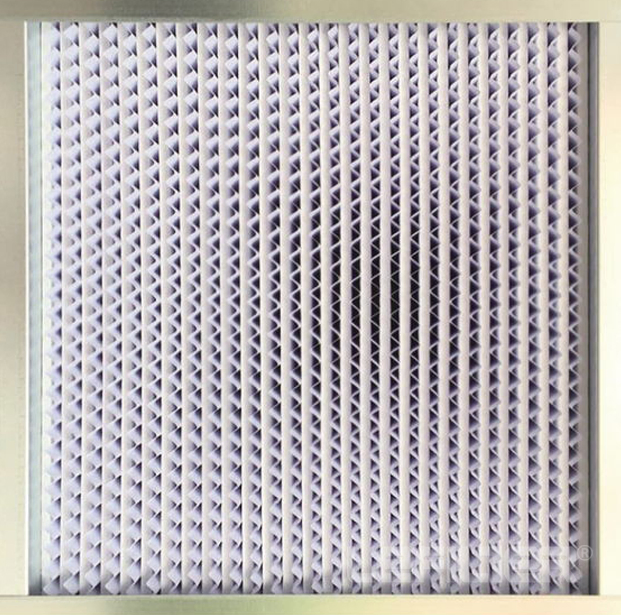

- Separated by special aluminum foil or paper spacer
- It can be equipped with double-sided protection net to protect filter material with good strength
Applicable Conditions
- Highest temperature-80ºC
- Maximum humidity-80%
Product Application
- It is used for the purification of ambient air under normal temperature, constant humidity and atmospheric pressure in the field of high cleanliness of electronic, chemical industry, bio-pharmaceutical industry and hospital
Model of the HEPA Air Filter with Baffle
Outline Dimension | Filtering Area (m²) | Nominal Air Delivery (m³/h) | Initial Pressure Drop (Pa) | |||||
W×H×D (mm) | Standard | High Air Volume | Standard | High Air Volume | F8 | H10 | H13 | H14 |
230*230*110 | 0.8 | 1.4 | 110 | 180 | ≤110
| ≤180
| ≤220
| ≤250
|
320*320*220 | 4.1 | 6.1 | 500 | 525 | ||||
484*484*220 | 9.6 | 14.4 | 1000 | 1500 | ||||
315*630*220 | 8.1 | 12.1 | 750 | 1200 | ||||
630*630*220 | 16.5 | 24.7 | 1500 | 2250 | ||||
945*630*220 | 24.9 | 37.3 | 2200 | 3300 | ||||
1260*630*220 | 33.4 | 50.1 | 3000 | 4500 | ||||
305*305*150 | 2.4 | 3.6 | 250 | 375 | ||||
305*610*150 | 5 | 7.5 | 500 | 750 | ||||
610*610*150 | 10.2 | 15.3 | 1000 | 1500 | ||||
915*610*150 | 15.4 | 23.1 | 1500 | 2250 | ||||
1220*610*150 | 20.6 | 30.9 | 2000 | 3000 | ||||
305*610*292 | 10.1 | 15.1 | 1000 | 1500 | ||||
610*610*292 | 20.9 | 31.3 | 2000 | 3000 | ||||
