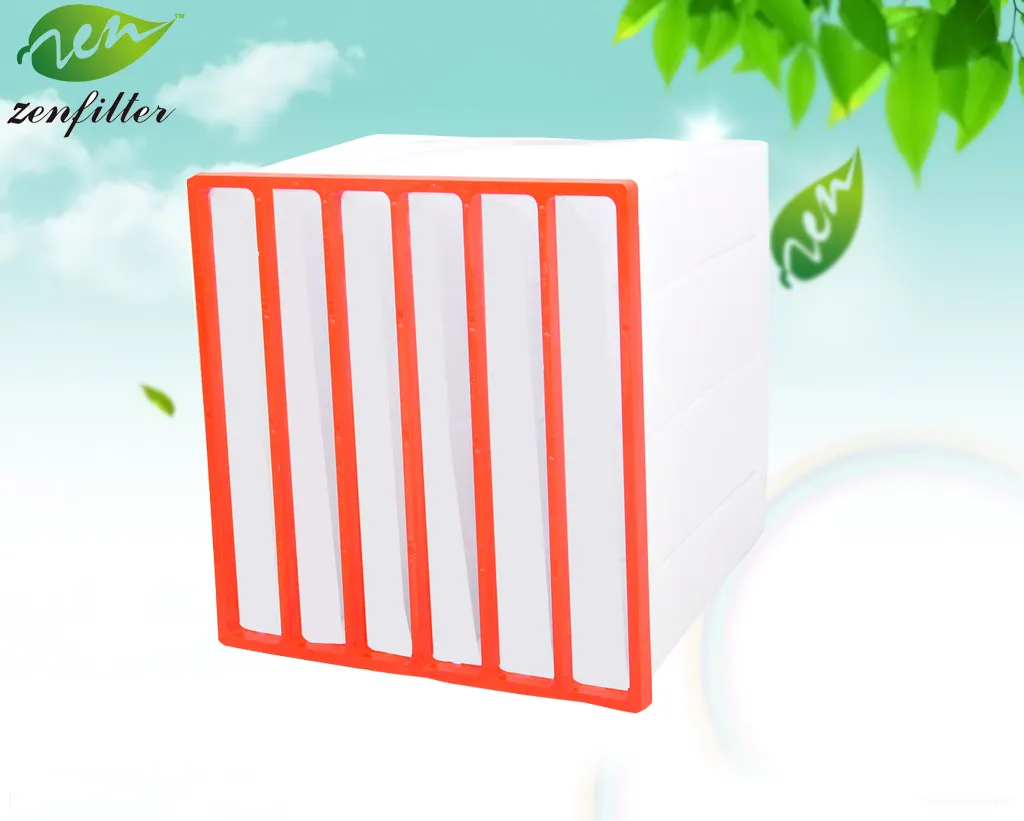

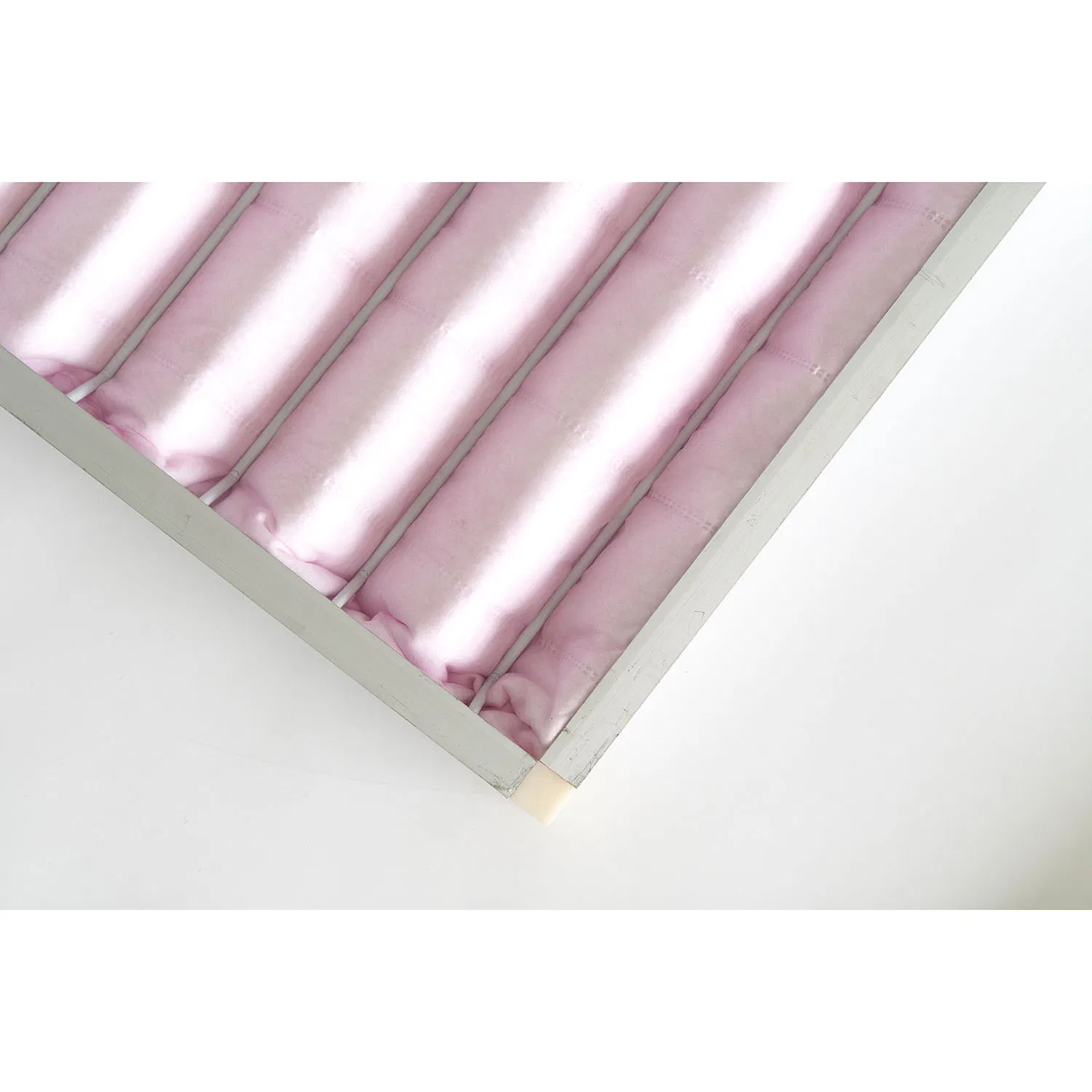

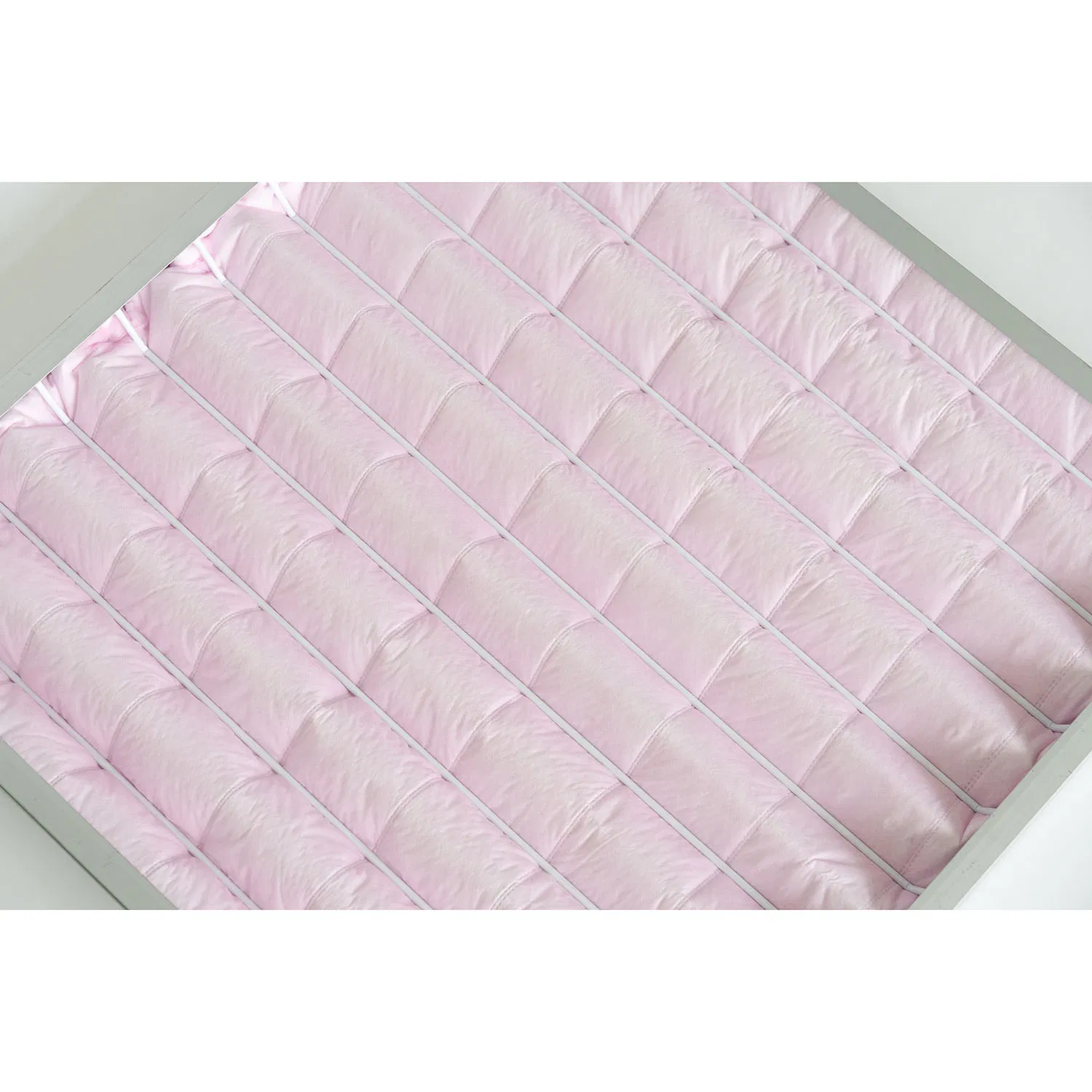

China High Quality Synthetic Material Panel Air Filter for HVAC System

Product Description

^Application:
^{Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.}
^Features:

^Large^{dust capacity .}
^{Low resistance}
^{Synthetic fiber filter material}
^{Galvanized steel/Aluminum /stainless steel frame}

^{Specification:}
^{Application:HVAC industry}
^{Frame:Galvanized steel/Aluminum alloy/stainless steel}
^{Medium: synthetic fiber}
^{Bonding:ultrasonic sealing}
^{Filter class:F5/F6/F7/F8/F9}
^{Maximum final pressure drop :450pa}
^{Maximum temperature :70}
^{Maximum relative humidity:90%}

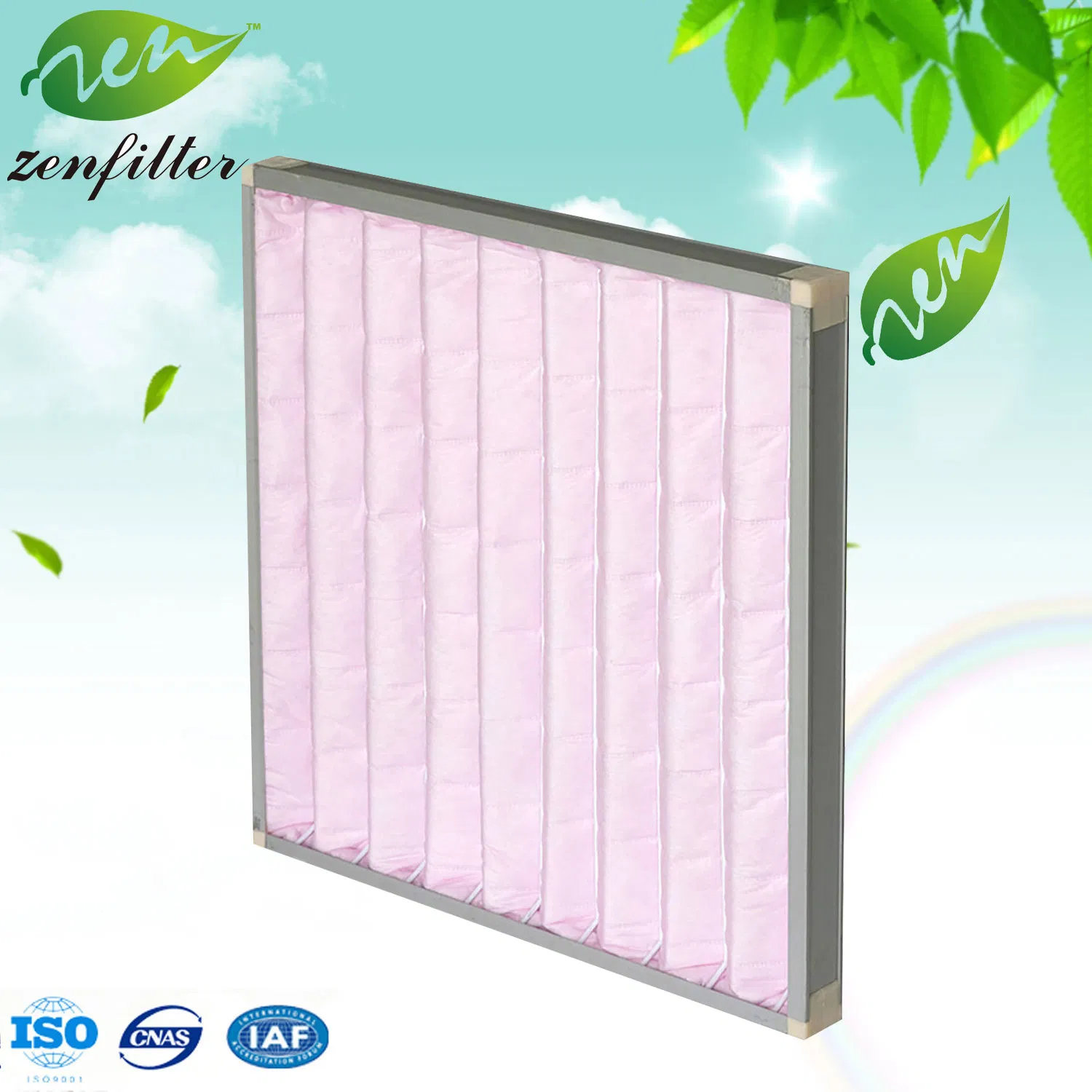

High Quality Synthetic Material Panel Air Filter for HVAC System

^{Specification}^Size^:

TYPE	Effectiveness	dimension	Number	Effective filtration area	Initial resistance / air volume Pa / M³/h
XDC/F 6660/06-F5	F5	*592592600*	6	4.64	20	2500	45	3600	70	5000
XDC/F 3660/04-F5	F5	*287592600*	4	3.09	20	1250	40	1800	70	2500
XDC/F 5650/05-F5	F5	*490592500*	5	3.22	25	2000	40	3000	70	4000
XDC/F 6665/08-F6	F6	*592592650*	8	6.60	35	2500	65	3600	110	5000
XDC/F 3655/04-F6	F6	*287592550*	4	2.79	40	1250	75	1800	125	2500
XDC/F 5665/08-F6	F6	*490592650*	8	6.45	35	2000	60	3000	100	4000
XDC/F 6655/08-F7	F7	*592592550*	8	5.58	50	2500	80	3600	125	5000
XDC/F 3665/05-F7	F7	*287592650*	5	4.03	45	1250	70	1800	120	2500
XDC/F 5655/06-F7	F7	*490592550*	6	4.19	50	2000	80	3000	125	4000
XDC/F 6665/12-F8	F8	*592592650*	12	9.44	60	2500	100	3600	170	5000
XDC/F 6655/08-F8	F8	*592592550*	8	5.58	70	2500	110	3600	170	5000
XDC/F 3665/06-F8	F8	*287592650*	6	4.72	60	1250	100	1800	170	2500
XDC/F 3665/05-F8	F8	*287592550*	5	4.03	60	1250	100	1800	175	2500
XDC/F 5655/06-F8	F8	*490592550*	6	4.19	70	2000	110	3000	175	4000
