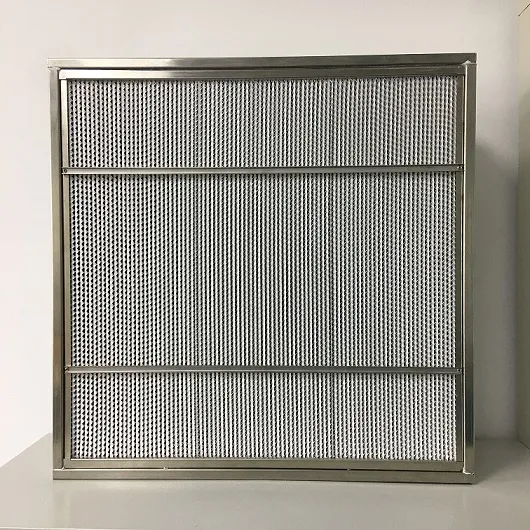

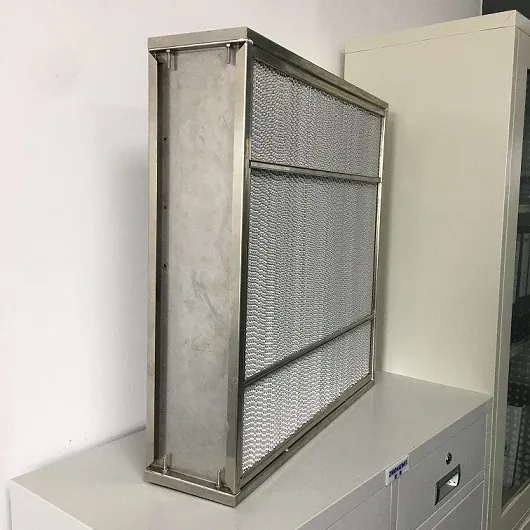

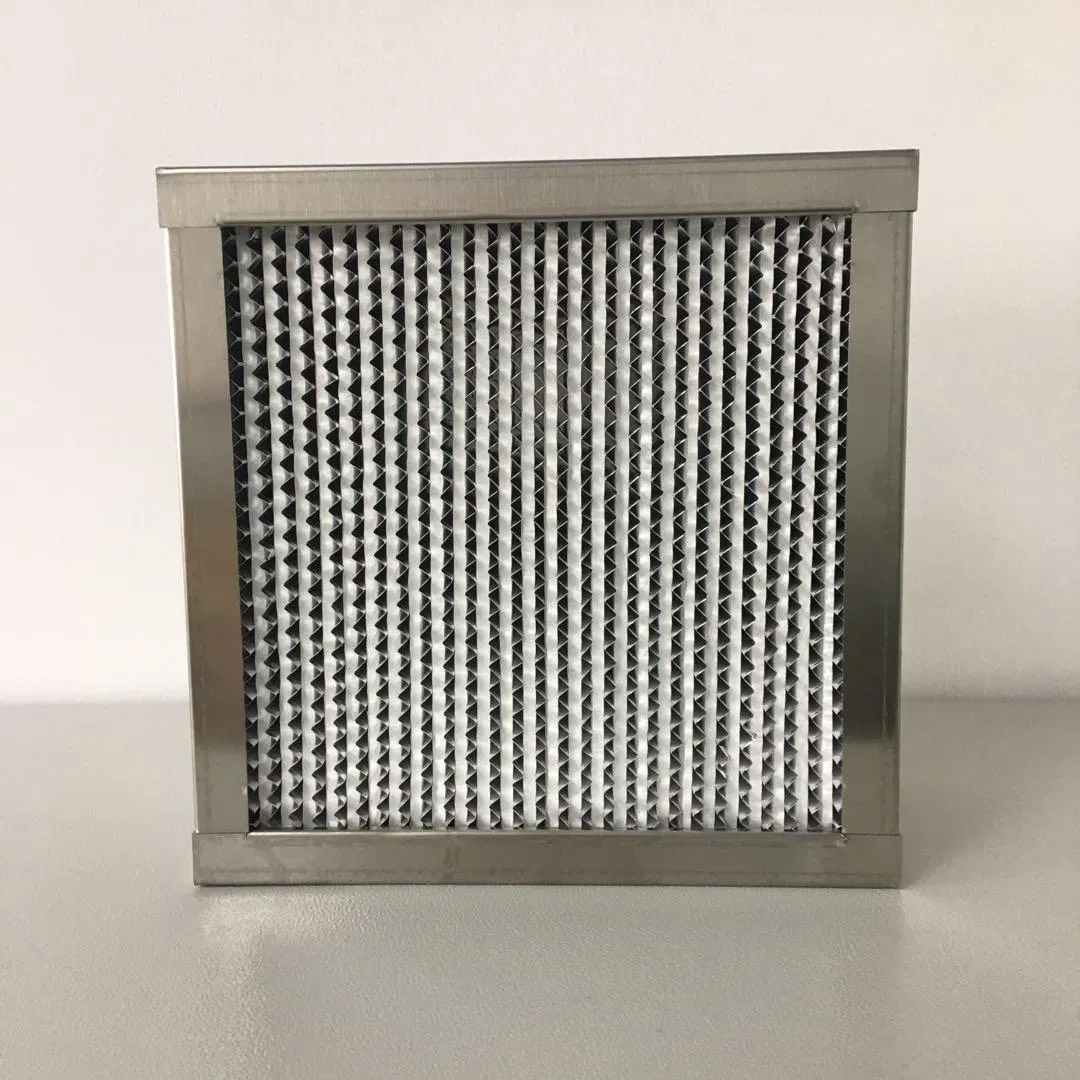

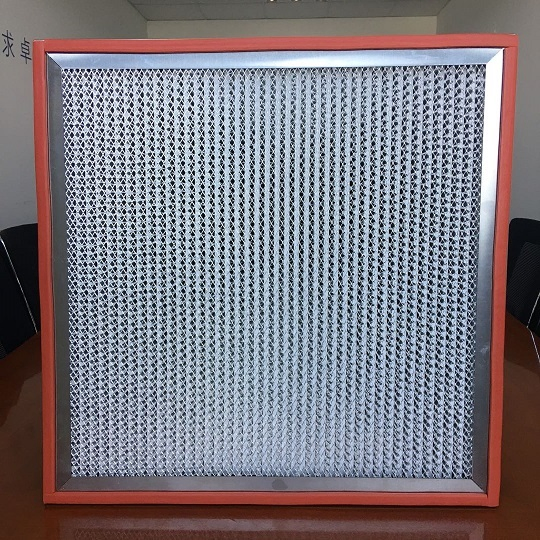

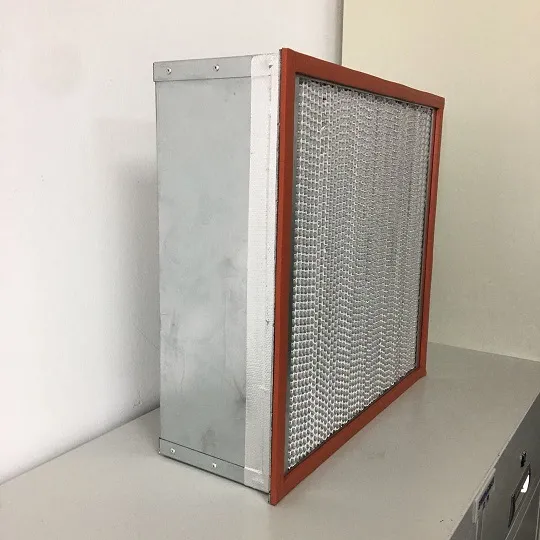

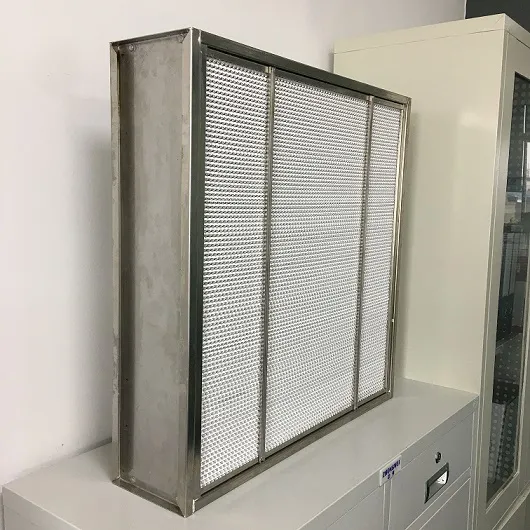

High Temperature HEPA Air Filter Clapboard Filter
High Temperature HEPA Air FilterFeatures and Applications:Every component passes heat-resistance test, reimforced frame and patented media to gurantee filtration efficiency at high-temperature cycle;Applied at high efficiency filtrationfor clean process at high temperature. Materials and operating c......
Send Inquiry
Product Description

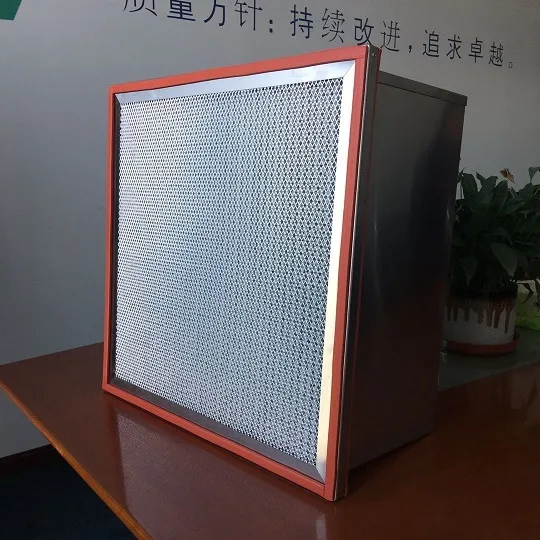

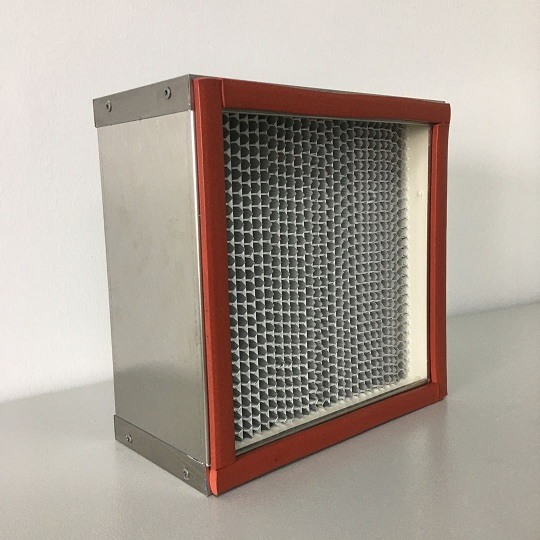

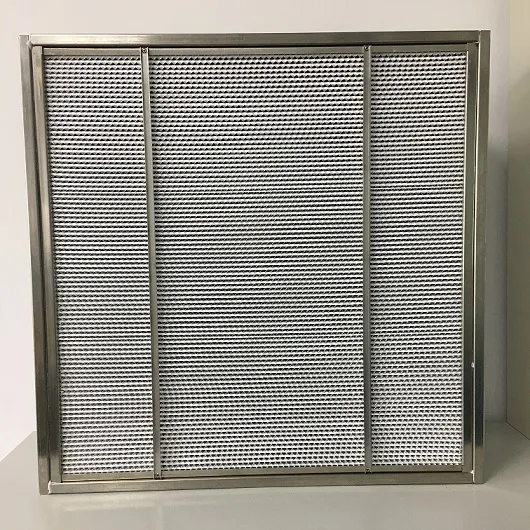

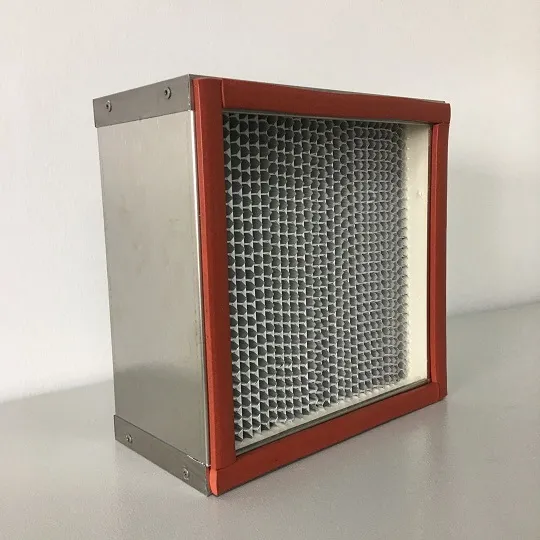

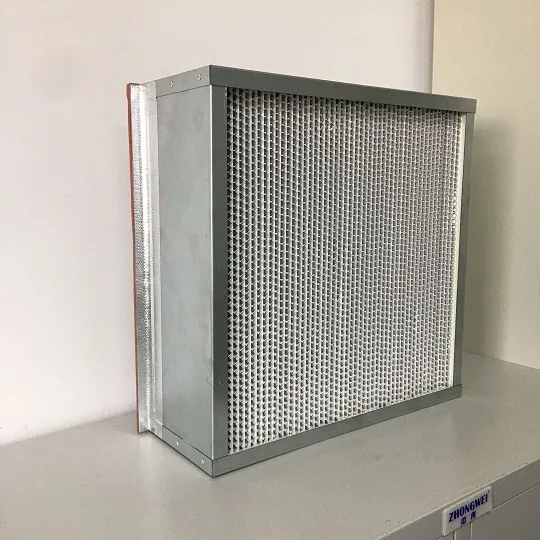

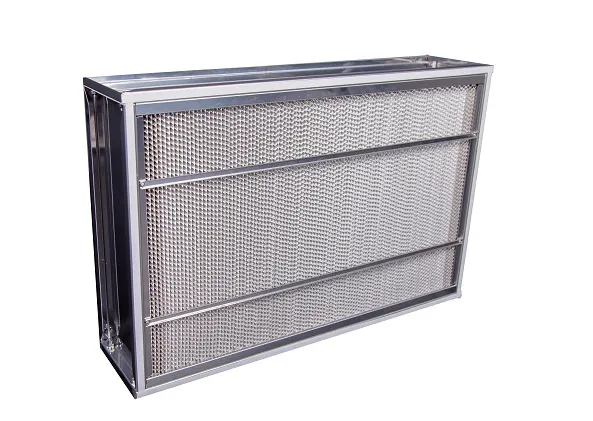

High Temperature HEPA Air Filter

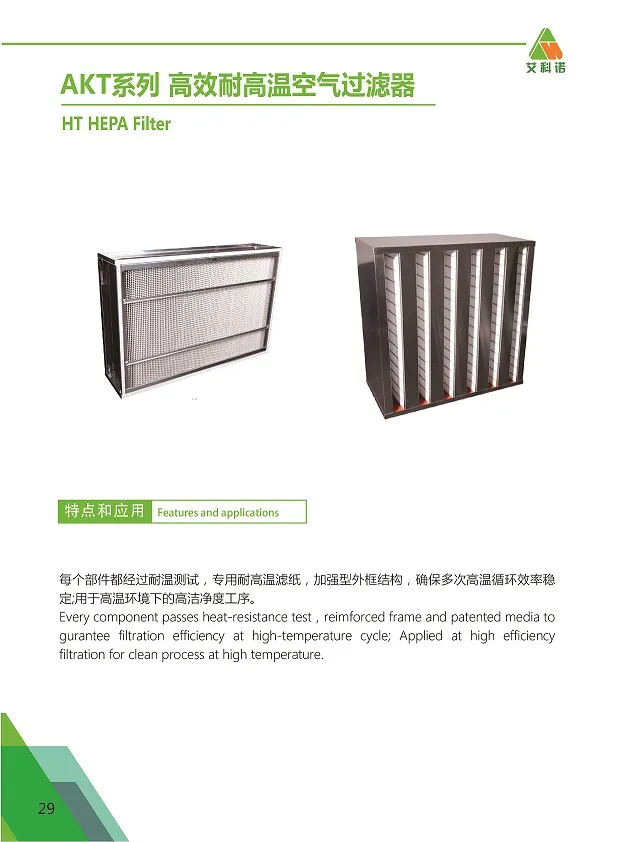

Features and Applications:
Every component passes heat-resistance test, reimforced frame and patented media to
gurantee filtration efficiency at high-temperature cycle;Applied at high efficiency filtration
for clean process at high temperature.
Materials and operating conditions:
Standard specifications:
Types with other sizes&class are available;
Recommended final resistance:450Pa.
Features and Applications:
Every component passes heat-resistance test, reimforced frame and patented media to
gurantee filtration efficiency at high-temperature cycle;Applied at high efficiency filtration
for clean process at high temperature.

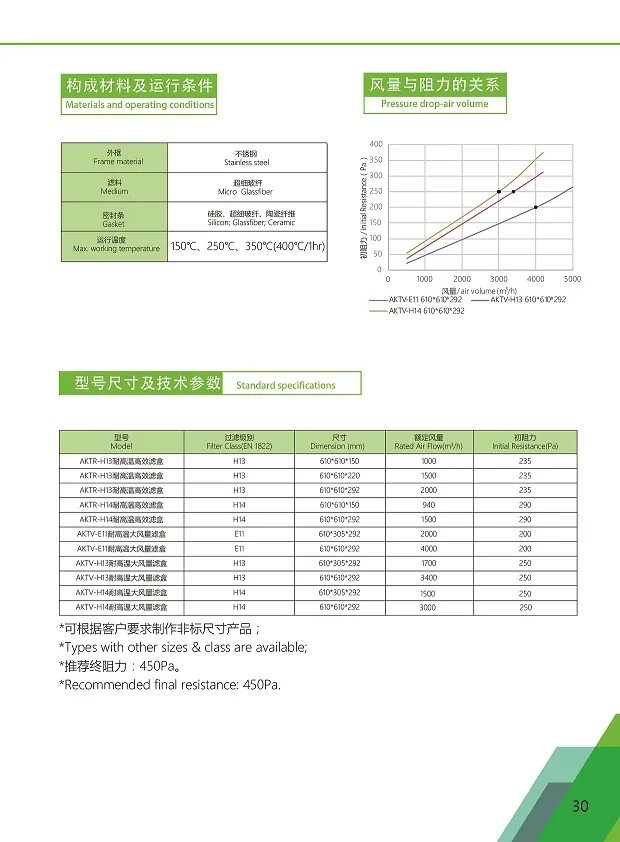

Materials and operating conditions:
| Frame material | Stainless steel |
| Medium | Micro Glassfiber |
| Gasket | Silicon;Glassfiber;Ceramic |
| Max.working temperature | 150ºC;250ºC;350ºC(400ºC/1hr) |
Standard specifications:
| Model | Filter Class (EN1822) | Dimension (mm) | Rated Air Flow (m3/h) | Initial Resistance (Pa) |
| AKTR-H13 | H13 | 610*610*150 | 1000 | 235 |
| AKTR-H13 | H13 | 610*610*220 | 1500 | 235 |
| AKTR-H13 | H13 | 610*610*292 | 2000 | 235 |
| AKTR-H14 | H14 | 610*610*150 | 940 | 290 |
| AKTR-H14 | H14 | 610*610*292 | 1500 | 290 |
| AKTR-E11 | E11 | 610*305*292 | 2000 | 200 |
| AKTR-E11 | E11 | 610*610*292 | 4000 | 200 |
| AKTR-H13 | H13 | 610*305*292 | 1700 | 250 |
| AKTR-H13 | H13 | 610*610*292 | 3400 | 250 |
| AKTR-H14 | H14 | 610*305*292 | 1500 | 250 |
| AKTR-H14 | H14 | 610*610*292 | 3000 | 250 |
Types with other sizes&class are available;
Recommended final resistance:450Pa.
