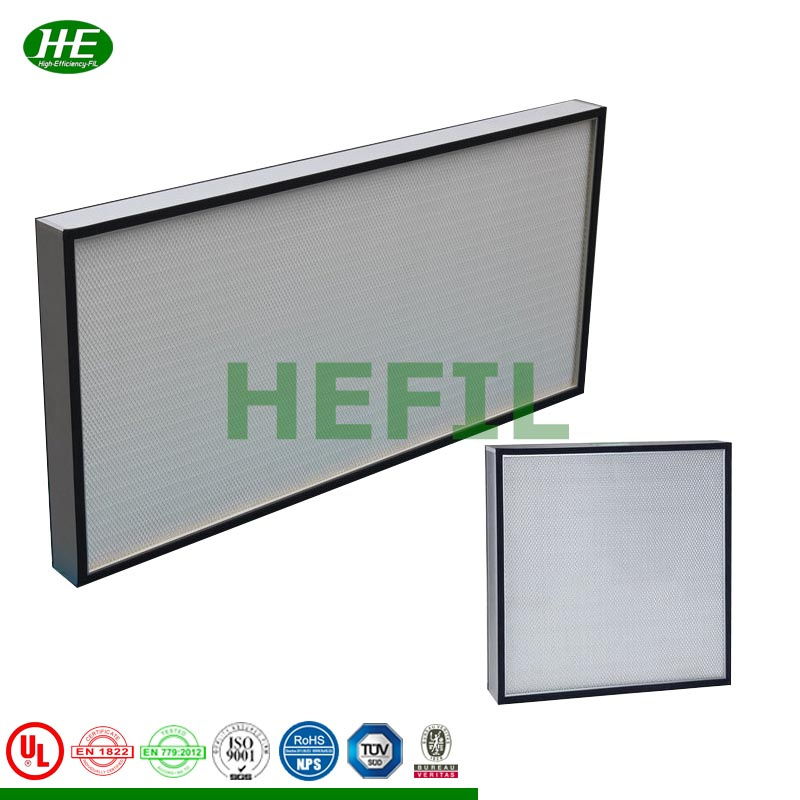

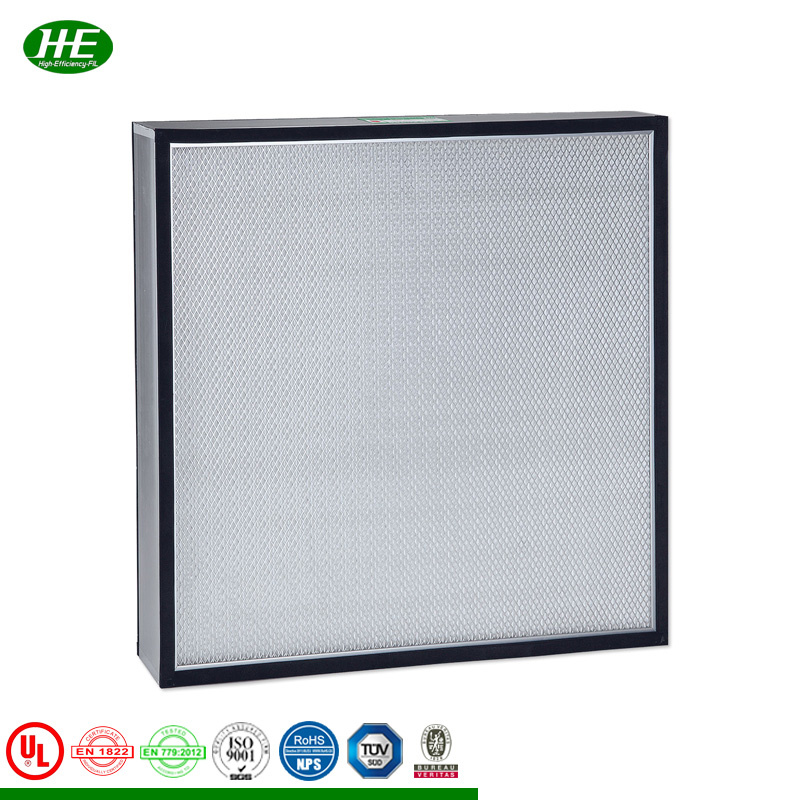

Hospital U15 U17 Mini Pleated ULPA Filter for Cleanroom
AdvantagesFilter efficiency ranges from U15 to U17.Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.Use special ultra-fine fiberglass filter paper as ......
Send Inquiry
Product Description
Advantages
Filter efficiency ranges from U15 to U17.

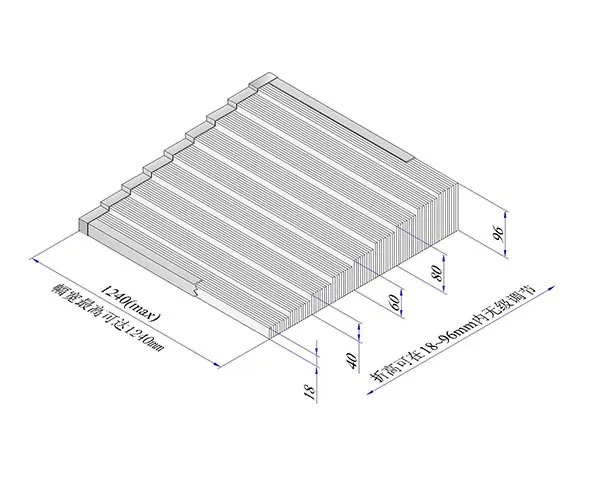

Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
Double side retainers, protect the filter media, good strength.
Light in weight, compact in structure.
Each ULPA filter is tested according to EN1822:2009.
Material Instructions
Media: Ultra-fine fiberglass or PTFE filter paper.

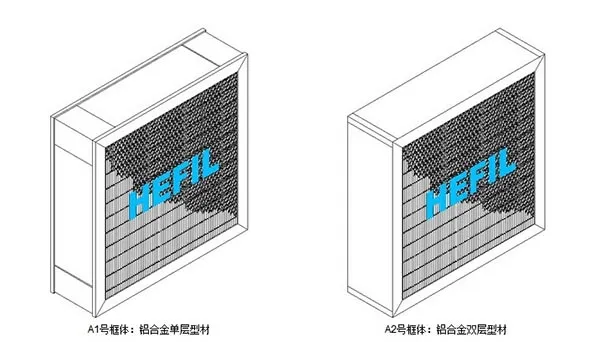

Frame: Anodised aluminium or stainless steel.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.
Application
Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices, and the occasions require ultra-high cleanliness.
Common Specification
Note: HEFIL makes various of other models' HMU filter which are not listed in above table. Please consult with us if you need.
The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
Filter efficiency ranges from U15 to U17.
Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
Double side retainers, protect the filter media, good strength.
Light in weight, compact in structure.
Each ULPA filter is tested according to EN1822:2009.
Material Instructions
Media: Ultra-fine fiberglass or PTFE filter paper.
Frame: Anodised aluminium or stainless steel.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.
Application
Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices, and the occasions require ultra-high cleanliness.
Common Specification
| Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W×H×D (mm) | ||||
| HMU305/10-50 | 305×305×50 | 1.6 | 150 | ≤250 |
| HMU610/05-50 | 305×610×50 | 3.3 | 300 | |
| HMU610/10-50 | 610×610×50 | 6.7 | 600 | |
| HMU570/20-50 | 1170×570×50 | 12 | 1300 | |
| HMU1170/10-50 | 1170×1170×50 | 24 | 2600 | |
| HMU610/05-70 | 305×610×70 | 5.5 | 500 | |
| HMU610/10-70 | 610×610×70 | 11.3 | 1000 | |
| HMU610/15-70 | 915×610×70 | 17.0 | 1500 | |
| HMU610/20-70 | 1220×610×70 | 22.7 | 2000 | |
| HMU570/10-70 | 570×570×70 | 9.7 | 900 | |
| HMU570/20-70 | 1170×570×70 | 20.4 | 1800 | |
| HMU1170/10-70 | 1170×1170×70 | 40.8 | 3600 | |
| HMU610/10-90 | 610×610×90 | 15.4 | 1300 | |
| HMU610/15-90 | 915×610×90 | 23.2 | 2000 | |
| HMU610/20-90 | 1220×610×90 | 31.1 | 2600 |

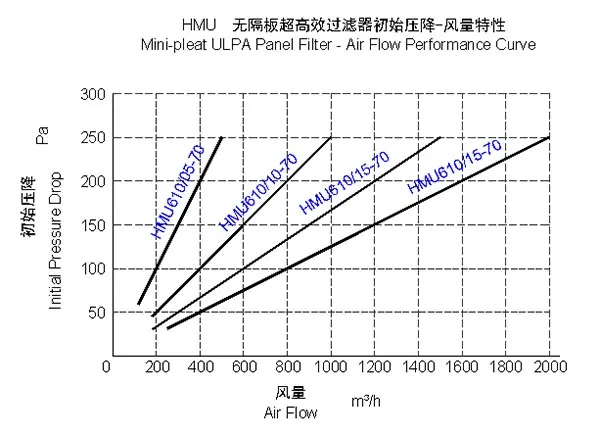

The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
