Industrial Air HEPA Filter Box H12 H13 H14
Industrial Air HEPA Filter Box H12 H13 H14Features:·High efficiency(capturing 0.5 or above 0.5μm Particles) ·Low resistance ·Large dust holding capacity·Fine uniformity of air velocityApplication:It is applied to dead-end filtration of the cleanroo......
Send Inquiry
Product Description

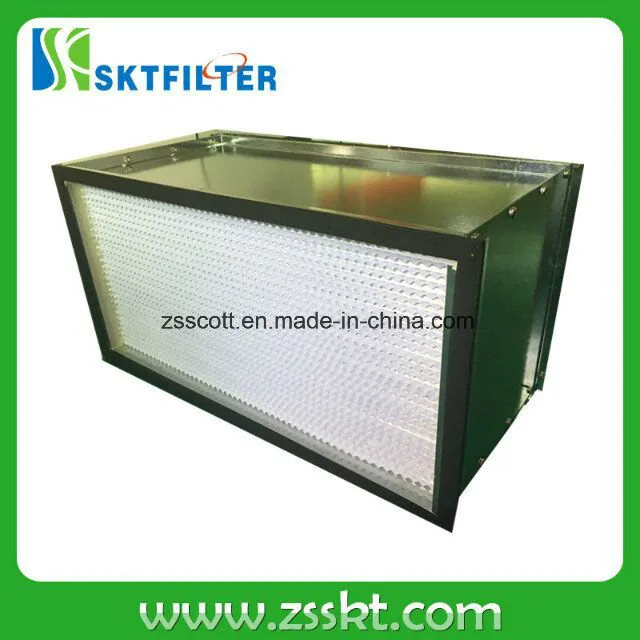

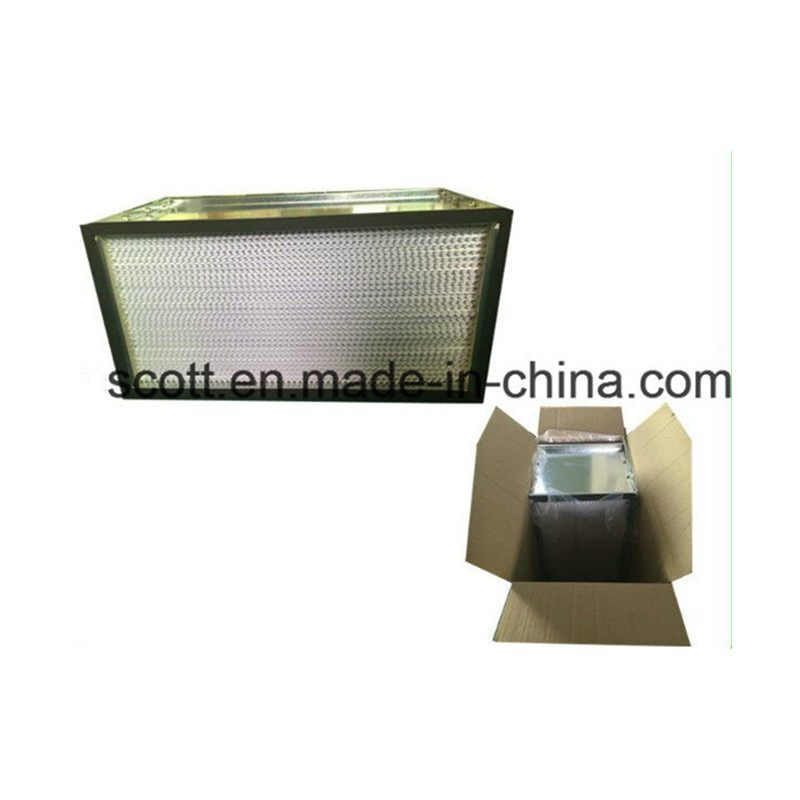

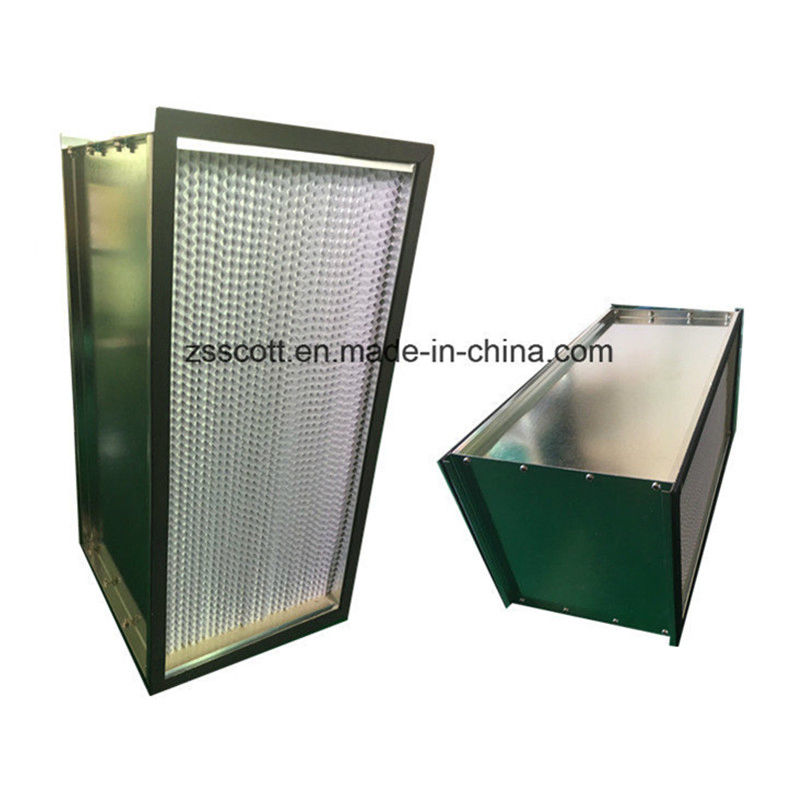

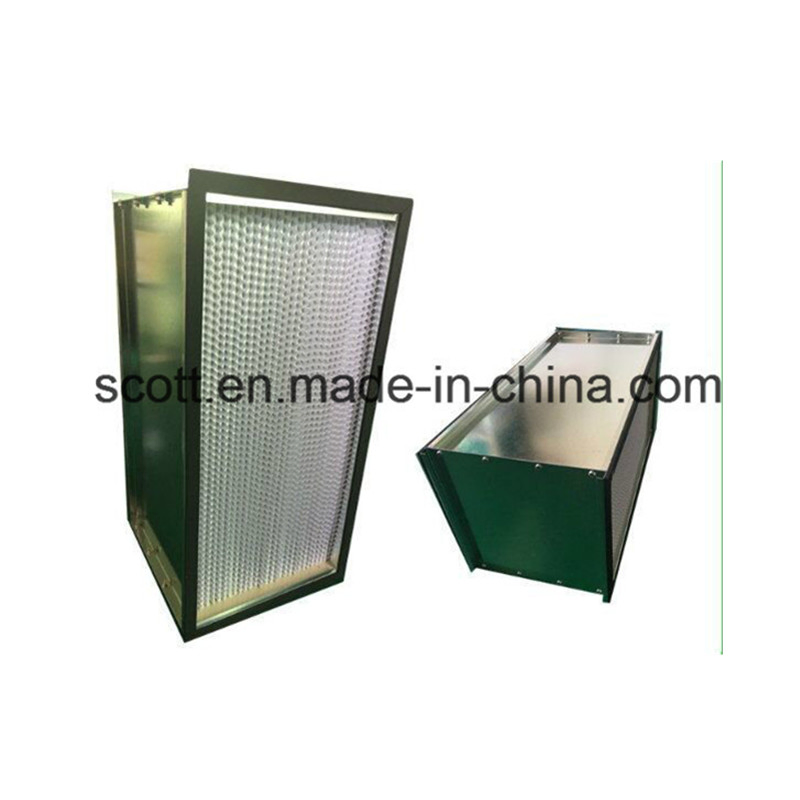

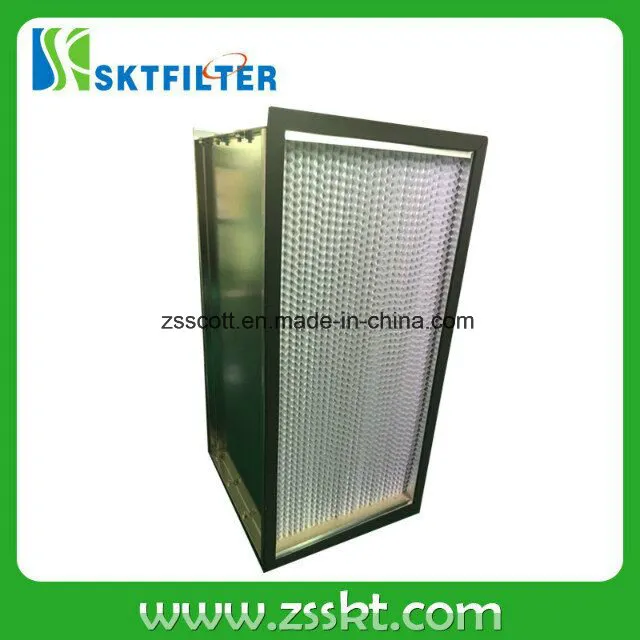

Industrial Air HEPA Filter Box H12 H13 H14
Features:
·High efficiency(capturing 0.5 or above 0.5μm Particles)
·Low resistance
·Large dust holding capacity
·Fine uniformity of air velocity
Application:It is applied to dead-end filtration of the cleanroom and many kinds of cleaning equipments
Type: high efficiency box filter
Final resistance:(suggested)450Pa
Max. air flow: 125% of the rated air flow
Temp resistance: 80ºC
Humidity:≤100%RH
Parameter:
| Dimensions(mm) | Rated air flow(m3/h) | Initial pressure (Pa) | Filter efficiency % | Material | |||
| Width*Height*Depth | Frame | Filters material | Partition material | Sealant | |||
| 320*320*220 | 400 | <200 | >99.99 Sodium Flame | Plank Aluminum alloy Galvanized sheet Stainless steel | Fiberglass filter paper | Aluminum foil Veneer paper | Polyurethane rubber |
| 484*484*220 | 1000 | ||||||
| 610*610*150 | 1000 | ||||||
| 820*600*150 | 1200 | ||||||
| 630*630*220 | 1500 | ||||||
| 968*484*220 | 2000 | ||||||
| 945*630*220 | 2200 | ||||||
| 1260*630*220 | 3000 | ||||||
:

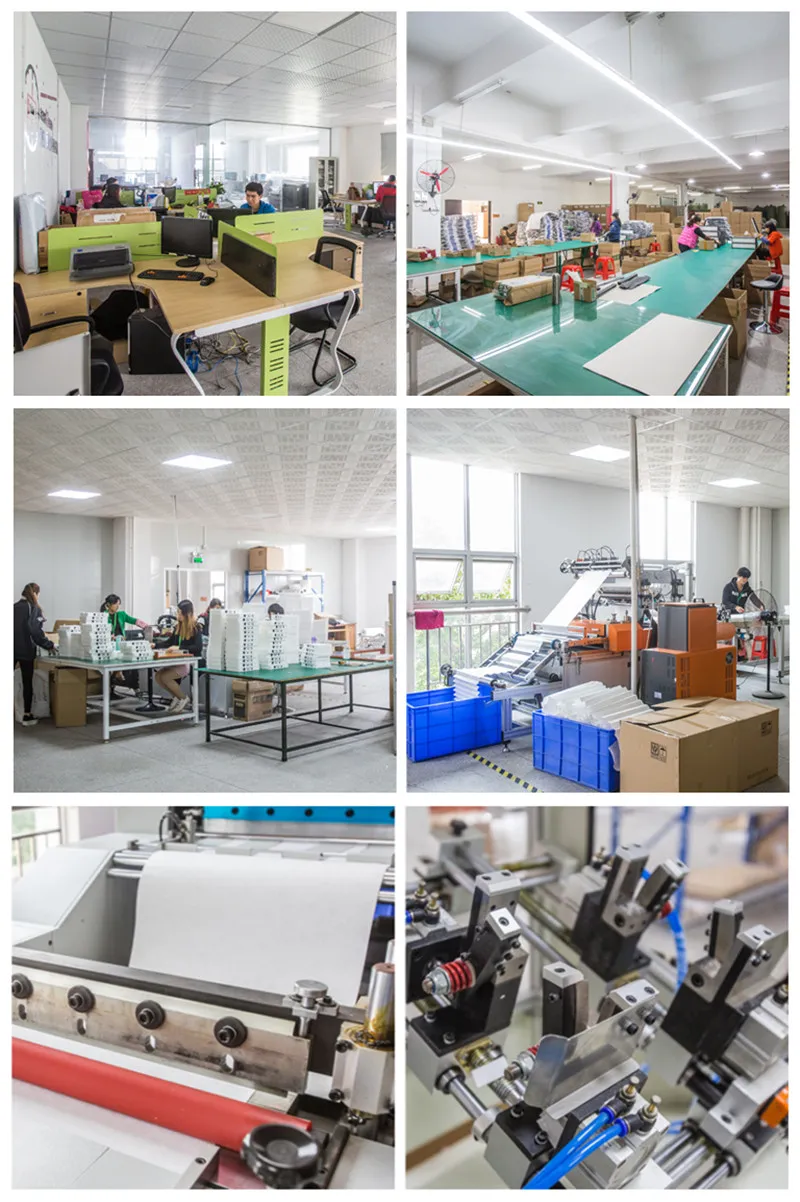

Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
