Klhf Series Mini /MIDI/Maxi Compressed Air Filter
KLHF Series MINI /MIDI/MAXI Compressed Air Filter1.Good particle and condensate separation.2.High flow rate with minimal pressure drop.3.With manual or fully automatic condensate drain.4.Choice of fliter cartridges:40μm or 5μm.5.Assembly Position:Vertical +5° or -5°.6.T......
Send Inquiry
Product Description
KLHF Series MINI /MIDI/MAXI Compressed Air Filter
1.Good particle and condensate separation.
2.High flow rate with minimal pressure drop.
3.With manual or fully automatic condensate drain.
4.Choice of fliter cartridges:40μm or 5μm.
5.Assembly Position:Vertical +5° or -5°.
6.Type of mounting1:Via Accessories.
7.Type of mounting2:In-line installation.

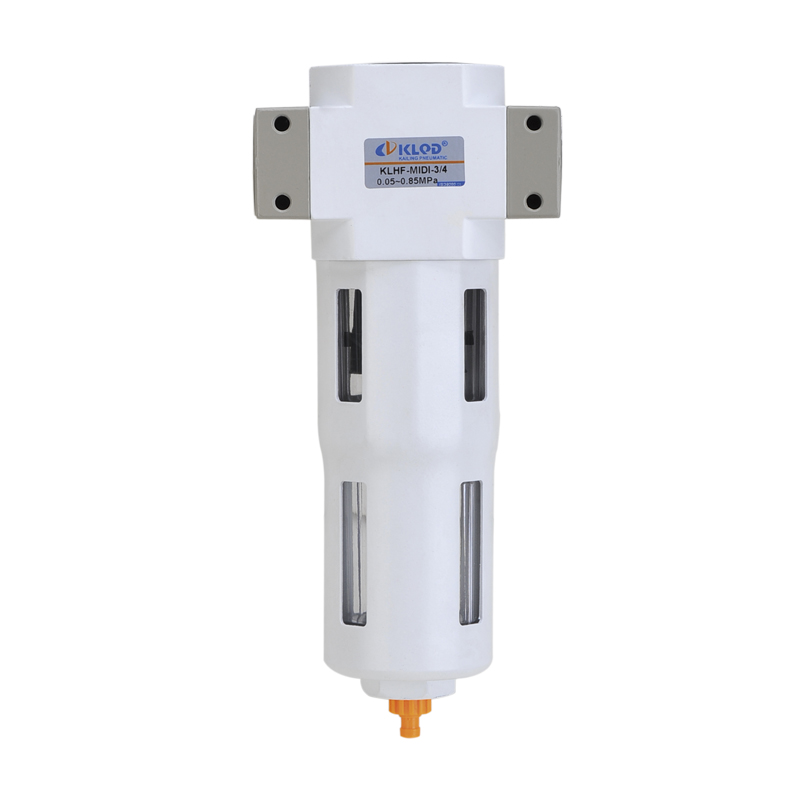

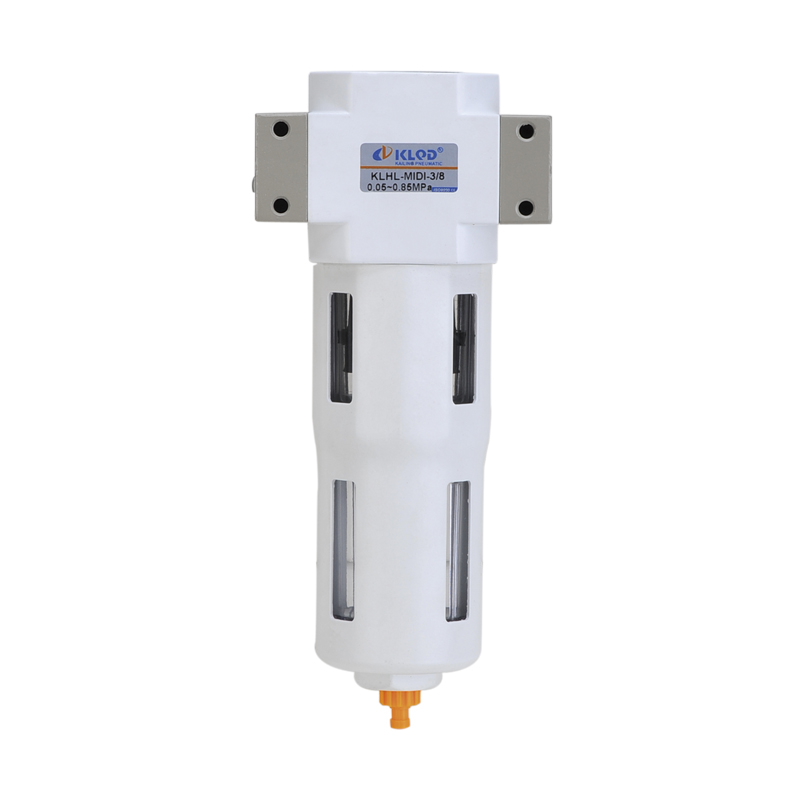

Detailed Images:
Packing & Delivery:
Payment:
Production Processes:
FAQ:
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
1.Good particle and condensate separation.
2.High flow rate with minimal pressure drop.
3.With manual or fully automatic condensate drain.
4.Choice of fliter cartridges:40μm or 5μm.
5.Assembly Position:Vertical +5° or -5°.
6.Type of mounting1:Via Accessories.
7.Type of mounting2:In-line installation.

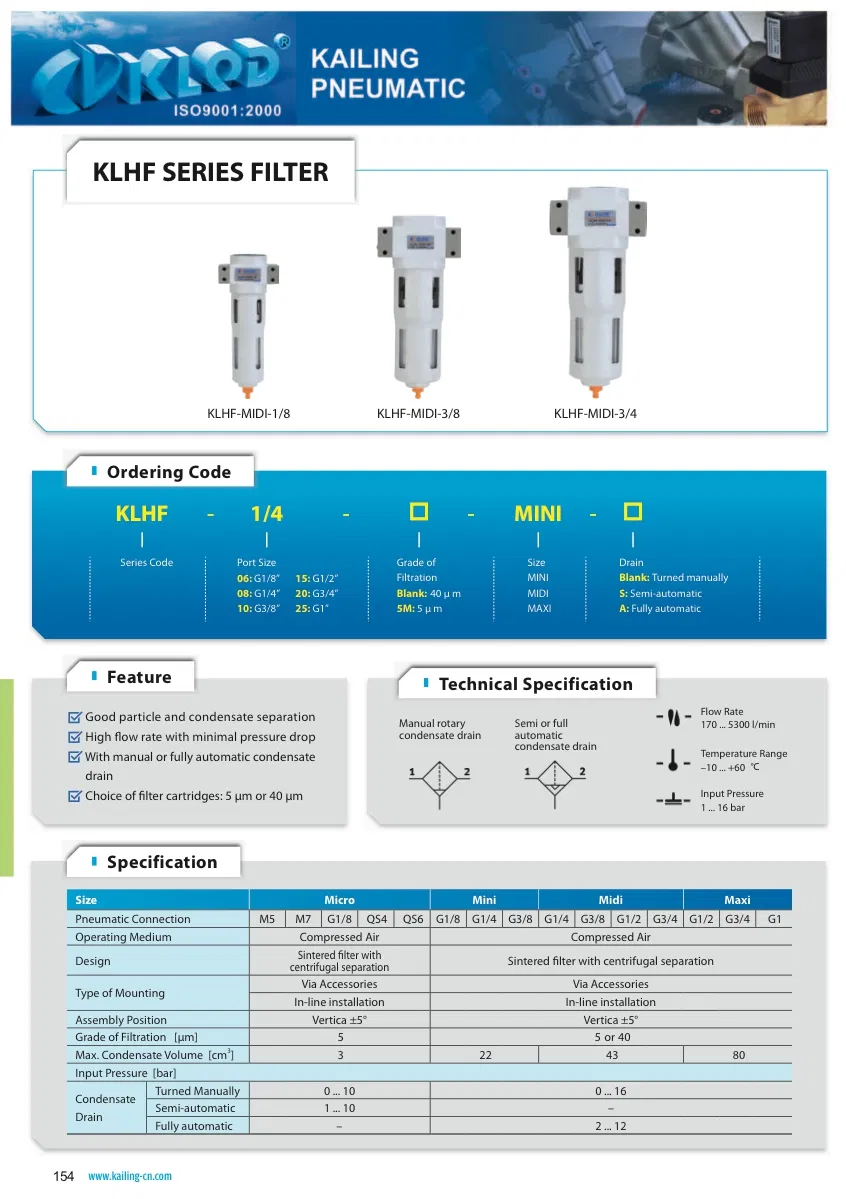

| KLHF | 1/4 | - | - | - | MINI |
| Series Code | Port Size 06:G1/8'' 08:G1/4'' 10:G3/8'' 15:G1/2'' 20:G3/4'' 25:G1'' | Grade of Filtration Blank:40μm 5M:5μm | Manometer Blank:12bar 7:7bar | Pressure Guage Blank:With Pressure Gauge 0:Without Pressure Gauge | Size MINI MIDI MAXI |
| Size | Micro | Mini | Midi | Maxi |
| Pneumatic Connection | M4,M7,G1/8,QS4,QS6 | G1/8,G1/4,G3/8 | G1/4,G3/8,G1/2,G3/4 | G1/2,G3/4,G1 |
| Grade of Filtration(μm) | 5 | 5 or 40 | ||
| Max.Condensate Volume(cm³) | 3 | 22 | 43 | 80 |
| Condenstate Drain(Turned Manually) | 0...10 | 0...16 | ||
| Condenstate Drain(Semi-automatic) | 1...10 | - | ||
| Condenstate Drain(Fully automatic) | - | 2...12 | ||
