Lfr-1/2 Air Conditioning - Filter-Regler-Ö Ler - Maintenance Unit
Quick DetailsApplicable Industries:Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Automation of industryType:Air Source Treatment UnitPlace of Origin:Zhejiang, ChinaBrand Name:ALITAIR PNEUMATICMaterial:Carton boxProduct name:Air source treatment components Filter regulator......
Send Inquiry
Product Description
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Automation of industry
Type:Air Source Treatment Unit
Place of Origin:Zhejiang, China
Brand Name:ALITAIR PNEUMATIC
Material:Carton box

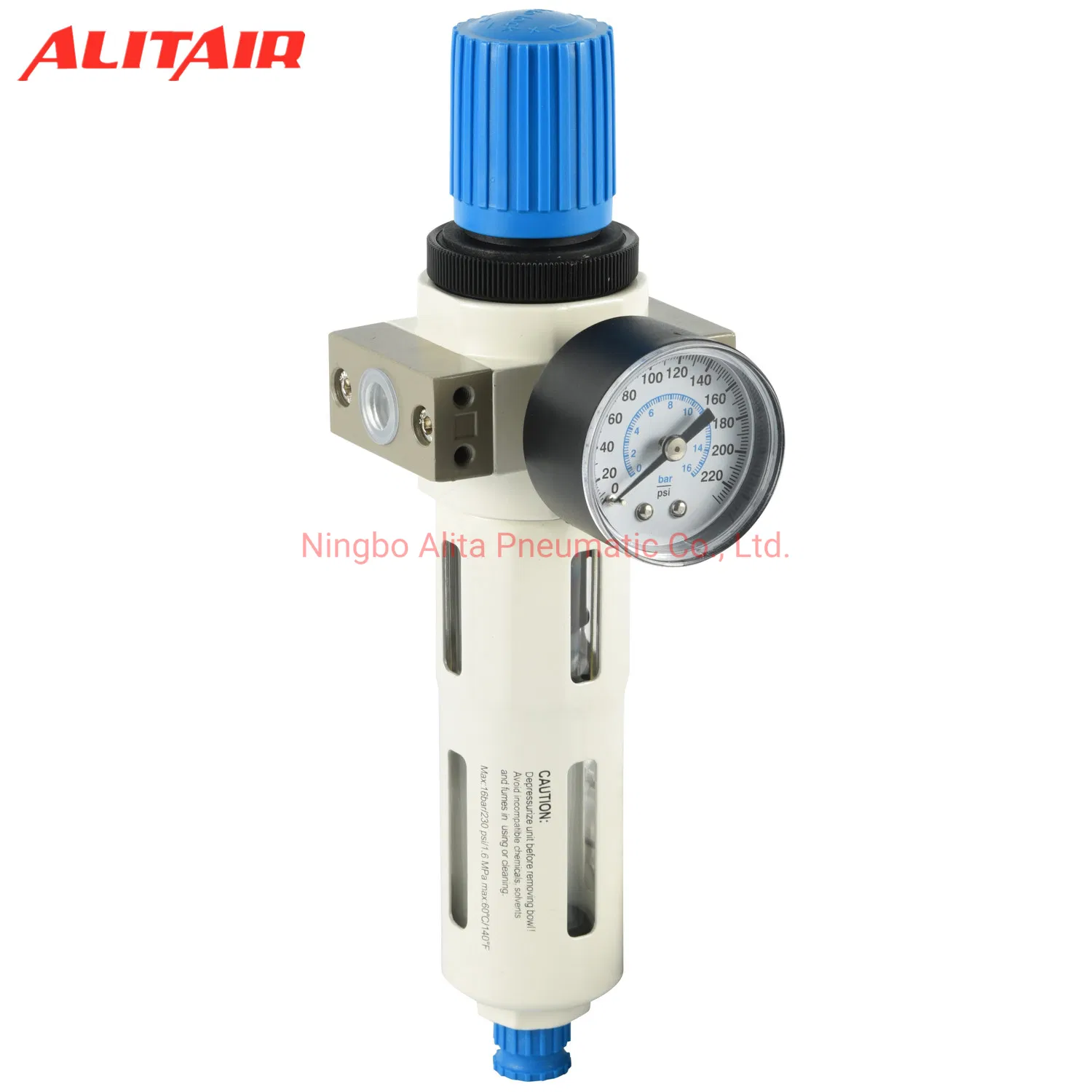

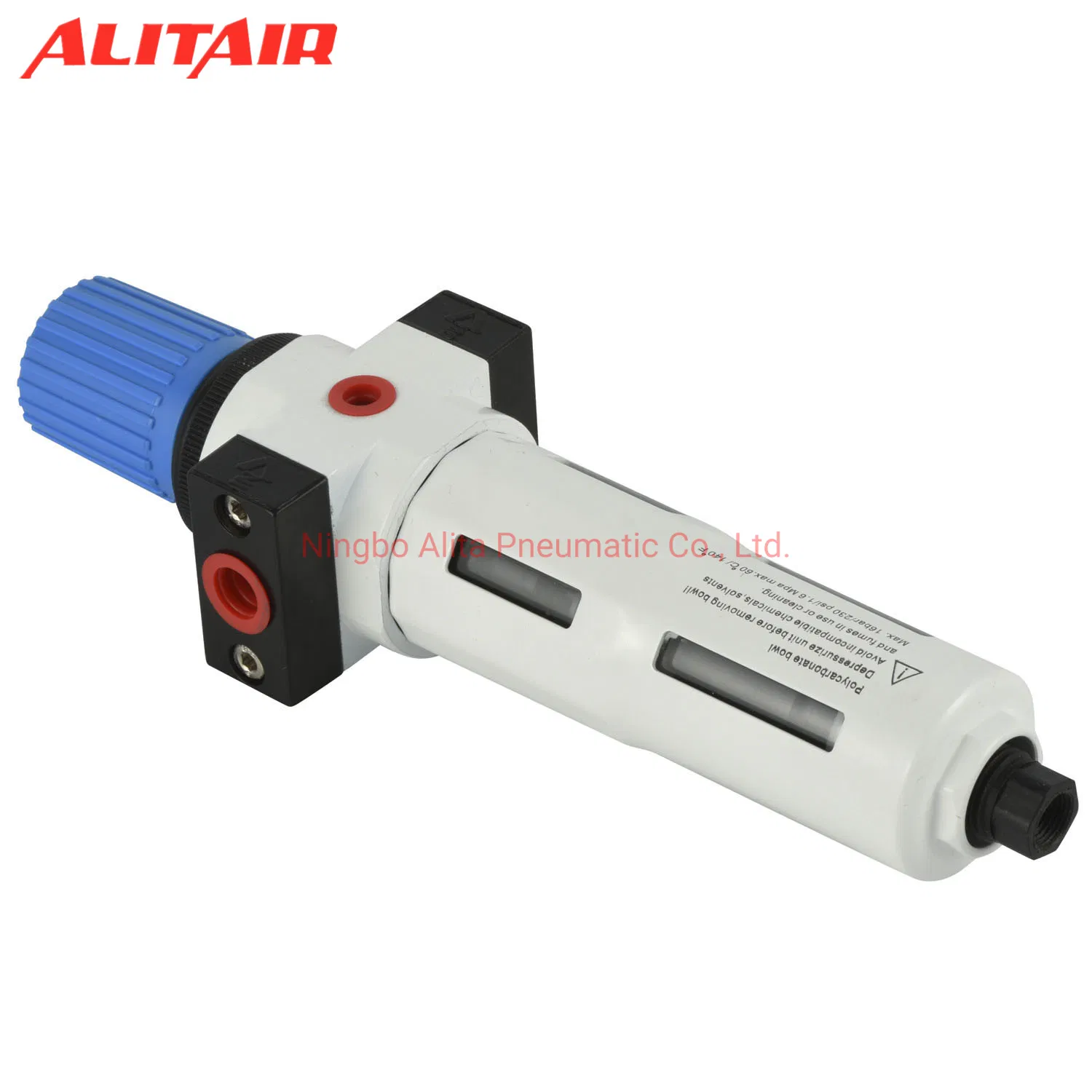

Product name:Air source treatment components Filter regulator
Standard:standard Filter regulator
Applicable medium:Compressed air
Working pressure:0.05~0.85MPa
Ambient temperature:5 ~60ºC
Boby material:Zinc alloy
Seal material:NBR
Filtration class:5μm, 25μm,
Thread size:G1/4,G3/8,G1/2,G3/4,G1
Warranty:1 year
| Boby size | MINI | MIDI | MAXI | |||||||

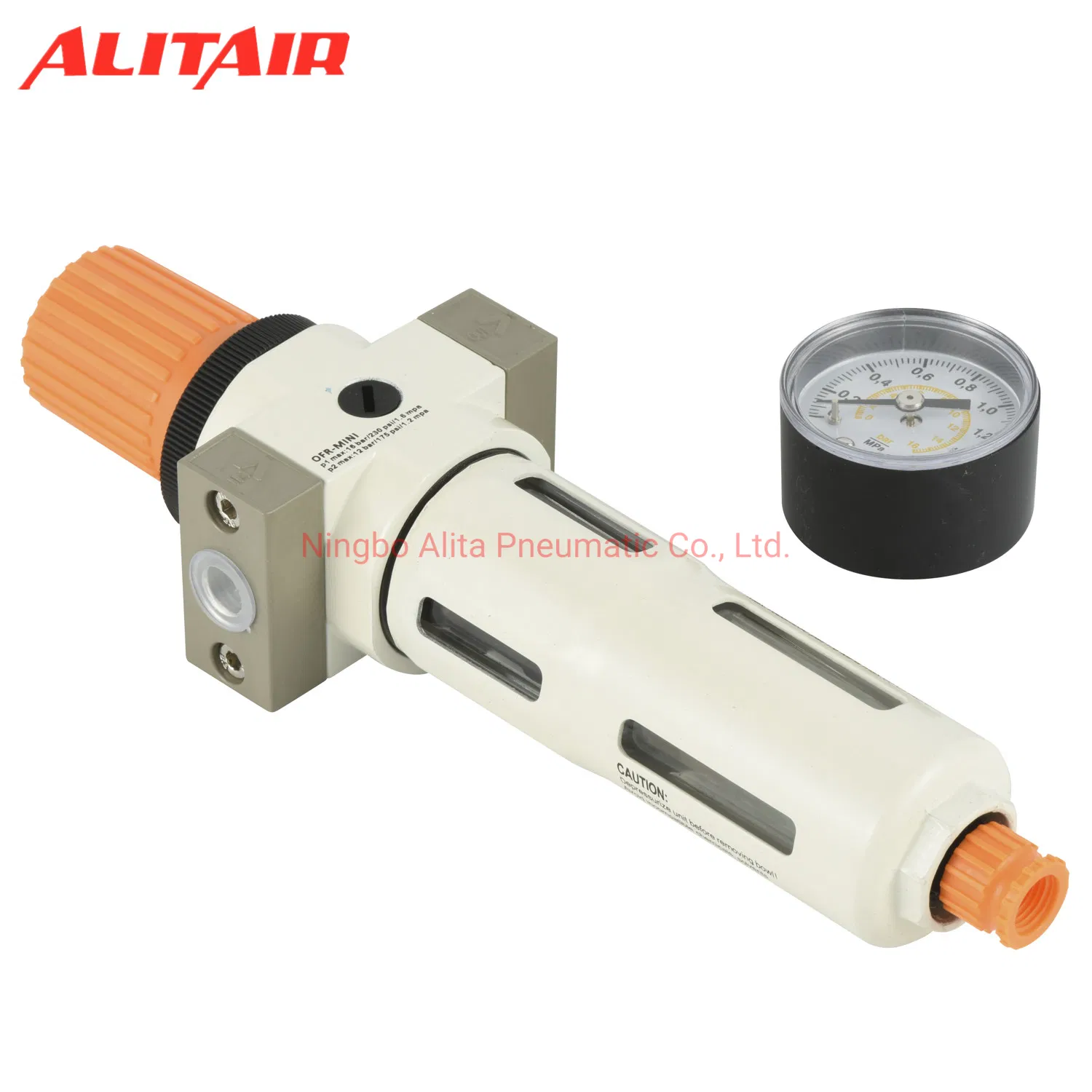

| Model | OFR-MINI-1/8 | OFR-MINI-1/4 | OFR-MINI-3/8 | OFR-MIDI-3/8 | OFR-MIDI-1/2 | OFR-MIDI-3/4 | OFR-MAXI-3/4 | OFR-MAXI-1 | ||
| Applicable medium | Compressed Air | |||||||||
| Mounting type | Pipe mounting or foot mounting | |||||||||
| Assembly position | Vertical ±5° | |||||||||
| Working pressure range | 0.05~1.2 MPa | |||||||||
| Temperature range | 0ºC~60ºC | |||||||||
| Nominal flow rate(40μm) L/min | 750 | 1400 | 1600 | 3100 | 3400 | 3400 | 9000 | 10000 | ||
| Nominal flow rate(5μm) L/min | 650 | 1200 | 1350 | 2400 | 2500 | 2500 | 7300 | 7600 | ||
| Grade of filtration | 40μm/5μm | |||||||||
| Capacity of condensate fluid | 22ml | 43ml | 80ml | |||||||
| Min. Standard nominal flow rate | 3L/min | 6L/min | 10L/min | |||||||
| Port size | G1/8 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G3/4 | G1 | ||
