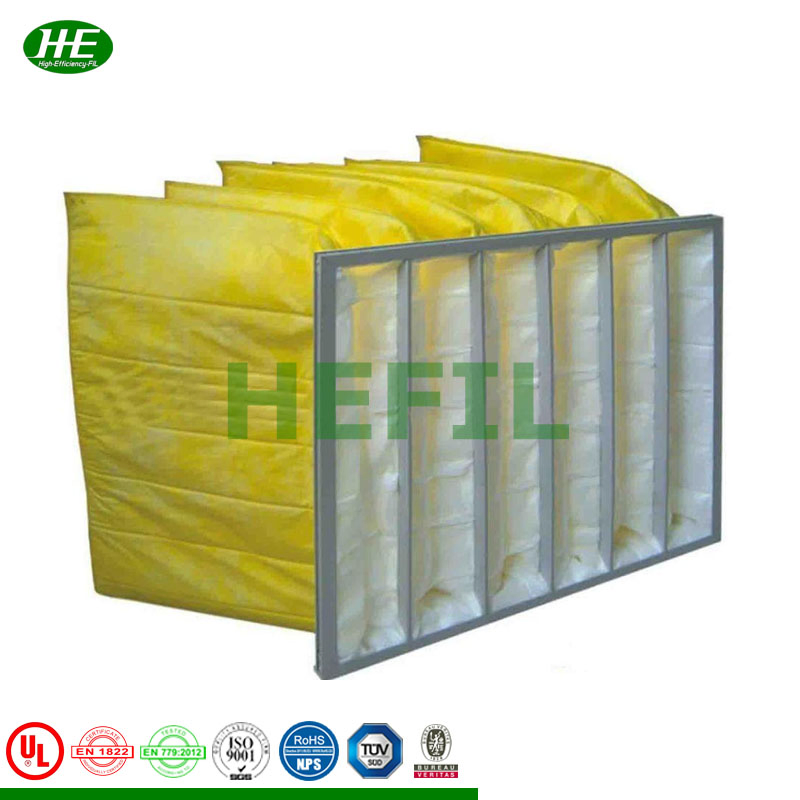

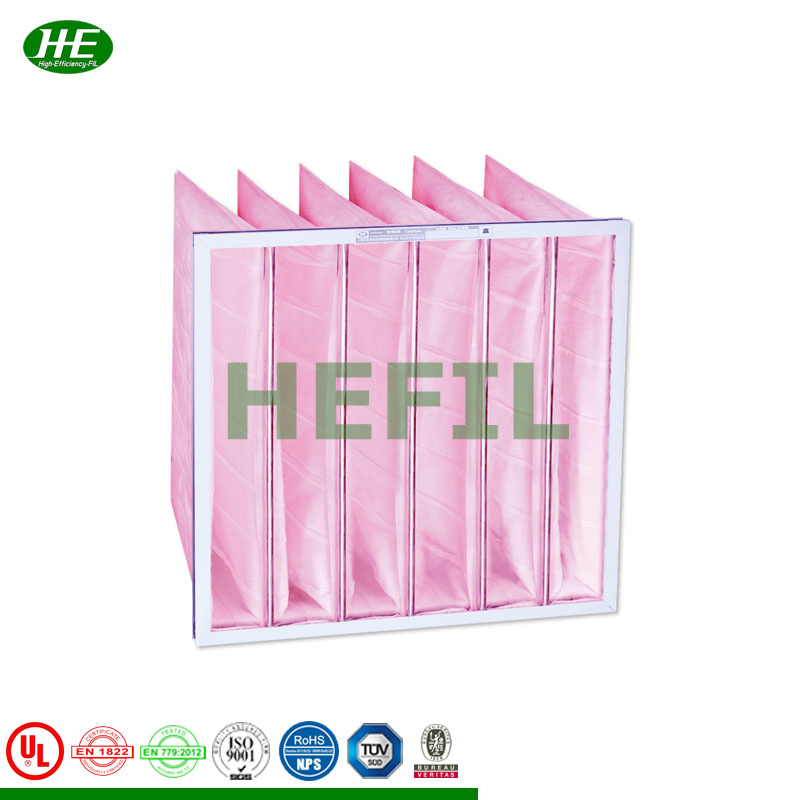

M5 M6 F7 F8 F9 Medium Synthetic Fibre Pockets Air Filter

Product Description

Advantages
Filter efficiency ranges from G3 to F9.
Use special low-resistance and high-throughput composite fabric of synthetic fiber as the filter material, high
dust-holding capacity.
The filter frame is made of aluminum alloy, galvanized steel, stainless steel or plastic.
Has passed international UL certification and meet EN779:2012.

Material Instructions
Media: Composite fabric of synthetic fiber.
Frame: Galvanized plate, aluminum, stainless steel plate or plastic, the usual thickness are 21mm, 25mm or 45mm.
Temperature: Maximum 90°C in continuous service.

Application
Suitable for the electronics, bio-pharmaceutical, machinery, instrumentation, petrochemical and light industry as general air purification systems and airport, subway, shopping malls and other public service places.

M5 M6 F7 F8 F9 Medium Synthetic Fibre Pockets Air Filter

M5 M6 F7 F8 F9 Medium Synthetic Fibre Pockets Air Filter

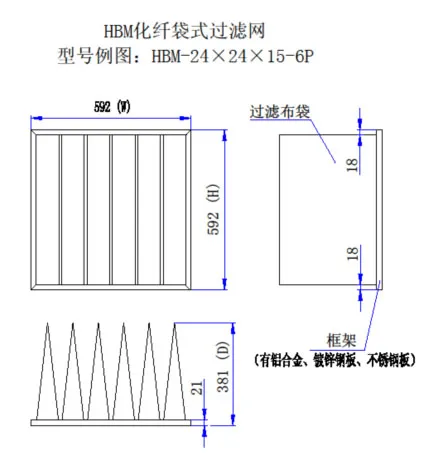

Common Specifications
Model	Dimensions W×H×D (mm)	No. of Pockets	Media Area (m²)	Initial Pressure Drop (Pa) @ Rated Air Flow (m³/h)
Model	Dimensions W×H×D (mm)	No. of Pockets	Media Area (m²)	G3 30~35%	G4 30~35%	M5 40~45%	M6 60~65%	F7 80~85%	F8 90~95%	F9 90~95%
HBM-24×24×24-8P	592×592×600	8	6.5	22@3400	27@3400	38@3400	58@3400	68@3400	98@3400	108@3400
HBM-24×24×22-8P	592×592×558		6.1	24@3400	29@3400	41@3400	62@3400	73@3400	104@3400	114@3400
HBM-24×24×18-8P	592×592×450		4.9	30@3400	36@3400	51@3400	77@3400	91@3400	98@2550	108@2550
HBM-24×24×15-8P	592×592×381		4.2	37@3400	42@3400	59@3400	90@3400	106@3400	114@2550	124@2550
HBM-24×24×12-8P	592×592×300		3.4	47@3400	52@3400	73@3400	111@3400	98@2550	141@2550	151@2550
HBM-24×24×24-6P	592×592×600	6	5	30@3400	35@3400	50@3400	76@3400	89@3400	96@2550	106@2550
HBM-24×24×22-6P	592×592×558		4.7	33@3400	38@3400	53@3400	81@3400	94@3400	102@2550	112@2550
HBM-24×24×18-6P	592×592×450		3.8	42@3400	47@3400	65@3400	100@3400	88@2550	126@2550	136@2550
HBM-24×24×15-6P	592×592×381		3.3	49@3400	54@3400	75@3400	86@2550	101@2550	145@2550	155@2550
HBM-24×24×12-6P	592×592×300		2.6	63@3400	68@3400	95@3400	109@2550	85@1700	123@1700	133@1700
HBM-20×24×24-6P	490×592×600	6	4.9	31@3400	36@3400	51@3400	77@3400	90@3400	98@2550	108@2550
HBM-20×24×22-6P	490×592×558		4.6	33@3400	38@3400	54@3400	82@3400	96@3400	104@2550	114@2550
HBM-20×24×18-6P	490×592×450		3.7	43@3400	48@3400	67@3400	102@3400	90@2550	130@2550	140@2550
HBM-20×24×15-6P	490×592×381		3.2	50@3400	55@3400	78@3400	89@2550	104@2550	150@2550	160@2550
HBM-20×24×12-6P	490×592×300		2.6	63@3400	68@3400	95@3400	109@2550	85@1700	123@1700	133@1700
HBM-20×20×24-5P	490×490×600	5	3.5	33@2550	38@2550	53@2550	81@2550	95@2550	137@2550	147@2550
HBM-20×20×22-5P	490×490×558		3.3	35@2550	40@2550	57@2550	86@2550	101@2550	148@2550	158@2550
HBM-20×20×18-5P	490×490×450		2.7	44@2550	49@2550	67@2550	105@2550	82@1700	118@1700	128@1700
HBM-20×20×15-5P	490×490×381		2.3	53@2550	58@2550	81@2550	82@1700	96@1700	139@1700	149@1700
HBM-20×20×12-5P	490×490×300		1.8	69@2550	74@2550	67@1700	105@1700	123@1700	89@850	99@850
HBM-12×24×24-4P	287×592×600	4	3.2	22@1700	27@1700	38@1700	58@1700	68@1700	98@1700	108@1700
HBM-12×24×22-4P	287×592×558		3	24@1700	29@1700	41@1700	62@1700	73@1700	104@1700	114@1700
HBM-12×24×18-4P	287×592×450		2.4	31@1700	36@1700	51@1700	77@1700	91@1700	98@1275	108@1275
HBM-12×24×15-4P	287×592×381		2.1	37@1700	42@1700	59@1700	90@1700	106@1700	114@1275	124@1275
HBM-12×24×12-4P	287×592×300		1.7	47@1700	52@1700	73@1700	111@1700	98@1275	141@1275	151@1275
HBM-12×24×24-3P	287×592×600	3	2.5	30@1700	35@1700	50@1700	76@1700	89@1700	96@1275	106@1275
HBM-12×24×22-3P	287×592×558		2.3	33@1700	38@1700	53@1700	81@1700	94@1700	102@1275	112@1275
HBM-12×24×18-3P	287×592×450		1.9	42@1700	47@1700	65@1700	100@1700	88@1275	126@1275	136@1275
HBM-12×24×15-3P	287×592×381		1.6	49@1700	54@1700	75@1700	86@1275	91@1275	145@1275	155@1275
HBM-12×24×12-3P	287×592×300		1.3	63@1700	68@1700	95@1700	109@1275	85@850	123@850	133@850

.Note: HEFIL makes various of other models' HBM filter not listed in above table. Please consult with us if you need.

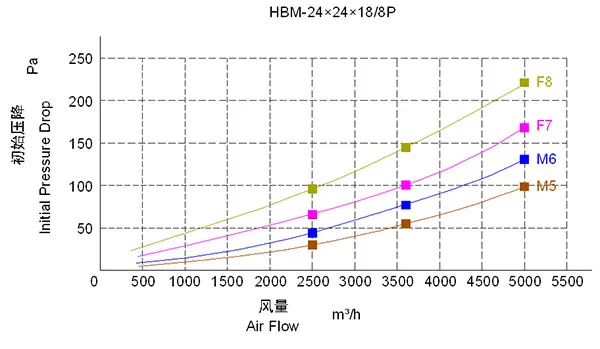

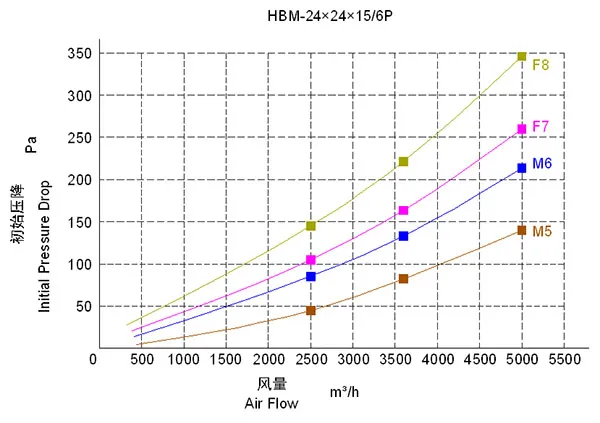

The Initial Pressure Drop and Rated Air Flow Performance Curve
