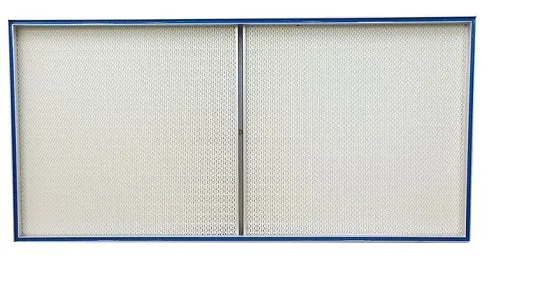

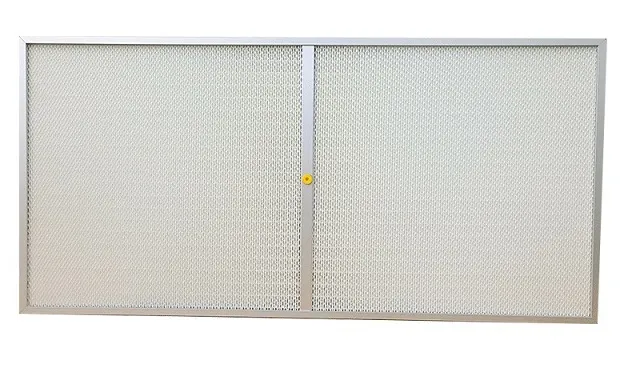

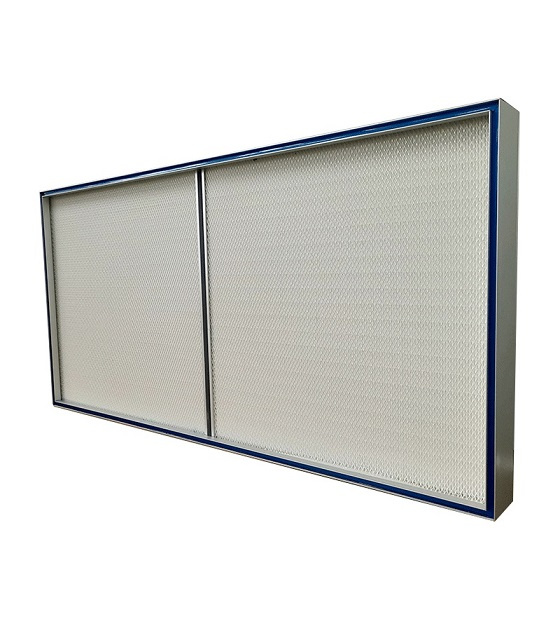

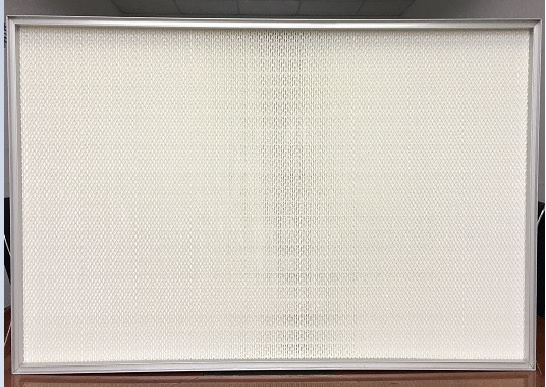

Minipleat Panel Filter U15 , H14 HEPA Air Filter with Gel Seal for HVAC Air Purification Ventilated System
Features and applications:100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semicon......
Send Inquiry
Product Description

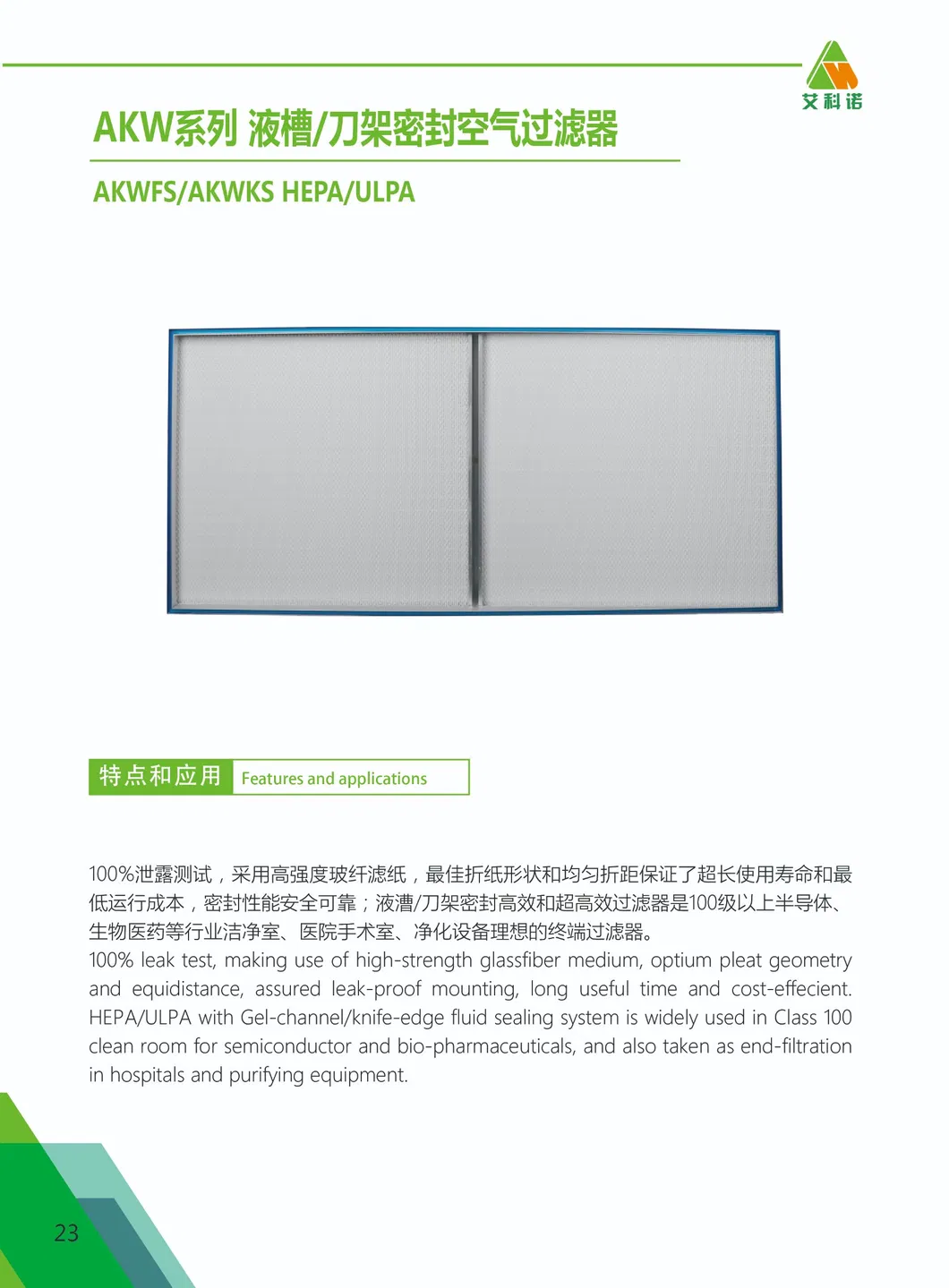

Features and applications:
100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semiconductor and bio-pharmaceuticals,and also taken as end-filtration in hospitals and purifying equipment.
Materials and operating conditions:
Standard specifications:
Type with other sizes and class are available.
100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semiconductor and bio-pharmaceuticals,and also taken as end-filtration in hospitals and purifying equipment.
Materials and operating conditions:
| Frame material | Anodized aluminum |
| Medium | Micro glass-fiber |
| Gasket | Gel-channel;knife-edge fluid system |
| Max.working temperature | 80ºC |

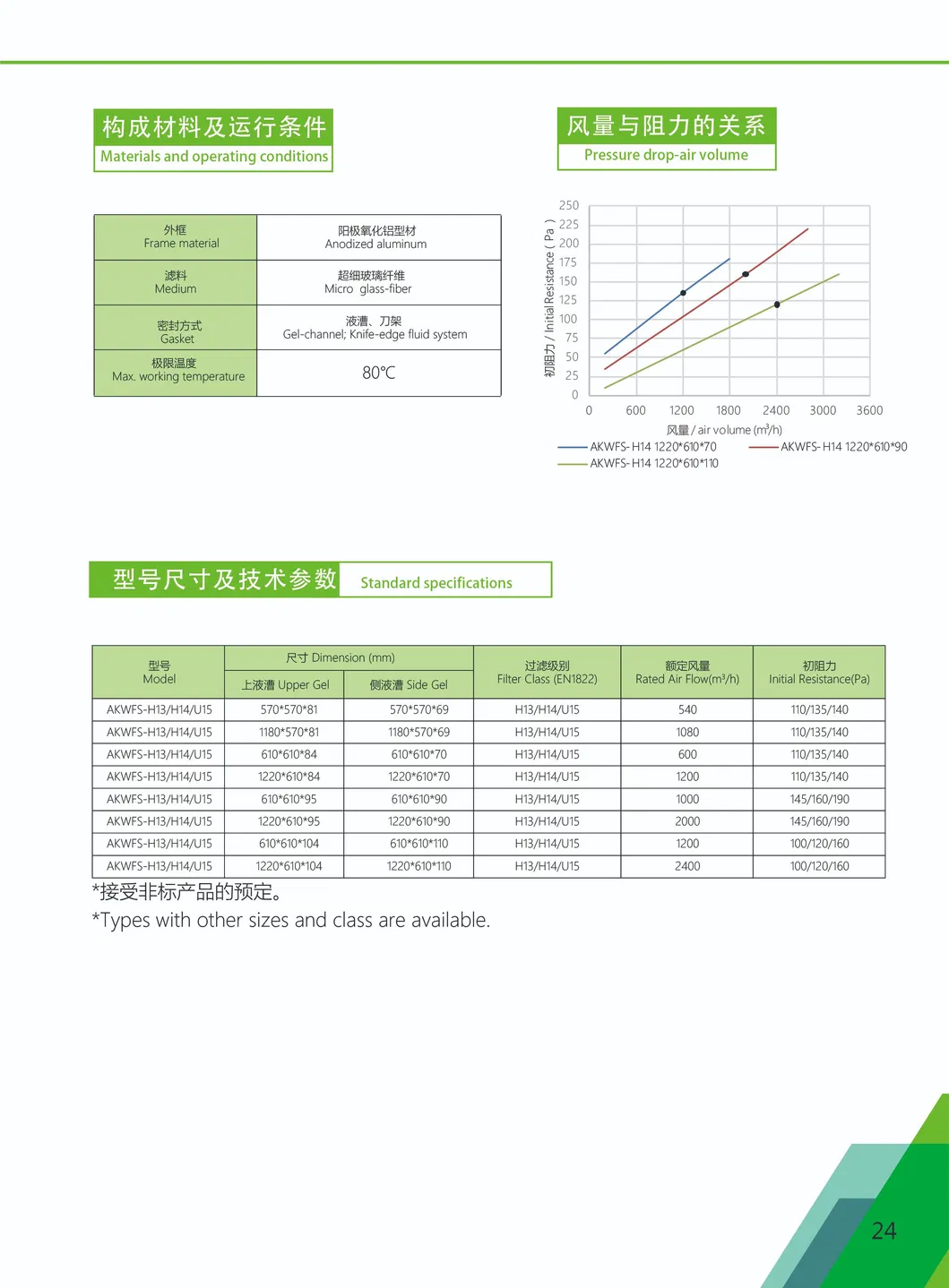

Standard specifications:
| Model | Dimension(mm) | Filter class EN1822 | Rated Air flow M3/h | Initial Resistance (Pa) | |
| Upper Gel | Side Gel | ||||
| AKWFS-H13/H14/U15 | 570*570*81 | 570*570*69 | H13/H14/U15 | 540 | 110/135/140 |
| AKWFS-H13/H14/U15 | 1180*570*81 | 1180*570*69 | H13/H14/U15 | 1080 | 110/135/140 |
| AKWFS-H13/H14/U15 | 610*610*84 | 610*610*70 | H13/H14/U15 | 600 | 110/135/140 |
| AKWFS-H13/H14/U15 | 1220*610*84 | 1220*610*70 | H13/H14/U15 | 1200 | 110/135/140 |
| AKWFS-H13/H14/U15 | 610*610*95 | 610*610*90 | H13/H14/U15 | 1000 | 145/160/190 |
| AKWFS-H13/H14/U15 | 1220*610*95 | 1220*610*90 | H13/H14/U15 | 2000 | 145/160/190 |
| AKWFS-H13/H14/U15 | 610*610*104 | 610*610*110 | H13/H14/U15 | 1200 | 100/120/160 |
| AKWFS-H13/H14/U15 | 1220*610*104 | 1220*610*110 | H13/H14/U15 | 2400 | 100/120/160 |
Type with other sizes and class are available.
