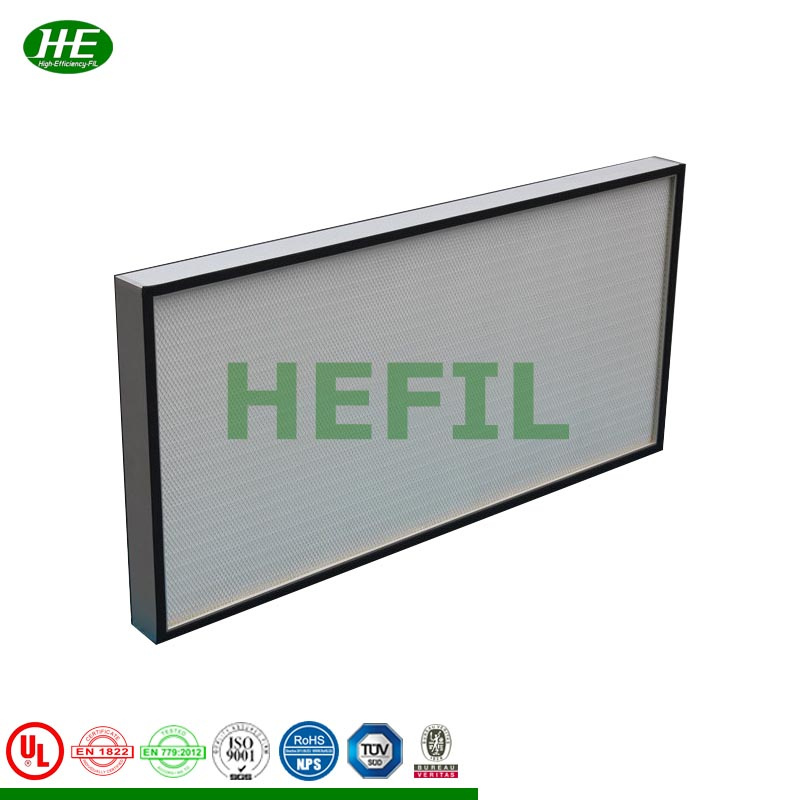

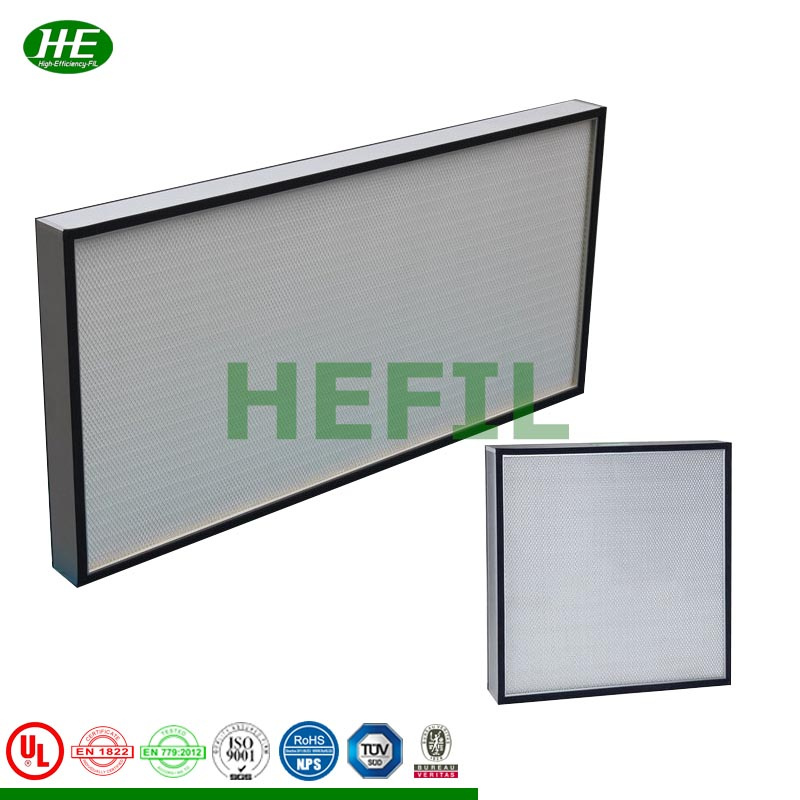

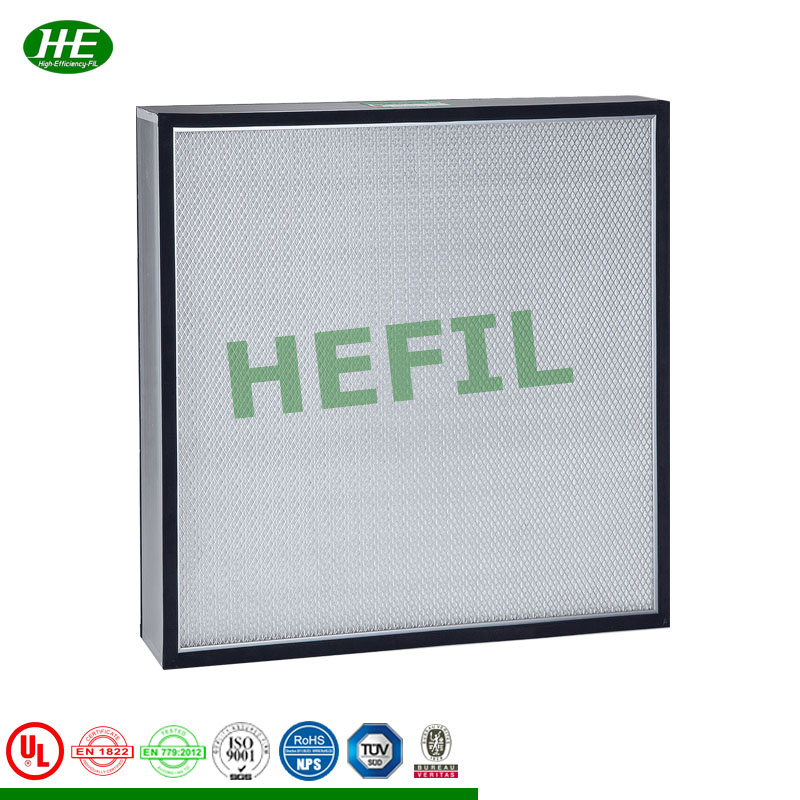

Minipleat ULPA U15 Fiberglass Panel Filter

HMH-Mini-pleat-ULPA-Panel-Filter
Application
Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.
Advantages
Filter efficiency ranges from U15 to U17.
Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
Double side retainers, protect the filter material, good strength.
Light in weight, compact in structure.
Each filter is tested according to EN1822:2009.
Material Instructions
Media: Ultra-fine fiberglass filter paper.
Frame: Anodized aluminum or stainless steel.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.
Structure Drawings

Note: HEFIL makes various of other models' HMH filter which are not listed in above table. Please consult with us if you need.

The Initial Pressure Drop and Rated Air Flow Performance Curve
