Product Description

YF series Air Filter is recommended for the industries in automation, cosmetics, blow molding, spraying etc.

What's YUKA Advatage?
1. Compressed air National standard founder;
2. Build a laboratory with Wuhan University;
3. With many patents and strong R&D ability;

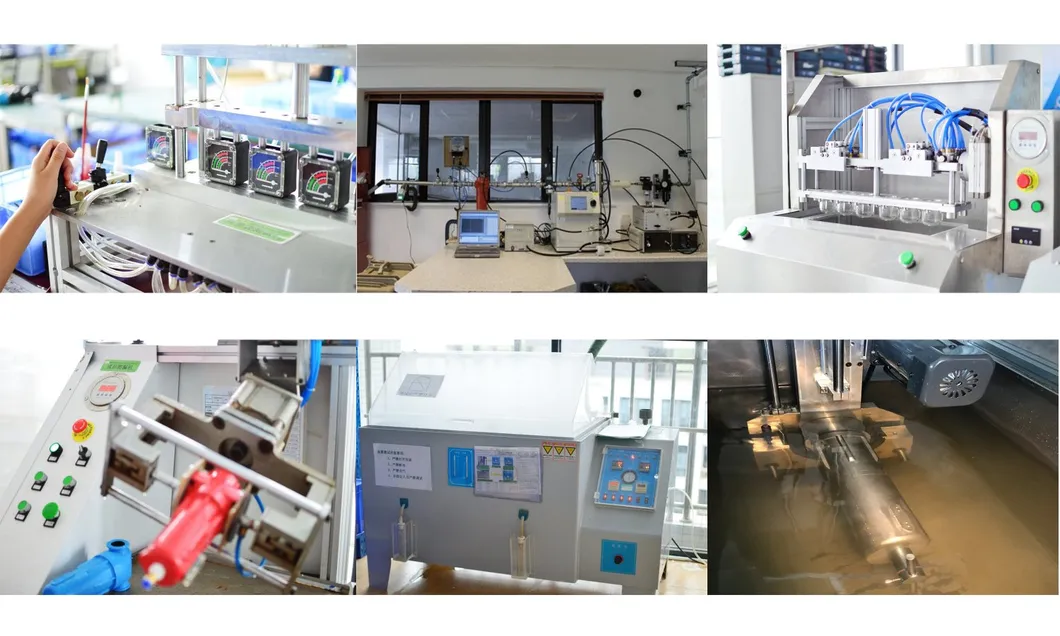

4. Advanced thread processing technology and testing equipment

What's YUKA's Product Advatage?

a.15 years serve life for filter housing under working condition from temperature 1.5~80ºC.Maxi. Pressure is 1.0Mpa.

b. 6000~8000 hours serve life for filter element,filtering performance up to 99%
c. Integrated die-casting filter up to 4 inch,flow rate up to 48m³/min;
d. Effectively filter solid particles up to 0.01 microns, suspended oil up to 0.003 mg/m3;
e. 7 filter element filter levels to meet different needs;
f. Surface anti-corrosion treatment increases wear resistance and the corrosion of the shell is low;
g. Equipped with an external drain to effectively remove condensate;
h. Sight Glass shows the drainage inside the filter;

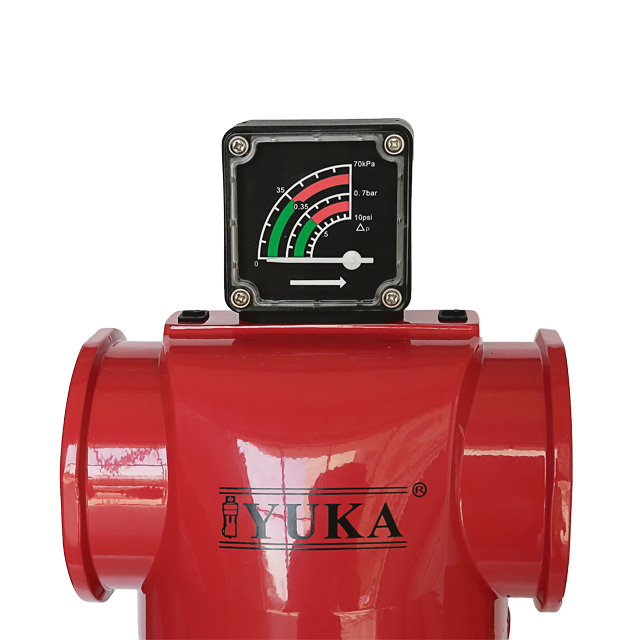

i. The presence of a pressure indicator indicates when the filter element should be replaced;
j. The filter element can be replaced without the intervention of third-party personnel and special tools; Ability to install filters on the wall;
k.Less pressure drop when the airflow passes.

Grade	Particle removal	Outlet oil aerosol concentration	Filtration performance of Particle	Filtration performance of oil	Element spanlife	Airflow direction	Precede with
PF	5μm	5mg/m³	-	50%	6000 hours	From inside to outside	Before refrigerated dryer
AO	1μm	0.6mg/m³	99.999+%	80+%	6000 hours		after air dryer
AA	0.01μm	<0.01mg/m³	99.999+%	99.9+%	6000 hours		after AO
AX	0.01μm	<0.001mg/m³	99.999+%	99.99+%	6000 hours		after AA
ACS	-	<0.004mg/m³	99.999+%	-	2000-3000 hours		before AX
AR	1μm	-	99.999+%	-	4000-6000 hours	From outside to inside	after desiccant dryer
AAR	0.01μm	-	99.999+%	-	4000-6000 hours	From outside to inside	after AR

International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.

Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.

Filtration Grade	PF	AO	AA	AX	ACS	AR	AAR
Size of solid particles(ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Filtration performance of solid particles(ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil(ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Residual oil content(ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m3/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C(clearance for housing)
YF010	RC1/2"	16.7	1.0	35.3	96	79	261	29	198	118
YF020	RC3/4"	25.0	1.5	53.0	96	79	261	29	198	118
YF030	RC3/4"	30.0	1.8	63.6	96	79	295	29	233	153
YF040	RC1"	33.3	2.0	71.0	96	79	295	29	233	153
YF060	RC1"	60.0	3.6	127.0	138	111	403	37	296	208
YF070	RC1"	83.3	5.0	177.0	138	111	503	37	396	303
YF080	RC1-1/2"	125.0	7.5	265.0	138	111	503	37	396	303
YF090	RC2"	166.7	10.0	353.1	174	142	736	58	607	469
YF100	RC2-1/2"	216.7	13.0	459.0	174	142	736	58	607	469
YF110	RC2"	283.3	17.0	600.0	174	142	1016	58	887	794
YF120	RC2-1/2"	316.7	19.0	671.0	174	142	1016	58	887	794
YF130	RC3"	416.7	25.0	883.0	220	184	793	74	649	514
YF140	RC4"	466.7	28.0	989.0	220	184	793	74	649	514
YF150	RC3"	683.3	41.0	1448.0	220	184	1050	74	906	764
YF160	RC4"	800.0	48.0	1695.0	220	184	1050	74	906	764
Technical requirements	Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51

Moisture Air Filter for Air Compressor with Auto Drain

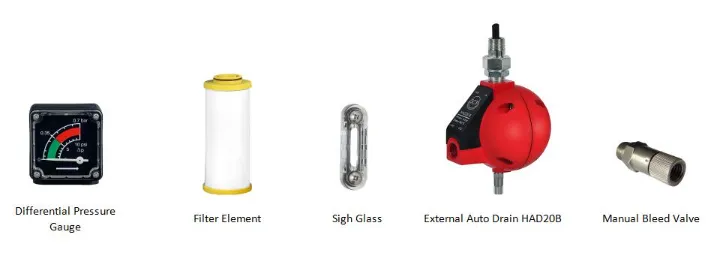

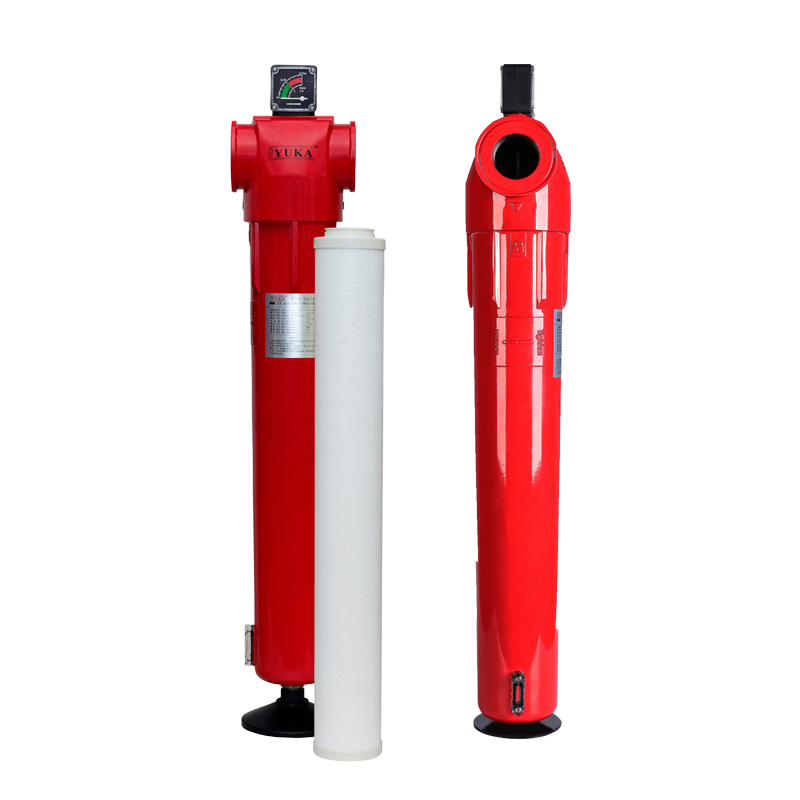

Product Parts

Commodity		Compressed air filter
Series		YF
Flow rate		1.0m³/min~ 48.0m³/min
Element grade		5μm/1μm /0.01μm/0.001mg/m³
Working pressure		143psig
Working temperature		1.5ºC~80ºC
Material		Aluminum Alloy
Color of housing		Red
Trade term		EXW & FOB SHENZHEN
Package		Internal Box & External Carton
Warranty		15 years for filter housing, 4000-6000 hours under rated working conditions for filter element
