Paint Arrestance Filter for Spray Booth
Product image: Product Description: ·Low initial resistance·High separation efficiency·Different color on inlet and outlet side·Flexible·Economical and practical Application: used in the spray booth or filter mist in the kitchenType: supply pad......
Send Inquiry
Product Description
Product Description:
·Low initial resistance
·High separation efficiency
·Different color on inlet and outlet side
·Flexible
·Economical and practical
Application: used in the spray booth or filter mist in the kitchen
Type: supply pads or rolls size

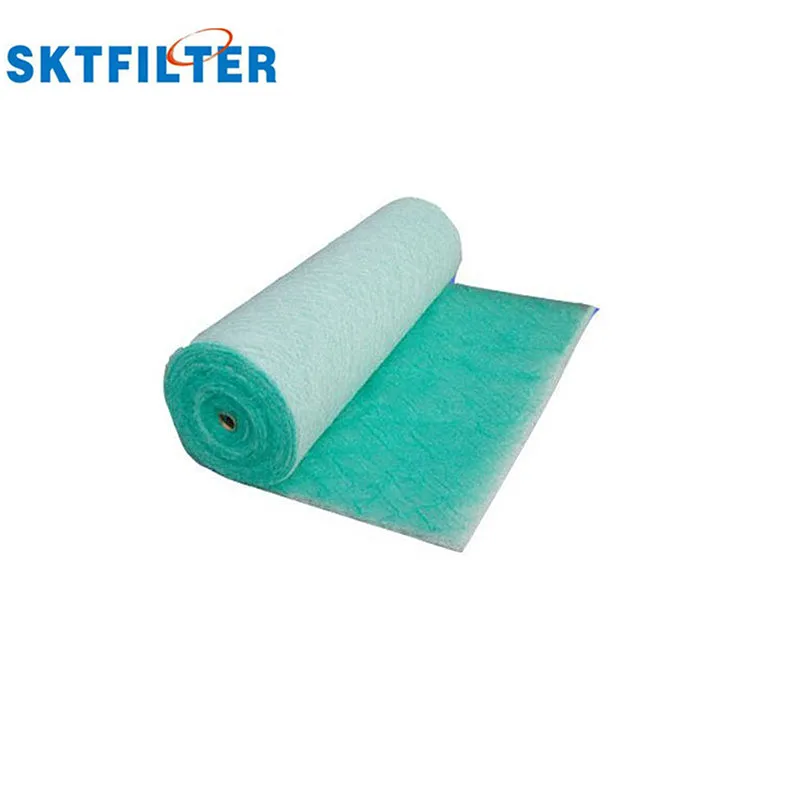

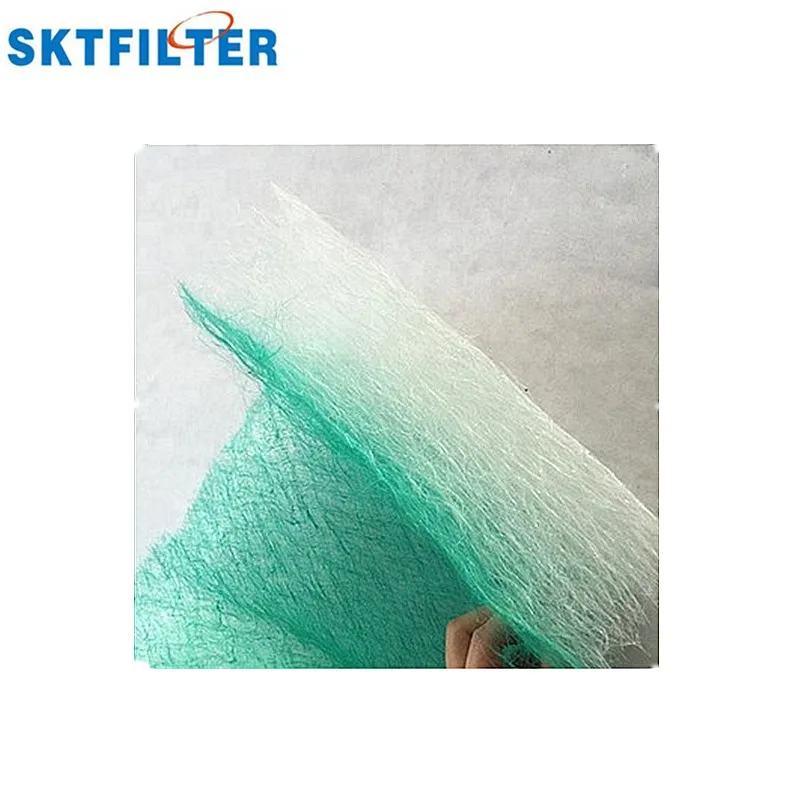

Media: fiber glass with gradual density, inlet side is
green,outlet side is white
EN779 class: G2
Average arrestance:93%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU2
Average separation efficiency: 95%
Final resistance: (suggested) 130Pa-200Pa
Temperature resistance: 170ºC
Type | Dimensions | Rated air velocity(m/s) |
Initial pressure drop (Pa) | Rated air flow(m2/h) | ||
Length(m) | Width(m) | Thickness(mm) | ||||
Rolls | 20 | 0.8/1/2 | 50/60 | 2.0 | 10 | 7200 |
Packing:

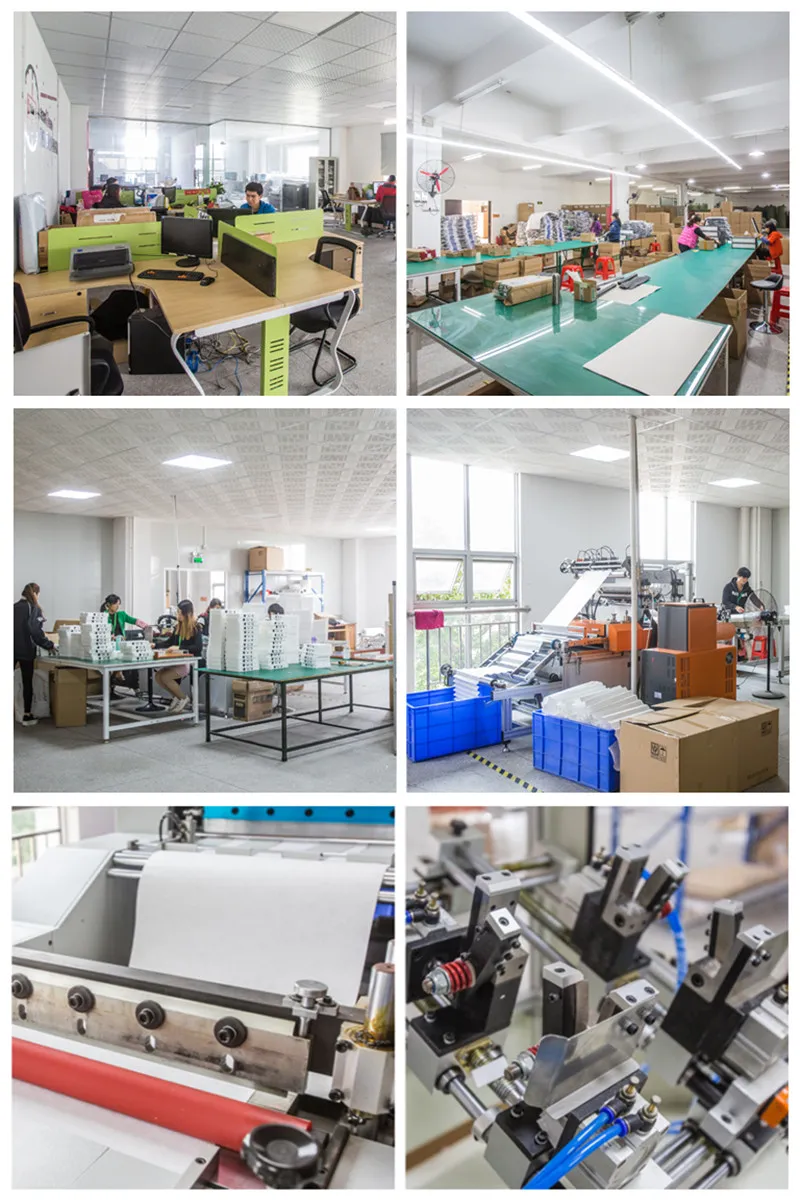

Company Information
Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
