Primary Efficiency Mesh Panel Air Filter G3 G4
Primary Efficiency Mesh Panel Air Filter G3 G4Product show:The primary efficiency panel air filter has sturdy metal frame, oxide aluminium and galvanized steel for customers to option. High dust holding capacity, low resistance and large air flow. The filter material is made of fluffy multilayer syn......
Send Inquiry
Product Description

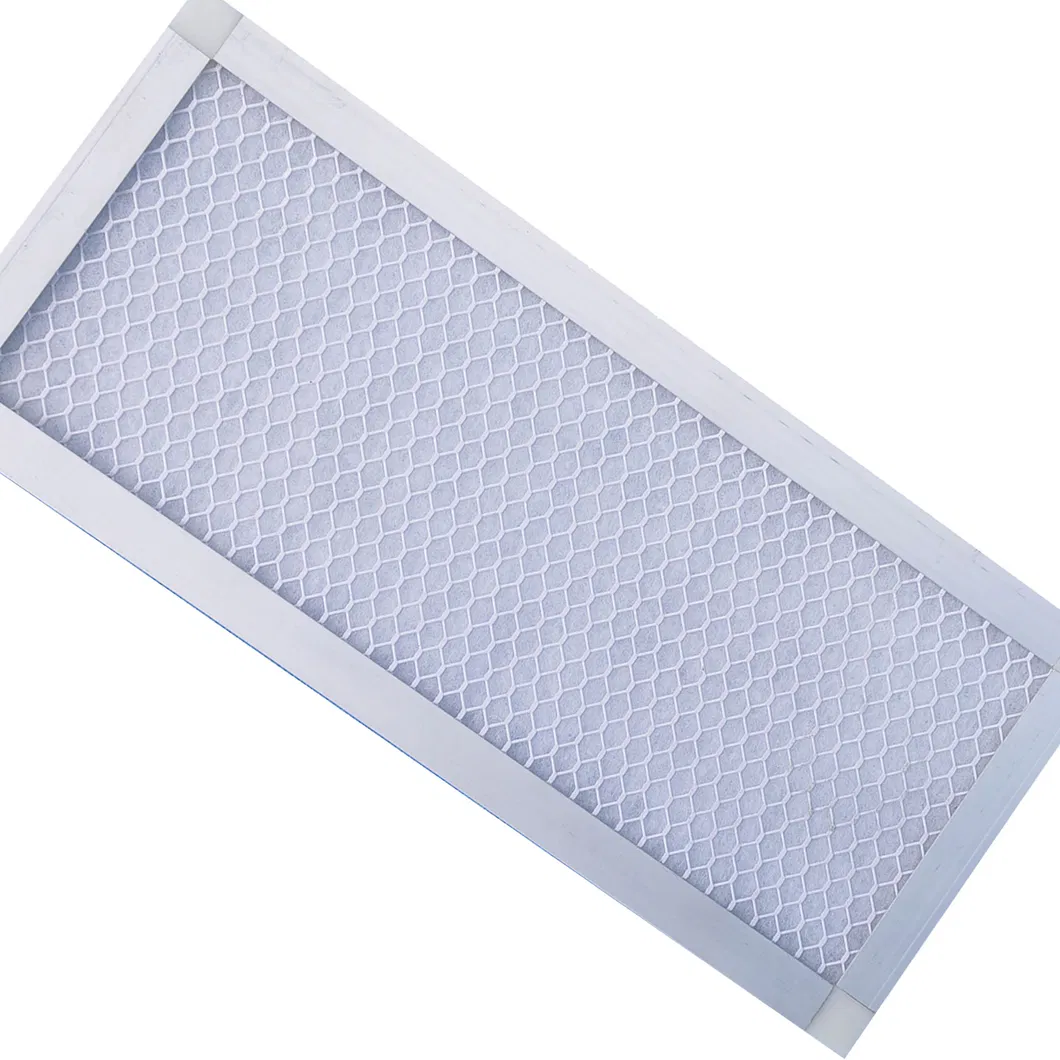

Primary Efficiency Mesh Panel Air Filter G3 G4
Product show:
The primary efficiency panel air filter has sturdy metal frame, oxide aluminium and galvanized steel for customers to option. High dust holding capacity, low resistance and large air flow. The filter material is made of fluffy multilayer synthetic fiber.The filtration efficiency for particles ≥5.0 μm is between 40%-60%.
Application:
1.Central air conditioning and centralized ventilation system pre-filtration
2.Large air compressor pre-filtration
3.Pre-filtration of local high efficiency filtration unit
4.High temperature resistant air filter with stainless steel frame and high temperature resistance 250-300 °C filtration efficiency
5.Clean return air system
Features:
1.Filtration efficiency for ≥5μm particales is 40%-60%
2.The special fluffy high-flux low-resistance non-woven fabric as the filter material, and the dust holding capacity is large.
3.Low resistance, large air flow, large dust capacity
Specification:
Frame:Galvanized steel / Aluminium alloy / Stainless steel
Medium:Synthetic fiber/Galvanize mesh
Gasket:Without
Maximal final pressure drop:450Pa
Highest temperature:70 °C
Maximum relative humidity:90%
Filter Class:G3/G4
Specification size:
Tips: Customized according to customer specifications and requirements.
FAQ
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
Product show:
The primary efficiency panel air filter has sturdy metal frame, oxide aluminium and galvanized steel for customers to option. High dust holding capacity, low resistance and large air flow. The filter material is made of fluffy multilayer synthetic fiber.The filtration efficiency for particles ≥5.0 μm is between 40%-60%.
Application:
1.Central air conditioning and centralized ventilation system pre-filtration
2.Large air compressor pre-filtration
3.Pre-filtration of local high efficiency filtration unit
4.High temperature resistant air filter with stainless steel frame and high temperature resistance 250-300 °C filtration efficiency
5.Clean return air system
Features:
1.Filtration efficiency for ≥5μm particales is 40%-60%
2.The special fluffy high-flux low-resistance non-woven fabric as the filter material, and the dust holding capacity is large.
3.Low resistance, large air flow, large dust capacity
Specification:
Frame:Galvanized steel / Aluminium alloy / Stainless steel
Medium:Synthetic fiber/Galvanize mesh
Gasket:Without
Maximal final pressure drop:450Pa
Highest temperature:70 °C
Maximum relative humidity:90%
Filter Class:G3/G4
Specification size:
| Type | Efficiency Specification | Boundary Dimensions (mm)W*H*D | Filter Area(m2) | Rated Air Volume | Initial Resistance Compared to Rated Air Volume | ||
| XBL-II6605 | G3 | 595*595*46 | 0.6 | 3600 | 65 | 85 | |
| XBL-II3605 | G3 | 290*595*46 | 0.3 | 1800 | 65 | 85 | |
| XBL-II6610 | G3 | 595*595*96 | 1.37 | 3600 | 30 | 55 | 75 |
| XBL-II3610 | G3 | 290*595*96 | 0.63 | 1800 | 30 | 55 | 75 |
| XBL-II6605 | G4 | 595*595*46 | 0.6 | 3600 | 70 | 110 | |
| XBL-II3605 | G4 | 290*595*46 | 0.3 | 1800 | 70 | 110 | |
| XBL-II6610 | G4 | 595*595*96 | 1.37 | 3600 | 45 | 75 | 95 |
| XBL-II3610 | G4 | 290*595*96 | 0.63 | 1800 | 45 | 75 | 95 |
FAQ
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
