U15 H14 H13 Top Gel Sealing ULPA Filter/ HEPA Filter for Clean Room Air Conditioning
Top Gel seal HEPA filter (H13,H14,U15)Gel Seal HEPA Filter & ULPA Filter adopt the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect ......
Send Inquiry
Product Description

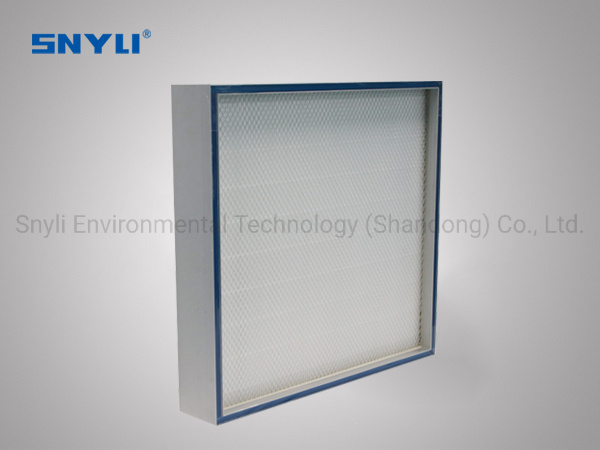

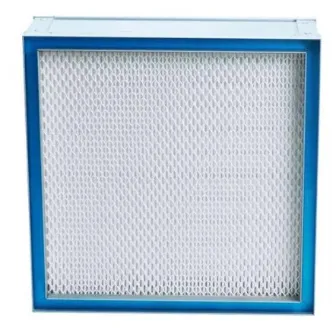

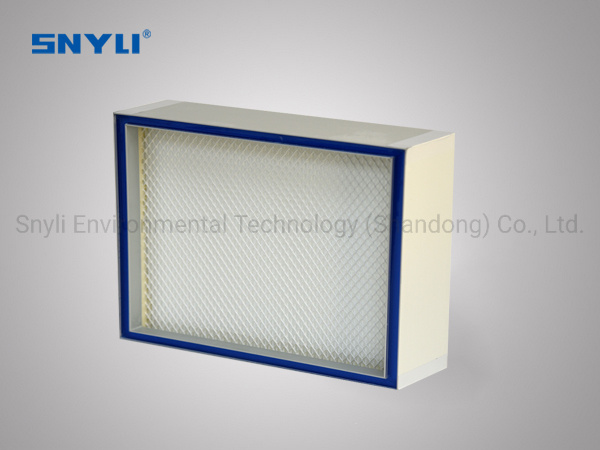

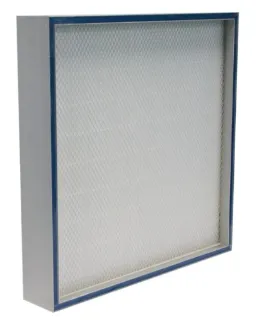

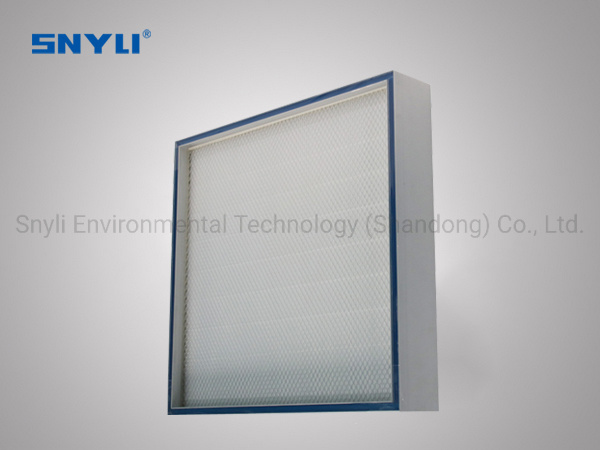

Top Gel seal HEPA filter (H13,H14,U15)
Gel Seal HEPA Filter & ULPA Filter adopt the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products. It can be used in advanced filtation of air conditioning and ventilation system in the central air conditioning and ventilation system, such as microelectrnics, semiconductor, pharmaceutical, chemical, food and other clean areas of ventilation system end.
Application: Mainly used in terminal filtration of electronics,
Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow
devices,and other clean room equipments.
Frame: Anodized aluminum profile / Galvanized steel / Aluminum profile /
Stainless steel
Media: Ultra fine glass fiber
Separator :Hot melt adhesive
Sealant:Urethane gel sealant
Std. EN1822:2009 :U15 /H14/H13
Std. ASHRAE 52.2-2007:MERV17-MERV19
Efficiency: 99.9995% at 0.12μm,99.999%,99.99% at 0.3μm
(DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available
* Filter efficiency ranges from H13 to U15.

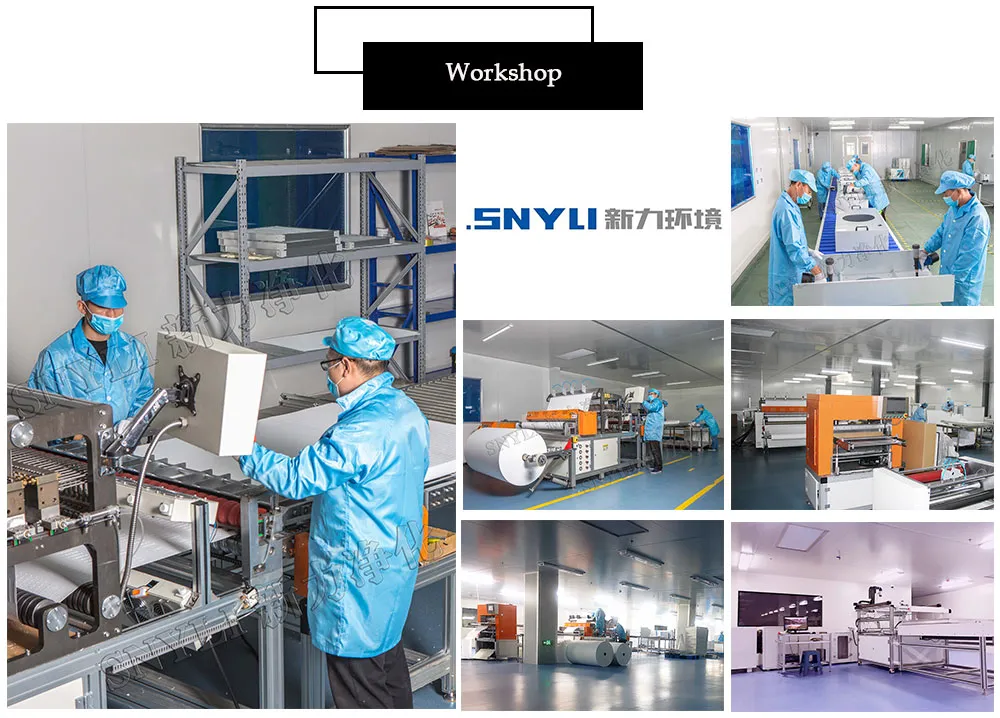

* Adopt computer-controlled automatic production line for
manufacturing, the crest height of folding filter material can be
regulated steplessly between 18~96 mm,
width will reach 1240mm at the widest.
* Use special ultra-fine fiberglass paper as the filter media, good
stability of filtration efficiency.
* Double side retainers, protect the filter material, good strength.
* Light in weight, compact in structure.
* Each ULPA/HEPA filter is tested according to EN1822:2009.
COMMON DIMENSIONS
| Mode | Actual size W×H×D(mm) | Rated Airflow (m³/h) | Face velocity (m/s) | Initial pressure drop(Pa) | ||
| H13 | H14 | H15 | ||||
| GPW370370105D | 370×370×105 | 500 | 1.2 | 200 | 210 | 249 |
| GPW510510105D | 510×510×105 | 1000 | ||||
| GPW610610105D | 610×610×105 | 1500 | ||||
| GPW5101020105D | 510×1020×105 | 2000 | ||||
Q1.Are you a manufacture or trading company?
A:We are a manufacure.
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.
Q3: What are your testing criteria?
A: EN779:2012 ISO9001
Q4: What is the international standard for air filters?
A:Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17)
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
Q5: What is your sample policy?
A: The sample price will be the product price of the standard order. If you make a demo order after receiving the sample and proofing (reaching our MOQ), we will roughly understand the sample price and sample price in the order, and give us your MOQ price.
Q6: How about your after-sales service?
A: Even if we have confidence in the quality of our products, the products may be damaged due to some unpredictable reasons. Please use and maintain the products you purchased correctly in accordance with the user manual or the recommendations of the sales staff. Contact the household to understand the usage of the product, provide suggestions or support professional maintenance services according to the warranty policy.
