Ventilation Filter Spfa with Ral7035 7032 Color Easy Install
Information1. Material of net body: ABS resin of flamer resistance2. Filter screen material: polyester fiber syntheticresin3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ4. Max wind speed: 2.0m/sec5. Operation temperature range: -10ºC to +55ºC indoors6. Effecti......
Send Inquiry
Product Description
Information
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber syntheticresin
3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC indoors
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%
Dimension
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber syntheticresin
3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC indoors
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%

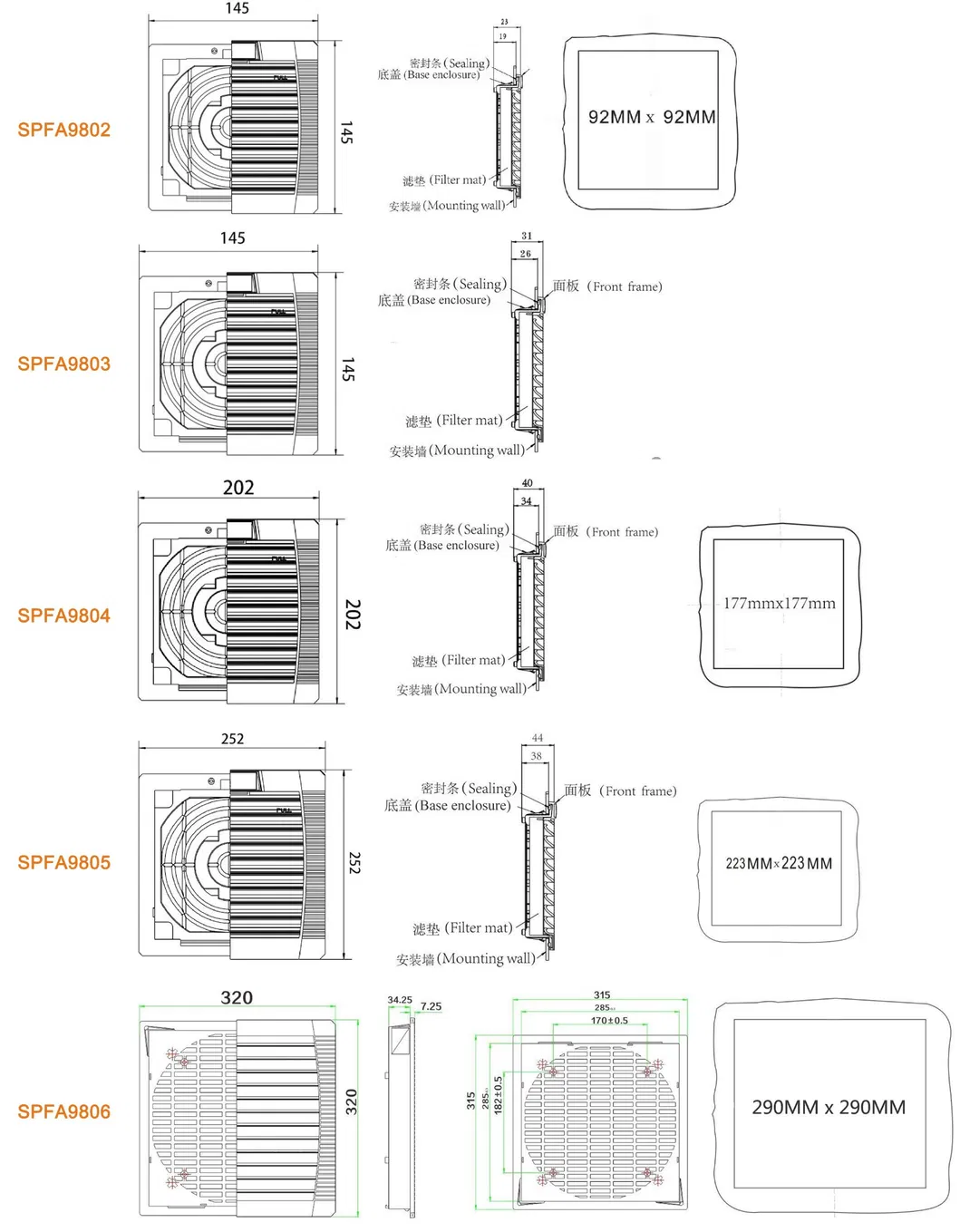

| Type | Dimension(mm) | Application Fan size(mm) |
| SPFA9802 | 109X109 | 80X80, 92X92 |
| SPFA9803 | 145X145 | 120X120 |
| SPFA9804 | 202X202 | 120X120, 135X135 |
| SPFA9805 | 252X252 | 150X172 |
| SPFA9806 | 320X320 | 225X225, 280X280 |
Dimension
