226 Flat Melt Spinning Cartridge

Product Description

Three Layers PP Melt Blown sediment pre-filter
Features
- Three layers structure cartridge offers high dirt holding capacity,longerservice life
- Formed by thermal bond without using any binders and adhesives.
- 100% Pure Polypropylene will not cause any pollution to water
- Wide Chemical compatibility
- Groove design to extend the filtration surface area.
- All kinds of adaptors are available.
- FDA compliance material

Specifications

Outside Diameter	63mm, 115mm or up to customers' request
Inside Diameter	28mm,30mm
Length	9.75",9.87",10, 20, 30, 40, 50, 60
Filter media	PP
End caps	PP
Cores	PP
Gaskets/O-ring	Silicone, EPDM, NBR, Viton

Performance
- Removal Rating: 1,3,5,10,25, 50,100,150 μm
- Maximum Differential Pressure: 2.0 bar @ _{21° C}
- Maximum Operating Temperature: _{82° C}

CodeXSurface TypeCode= Removal RatingCode# LengthCode+End Cap Type

Blank No Groove11µm9759.75"(248mm)Blank DOE(No End Caps)

G Deep Groove33µm9879.87(250mm)"F DOE(Glasket/Glasket)

MG Mini Groove55µm1010"(254mm)M 222/Flat

Code* Outside Diameter1010µm2020"(508mm)P 222/Fin

Blank 2.5"(63mm)2525µm3030"(762mm)T 226/Flat

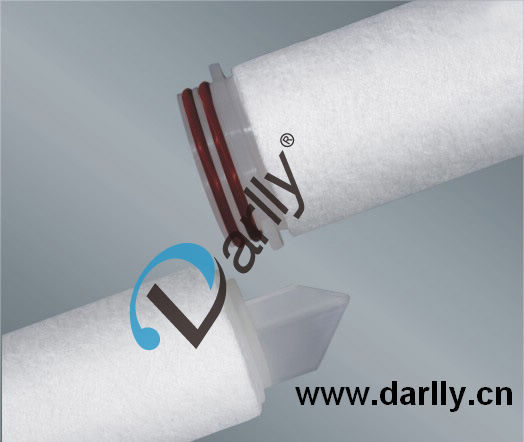

BB 4.5" (115mm)5050µm4040"(1016mm)Q 226/Fin

7575µm5050"(1270mm)Code&Seal Material

100100µm6060"(1524mm)SSilicone

150150µmEEPDM

BNBR

VViton
