Product Description

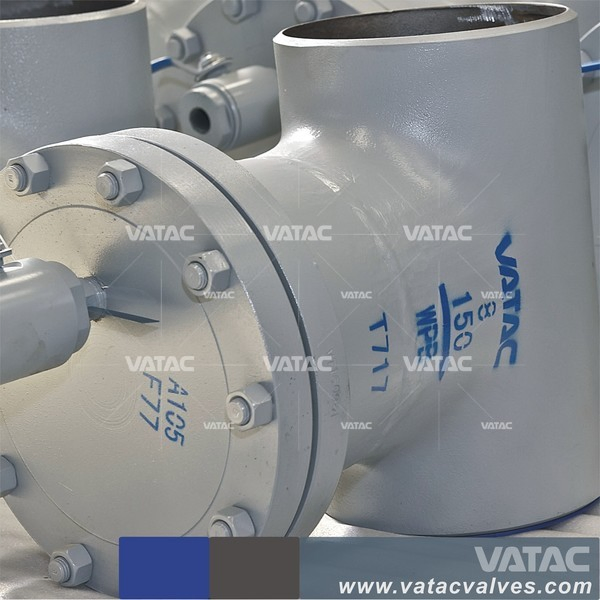

Butt Weled T type Strainer
Features:
Compact Design
Bolted or Threaded Cover
Perforable or Mesh Lined Stainless Steel Screens
Suitable for Liquid, Gas or Steam
Materials Available in Cast Iron, and Ductile Iron
Size Ranges from 2" through 12"NB
Design & Manufacture: ANSI B16.34
Face to Face Dimension: Manufacture Standards
Ends Dimension: ASME B16.5, ASME B16.47
Inspect & Test: API 598
Features:
Compact Design
Bolted or Threaded Cover
Perforable or Mesh Lined Stainless Steel Screens
Suitable for Liquid, Gas or Steam
Materials Available in Cast Iron, and Ductile Iron
Size Ranges from 2" through 12"NB
Design & Manufacture: ANSI B16.34
Face to Face Dimension: Manufacture Standards
Ends Dimension: ASME B16.5, ASME B16.47
Inspect & Test: API 598
| DESGN & MFT. | API | ENDS CONNECTION | RF |
| PRE-TEP. RATING | ASME B16.34 | INSPECT & TEST | API 598 |
| F-F DIMENSION | ANSI B16.10 | END CONNECTION | ANSI B16.5 |
| MARKINGMSS | MSS SP-25 | FIRE SAFE DESIGN | -- |
| MARKINGMSS | TBA | SPE. REQUIREMENTS | N.A |
| Main Part & Materials | |||||
| Part Names | Part Materials | ||||
| Body | WPB | SS304 | SS316 | SS304L | SS316L |
| Screen | SS304 | SS304 | SS316 | SS304L | SS316L |
| Bolts/Nuts | B7/2H | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C |
