A. Description:
Bore water/well water/tap water/sea water/underground water treatment plant deliver high performance at the lowest life-cycle costs. Our pre-engineered systems allow fast delivery and are built with high-quality components designed to meet your specific process needs. They arrive at your facility ready to run with all filters, membranes, pumps, piping, controls and automation.

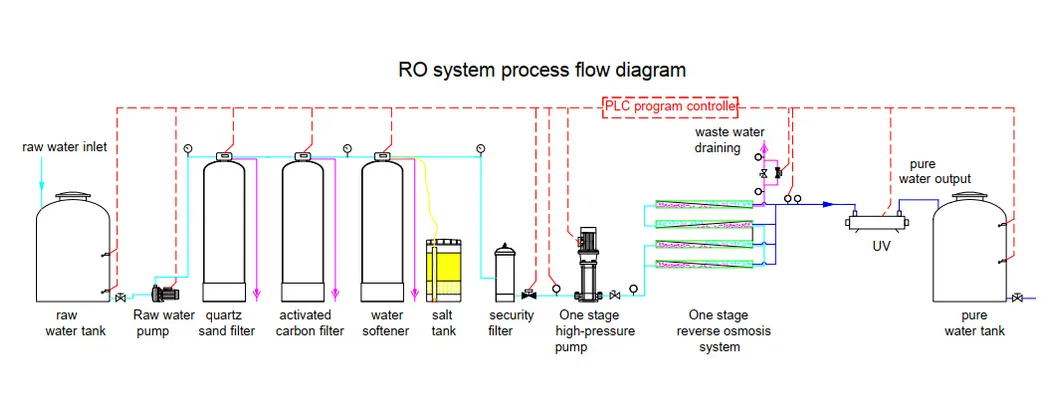

B. Process of borehole water RO treatment /water system/ RO plant/ RO system:
Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points
CE Proved/ ISO Certification Guangzhou Kai Yuan RO Water Filter System/Water Filter Machine (KYRO-500)

CE Proved/ ISO Certification Guangzhou Kai Yuan RO Water Filter System/Water Filter Machine (KYRO-500)

C. Parameters of borehole water RO treatment /water system/ RO plant/ RO system:
1. Capacity: 500L/H
2. Rated power: 1.5Kw/H
3. Voltage: 220V/50Hz, 380V/50Hz
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤ 400μ S
7. Conductivity of pure water: ≤ 10μ S
8. With water softener

D. Feature OF borehole water RO treatment /water system/ RO plant/ RO system:
1. This filter is designed for drinking water treatment.
2. It can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.
3. The filter is the ideal equipment for drinking water, foodstuff, beverage, pharmaceutical industries.
4. The production capacity: 500LPH -50000LPH
CE Proved/ ISO Certification Guangzhou Kai Yuan RO Water Filter System/Water Filter Machine (KYRO-500)

Other capacity:

Model No.	Capacity (M3/H)	Power (kw)	Recovery Rate (%)	Total land area LX W X H (mm)
RO-250	0.25	1.5	50	2500X1000X2800
RO-500	0.5	1.5	50	2500X1000X2800
RO-1000	1	2	50	3500X1200X2800
RO-2000	2	4	50-60	6500X1500x2800
RO-3000	3	4.5	55-65	7500X1500X2800
RO-4000	4	6.5	55-65	7500X1500X2800
RO-5000	5	11	60-70	10000X2500X3500
RO-6000	6	11	60-70	10000X2500X3500
RO-8000	8	18	60-70	10000X3500X3500
RO-10000	10	20	60-70	10000X4000X3800
RO-20000	20	30	70-75	15000X5000X5000
RO-30000	30	40	70-75	20000X6000X5000
RO-50000	50	50	70-75	30000X8000X5000

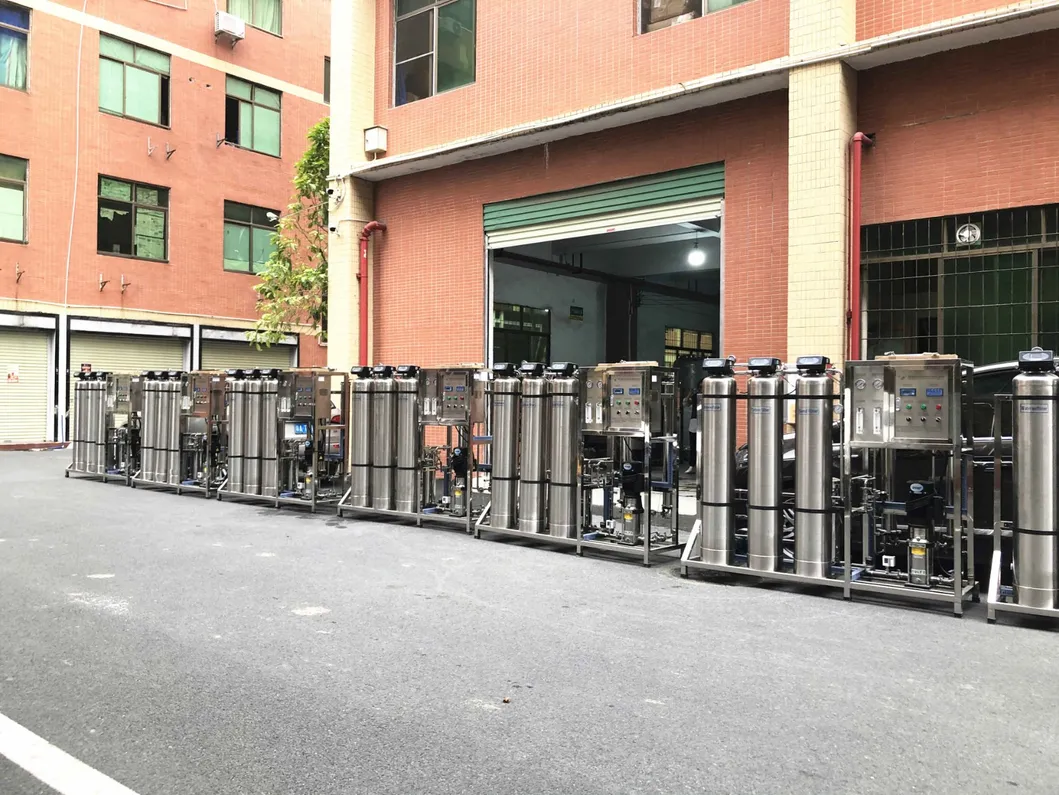

Machine pictures:

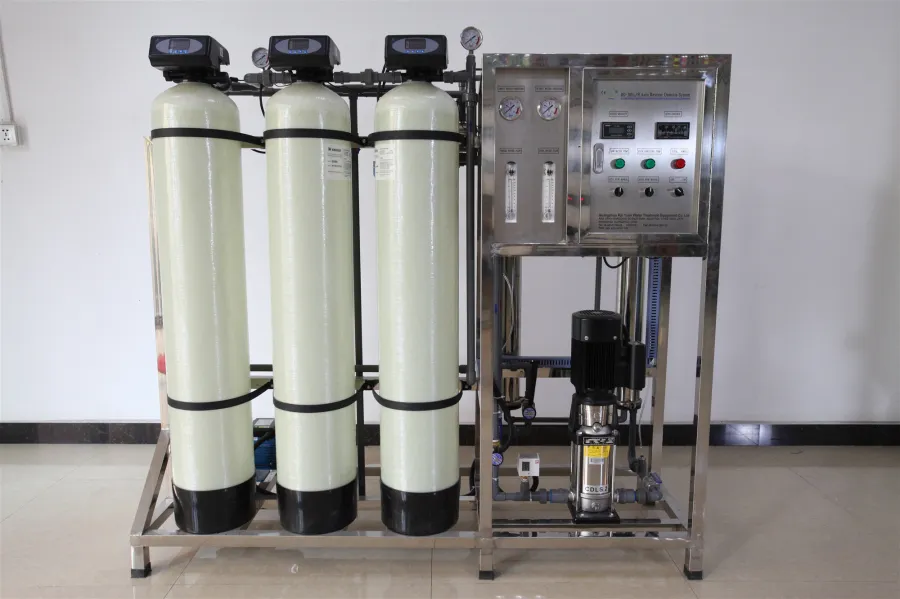

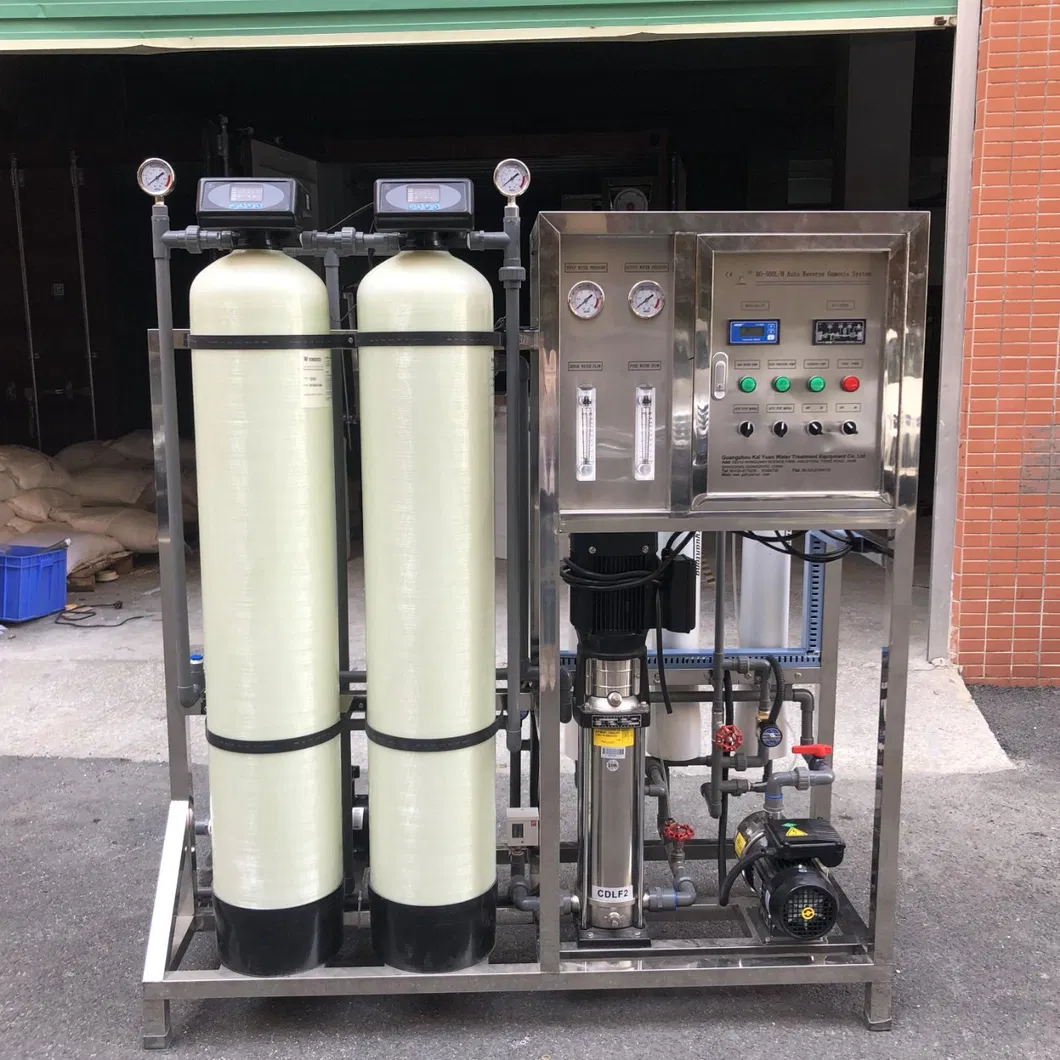

Fiberglass automatic RO plant salty borehole water treatment machine

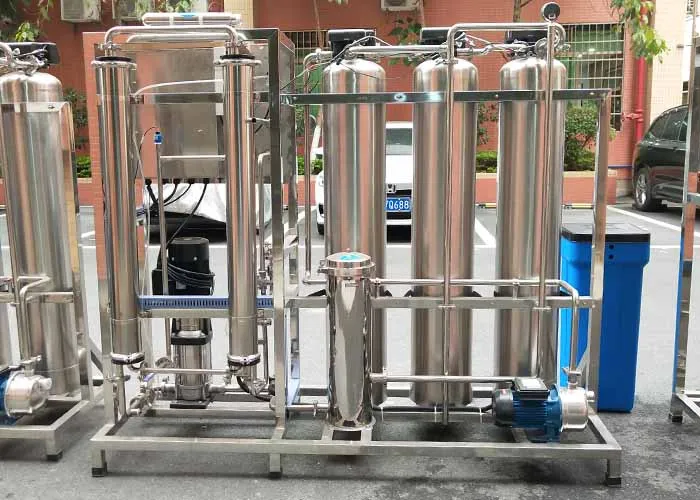

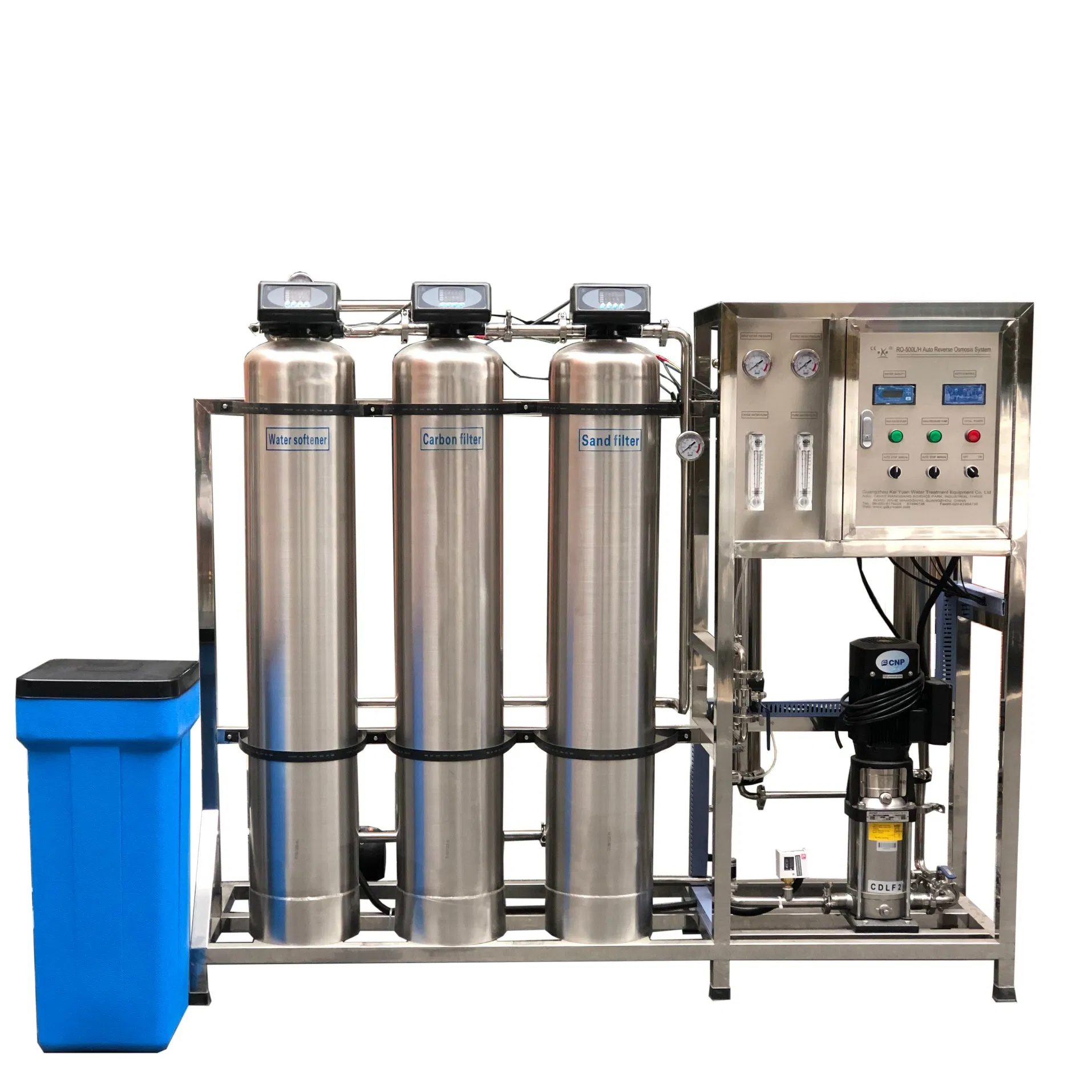

Stainless steel 500L/H RO system with water softener for drinking water making machine

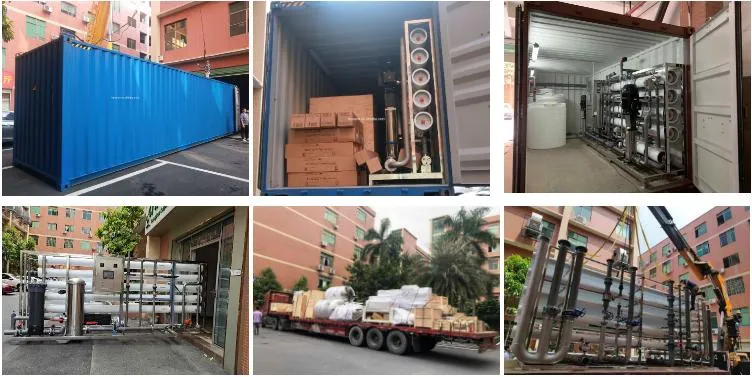

Packing and delivery:

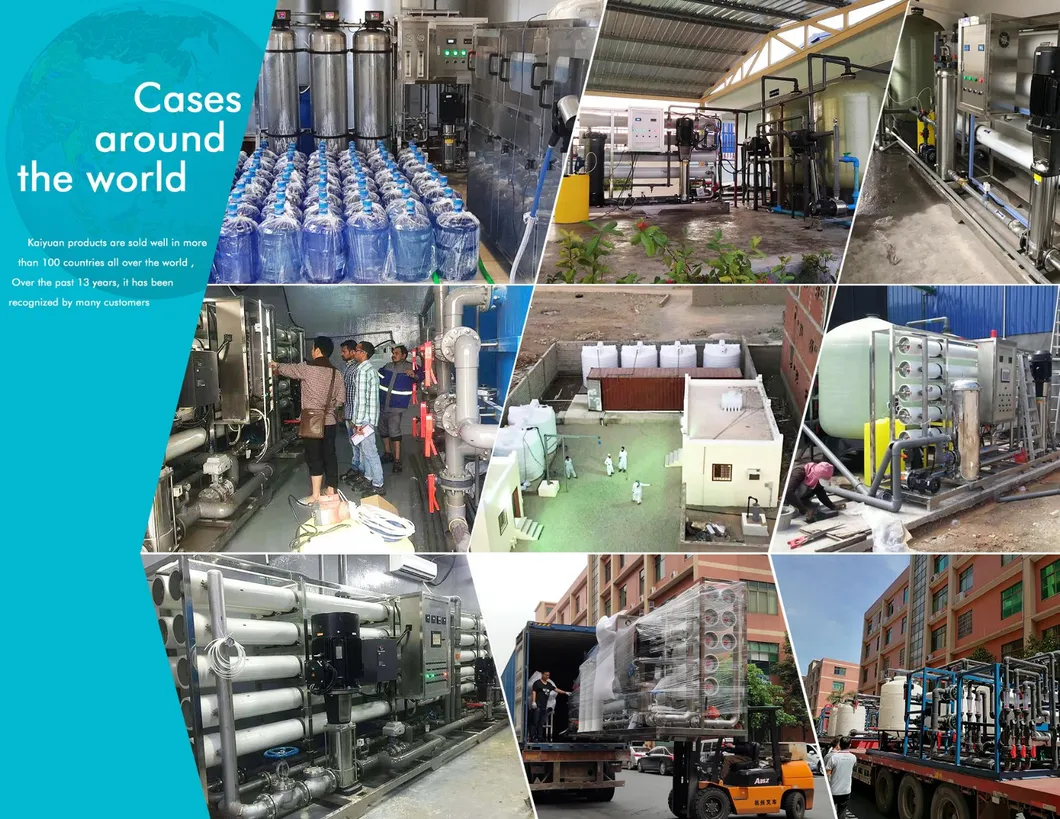

Our projects:
