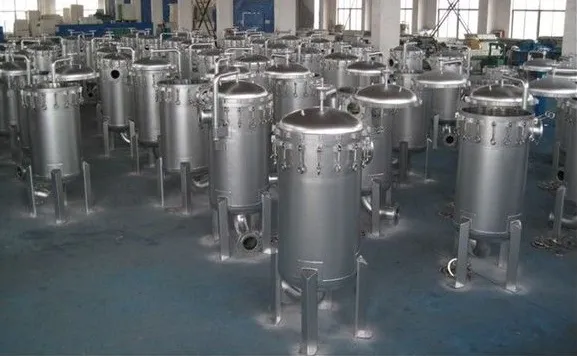

Conventional Multi-Bag Filter

Product Description

Product Introduction

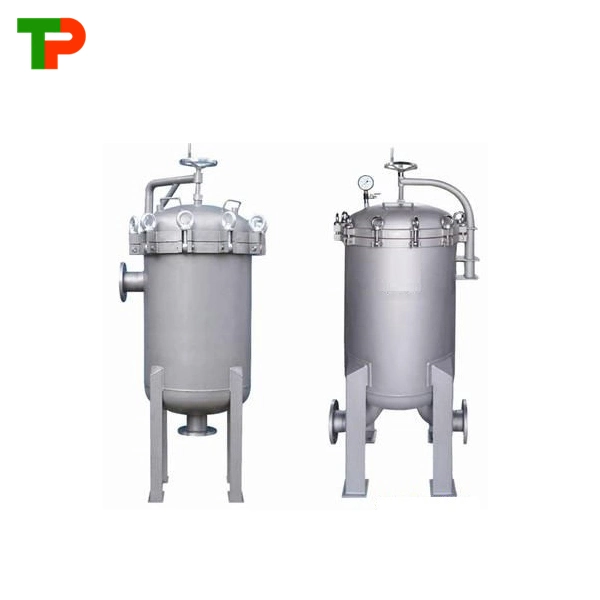

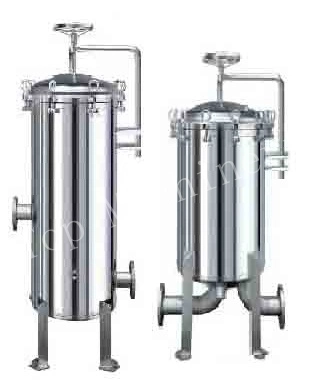

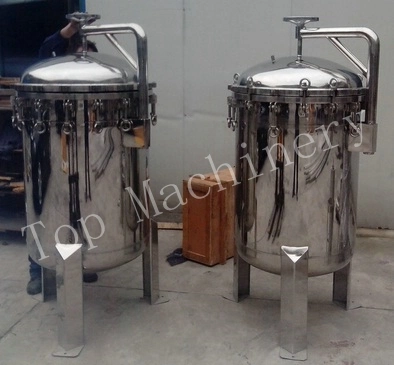

TPBM Series conventional multi-bag filter, for high flow rate and non-frequent bag replacement applications.

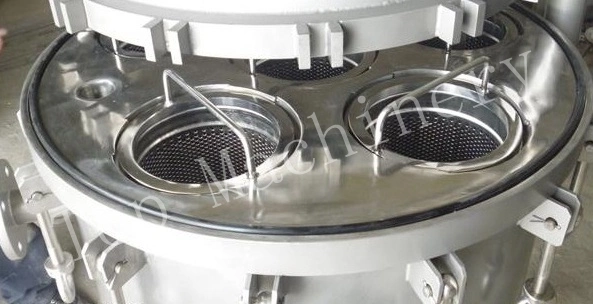

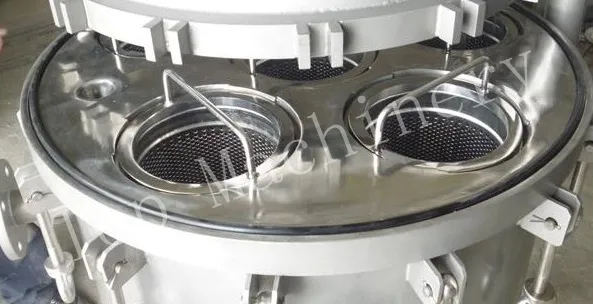

Multi-bag design,2 through to 12 bag housings available
Suitable for high dirty loading applications and high flow rate
Available in Type 304 or 316 stainless steel
Outstanding welding quality, durable and safe
High strength bolt and nut,corrosion resistance, durable and reliable.
Adjustable stainless steel mounting legs,simple installation
Working Principle
Process liquid enters filter housing from the inlet into the filter bag, particles larger than the filtration pore are blocked on the surface or inside the filter bag. Liquid pass across and goes to outlet. When the particles accumulated and increase the pressure drop to 0.05-0.1MPa, replace the clogged bag and continue filtering.
Main technical parameter

Main Model	TPBM2	TPBM3	TPBM4	TPBM5	TPBM6	TPBM7	TPBM8	TPBM9
Design Pressure ( MPa )	0.6/1.0/1.6
Design Temperature ( ºC )	0-250
Filter Bag Size ( mm )	φ178X813/φ178X720(HiSEP)
Filter Area ( )	1.0/2.0	1.5/3.0	2.0/4.0	2.5/5.0	3.0/6.0	3.5/7.0	4.0/8.0	4.5/9.0
Filtration Rate ( μm )	1-2000
Housing Material	304/316L/CS
Support Legs, Bolts & Nuts Material	NBR(Standard)/VITON(FKM)/Silicone Rubber/PTFE(VMQ)/PTFE
Seal Material	Sandblasting Sub-light
Outside Surface Finish	Sandblasting Sub-light
Inside Surface Finish	120Mesh Polishing(Standard),Food Grade Polishing ,Halar Coating, PA11 Coating
Standard Connection	Flange HG20592-2009(Compatible DIN)
Optional Connection	Flange HG20615-2009(Compatible ANSI),NPT,ISO Standard Sanitary Clamp
Inlet and Outlet Size	DN50
