Automatic disc filter system with disc filtering element(as below) with 2"/ 3" /4" backwash valves,air valve,manifolds,controller.

Easy to install. Automation available in 220V.

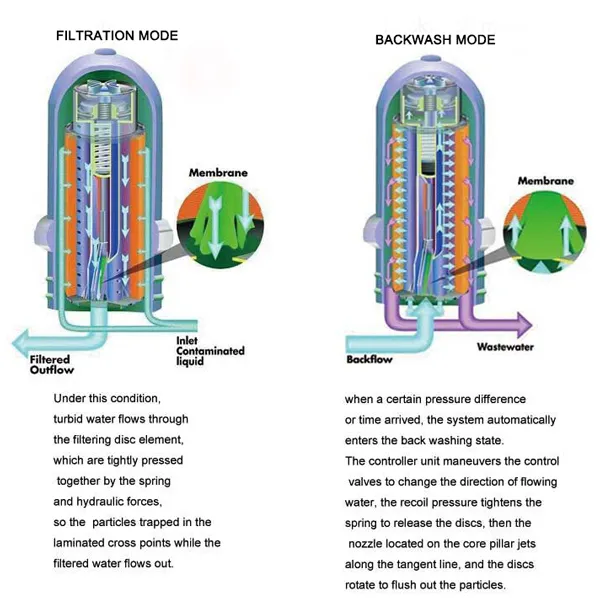

Disc Strainer for Drip Irrigation Filter

Disc Strainer for Drip Irrigation Filter

Filter materials

tems	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Design and selection of models

1.Water quality classification

A.: Water of good quality: city tap water, well water from stable aquifer.

B.: Water of general quality: cooled circulating water, surface water treated by sedimentation, and drained water treated by effective deposition and completely biological treatment.

C.: Water of relatively poor quality: groundwater from aquifer of poor quality, drained water treated by effective deposition but with poor biological treatment, and surface water with enormous microbes.

D. The worst quality: well water with rich iron and manganese elements, surface water affected by flooding and without sedimentation, and drained water without precipitation and biological treatment.

Different water qualities have different influences on the filter's operation period, so in general it is better to keep the system's backwash intervals no less than 1 hour.

Raw water quality	Good water quality			General water quality			Poor water quality			The worst quality
Filtration range	200	100μ	50μ	200μ	100μ	50μ	200μ	100μ	50μ	200μ	100μ	50μ
Models	Flow(m3/h)			Flow(m3/h)			Flow(m3/h)			Flow(m3/h)
DLLF-3-3	111	90	60	84	66	48	60	45	33	36	28	19
DLLF-3-4	148	120	80	112	88	64	80	60	44	48	37	26
DLLF-3-5	185	150	100	140	110	80	100	75	55	60	47	32
DLLF-3-6	222	180	120	168	132	96	120	90	66	75	56	39
DLLF-3-7	259	210	140	196	154	112	140	105	77	84	66	45
DLLF-3-8	296	240	160	224	176	128	160	120	88	96	75	52
DLLF-3-9	333	270	180	252	198	144	180	135	99	108	85	58
DLLF-3-10	370	300	200	280	210	160	200	150	110	120	94	65

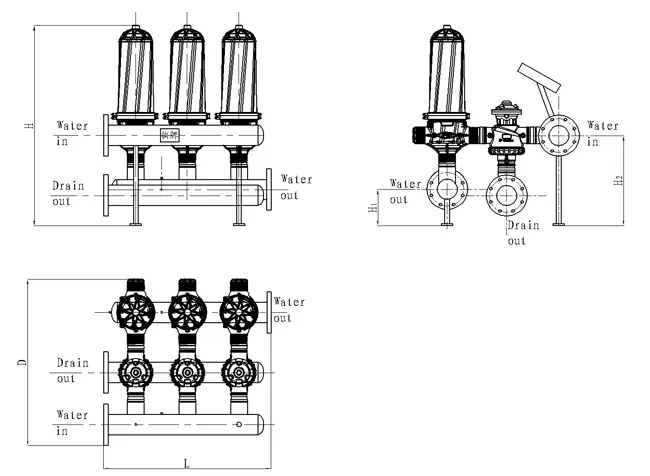

Demensions
Disc Strainer for Drip Irrigation Filter

Model	Water in/out (mm/ inch)	H(mm)	H1(mm)	H2(mm)	D(mm)	L(mm)
DLLF-3-2-A	100 / 4	1049	175	461	875	890
DLLF-3-3-A	150 / 6	1074.5	175	486.5	933	1165
DLLF-3-4-A	150 / 6	1092	192.5	504	933	1440
DLLF-3-5-A	150 / 6	1092	192.5	504	933	1715
