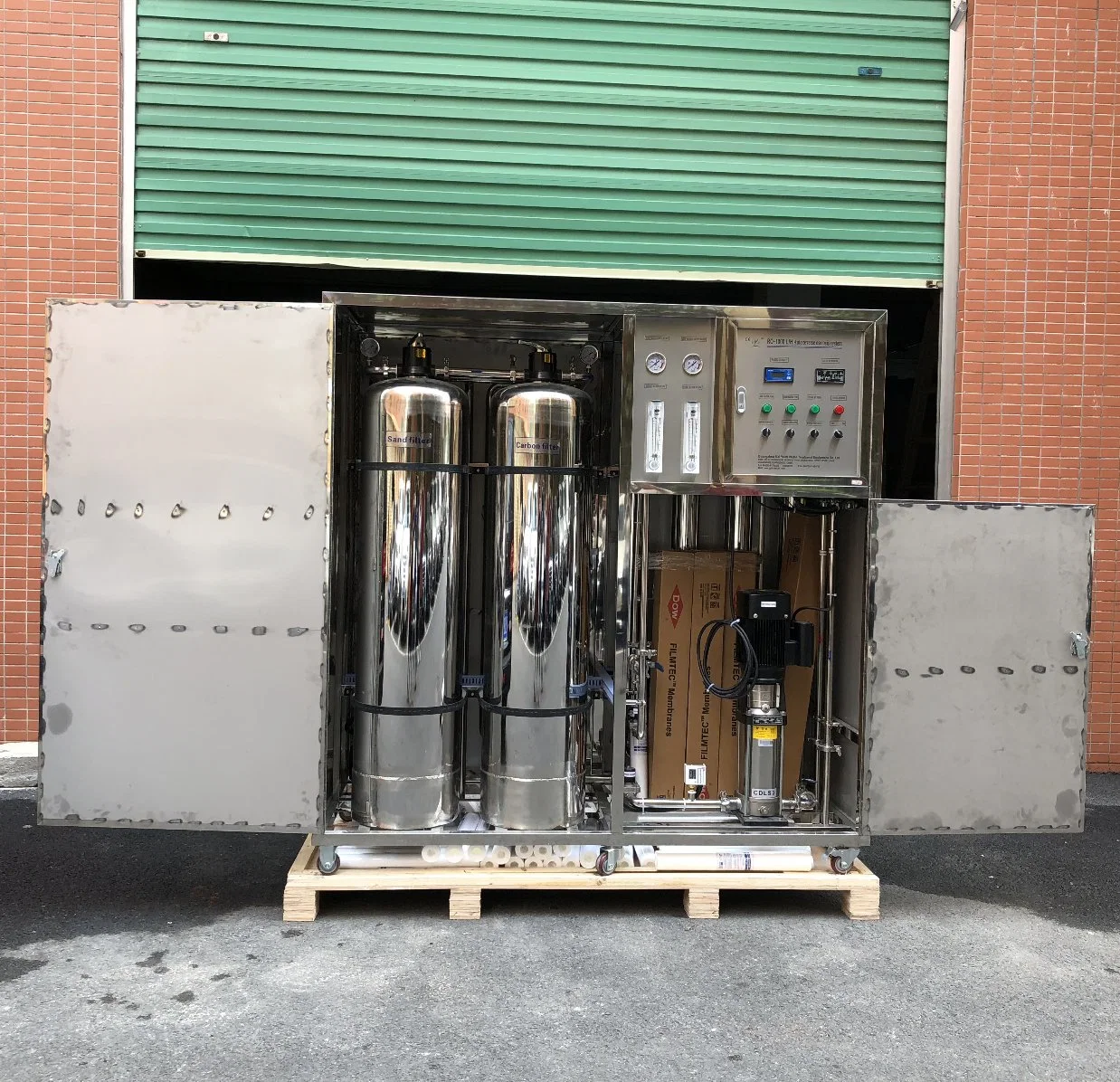

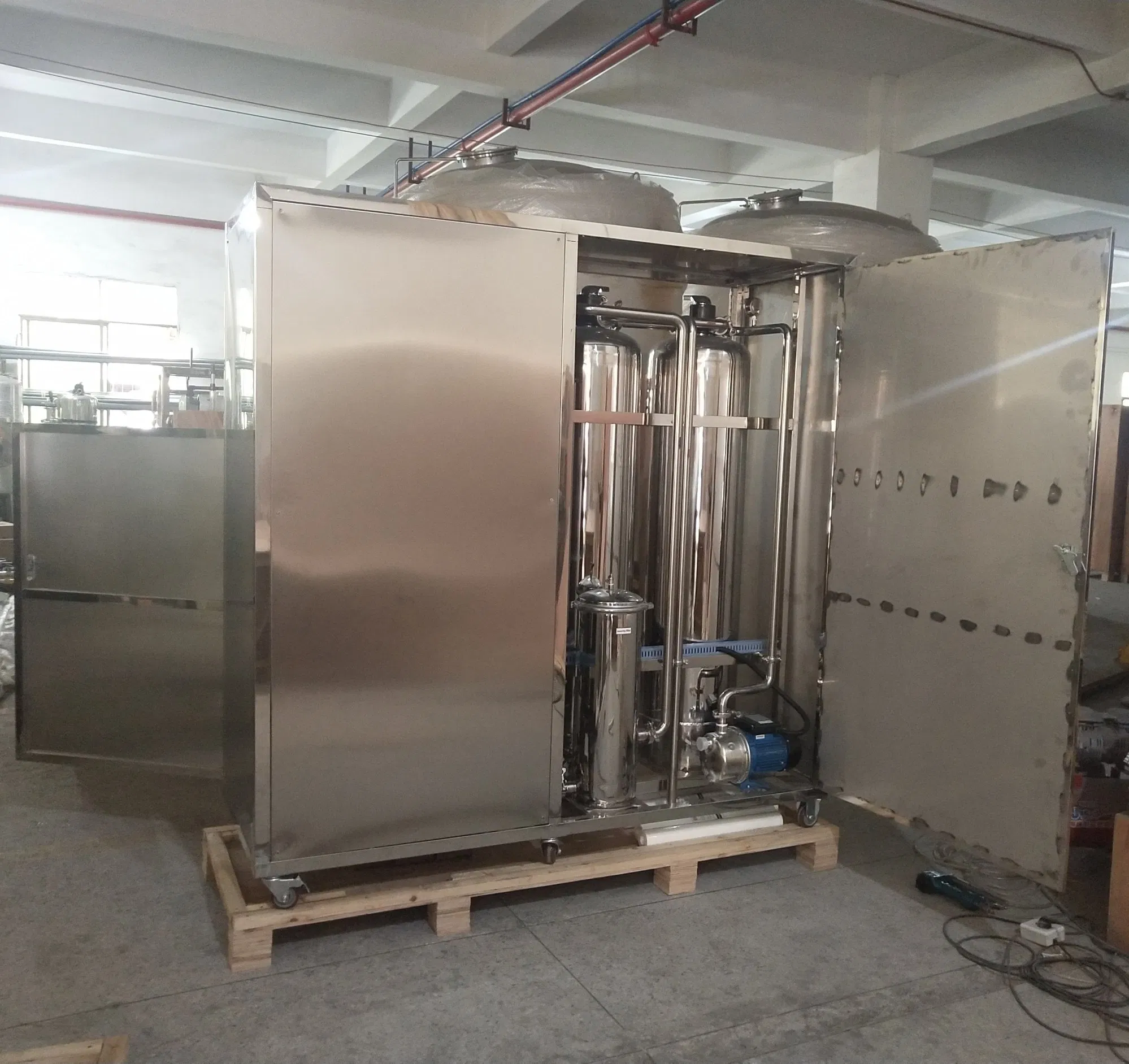

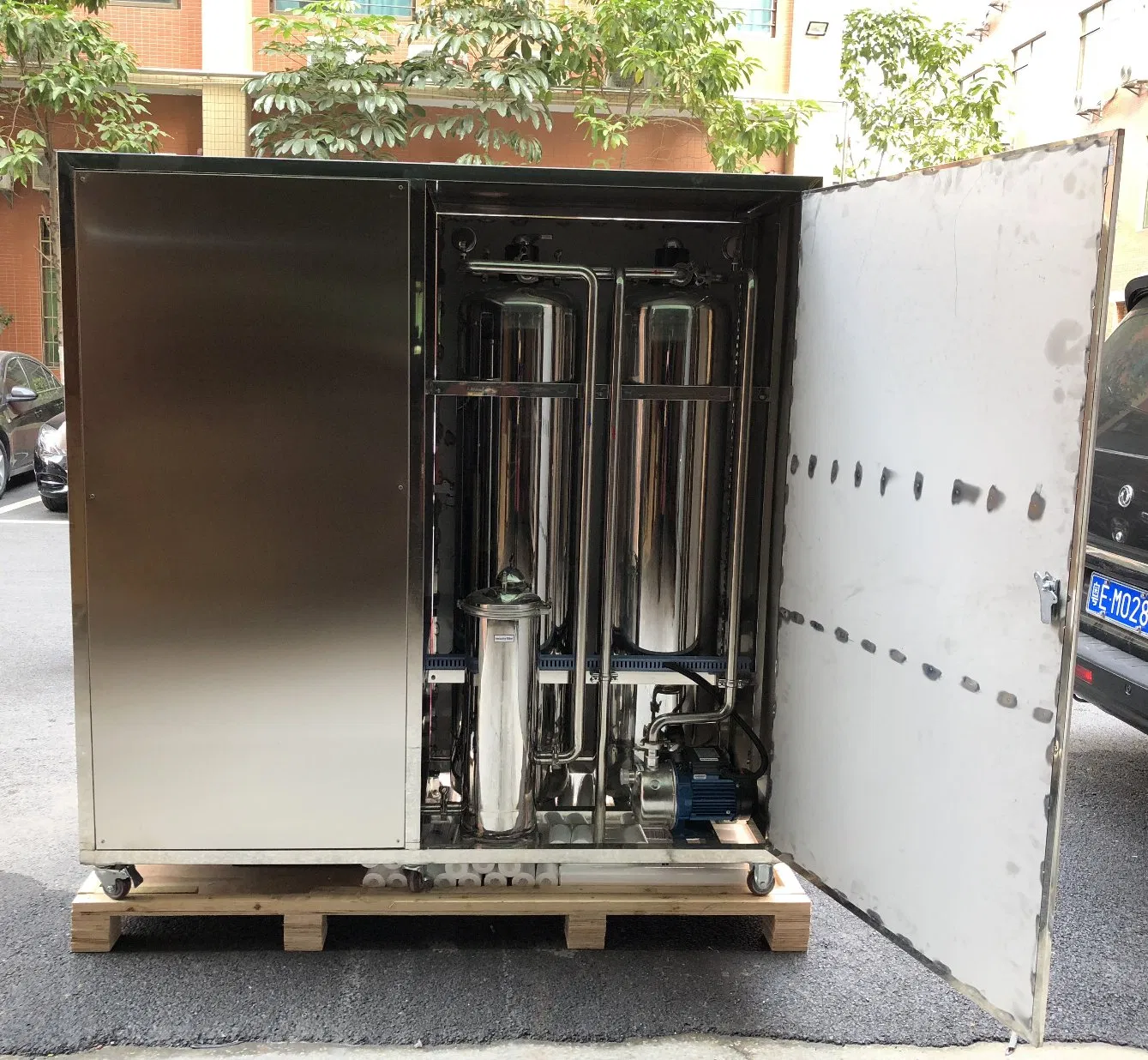

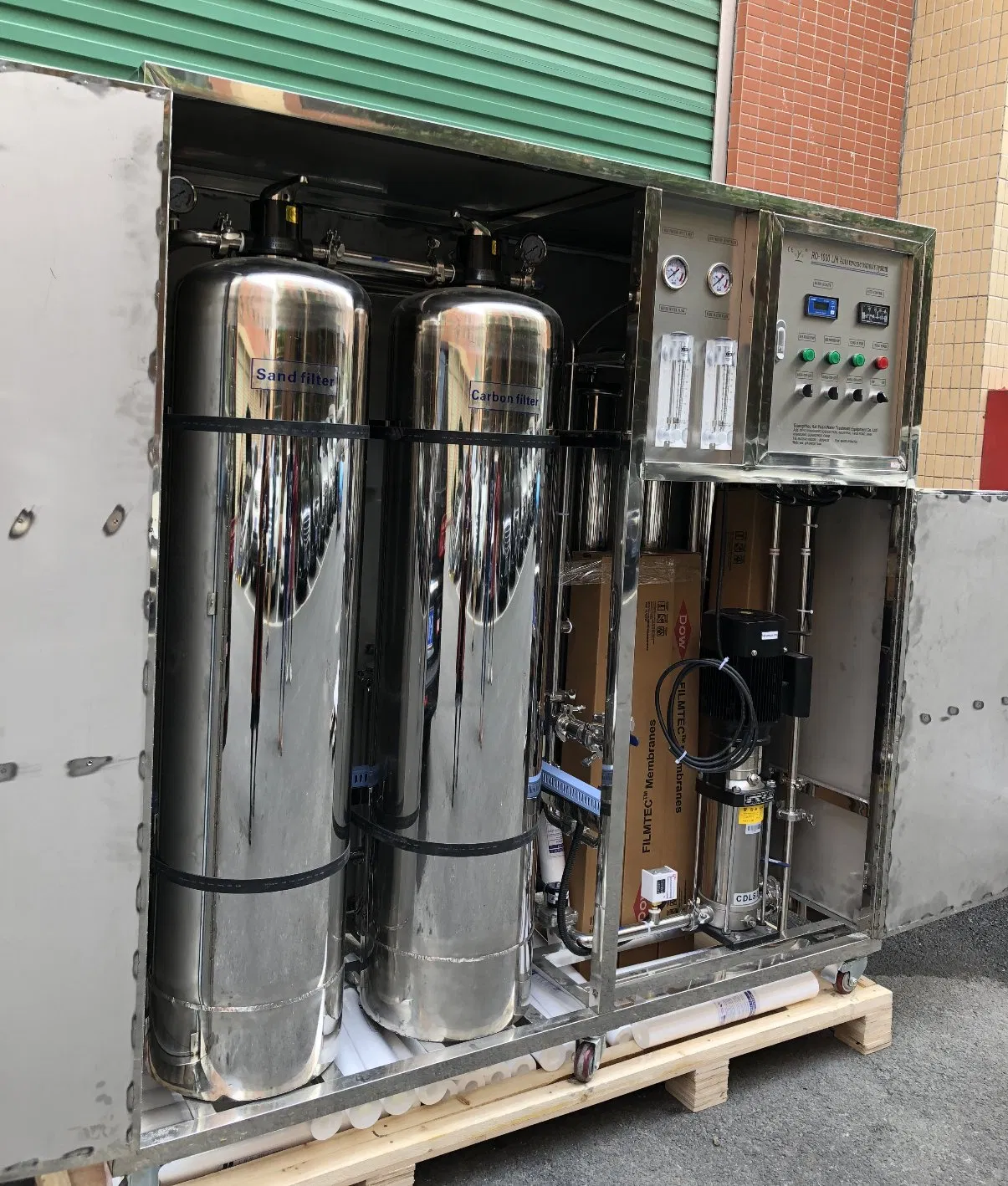

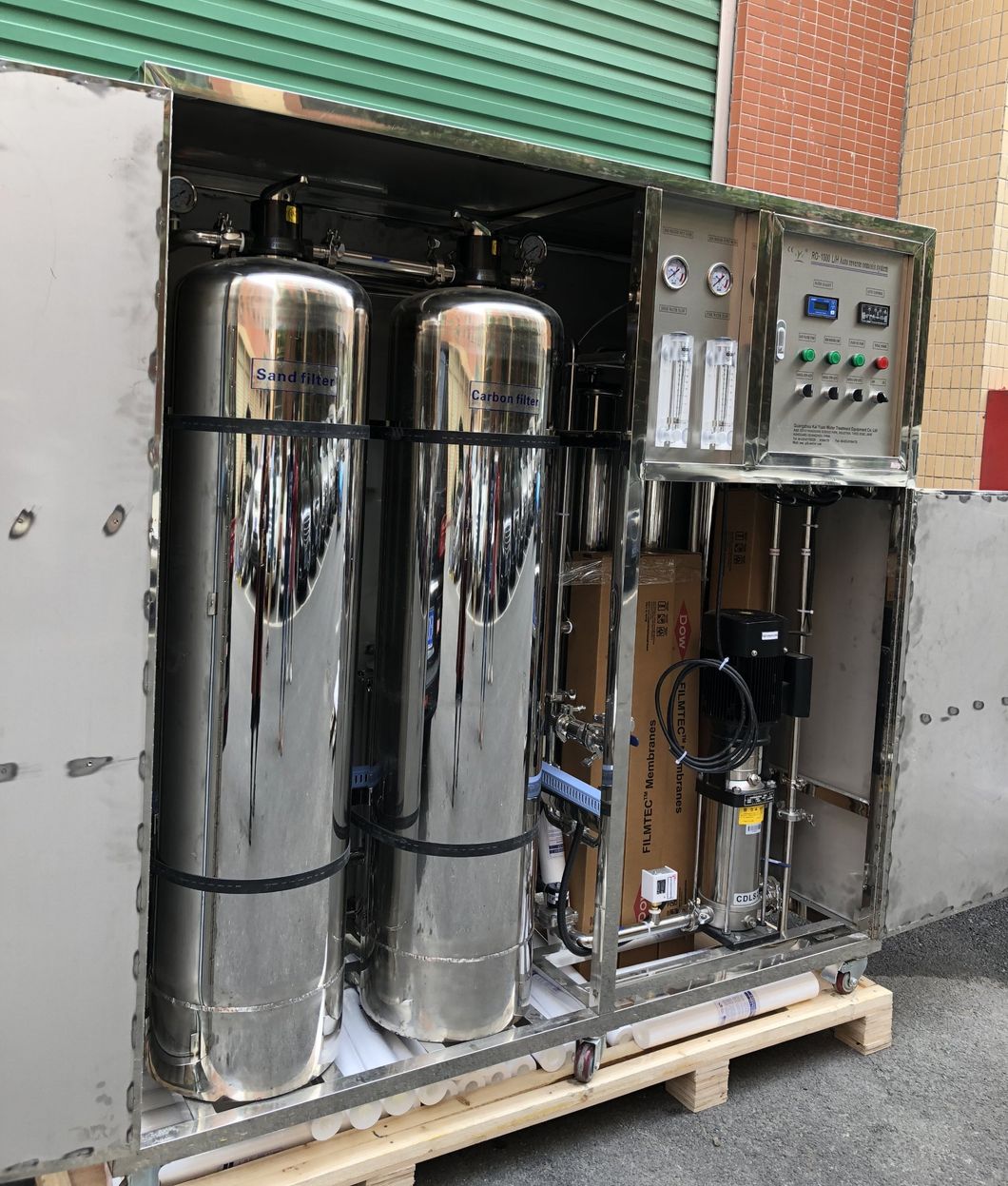

Domestic 1000lph Water Purification Machines/Water Purifying Systems/Industrial Reverse Osmosis RO Plant Price
Domestic 1000lph water purification machines/water purifying systems/industrial reverse osmosis ro plant priceReverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary techn......
Send Inquiry
Product Description
Domestic 1000lph water purification machines/water purifying systems/industrial reverse osmosis ro plant price
Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as Hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Raw water tank → Raw water booster pump→ quartz sand filter→ activated carbon filter→ water softener (optional)→security filter→ high pressure pump→ RO system→ UV light(optional)→pure water tank(or bottled water filling production line)
Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

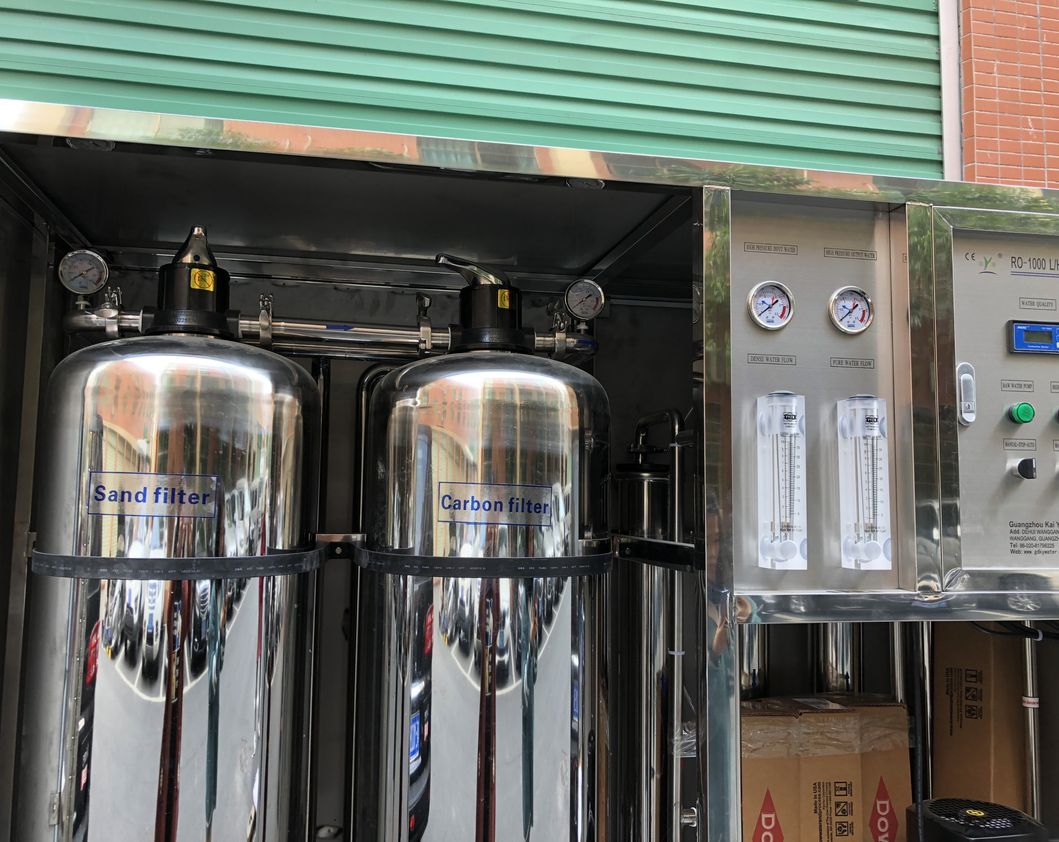

2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
This ro system water purification with chlorine system, can treat water with higher water hardness ,kill bacterial etc. pls feel free to contact me. we will give you the best advice how to treat your salt/ brackish water.
1. Introduction:
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, underground water and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is key equipment of pure water plant.
2. Stages of Filtration of underground water RO water treatment system
1). Sediment Stage: Removes rough particles, sand and rust.
2). Quartz sand stage: Lower the turbidity of feed water (NTU)and sludge density index (SDI) values
3). Carbon stage: Removes chlorine and chemicals which would otherwise damage the membrane.
4). Resin stage: Purolite ion-exchange.
5). Reverse osmosis stage: Removes dissolved solids and all that are bigger than water molecule.
6. )Final Carbon stage: To improve the taste
7). Ozone sterilization: To kill microorganisms.
8). Storage tank
9. )UV sterilization: To kill microorganisms.
3. Advantage of underground water RO water treatment system(
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). Easily control and Maintained.
10). Auto membrane flushing
11). Environmental protection, Low power consumption
12) Auto flush/backwash

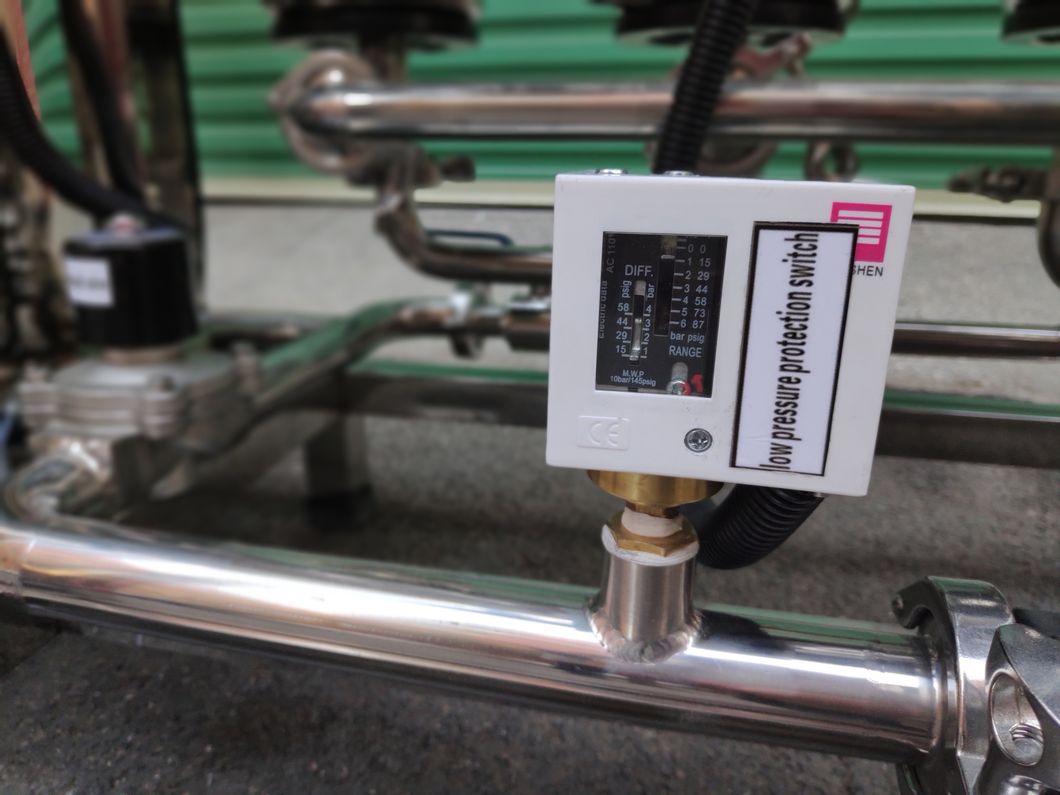

13) Low /high pressure protection
UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Disinfect tube adopt high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria. We use stainless steel 316 for ozone tower, as it can resist Ozone very well than SS304,the working life will be much longer.
FAQ
1.What is the Guarantee and after sale-service Kai yuan company can supply ?
it is one year guarantee ( except for Artificially damaged) Any problems with the accessories,like valves , pumps etc. within 1 year , we could delivery to you for free .
2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery ,and we will Provide the specific entire system"User Manual",if need can take Video for how to operate machine. .
3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
5.what is the payment for the orders customer make ?
After we confirmed order, will send you contract sales/PI with our company bank information. You can transfer money to our company bank account by T/T.,Western Union or do L/C if it is accepted by both of us .
6. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ?
It is kindly that you could provide us a raw water analysis /water test report .
7.Why we need to choose Kai yuan from so many suppliers in China?
Guangzhou Kaiyuan Water Treatment Equipment Co.,ltd products are sold well not only in domestic, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia ,Ghana, Lebanon etc. Countries.
we have bellowing :
we have a big bright factory in GZ city , bai yun distric, which is near to GZ Bai yun air port .
QC Team :we have professional QC team ,can guarantee stable quality for OEM production service.
Installation : Easy operation with Video ,or we could arrange experienced
engineer to local place for installation .
4.Packing :Standard wooden packing will reinforce protect machine.
5.Competitive price :we are confident with our competitive price in the
international global market.
Production capacity of RO water purifier we can provide as below
Any more details about our products , pls feel free to contact with us as below , we will write you back for RO water treatment within 24 hours .
Production capacity of RO water purifier we can provide as below
Features and Advantages
1. Automatic control
*Run and produce water continuously, high degree automation
*Automatic backwash and manual backwash
*Automatic switch on when low water level, and switch off when high water level
2. Protection
*Water shortage protection for multi-stage pump
*Protection when no voltage, under-voltage, over-current, short circuit and creepage
3. Intelligent design
*Full stainless steel structure, durable and easy to clean.
*Fiber grass, good corrosion resistance and cost-effective
*Integrating water flow indicator, conductivity indicator, pressure indicator, control panel
4.Brand advantages
*China Top Brand or world famous brand electrical, switch and valve systems
*Core components of RO system are imported, USA Filmtec Dow membranes
Application fields:
1)Electronic industry, semiconductor industry ultrapure water treatment
2)Chemical industry, pharmaceutical industry pure water treatment
3)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
4)Electroplating and leather industry waste water treatment
5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
7)Edible cube ice, tube ice etc.
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment
Our business scope
Our company is professionally producing reverse osmosis (RO) water equipments, pure water machine, purified water equipments, industrial water plant, well water(bore hole brackish water, salty water) treatment system, rain water filtration system, domestic water purifier, irrigating water treatment equipments, swimming pool water treatment plants, cosmetic products water treatment system, pharmaceutical water treatment, water treatment in chemical production area, softened water equipments, underground water treatment equipments, iron manganese removal equipments, laboratory deionized water equipments, deionized water equipments, direct drinking water equipments, domestic drinking water equipments, EDI high purity water, swimming pool water purifying equipments, river, seawater desalination equipments, ultrafiltration(UF) equipments, electroplate water treatment equipments, ion exchange equipments-mixed bed, water softener, all kinds of water treatment consumable(need replaced parts) materials(PP sediment cartridge, RO membranes), accessories, can be customized various kinds of model as your requirements.
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machine?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivery time is based on the exact machine you need and the country you in.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines (big project). We offer technical support, instruction and video.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as Hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Raw water tank → Raw water booster pump→ quartz sand filter→ activated carbon filter→ water softener (optional)→security filter→ high pressure pump→ RO system→ UV light(optional)→pure water tank(or bottled water filling production line)
Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
| S/N. | Commodity name | Application | Remark |
| 1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
| 2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
| 3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
| 4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
| 5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | |
| 6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm | |
| 7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
| 8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow |
This ro system water purification with chlorine system, can treat water with higher water hardness ,kill bacterial etc. pls feel free to contact me. we will give you the best advice how to treat your salt/ brackish water.
1. Introduction:
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, underground water and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is key equipment of pure water plant.
2. Stages of Filtration of underground water RO water treatment system
1). Sediment Stage: Removes rough particles, sand and rust.
2). Quartz sand stage: Lower the turbidity of feed water (NTU)and sludge density index (SDI) values
3). Carbon stage: Removes chlorine and chemicals which would otherwise damage the membrane.
4). Resin stage: Purolite ion-exchange.
5). Reverse osmosis stage: Removes dissolved solids and all that are bigger than water molecule.
6. )Final Carbon stage: To improve the taste
7). Ozone sterilization: To kill microorganisms.
8). Storage tank
9. )UV sterilization: To kill microorganisms.
3. Advantage of underground water RO water treatment system(
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). Easily control and Maintained.
10). Auto membrane flushing
11). Environmental protection, Low power consumption
12) Auto flush/backwash
13) Low /high pressure protection
| Technical specification for 1000L/H | |
| Model | KYRO-1000 |
| Production capacity | 1000 L/Hr |
| Power | 2.5kw |
| Power supply | AC 380V 50Hz |
| Reverse osmosis (RO)membrane | LCLE-4040 4pcs USA DOW |
| Membrane housing | 4040 stainless steel |
| Raw water pump | BJZ100/0.75KW |
| Quartz sand filter, activated Carbon filter | φ350×1450 FRP 2pcs |
| Security filter | 20 "× 5μm ,5core |
| High pressure pump | CDL2-15/1.5KW 1 set Nanfang |
| Activated carbon | 50kg |
| Quartz sand | 150kg |
| Size (mm) | main machine:1880X670X1800mm |
| filtering tank:Φ325×1350mm | |
UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Disinfect tube adopt high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria. We use stainless steel 316 for ozone tower, as it can resist Ozone very well than SS304,the working life will be much longer.
FAQ
1.What is the Guarantee and after sale-service Kai yuan company can supply ?
it is one year guarantee ( except for Artificially damaged) Any problems with the accessories,like valves , pumps etc. within 1 year , we could delivery to you for free .
2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery ,and we will Provide the specific entire system"User Manual",if need can take Video for how to operate machine. .
3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
5.what is the payment for the orders customer make ?
After we confirmed order, will send you contract sales/PI with our company bank information. You can transfer money to our company bank account by T/T.,Western Union or do L/C if it is accepted by both of us .
6. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ?
It is kindly that you could provide us a raw water analysis /water test report .
7.Why we need to choose Kai yuan from so many suppliers in China?
Guangzhou Kaiyuan Water Treatment Equipment Co.,ltd products are sold well not only in domestic, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia ,Ghana, Lebanon etc. Countries.
we have bellowing :
we have a big bright factory in GZ city , bai yun distric, which is near to GZ Bai yun air port .
QC Team :we have professional QC team ,can guarantee stable quality for OEM production service.
Installation : Easy operation with Video ,or we could arrange experienced
engineer to local place for installation .
4.Packing :Standard wooden packing will reinforce protect machine.
5.Competitive price :we are confident with our competitive price in the
international global market.
Production capacity of RO water purifier we can provide as below
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension L X W X H(mm) |
| KYRO-250 | 250 | 1.5 | ≥ 15% | 4040 | 1550X620X1670 |
| KYRO-500 | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
| KYRO-750 | 750 | 2.5 | ≥ 50% | 4040 | 1870X 630 X 1850 |
| KYRO-1000 | 1000 | 2.5 | ≥ 50% | 4040 | 1870X 650 X 1850 |
| KYRO-2000 | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 (host machine) |
| KYRO-3000 | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 (host machine) |
| KYRO-5000 | 5000 | 7.5 | ≥ 50% | BW30-400 | 2000X900X1800 (host machine) |
| KYRO-6000 | 6000 | 9.5 | ≥ 60% | BW30-400 | 3000X900X1800 (host machine) |
| KYRO-8000 | 8000 | 13.5 | ≥ 60% | BW30-400 | 3000×900×1800 (host machine) |
| KYRO-9000 | 9000 | 14 | ≥ 60% | BW30-400 | 4000X900X1800 (host machine) |
| KYRO-10T | 10T/H | 19 | ≥ 60% | BW30-400 | 3000X900X1800 (host machine) |
| KYRO-12T | 12T/H | 19.5 | ≥ 60% | BW30-400 | 4000X900X1800 (host machine) |
| KYRO-15T | 15T/H | 23 | ≥ 60% | BW30-400 | 4000X900X1950 (host machine) |
| KYRO-20T | 20T/H | 28 | ≥ 60% | BW30-400 | 5000X900X1950 (host machine) |
| KYRO-30T | 30T/H | 55 | ≥ 60% | BW30-400 | 7000X900X1950 (host machine) |
| KYRO-50T | 50T/H | 58 | ≥ 75% | BW30-400 | 7000X1500X2100(host machine) |
Any more details about our products , pls feel free to contact with us as below , we will write you back for RO water treatment within 24 hours .
Production capacity of RO water purifier we can provide as below
| Equipment control system | There are two modes of operation in the whole system: manual and automatic mode |
| When the original water tank is short of water, the whole system can not work | |
| When the pure water tank is full of water, the whole system stops working | |
| Automatic flushing can be set up for reverse osmosis | |
| Tap water can automatically recharge water | |
| Equipment characteristics | Two regeneration |
| no hazardous waste discharge, beneficial to environmental protection | |
| continuous operation, simple operation | |
| easy to install, maintain | |
| Equipment application field | Mineral water, liquor brewing water, drinking pure water |
| Hotels, buildings, residential , airports, factories drinking water | |
| Producing drinking water by sea water and bitter salt water | |
| Ultra pure water used in circuit, electronics, optics, chemical industry, petroleum, surface treatment and other industries |
Features and Advantages
1. Automatic control
*Run and produce water continuously, high degree automation
*Automatic backwash and manual backwash
*Automatic switch on when low water level, and switch off when high water level
2. Protection
*Water shortage protection for multi-stage pump
*Protection when no voltage, under-voltage, over-current, short circuit and creepage
3. Intelligent design
*Full stainless steel structure, durable and easy to clean.
*Fiber grass, good corrosion resistance and cost-effective

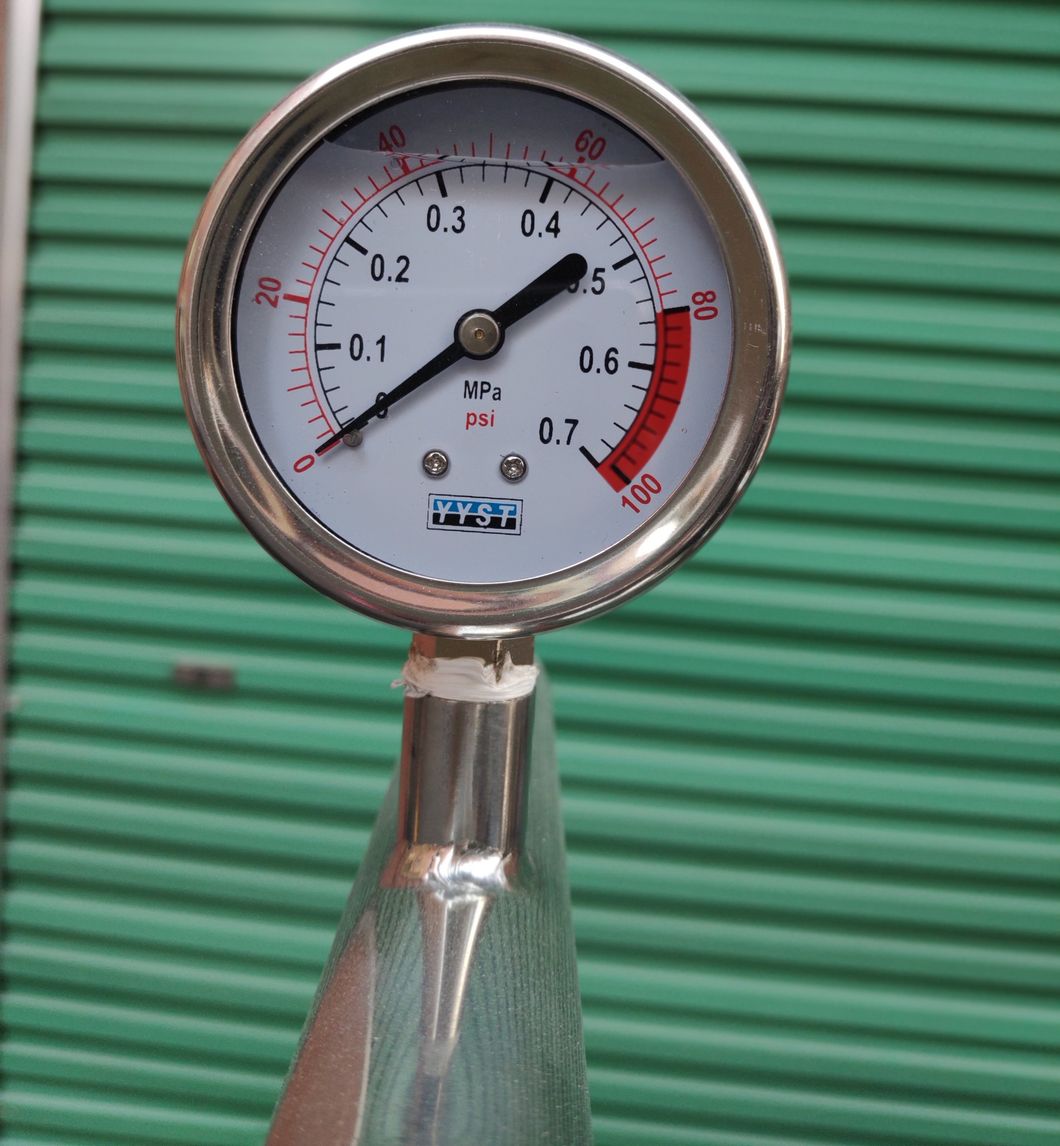

*Integrating water flow indicator, conductivity indicator, pressure indicator, control panel
4.Brand advantages
*China Top Brand or world famous brand electrical, switch and valve systems
*Core components of RO system are imported, USA Filmtec Dow membranes
Application fields:
1)Electronic industry, semiconductor industry ultrapure water treatment
2)Chemical industry, pharmaceutical industry pure water treatment
3)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
4)Electroplating and leather industry waste water treatment
5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
7)Edible cube ice, tube ice etc.
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment
Our business scope
Our company is professionally producing reverse osmosis (RO) water equipments, pure water machine, purified water equipments, industrial water plant, well water(bore hole brackish water, salty water) treatment system, rain water filtration system, domestic water purifier, irrigating water treatment equipments, swimming pool water treatment plants, cosmetic products water treatment system, pharmaceutical water treatment, water treatment in chemical production area, softened water equipments, underground water treatment equipments, iron manganese removal equipments, laboratory deionized water equipments, deionized water equipments, direct drinking water equipments, domestic drinking water equipments, EDI high purity water, swimming pool water purifying equipments, river, seawater desalination equipments, ultrafiltration(UF) equipments, electroplate water treatment equipments, ion exchange equipments-mixed bed, water softener, all kinds of water treatment consumable(need replaced parts) materials(PP sediment cartridge, RO membranes), accessories, can be customized various kinds of model as your requirements.
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machine?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivery time is based on the exact machine you need and the country you in.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines (big project). We offer technical support, instruction and video.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
Related Category
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
