F56A Run Xin Manual Filter Valve for Water Filter ( 51104 )
Manual Multi-Port Control Valve for Water Filter(F56A)Our company is the agent of RUNXIN all size of Multi-Port Control Valve, manual one and automatic one.Technical Parameters1. Water Pressure----------------------------------------------0.15-0.6MPa2. Water Temperature------------------------------......
Send Inquiry
Product Description

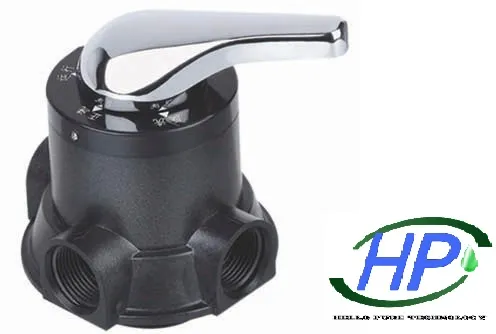

Manual Multi-Port Control Valve for Water Filter(F56A)
Our company is the agent of RUNXIN all size of Multi-Port Control Valve, manual one and automatic one.
Technical Parameters
1. Water Pressure----------------------------------------------0.15-0.6MPa
2. Water Temperature-----------------------------------------5ºC-45ºC
3. Water Turbidity-----------------------------------------------<20FTU
4. Inlet/Outlet-----------------------------------------------------1″F
5. Drain------------------------------------------------------------1″F
6. Base-------------------------------------------------------------2.5″-8NPSM
7. Riser Pipe------------------------------------------------------1.05″OD
8. Max Flow Rate-------------------------------------------------4 m3/h
9. Suitable Tank Size (in)---------------------------------------6″~12″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2. No water passes the valve in rinse in single tank type.
3. Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
4. It can be changed to be side-mounted valve with side-mounted connector.
5. It can operate under pressure, without leakage.
Range of Application
1. Residential filtration system
2. Swimming pool filtration equipment
3. Active carbon or sand filter in RO pretreatment filtration system
Our company is the agent of RUNXIN all size of Multi-Port Control Valve, manual one and automatic one.
Technical Parameters
1. Water Pressure----------------------------------------------0.15-0.6MPa
2. Water Temperature-----------------------------------------5ºC-45ºC
3. Water Turbidity-----------------------------------------------<20FTU
4. Inlet/Outlet-----------------------------------------------------1″F
5. Drain------------------------------------------------------------1″F
6. Base-------------------------------------------------------------2.5″-8NPSM
7. Riser Pipe------------------------------------------------------1.05″OD
8. Max Flow Rate-------------------------------------------------4 m3/h
9. Suitable Tank Size (in)---------------------------------------6″~12″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2. No water passes the valve in rinse in single tank type.
3. Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
4. It can be changed to be side-mounted valve with side-mounted connector.
5. It can operate under pressure, without leakage.
Range of Application
1. Residential filtration system
2. Swimming pool filtration equipment
3. Active carbon or sand filter in RO pretreatment filtration system
