FRP Pressure Vessel for RO Water Treatment System
Fiberglass Reinforced Plastic (FRP) Tank A. Shell Layer: Fiber GlassB. Liner Material: PE or PP C. MAX. Test Pressure: 150psi D. MAX. Working Pressure: 100psi E. Temperature Range: 1-49ºC F. MAX. Vacuum: 5Hg(127mm Hg) ModelDia.X Height(mm)TOP OpenBottom OpenTOP DistributorBottom Distributo......
Send Inquiry
Product Description

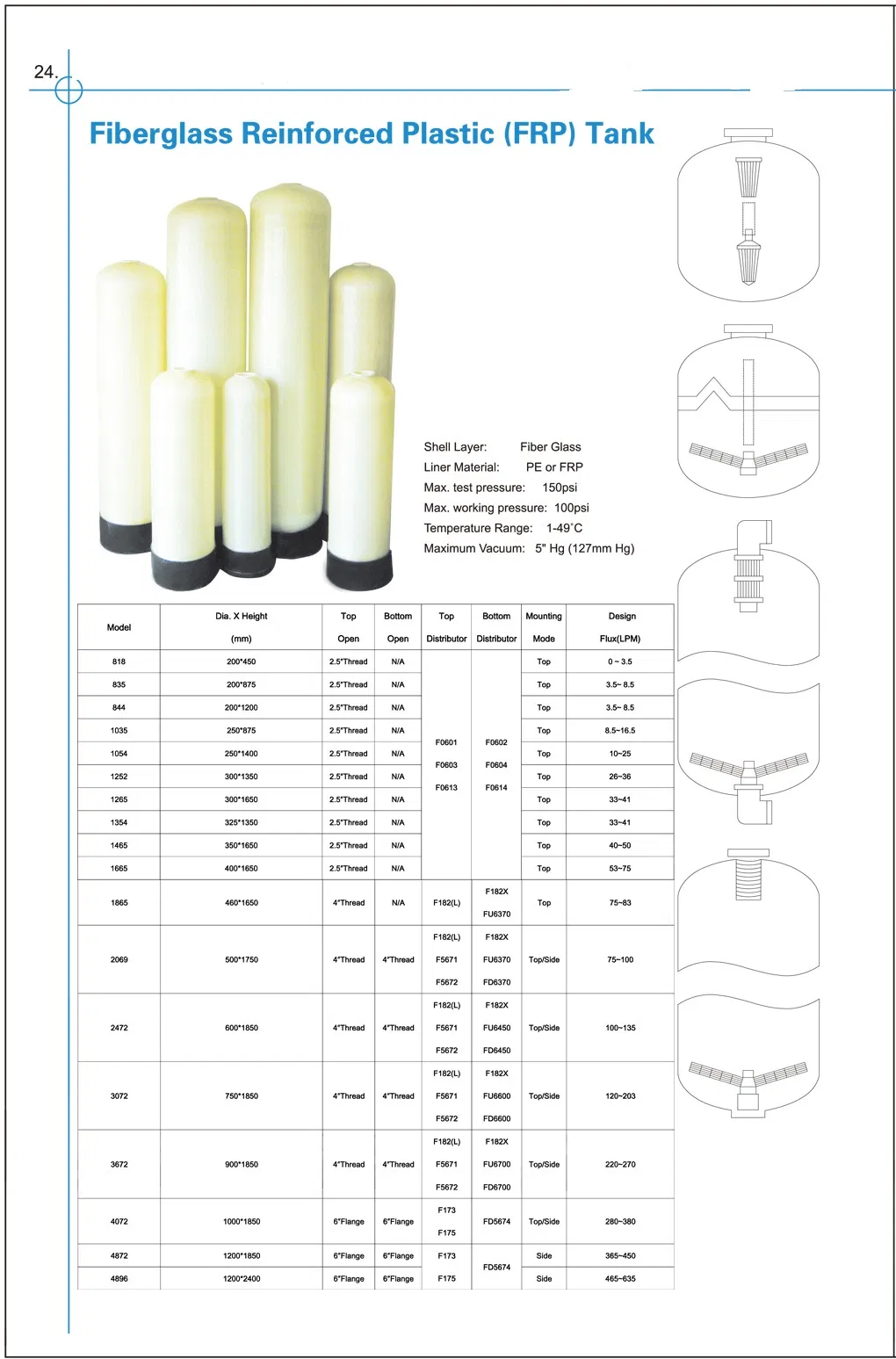

Fiberglass Reinforced Plastic (FRP) Tank
A. Shell Layer: Fiber Glass
B. Liner Material: PE or PP
C. MAX. Test Pressure: 150psi
D. MAX. Working Pressure: 100psi
E. Temperature Range: 1-49ºC
F. MAX. Vacuum: 5″Hg(127mm Hg)
A. Shell Layer: Fiber Glass
B. Liner Material: PE or PP
C. MAX. Test Pressure: 150psi
D. MAX. Working Pressure: 100psi
E. Temperature Range: 1-49ºC
F. MAX. Vacuum: 5″Hg(127mm Hg)
| Model | Dia.X Height (mm) | TOP Open | Bottom Open | TOP Distributor | Bottom Distributor | Mounting Mode | Design Flux (LPM) |
| 818 | 200*450 | 2.5" Thread | N/A | F0601 F0603 F0613 | F0602 F0604 F0614 | TOP | 0 ~ 3.5 |
| 835 | 200*875 | 2.5" Thread | N/A | TOP | 3.5 ~ 8.5 | ||
| 844 | 200*1200 | 2.5" Thread | N/A | TOP | 3.5 ~ 8.5 | ||
| 1035 | 250*875 | 2.5" Thread | N/A | TOP | 8.5 ~ 16.5 | ||
| 1054 | 240*1400 | 2.5" Thread | N/A | TOP | 10 ~ 25 | ||
| 1252 | 300*1350 | 2.5" Thread | N/A | TOP | 26 ~ 36 | ||
| 1265 | 300*1650 | 2.5" Thread | N/A | TOP | 33 ~ 41 | ||
| 1354 | 325*1400 | 2.5" Thread | N/A | TOP | 33 ~ 41 | ||
| 1465 | 350*1650 | 2.5" Thread | N/A | TOP | 40 ~ 50 | ||
| 1665 | 400*1650 | 2.5" Thread | N/A | TOP | 53 ~ 75 | ||
| 1865 | 460*1650 | 2.5" Thread | N/A | F182(L) | F182X FU6370 | TOP | 75 ~ 83 |
| 2069 | 500*1750 | 4" Thread | 4" Thread | F182(L) F5671 F5672 | F182X FU6370 FD6370 | TOP/SIDE | 75 ~ 100 |
| 2472 | 600*1850 | 4" Thread | 4" Thread | F182(L) F5671 F5672 | F182X FU6450 FD6450 | TOP/SIDE | 100 ~ 135 |
| 3072 | 750*1850 | 4" Thread | 4" Thread | F182(L) F5671 F5672 | F182X FU6600 FD6600 | TOP/SIDE | 120 ~ 203 |
| 3672 | 900*1850 | 4" Thread | 4" Thread | F182(L) F5671 F5672 | F182X FU6700 FD6700 | TOP/SIDE | 220 ~ 270 |
| 4072 | 1000*1850 | 6" Flange | 6" Flange | F173 F175 | FD5674 | TOP/SIDE | 280 ~ 380 |
| 4872 | 1200*1850 | 6" Flange | 6" Flange | F173 F175 | FD5675 | SIDE | 365 ~ 450 |
| 4896 | 1200*2400 | 6" Flange | 6" Flange | SIDE | 465 ~ 635 |
