Product Description

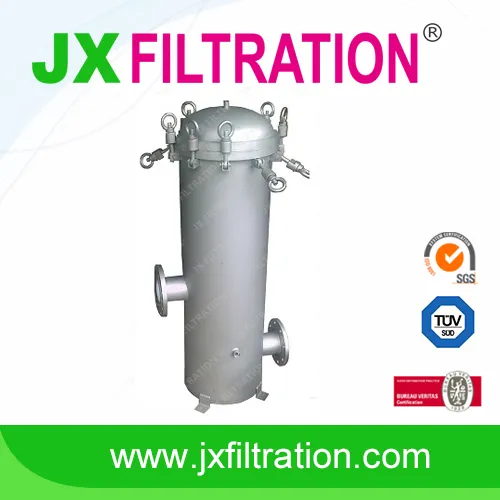

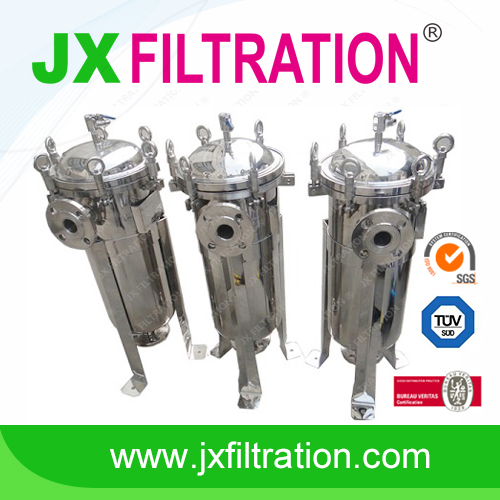

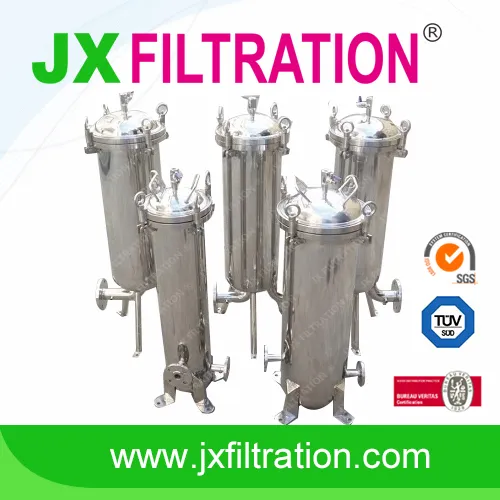

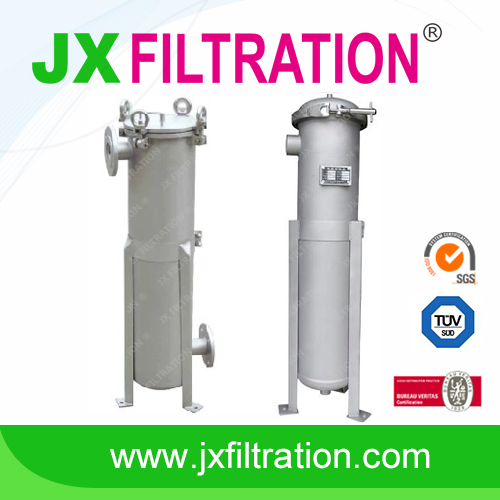

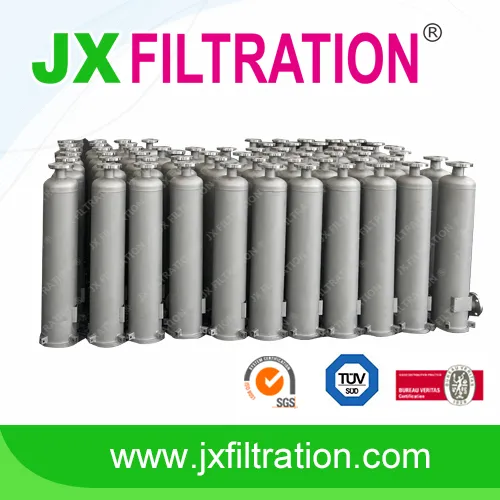

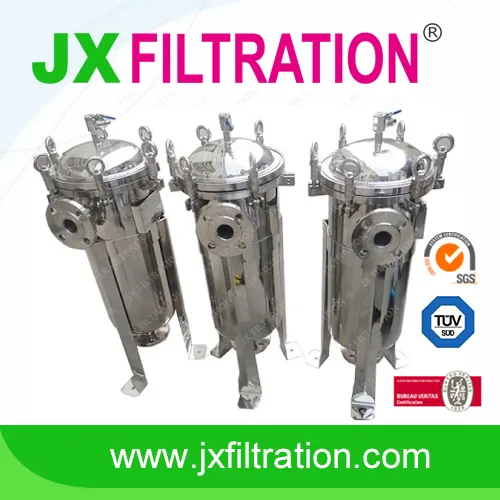

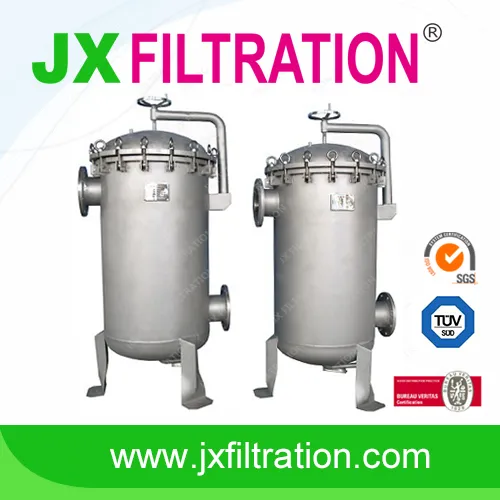

Bag Filter Housing / Bag Filter Vessel / Stainless Steel Bag Filter Housing

Our Advantage

Solid wooden packaging.

Mature technology of bag filter.

Free CAD or 3D drawing available.

Can customize according to pressure and customer's special request.

Stcriclty selected steel supplier to ensure the stable quality and price.

Perfectly welding and polishing by our experienced welder, ensuring strong structure as well as elegant appearance.

Working principle

The bag filte is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet and go through the filter bag. The impurities will be blocked in th filter bag. The filter bag can be reused repeatedly after washing or cleaning. And also the filter bag is easy to change. With no material consumption, this filter has low operation cost.

Technical Parameter

Model	Bag Qty	Filtering area (m)	Max flow (t/h)	Inlet/ outlet connection	Working pressure (Mpa)	Housing Dia. (mm)	Overal heigh (mm)	Housing height (mm)
JXB2	2	1	70	DN50	0.5	456	1572	1144
JXB3	3	1.5	105	DN80	0.5	508	1592	1190
JXB4	4	2	140	DN100	0.5	558	1632	1244
JXB5	5	2.5	175	DN150	0.5	608	1788	1254
JXB6	6	3	210	DN150	0.5	658	1854	1300
JXB7	7	3.5	245	DN150	0.5	710	1875	1340
JXB8	8	4	280	DN150	0.5	760	1922	1404
JXB10	10	5	350	DN200	0.5	910	2004	1430
JXB12	12	6	420	DN200	0.5	962	2064	1460
JXB14	14	7	490	DN200	0.5	1012	2124	1490
JXB16	16	8	560	DN250	0.5	1112	2146	1512
JXB18	18	9	630	DN250	0.5	1162	2225	1595
JXB20	20	10	700	DN250	0.5	1212	2280	1640
JXB22	22	11	770	DN250	0.5	1366	2320	1694
JXB24	24	12	840	DN300	0.5	1416	2358	1748

Application

Chemical industry, pharmacy, automobile industry, light industry, food industry, electroplating industry, etc.

Inlet/outlet type
