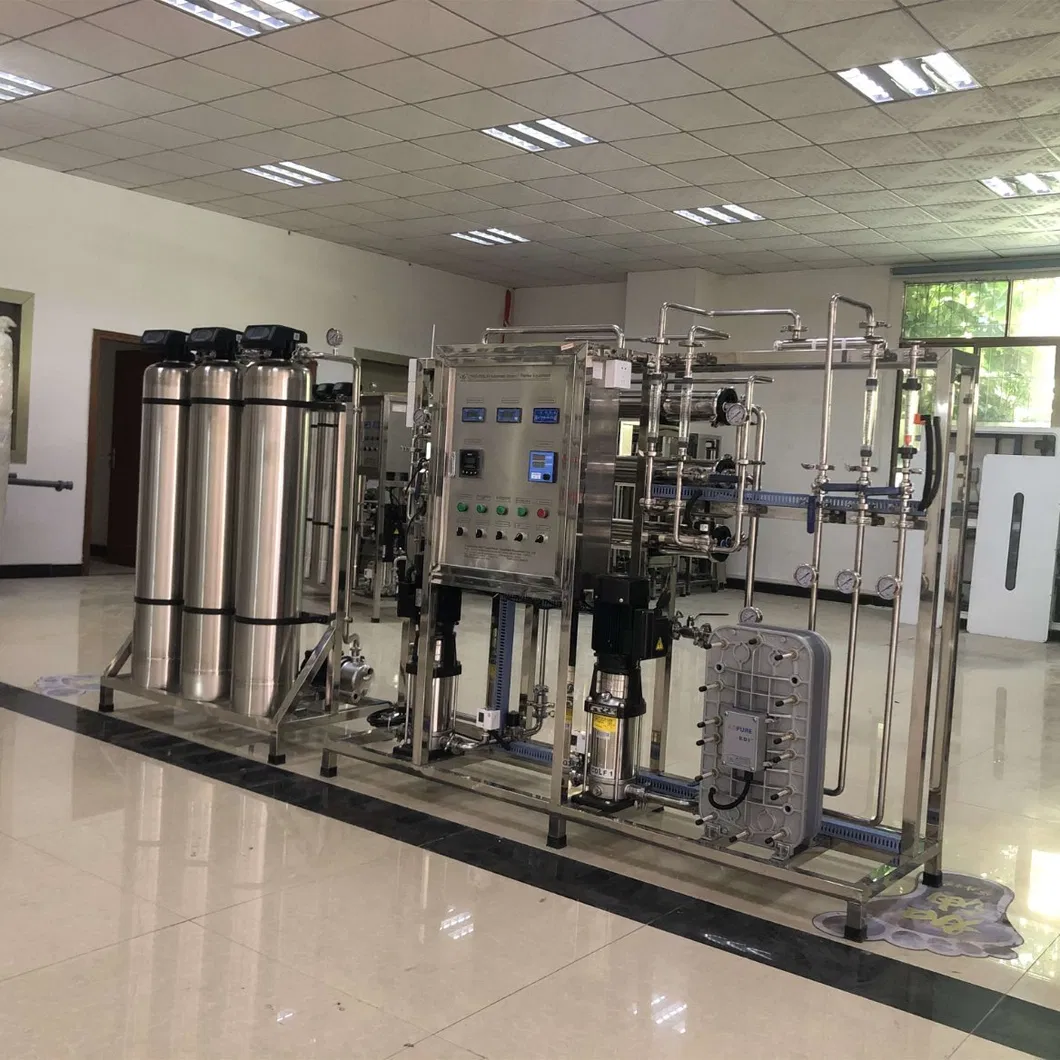

Hospital Use Guangzhou Distilled Water Purifier Filter System Treatment Plant for Dialysis Machines (KYRO-250)

Recovery rate50%-75%
Salt rejection97%
FactoryOEM; ODM
Auto and manual wash
Auto power on and power off
Short circuit protection
Reverse osmosis system(R/O system) is a water treatment process in which water is forced through
A semi-permeable membrane that has very small holes or "pores". Clean water passes through and
Impurities that are too big to pass
Through the RO membrane are left behind and flushed away.

How Does water treatment system Work?
Reverse osmosis systems purify water by forcing pressurized water through a very fine, plastic
Membrane. If the raw water being treated comes from a well or another private source, disinfection
And pre-filters (to remove hlorine and/or particulates/sediment) may be needed in advance of the R/O
Unit to remove contaminants that can foul or damage the membrane.
1. Specification:
1). Manual or automatic control
2). Desalination rate more than 97%
3). PLC control water machine
4). CE certificate

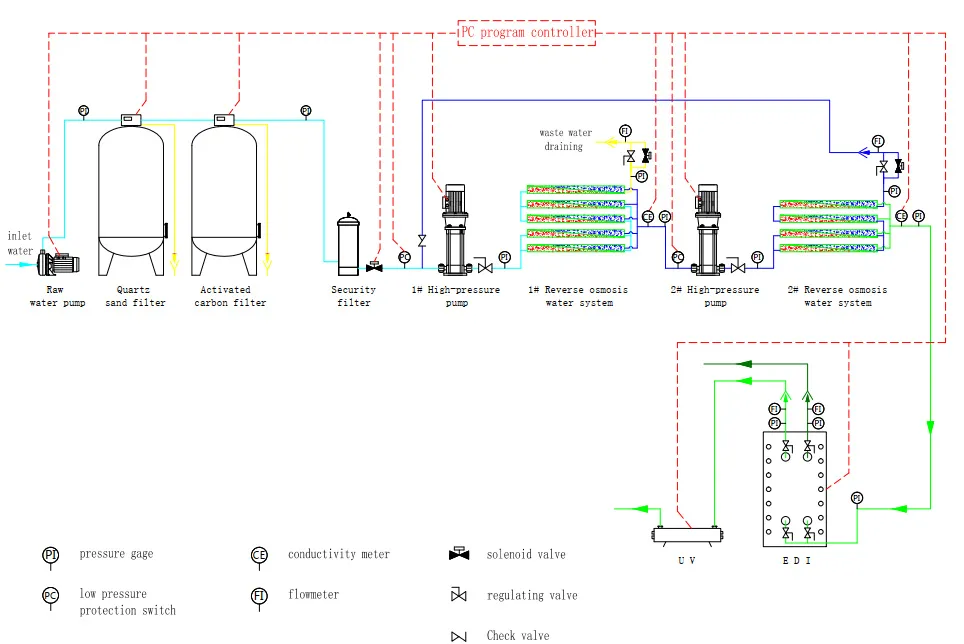

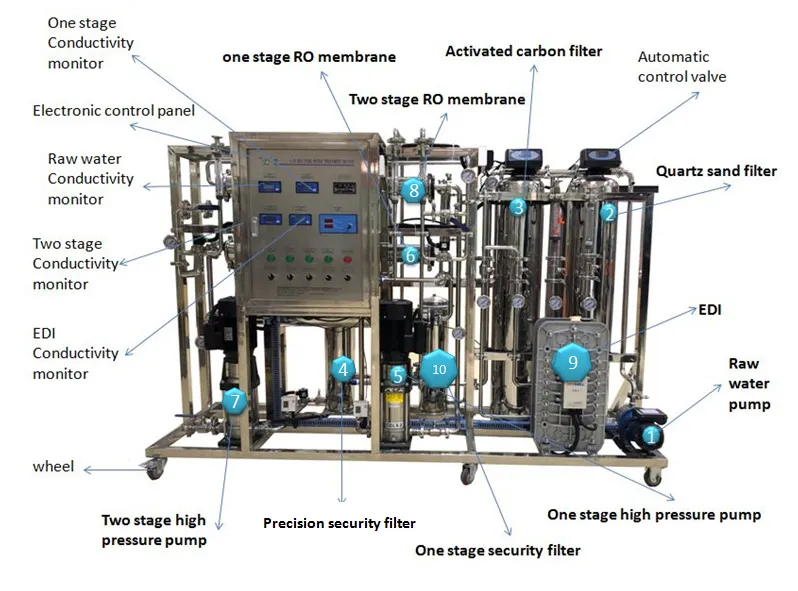

2. The process of RO water filtration:

Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- water softener-Security filter-- double stage high pressure pump-- double stage RO system--EDI system-Pure water tank-- UV/Ozone --Pure Water


1). Raw water pump-- provide the pressure to filter
2). Quartz filter-- get rid of turbidity, suspend solid, colloid, etc.
3). Active Carbon filter--Remove the color, chlorine, organic matter, etc.
4). Security filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6). High pressure pump-- provide enough pressure so that make sure enough water for satisfying designed production capacity.
7). RO (reverse osmosis) system--desalination rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic
8). UV/ozone--kill the bacteria

3. The feather of RO desalting water machine:

1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the best RO membrane brand VONTRON in China
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PC program controller
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection

4. More details about various size of our RO Water filter machine:

After-sale service
The above machine which we supply it to you, we can give you one year after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the buyer should pay the round air tickets cost and arrange the hotel accommodation as well as the food for seller's engineer. We will send some spare parts to you for free for replacement. Such as activated carbon, sand, PP security filter cartridges etc.

Replacement time of consumable parts
1). Quartz sand: 12-16 months
2). Activated carbon: 12-16 months
3). RO membranes: One and half year, depends on water quality
4). PP sediment filter cartridge: Every one month

Note:
Please also kindly understand that every water treatment equipment, no matter ultra-filtration or reverse osmosis, is a ODM project as different water is of different quality. Therefore, we would require for a raw water analysis / test report for inquiries of water treatment system for any inquiry.Machine pictures:

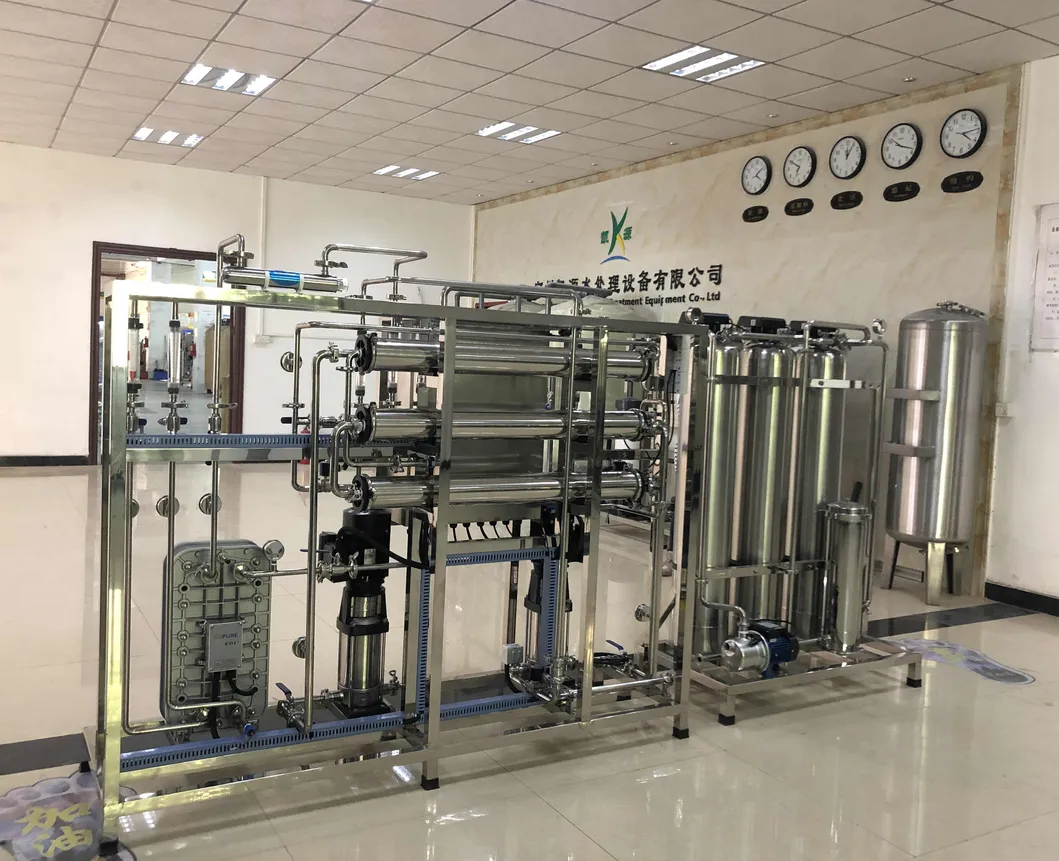

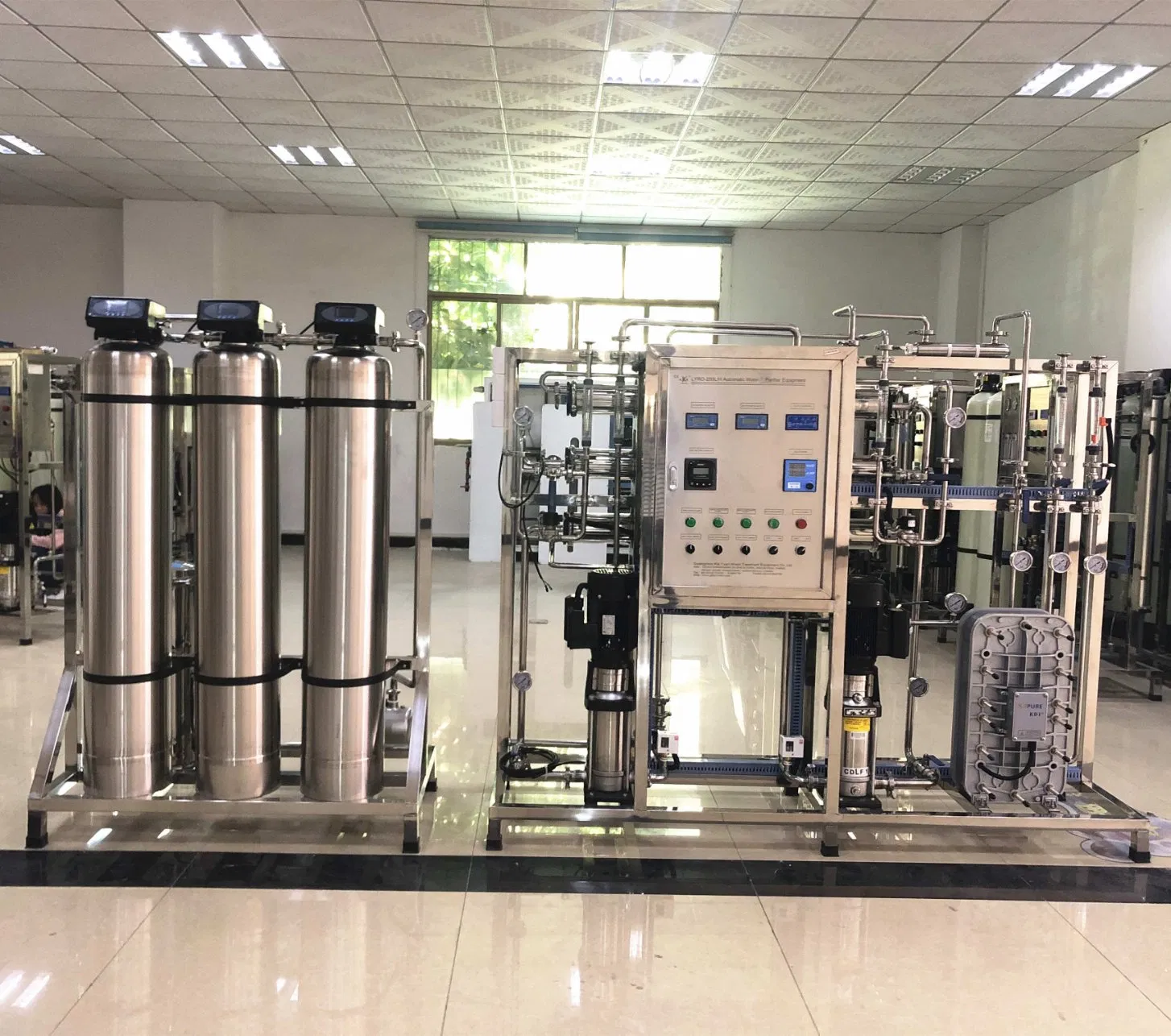

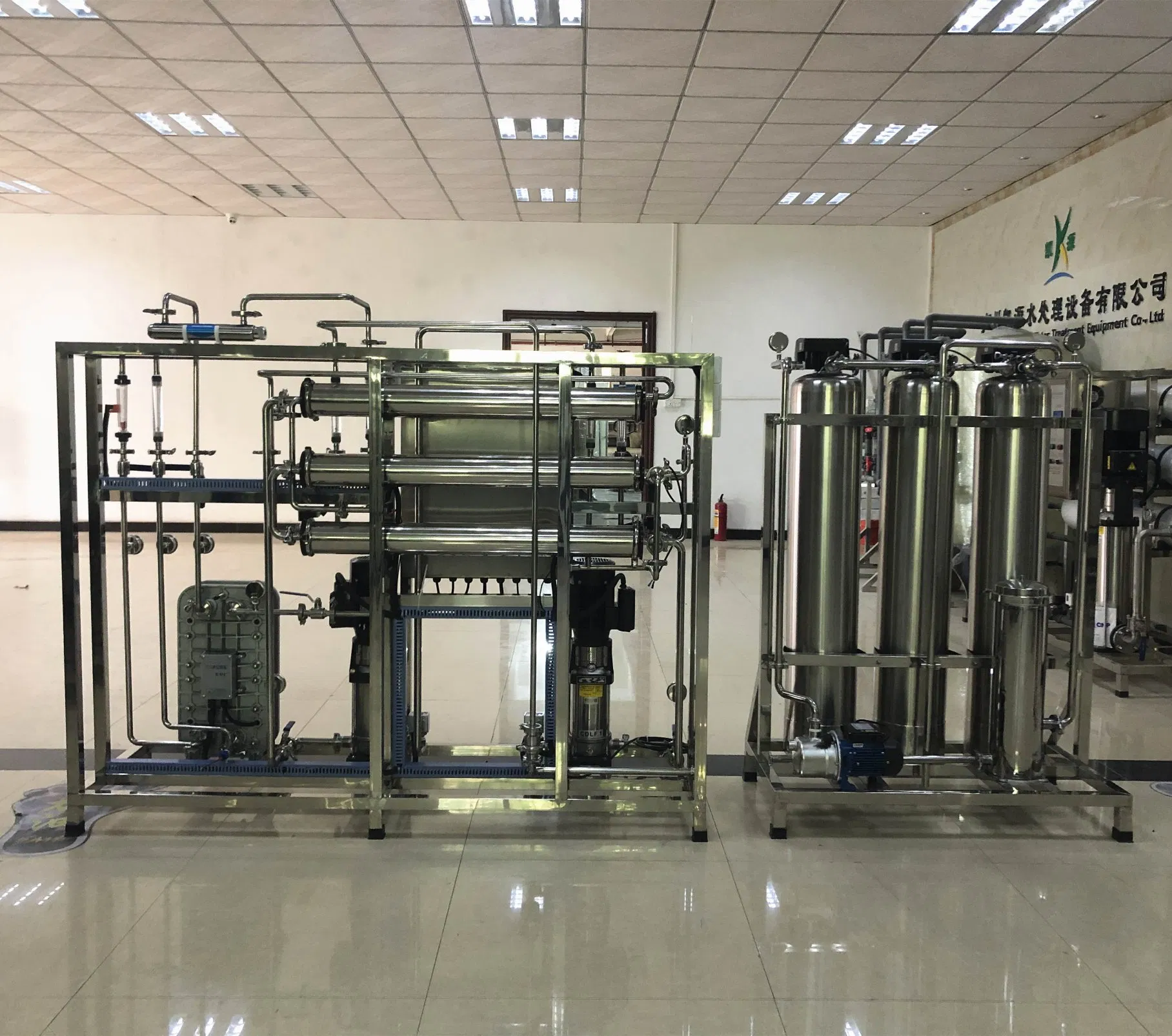

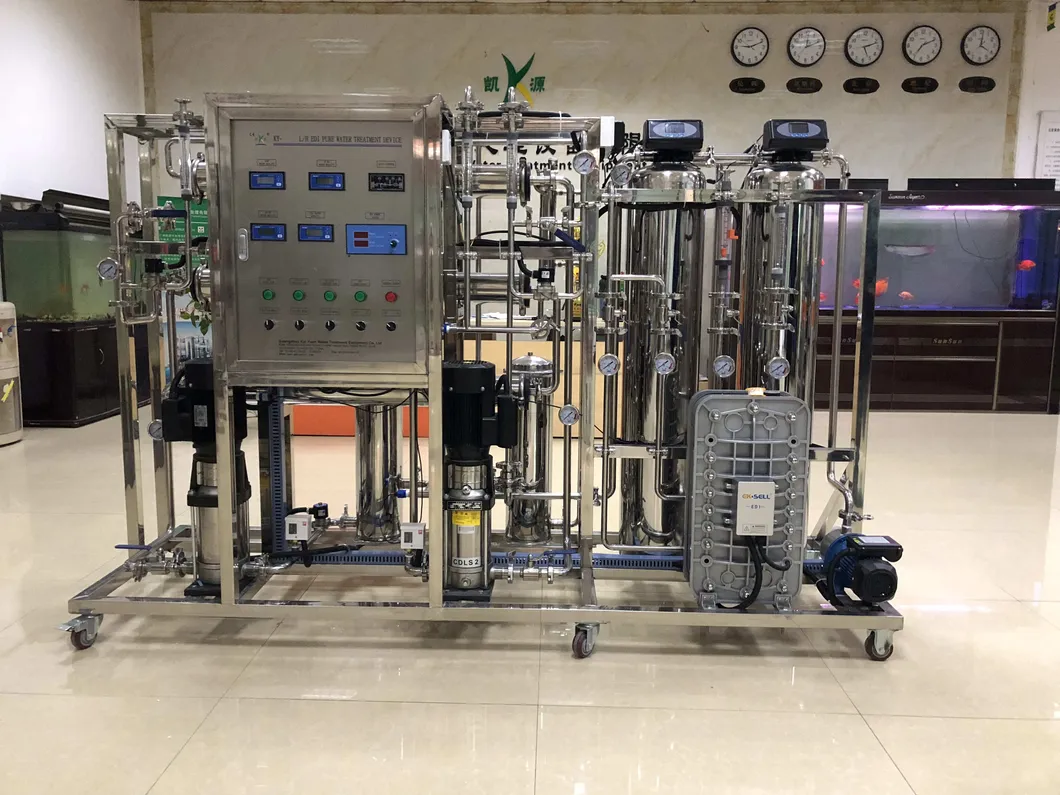

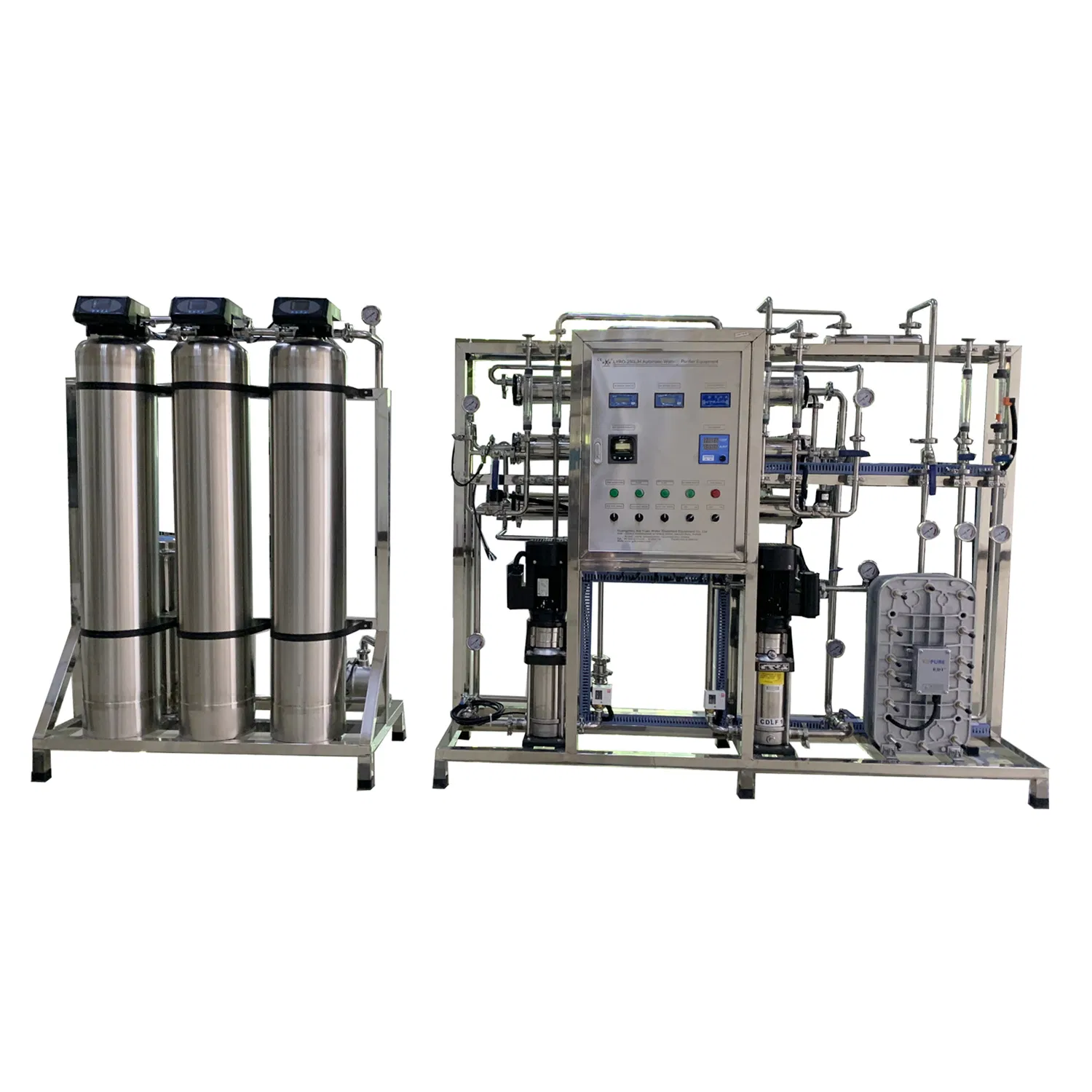

Automatic stainless steel distilled water treatment machine.

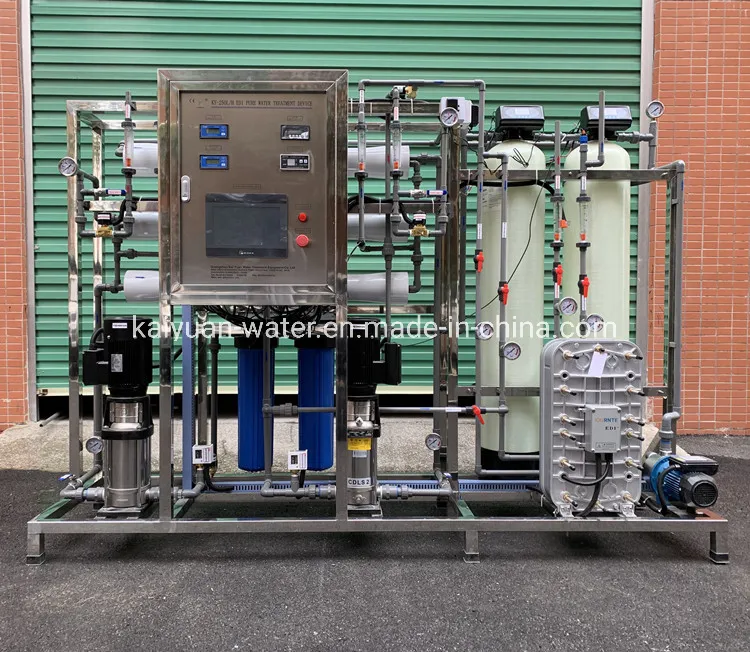

Fiberglass double stage reverse osmosis system and EDI system for ultrapure water making

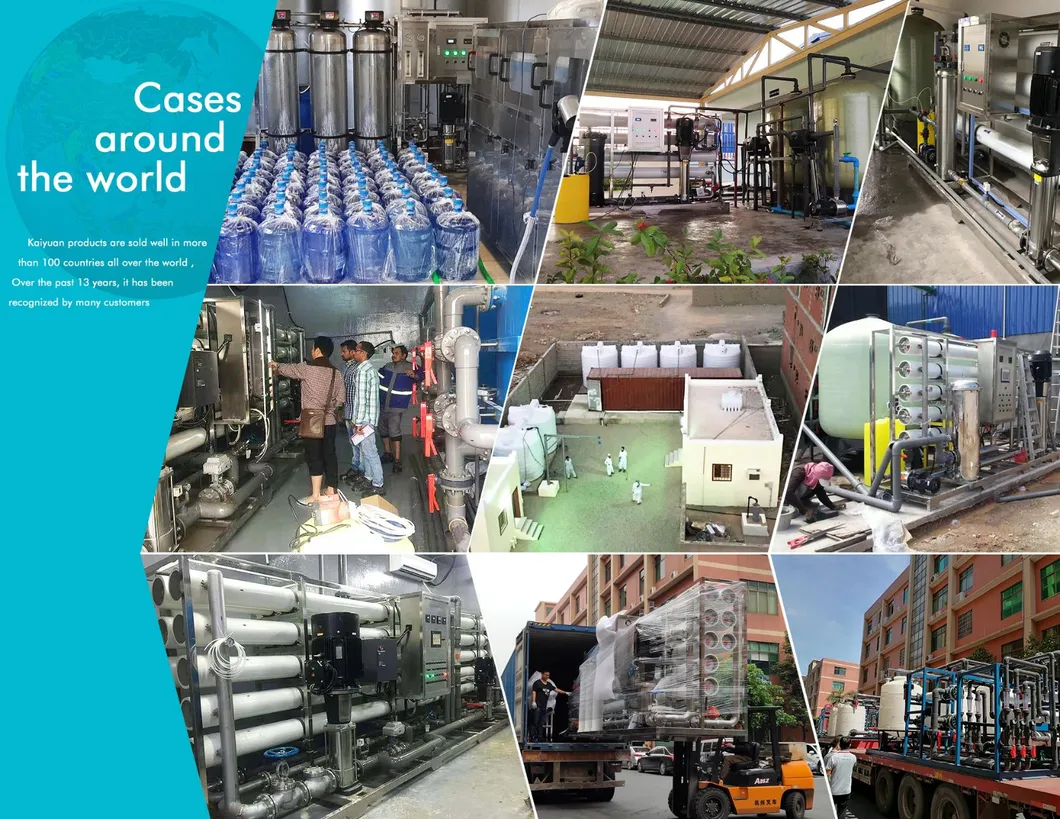

Our projects:

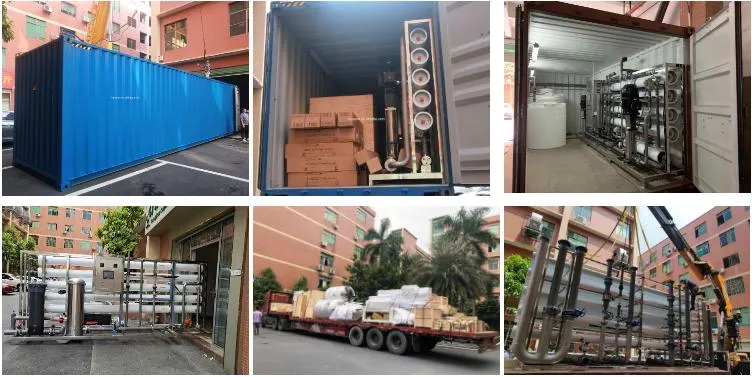

Delivery:
