Manufacturer Chemical Dosing System Mineral Bottle Water Treatment Plant (4000L/H)
Manufacturer chemical dosing system mineral bottle water treatment plant (4000L/H)This RO Water Treatment filter/purifier is developed by Guangzhou Kai Yuan Water Treatment Equipment CO. Ltd which uses as a processing the small water volume of the integrated water treating plant. The product is a eq......
Send Inquiry
Product Description

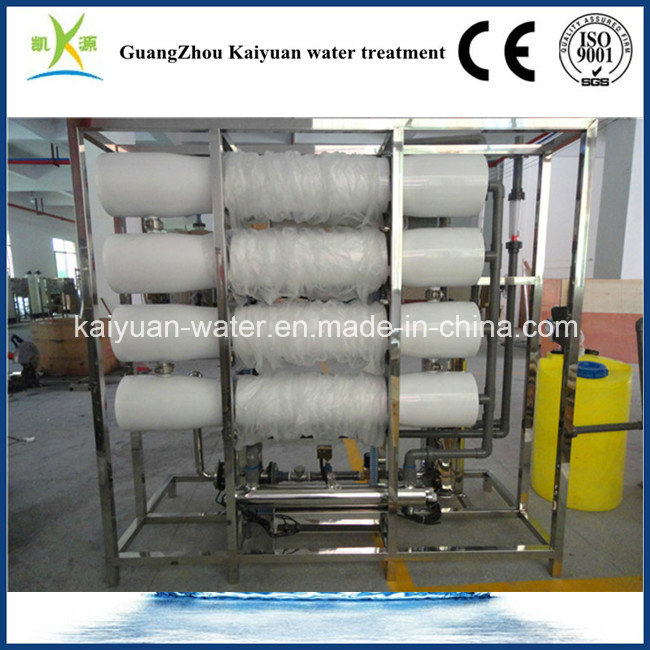

Manufacturer chemical dosing system mineral bottle water treatment plant (4000L/H)
This RO Water Treatment filter/purifier is developed by Guangzhou Kai Yuan Water Treatment Equipment CO. Ltd which uses as a processing the small water volume of the integrated water treating plant. The product is a equipment of easy to transport and use, which is based on the water quality to select the appropriate water treatment process, then all structures and equipment are placed in a container.
1>Model No. 4000L/H
2>Product Description
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is key equipment of pure water plant.

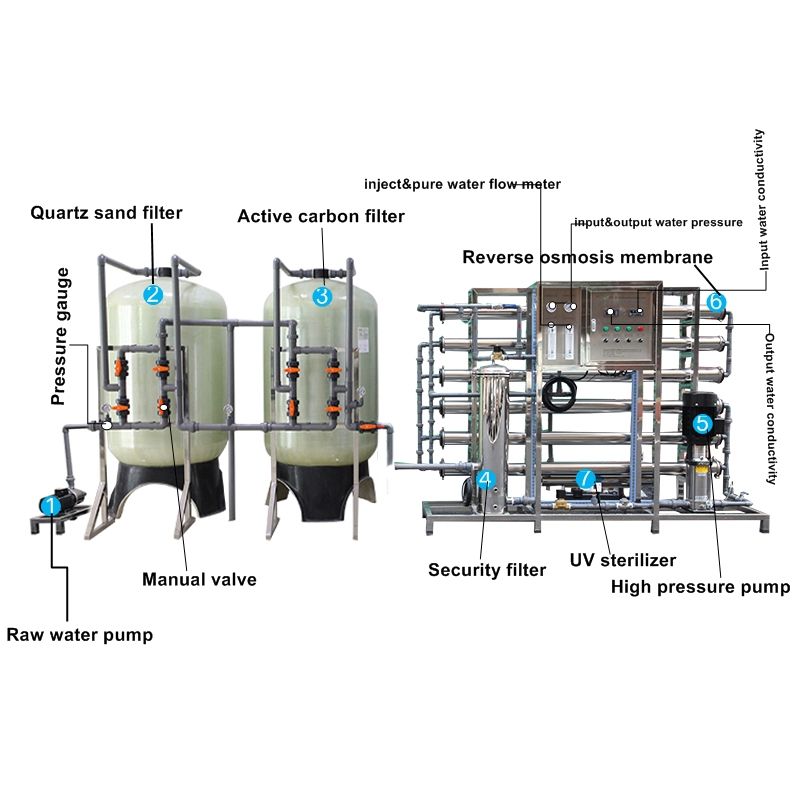

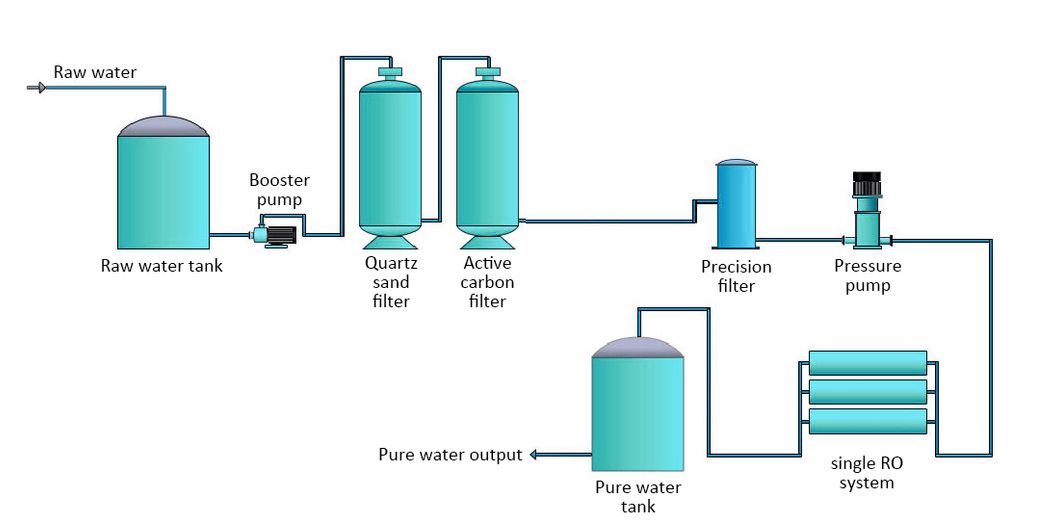

3>Process: Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 97%, removing over 97% ions.
4>Advantages:
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PLC program controlled
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
5>Optional choice:
1. RO membrane: Filmtec /USA Dow brand/CSM brand/Huitong brand
2. Pump: Grundfos/FLECK
3. UV sterilizer
4. Chemical dosing system
5. Water softener
6. SS304 water tank
7. Ozone generator
8. Purolite Resin
6> Technical data for 4000L/H
Our company is professionally in producing reverse osmosis (RO) equipments, pure water equipments, purified water equipments, industrial water, well water treatment equipment, softened water equipments, underground water treatment equipments, iron manganese removal equipments, laboratory deionized water equipments, deionized water equipments, direct drinking water equipments, domestic drinking water equipments, EDI high purity water, swimming pool water purifying equipments, river, seawater desalination equipments, ultrafiltration(UF) equipments, electroplate water treatment equipments, ion exchange equipments- Mixed bed, water softener, all kinds of water treatment consumable(need replaced parts) materials(PP sediment cartridge, RO membranes), accessories, can be customized various kinds of model as your requirements.
This RO Water Treatment filter/purifier is developed by Guangzhou Kai Yuan Water Treatment Equipment CO. Ltd which uses as a processing the small water volume of the integrated water treating plant. The product is a equipment of easy to transport and use, which is based on the water quality to select the appropriate water treatment process, then all structures and equipment are placed in a container.
1>Model No. 4000L/H
2>Product Description
The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is key equipment of pure water plant.
3>Process: Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 97%, removing over 97% ions.
| S/N. | Commodity name | Application | Remark |
| 1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
| 2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfoss pumps |
| 3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
| 4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
| 5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | |
| 6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm | |
| 7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
| 8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow |
4>Advantages:
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PLC program controlled
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
5>Optional choice:
1. RO membrane: Filmtec /USA Dow brand/CSM brand/Huitong brand
2. Pump: Grundfos/FLECK
3. UV sterilizer
4. Chemical dosing system
5. Water softener
6. SS304 water tank
7. Ozone generator
8. Purolite Resin
6> Technical data for 4000L/H
| Technical specification for 4000L/H | |
| Model | KYRO-4000 |
| Production capacity | 4000 L/Hr |
| Power | 6.5 kw |
| Power supply | AC 380V 50Hz |
| Reverse osmosis (RO)membrane | Membrane BW30-400 4pcs USA DOW |
| Membrane housing | 8040 stainless steel |
| Raw water pump | CHL8-30 |
| Quartz sand filter, activated Carbon filter | φ750×1900 FRP 2pcs |
| Security filter | 30 "× 5μm ,7core |
| High pressure pump | CDL4-14/3KW 1 set Nan fang |
| Activated carbon | 225kg |
| Quartz sand | 750kg |
| Size (mm) | main machine:2500X1000X1700mm |
| filtering tank:Φ750×1900mm | |
Our company is professionally in producing reverse osmosis (RO) equipments, pure water equipments, purified water equipments, industrial water, well water treatment equipment, softened water equipments, underground water treatment equipments, iron manganese removal equipments, laboratory deionized water equipments, deionized water equipments, direct drinking water equipments, domestic drinking water equipments, EDI high purity water, swimming pool water purifying equipments, river, seawater desalination equipments, ultrafiltration(UF) equipments, electroplate water treatment equipments, ion exchange equipments- Mixed bed, water softener, all kinds of water treatment consumable(need replaced parts) materials(PP sediment cartridge, RO membranes), accessories, can be customized various kinds of model as your requirements.
