Mbr System Filtration Equipment for Beverage Waste Water Treatment
Mbr System Filtration Equipment for Beverage Waste Water TreatmentAbout Litree:LITREE is the biggest hollow fiber ultra-filtration(UF) membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also th......
Send Inquiry
Product Description

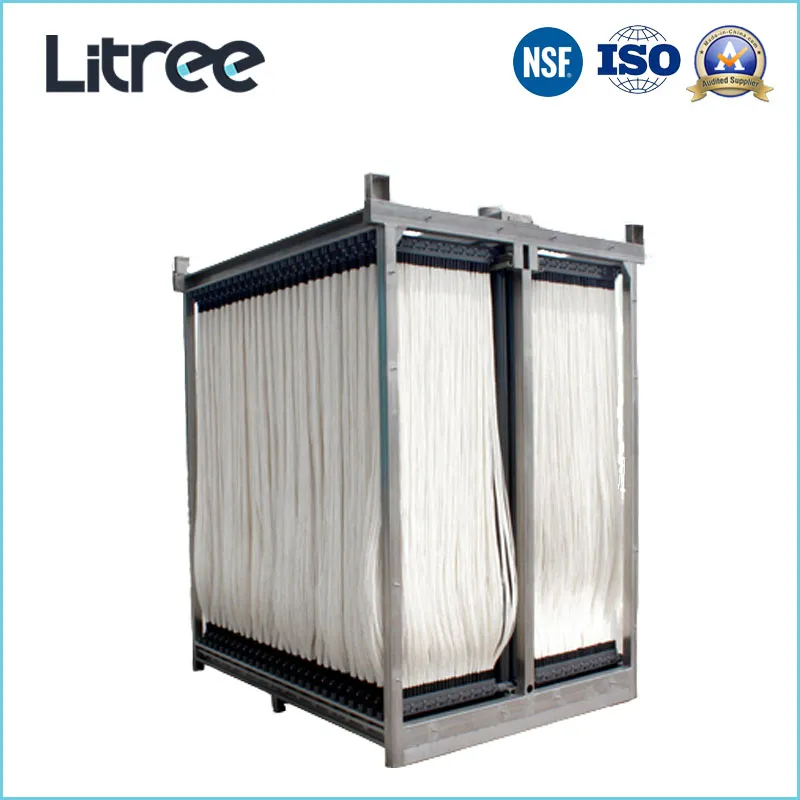

Mbr System Filtration Equipment for Beverage Waste Water Treatment
About Litree:
LITREE is the biggest hollow fiber ultra-filtration(UF) membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also the first brand in Chinese residential UF water filter market.
1.150, 000 Dalton MWCO rang
2. Unique desin on fiber protector and module strcture
Advantages of MBR system:
MBR technics is a perfect integration by membrane separation technology and normal biological treatment. Instead traditional secondary sedimentation tank, sand filter tank by capillary hollow fiber UF membrane, and the effluent water quality can match reclaimed water reuse or Reverse Osmosis input water standard. MBR system is very suitable for high discharge standard water treatment plant and old plant upgrades, transformation.
In wastewater treatment, MBR system has below obviously advantages compared with other biological treatment method:
1. High remove rate of contamination, stable effluent water quality, dispense with disinfection;
2. Realized the separation of HRT (Hydraulic retention time) and SRT (sludge age time), simplify the system design and operation;
3. The mechanical cut-off of UF membrane can avoid the microorganism spillage, maintain high sludge concentration, effectively increased the volume loading, reduce the sludge loading and floor space;
4. Long SRT in MBR system is helpful to the long generation period microorganisms growth, in favor of biodegradation on difficult degradation organic matter.
5. The longer SRT also make the MBR system has the effect same as aerobic sigestion pool, and reduce the sludge volume observably and save the process cost;
6. MBR technics has well control on SRT in order to adapt with the growth of nitrobacteria, enhance the nitriability.
7. MBR system has compact structure, easy for integrate autocontrol and operation manage.
Specification:
Application:
Municipal Water Plant
Industrial Waste Water Treatment
Reclaimed Water Reuse
Welcome to contact us for more about our UF membrane and water treatment equipment, your opinions will be highly appreciated!
About Litree:
LITREE is the biggest hollow fiber ultra-filtration(UF) membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also the first brand in Chinese residential UF water filter market.
1.150, 000 Dalton MWCO rang
2. Unique desin on fiber protector and module strcture
Advantages of MBR system:
MBR technics is a perfect integration by membrane separation technology and normal biological treatment. Instead traditional secondary sedimentation tank, sand filter tank by capillary hollow fiber UF membrane, and the effluent water quality can match reclaimed water reuse or Reverse Osmosis input water standard. MBR system is very suitable for high discharge standard water treatment plant and old plant upgrades, transformation.
In wastewater treatment, MBR system has below obviously advantages compared with other biological treatment method:
1. High remove rate of contamination, stable effluent water quality, dispense with disinfection;
2. Realized the separation of HRT (Hydraulic retention time) and SRT (sludge age time), simplify the system design and operation;
3. The mechanical cut-off of UF membrane can avoid the microorganism spillage, maintain high sludge concentration, effectively increased the volume loading, reduce the sludge loading and floor space;
4. Long SRT in MBR system is helpful to the long generation period microorganisms growth, in favor of biodegradation on difficult degradation organic matter.
5. The longer SRT also make the MBR system has the effect same as aerobic sigestion pool, and reduce the sludge volume observably and save the process cost;
6. MBR technics has well control on SRT in order to adapt with the growth of nitrobacteria, enhance the nitriability.
7. MBR system has compact structure, easy for integrate autocontrol and operation manage.
Specification:
Model | GEMINI-E | GEMINI-S | GEMINI-U |
Design Flux | 15~60 L/(m 2 · hr) | ||
Membrane Material | PVDF | ||
Fiber ID/OD | 1.0/1.8 mm | ||
Pore Size | 0.02μ m | ||
Filtration Model | Outside-in | ||
Max. Operation Pressure | -60kPa | ||
Suggested Pressure | < -30kPa | ||
Temperature | 5~45 | ||
pH Value | 1~12 | ||
Water Collector Material | ABS | ||
Potting Adhesive | Epoxy Resin | ||
Membrane Area | 14m 2 | 23m 2 | 31m 2 |
Module Dimension | 1305× 740× 70 mm | 1705× 740× 70 mm | 2205× 740× 70 mm |
Weight | 9kg | 13kg | 16kg |
Application:
Municipal Water Plant
Industrial Waste Water Treatment
Reclaimed Water Reuse
Welcome to contact us for more about our UF membrane and water treatment equipment, your opinions will be highly appreciated!
