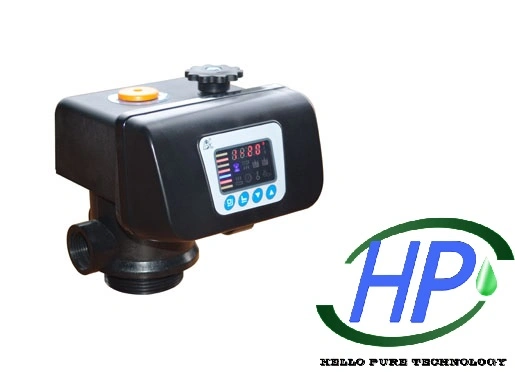

Runxin Automatic Control Valve F67b for RO Water Treatment System

Automatic filter Control valve F67B
1) Control Mode: Auto
2)Suited Pressure:0.15-0.6MPa
3)Suited Water Temperature:5-45oC
4)Maximal Water Treatment Capacity:4m3/h
5)Water Inlet/Outlet:1'' F(Female Thread)
6)Base:2-1/2'' 8 NPSM
7)Material:PPO or ABS reinforced

Features:
1.It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2.No water passes the valve in rinse in single tank type.
3.LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
4.Having long outage indicator
5.It could set up rinsing frequence
6.There are two kinds of time clock types: by hours or by days
7.Buttons are locked when no operation within 1 minute
8.Having interlock function
9.With signal output connector
10.With remote handling input connector
11.With pressure relief connector
12.All parameters can be modified according to the need
