Top Mount Swimming Pool Sand Filter

Product Description

LASWIM Sand Filter WL-ICG WL-IDG
1.Made of fibergalss reinforced laminated polyester
2.Smooth and high brightness appearance
3.6 way multiport valve
4.Sight glass for inspection of filtered water
5.Easy maintenance,easy to clean
6.Maximum Working Pressure:36psi/2.5kg/cm2
7.Maximum temperature:50ºC

Top Mount Swimming Pool Sand Filter

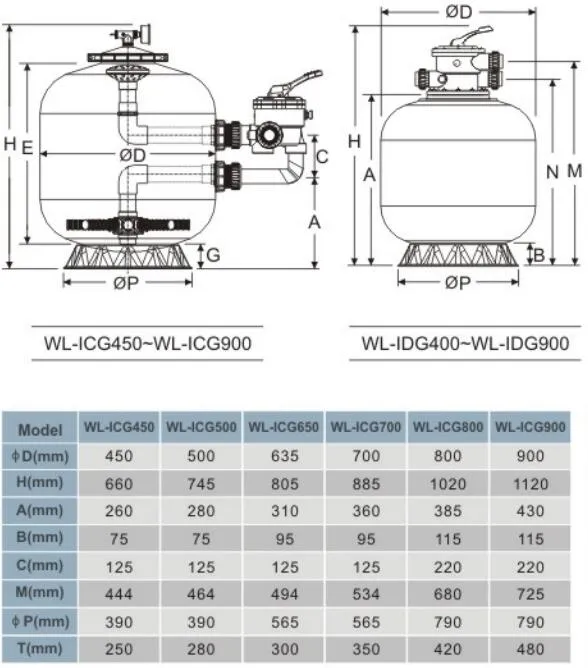

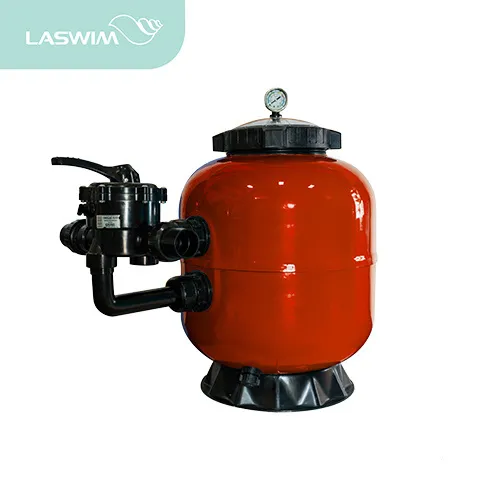

WL-ICG

Model	Pipe Size		Filter Area(m²)	Design Flow		Sand Weight(kg)	Tank Diameter(mm)	Tank Height (mm)
Model	inches	mm	Filter Area(m²)	(m³/h)	lpm	Sand Weight(kg)	Tank Diameter(mm)	Tank Height (mm)
WL-ICG450	1.5	50	0.16	8	133	45	450	660
WL-ICG500	1.5	50	0.2	10	166	80	500	745
WL-ICG650	1.5	50	0.32	15	250	130	635	805
WL-ICG700	1.5	50	0.38	19	317	190	700	885
WL-ICG750	2	63	0.44	22	367	230	750	1000
WL-ICG800	2	63	0.5	25	417	260	800	1000
WL-ICG900	2	63	0.64	32	533	400	900	1115

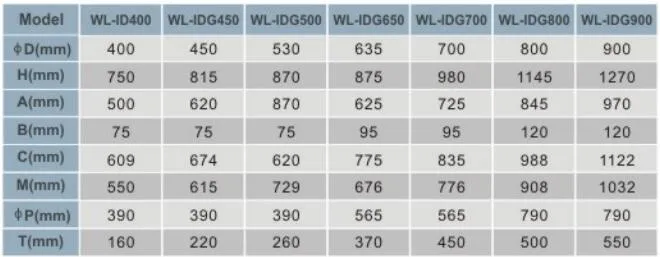

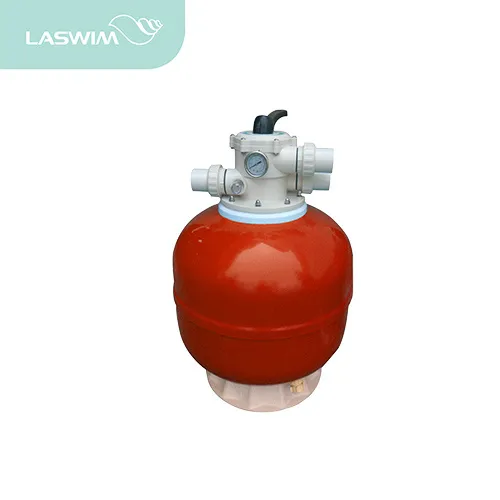

WL-IDG

Model	Pipe Size		Filter Area(m²)	Design Flow		Sand Weight(kg)	Tank Diameter(mm)	Tank Height (mm)
Model	inches	mm	Filter Area(m²)	(m³/h)	lpm	Sand Weight(kg)	Tank Diameter(mm)	Tank Height (mm)
WL-IDG400	1.5	50	0.13	6	100	30	400	750
WL-IDG450	1.5	50	0.16	8	133	45	450	815
WL-IDG500	1.5	50	0.2	10	166	80	500	860
WL-IDG650	1.5	50	0.32	15	250	130	635	875
WL-IDG700	1.5	50	0.38	19	317	190	700	1000
WL-IDG800	2	63	0.5	25	417	300	800	1145
WL-IDG900	2	63	0.64	32	533	450	900	1270

STANDARD: MAXIMUM WORKING PRESSURE: 36psi/2.5kg/cm2
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:58psi/4.0kg/cm2
OPTIONAL: MAXIMUM WORKING PRESSURE: 58psi/4.0kg/cm2
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:86psi/6.0kg/cm2 Top Mount Swimming Pool Sand Filter

ABOUT LASWIM

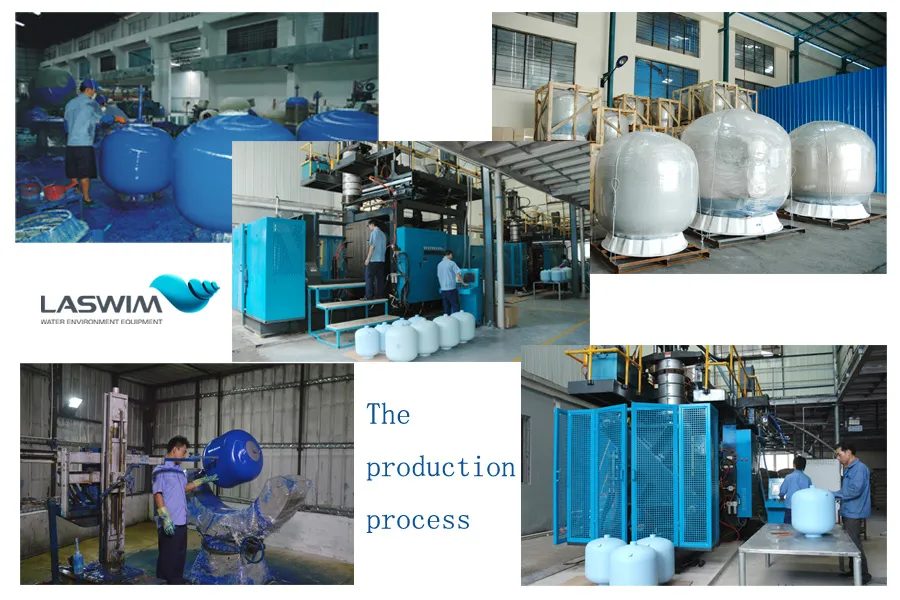

Guangdong LASWIM Water Environment Equipment Co.,Ltd.set up in 1989,is one of the leading enterprises in Pool & Spa field in China.The production base is covered more than 40000m2 in Zhongshan city, and has the advanced production equipment and technical strength,which has complete quality control systems.It is installed the advanced test equipment for production lines from Europe; and the overall test process adopts computer control. The high-quality raw materials,professional and technical personnel and effective management systems are employed.Through an ongoing effort to diversify products, a complete line of energy efficient residential and commercial pool products are developed, including endless pool units, pumps, filters, chlorinators, lighting, heat pumps, ladders, starting blocks, racing lane, underwater observation windows, white goods, Jacuzzi and SPA Pool.
