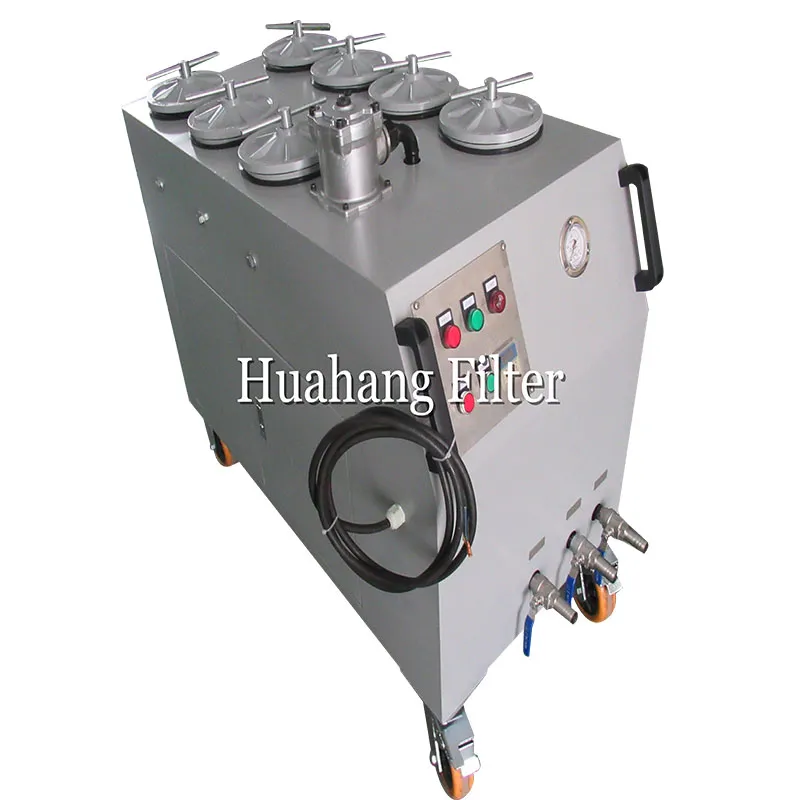

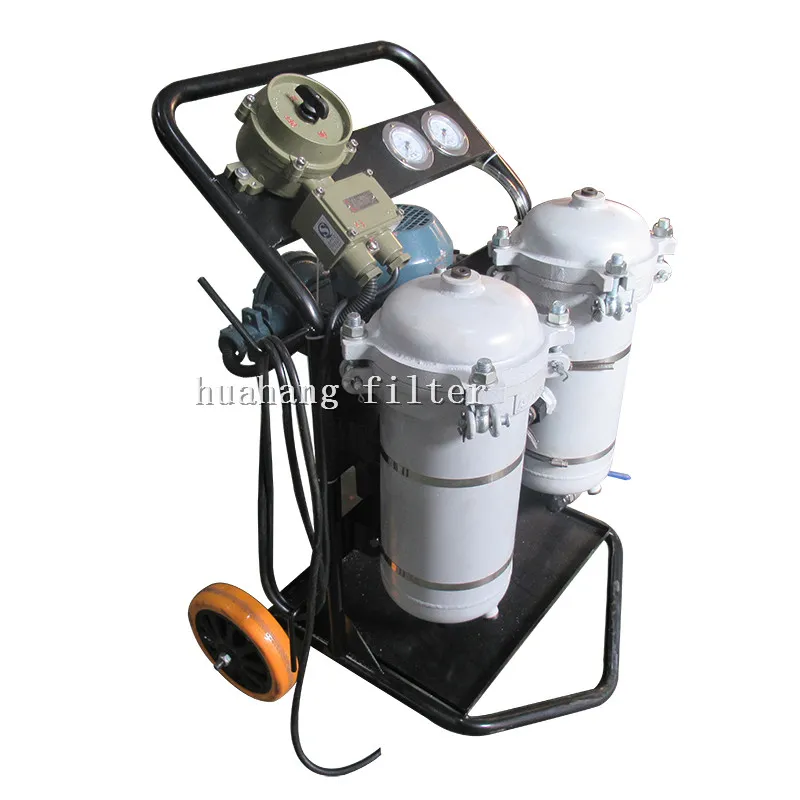

Portable Explosion-proof Lubricating oil Dehydration Vacuum System Oil Purifier Machine/Oil Filtration Plant
Portable Explosion-proof Lubricating oil Dehydration Vacuum System Oil Purifier Machine/Oil Filtration Plant HUAHANG perfectly replaced ,Hydac,Leemin famous brand oil purifier. It is excellent equivalents for customer to choose from its economical and practical points. Parameters:Technical Data:Mode......
Send Inquiry
Product Description
HUAHANG perfectly replaced ,Hydac,Leemin famous brand oil purifier. It is excellent equivalents for customer to choose from its economical and practical points.
Parameters:
| Technical Data: | |||
| Model No. | BLYJ-6-*/** | BLYJ-10-*/** | BLYJ-16-*/** |
| Rated Flow (L/min) | 6 | 10 | 16 |
| Pressure (Mpa) | 0.34 | ||
| Pressure loss (Mpa) | ≤0.02 | ||
| Coarse filtration (μm) | 40 | ||
| Precision filtration (um) | 3,5,10,20 | ||
| Replace filter pressure(Mpa) | 0.2 | ||
| Recommand to usege viscosity(oSt) | 10-160 | ||
| Operating temperature(°C) | 6-80 | ||
| Motor Power (Kw) | 0.18 | 0.25 | 0.35 |
| Voltage(V) | AC380V,50 Hz;AC220V 50Hz | ||
| Weight(Kg) | 13 | 16 | 18 |
| Size (mm) | 650×680×980 | 650×680×980 | 720×680×1020 |
Note: *:Filtration precision,eg:003 :3μ
**:medium , Omission :General hydraulic oil ;BH: water-glycol; V:phosphate ester.
*** medium viscosty≤160cSt
Application:
To filter the oil which is filled up in hydraulic lubrication system,
to establish equipment periodic maintenance.
The by-pass filtration for the working hydraulic lubrication system..
Product Introduction:
-It is the oil filter which is more portable made by our company.
-It is filled up the hydraulic lubrication equipment with oil and purify oil whenever it is needed which is easy to operate and convenient to carry.
-The coarse suction filter can not only protect oil pump but also prolong the life of main filter.
-According to different requirements ,the filter precision can be selected to reach different oil rate.
Contact Us:
Linda zhang
Tel:+86-15993088929 +86-18339530218
Xinxiang City Huahang Filter Co.,Ltd

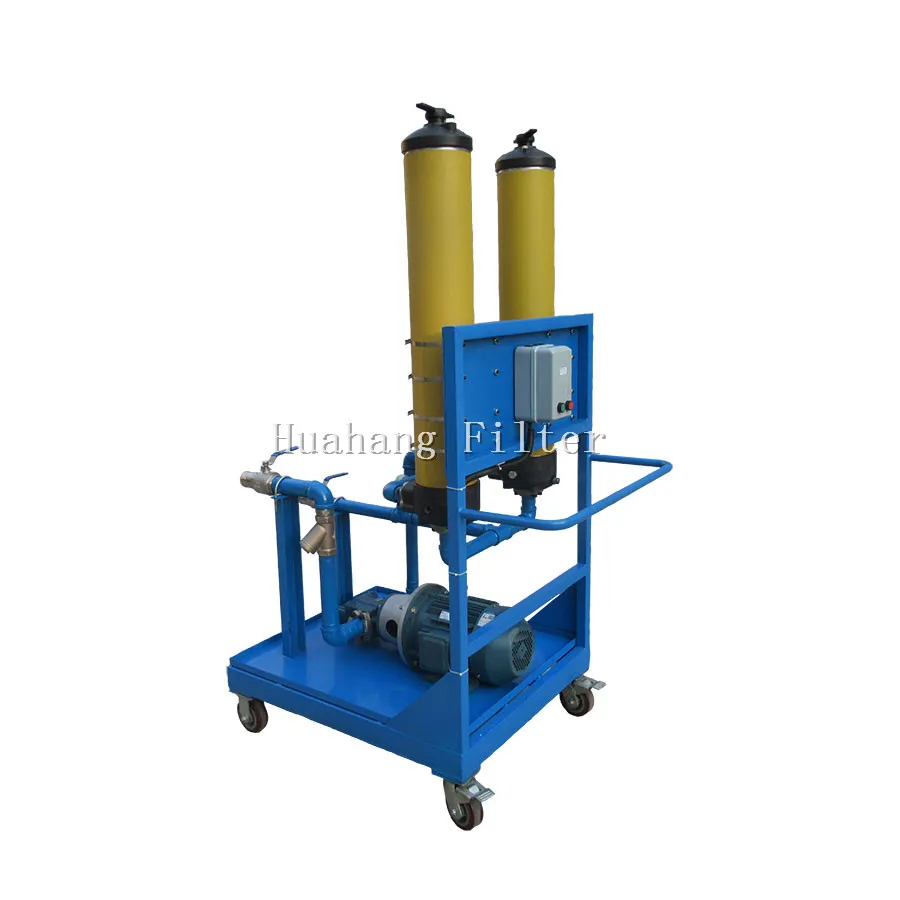

More Model
Movable oil filter vehicle series:
Movable oil purifier LYC-A series
Movable oil purifier LYC-B series
Box type movable oil purifier LYC-C series
High soild conten oil purifier LYC-G series
High viscosity oil purifier GYLC series
Coalescence of dehydrated oil purifier LYC-J series
Prvcision vacuum oil purifier ZYLC series
Portable oil purifier BLYJ series
Uiyra-precision oil purifier CS-AL series
AL83Y100BS/BN/V/CS
HH8314F40KSXBB
HH8314F40KTBU21HH8314F40KTUB21
HH8314F40KTUAD
HH9020A12KNR4P
HH8304 F32 ++ XB1
HH8300 F32 ++ XB1
HH8300 F32 ++ UB1
Our company:
