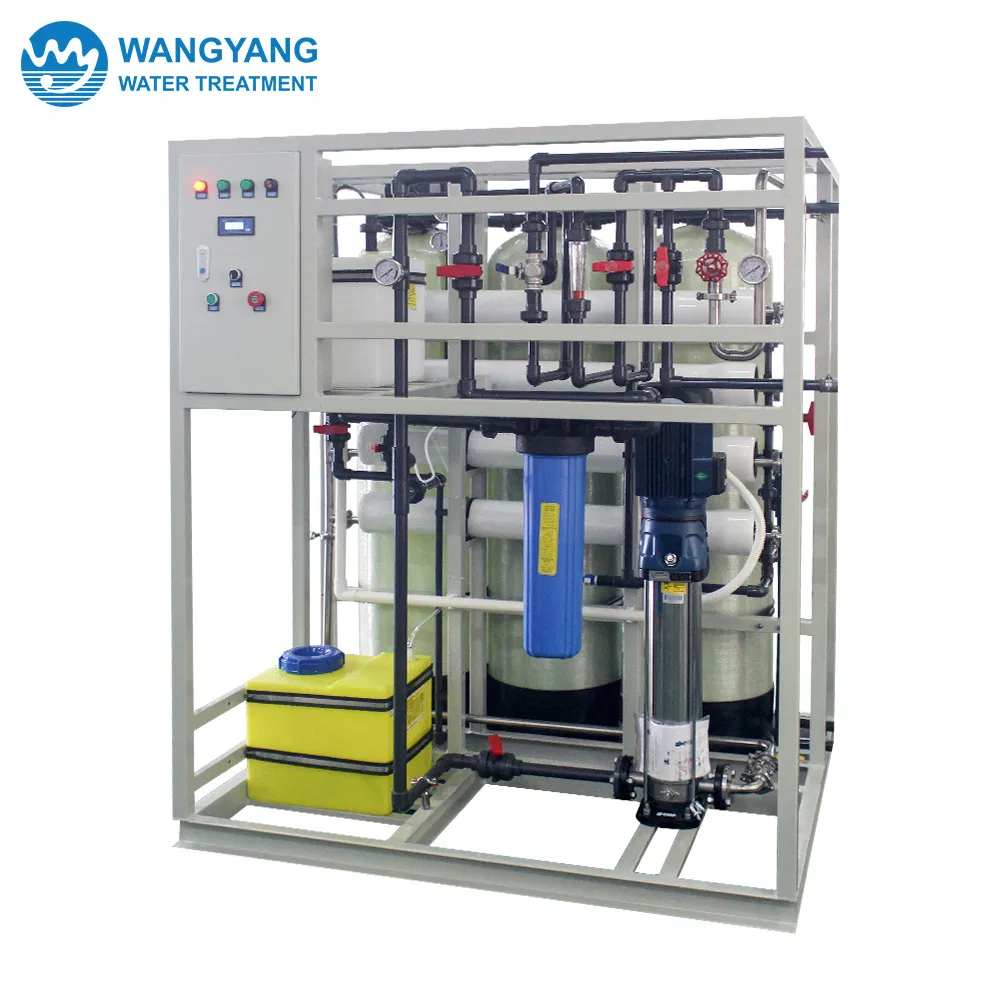

1tph Reverse Osmosis Machine to Purify Water with Security Filter

The key components adopt famous brand products, advanced technology, reliable quality, strong expansibility, reasonable structure, small footprint, high water utilization rate, low energy consumption, fully automatic operation and simple operation and maintenance.

Features and advantages

1. High quality imported high pressure pump with high operating efficiency, low energy consumption and long service life.
2. High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
3. Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.

4. The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.

5. Wide range of power supply: 220V~440V/50~60HZ.
6. RO product water quality standard: TDS<20mg/L.
7. Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
8. The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.

System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.

2. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.

3. Equipped with automatic softening valve, automatic regeneration.


* 1. Equipment can be customized according to customer requirements.

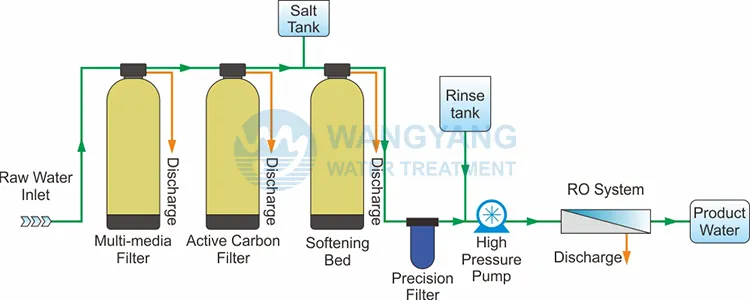

Process flow diagram

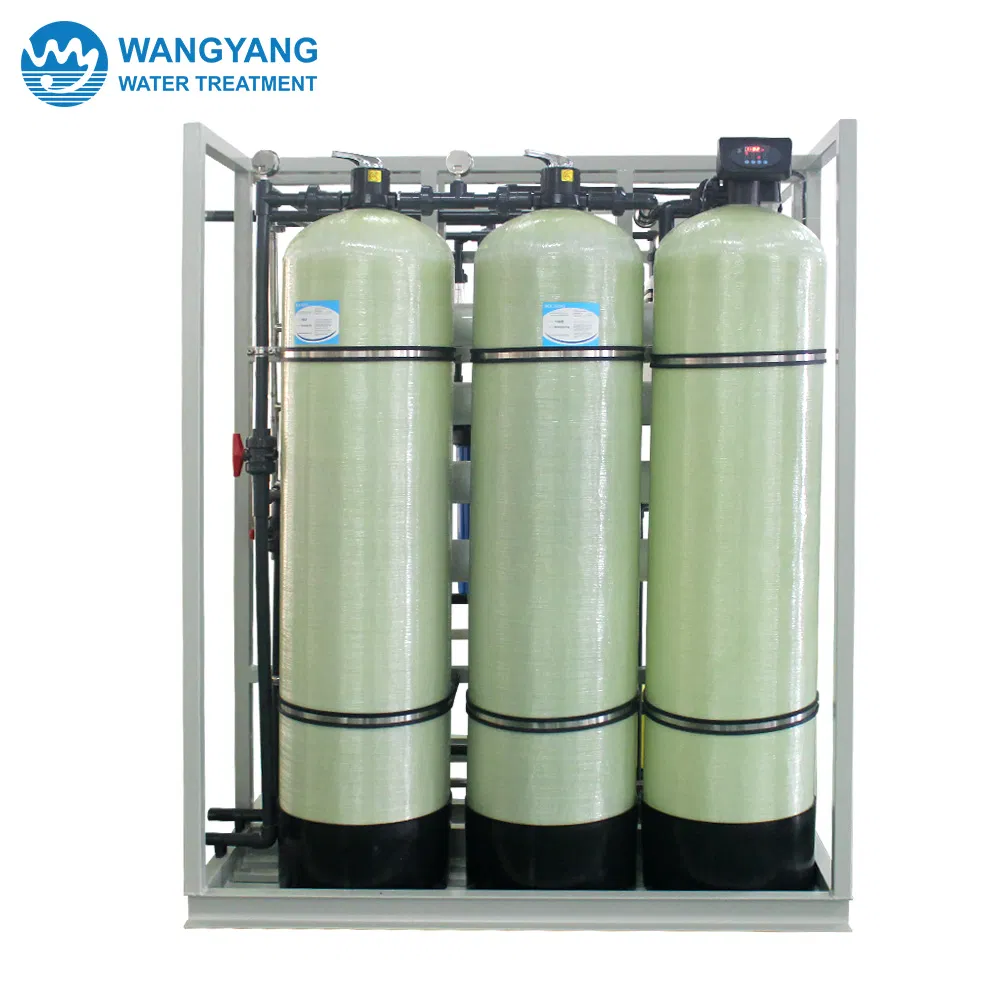

1. Multimedia filter: Mainly to remove turbidity, which is used to filter out large particles and suspended solids in raw water.
2. Active carbon filter: Uses the granular activated carbon to further remove residual impurities of residual chlorine, organic matter and suspended matter in the water, and provides favorable conditions for the subsequent reverse osmosis treatment.
3. Softening bed: Mainly remove the calcium and magnesium in water, reduce the hardness of water.
4. Precision filter: Further filtration, protection of reverse osmosis membrane.
5. High pressure pump: Provide enough pressure for reverse osmosis system.
6. Reverse osmosis system: The core part of pure water equipment, the production of high-purify water.


Details Images

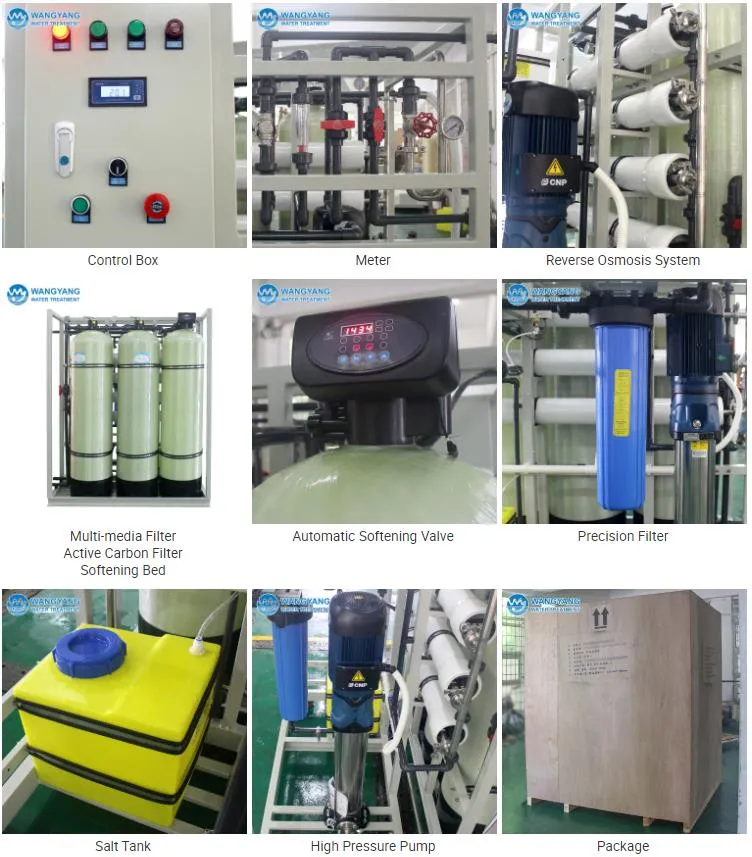

Main accessories

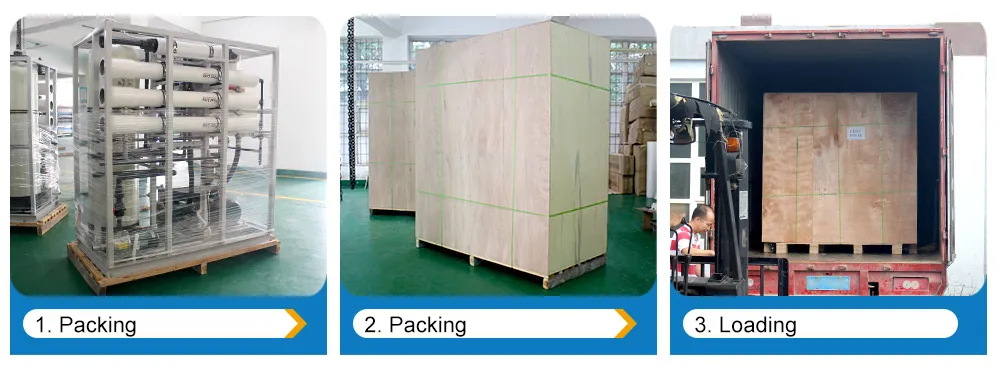

Packaging: International standard export package; And we can pack according to customers' requirement.
Delivery Time: 20 Working Days.

Reverse Osmosis Technology

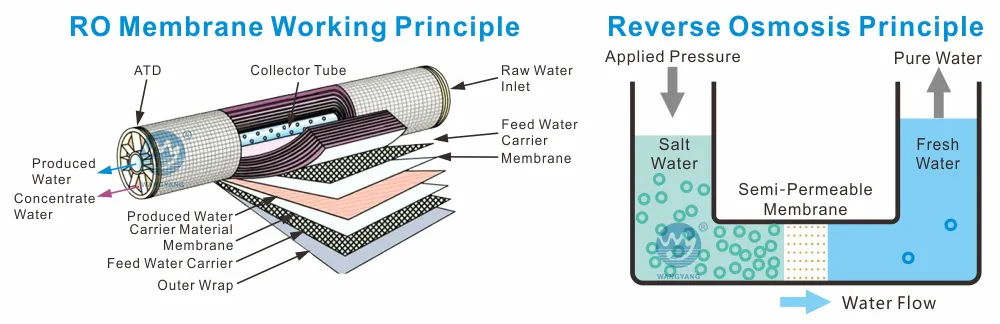

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.

1)Q: Are you a factory or trading company?
    A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.
            We have sophisticated experience and professional knowledge & technology.
            Both OEM and ODM orders are available.

2)Q: Where is your factory located? How can I visit there?
    A: Our factory is located in No.8, Keji Road 1, Tangjiawan, Xiangzhou district, Zhuhai City, Guangdong, China.
            All our clients, from home or abroad, are warmly welcome to visit us!
            We are expecting to establish long-term business relations with you.

3)Q: What kinds of water treatment equipment do your company offer?
    A: We are specialized in designing and manufacturing the products as follow:
            Seawater desalination system
            Brackish water desalination system
            Pure water treatment system
            Ultra filtration system
            EDI
            Reclaimed - water recycling system
            Ion- exchange system
            Water softening system


1. After qualified of the equipment, we will supply two year guarantee, control system two year guarantee, free charge for wearing parts, and other spare parts with cost price.
2. If the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone.
3. If relevant measurements couldn't solve the problems, we will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
4. After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
