3000gpd Reverse Osmosis System Salt Potable Water Purifier Treatment Machine Plant
3000gpd reverse osmosis system salt potable water purifier treatment machine plantProduction DescriptionReverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdeli......
Send Inquiry
Product Description
3000gpd reverse osmosis system salt potable water purifier treatment machine plant
Production Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.

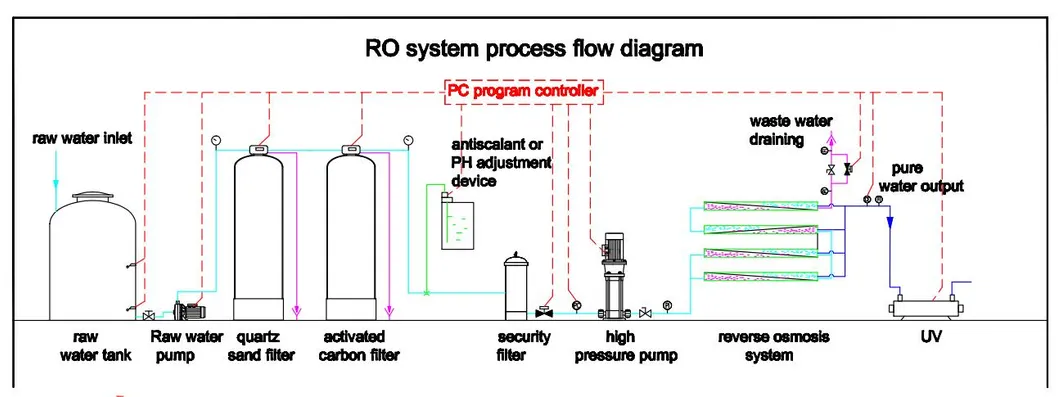

| Item | Material/model | Brand | Function |
| Raw water pump | SS316 | China | Provide pressure for raw water |
| Quartz sand filter | FRP | China | Remove large particule |
| Activated carbon filter | FRP | China | Remove smell,color,bacterial and organic matter |
| Ansticalant dosing system | 0-3L/H | China | Remove hardness |
| security filter | PVC | China | Block impurities greater than 5micron(1micron),Protect the ro membrane from damage |
| High pressure pump | SS316 | CNP/Grunfos | Provide pressure for water into RO membrane |
| RO membrane | LCLE-4040 | Dupont | Remove heavy mental ion,bacterial,virus,more than 97% |
| UV Sterilizer(Optional) | 14W | China | Kill 99% bacterial(For drinking directly) |
| Ozone Generator(Optional) | 3g/h | China | Kill 99%bacterial and keep 2hours.(For making bottled water) |
Main Features
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

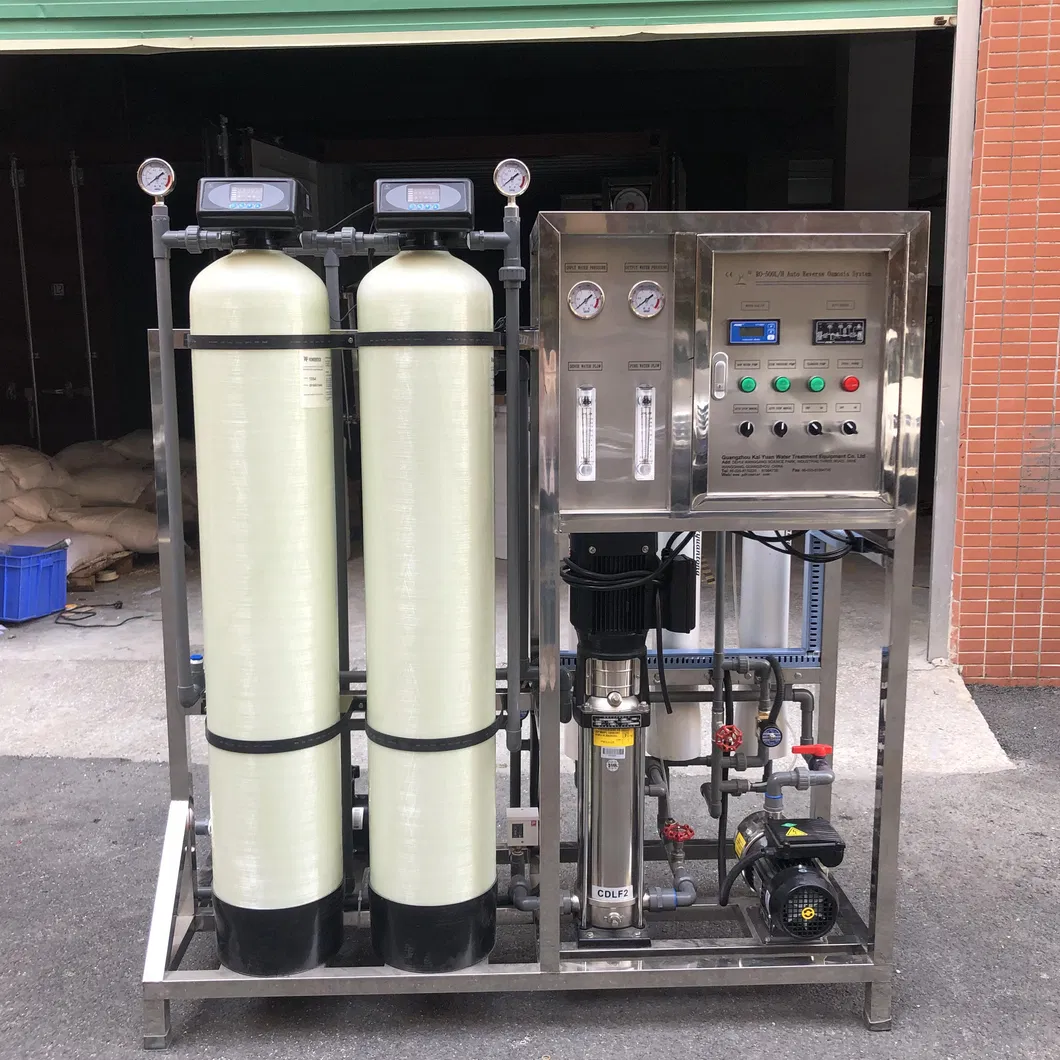

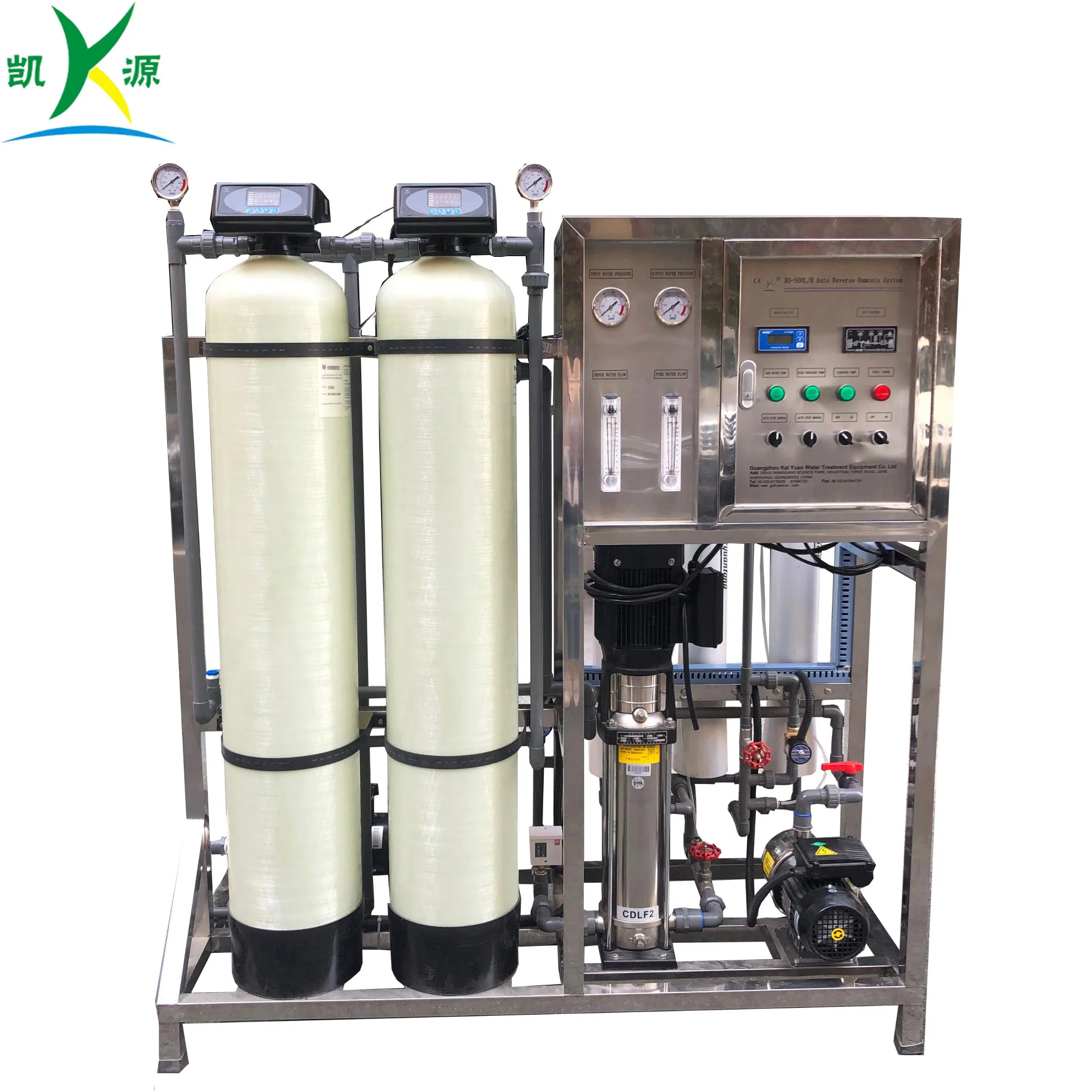

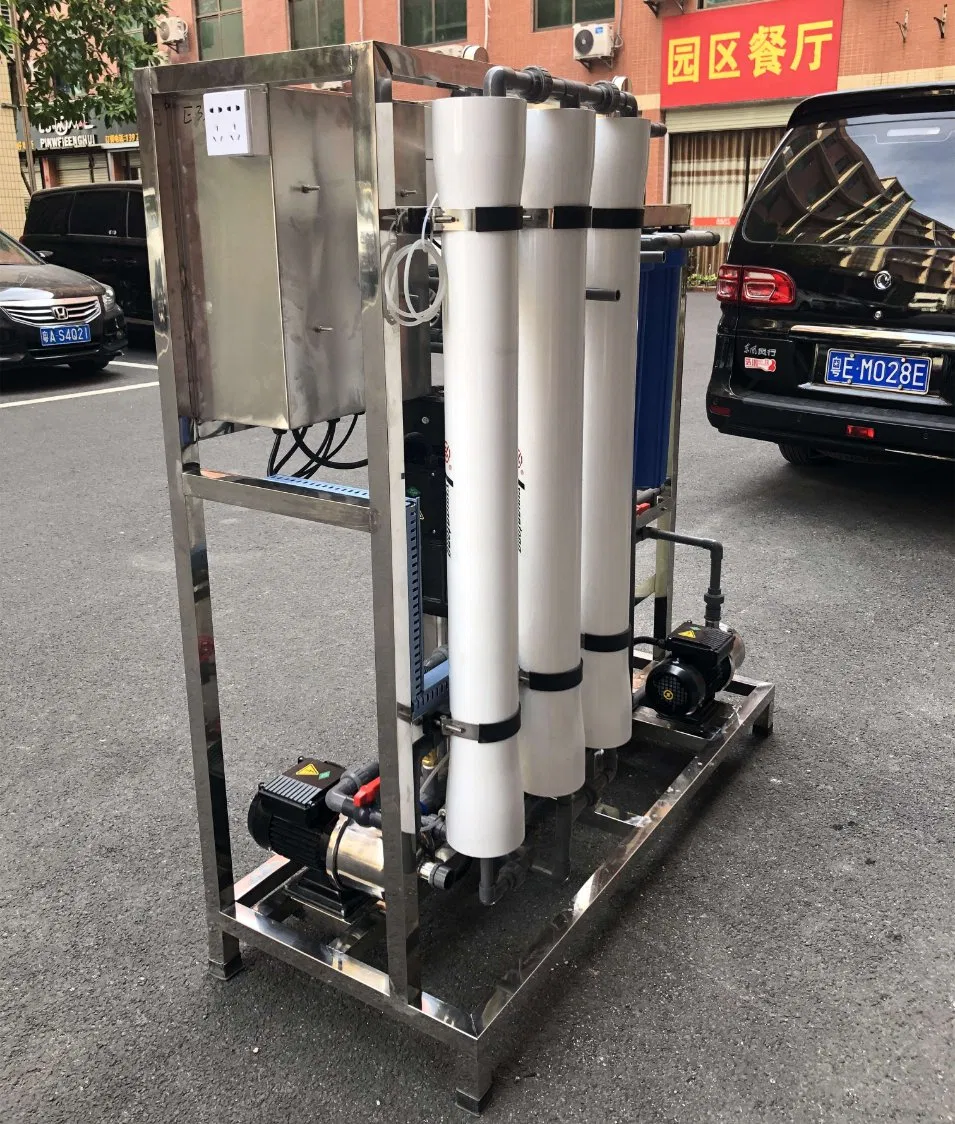

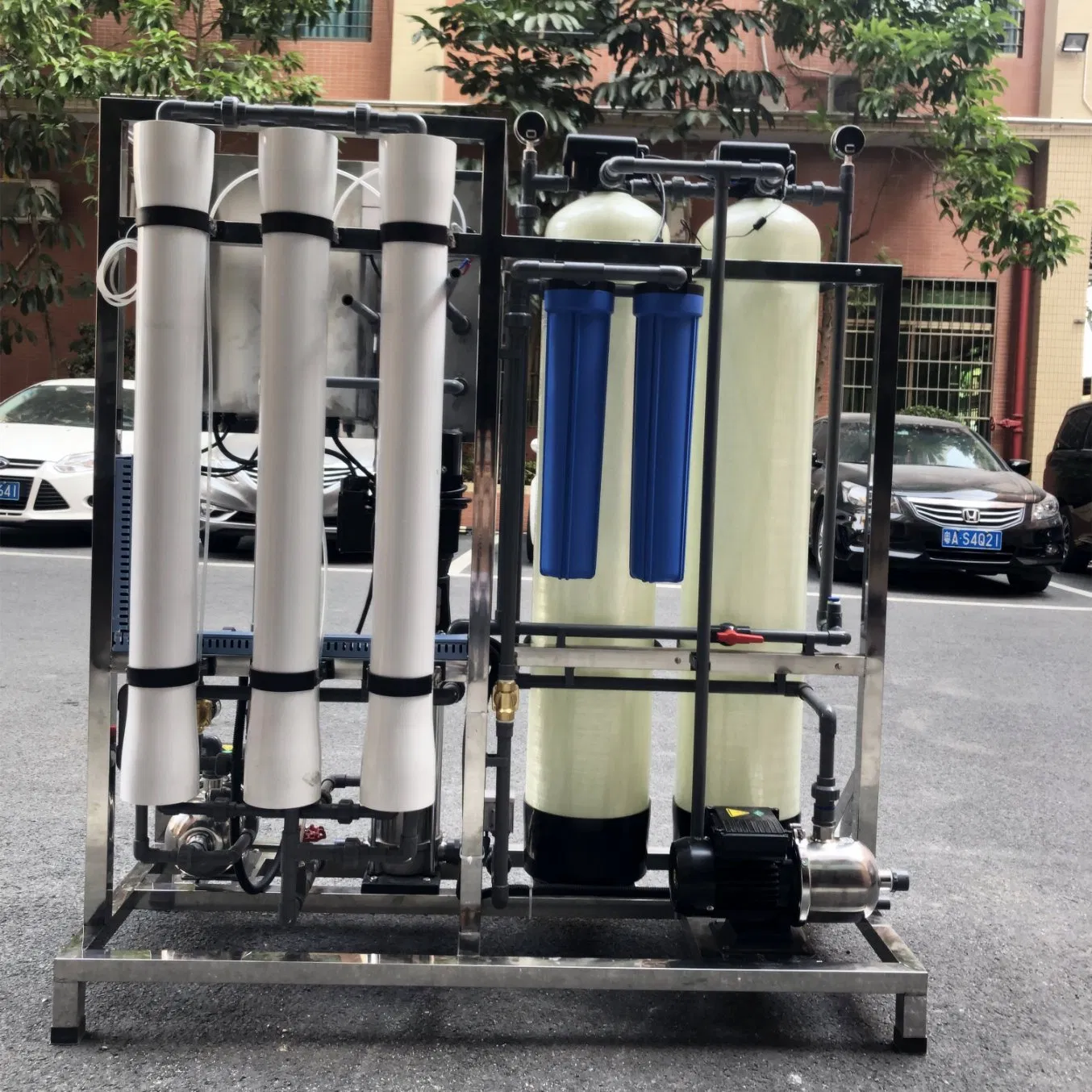

Machine pictures

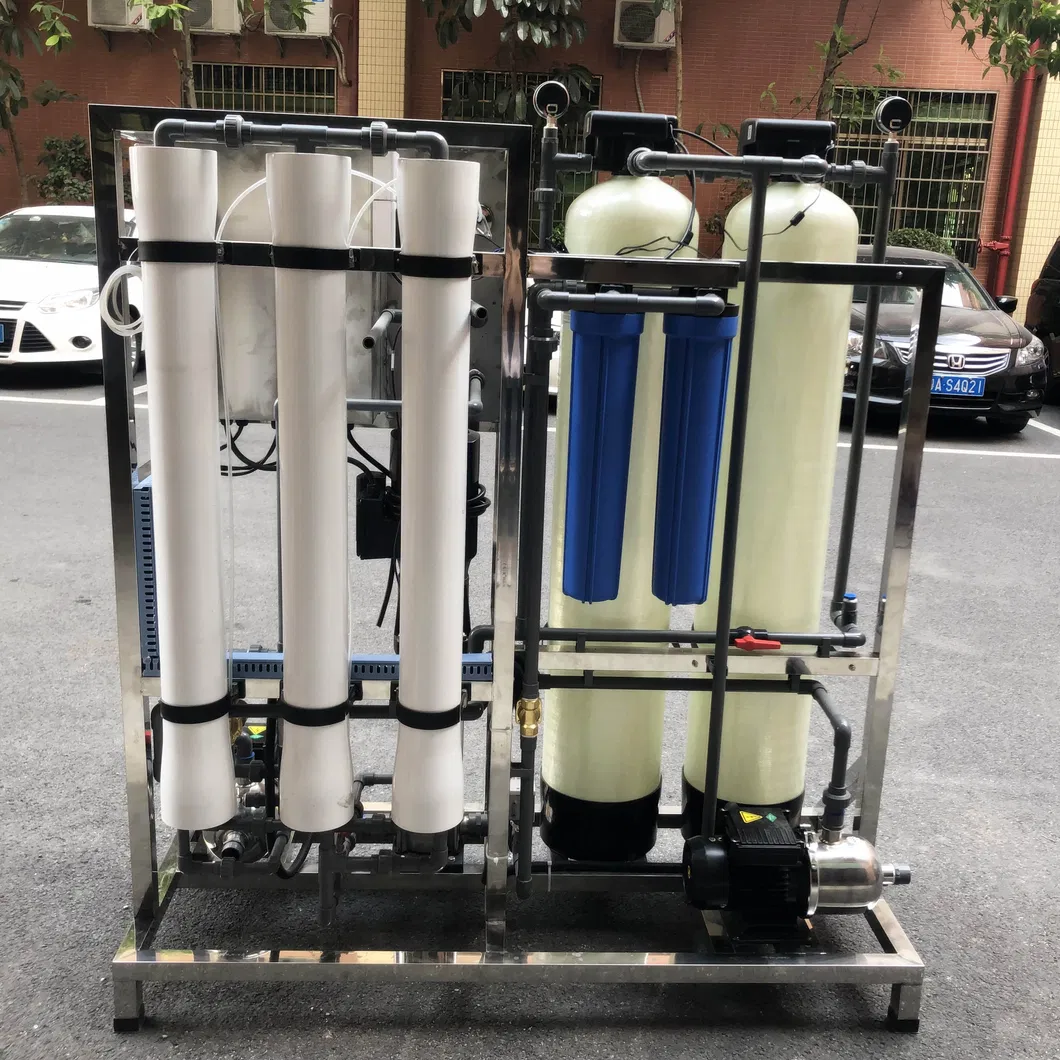

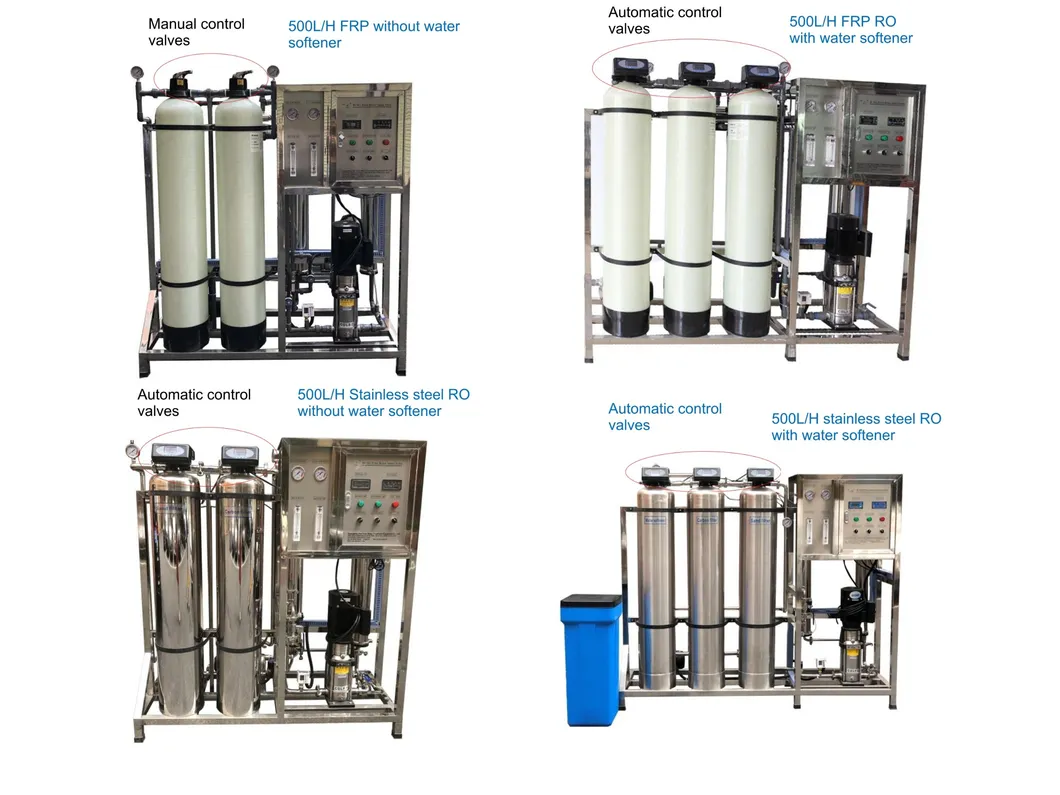

Different material machines
I will recommend a proper one according to your water quality. Welcome to inquiry us.
Certificate(CE, ISO.....)

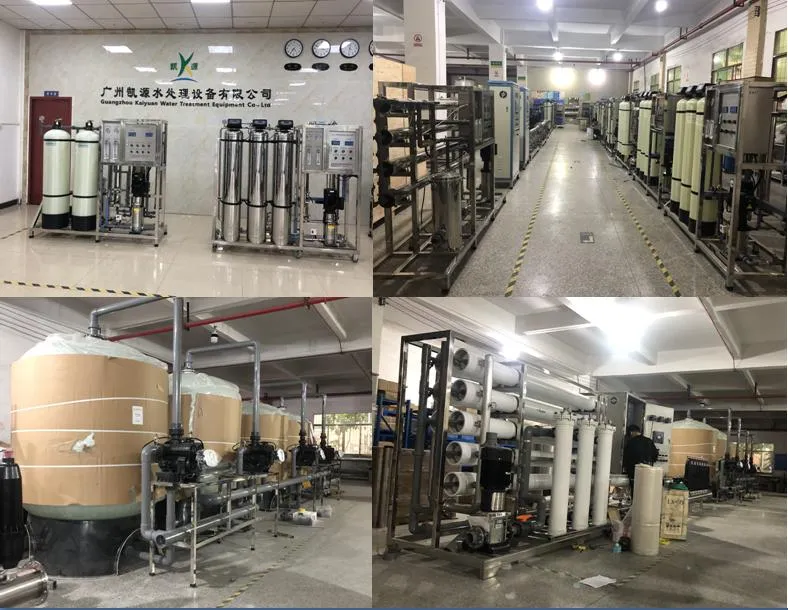

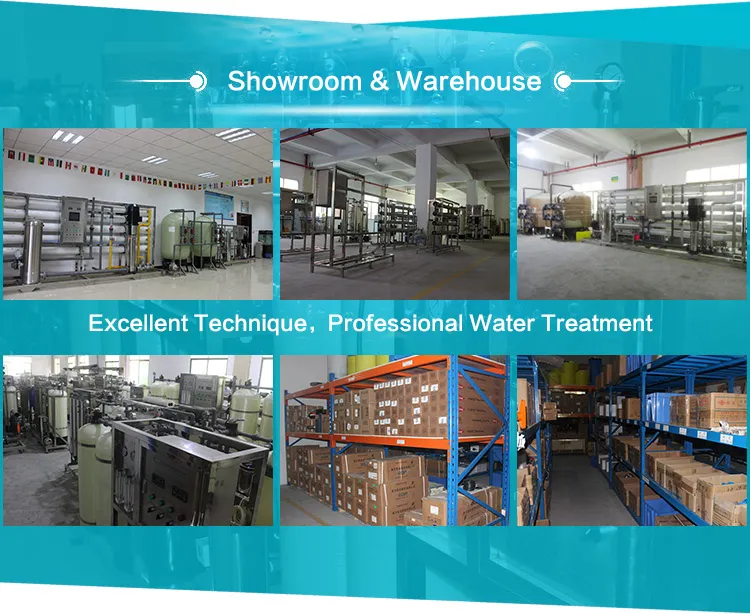

Our factory:
Q: What kind of water RO system can treat?
A: city water, underground water, river water, spring water, lake water,brackish water, sea water...
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Machine pictures
Different material machines
I will recommend a proper one according to your water quality. Welcome to inquiry us.
Certificate(CE, ISO.....)Our factory:

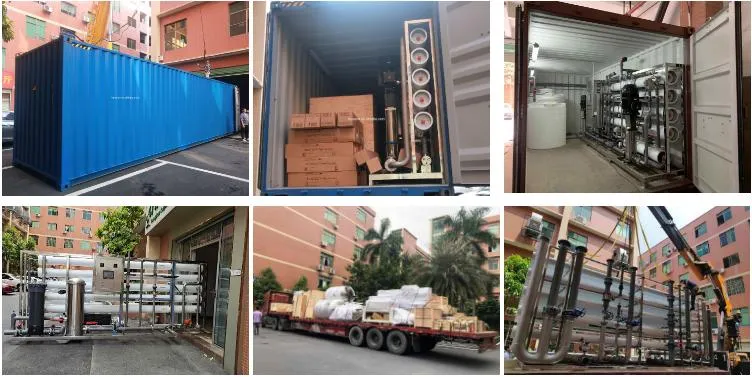

Pakcing and Delivery
Our customers

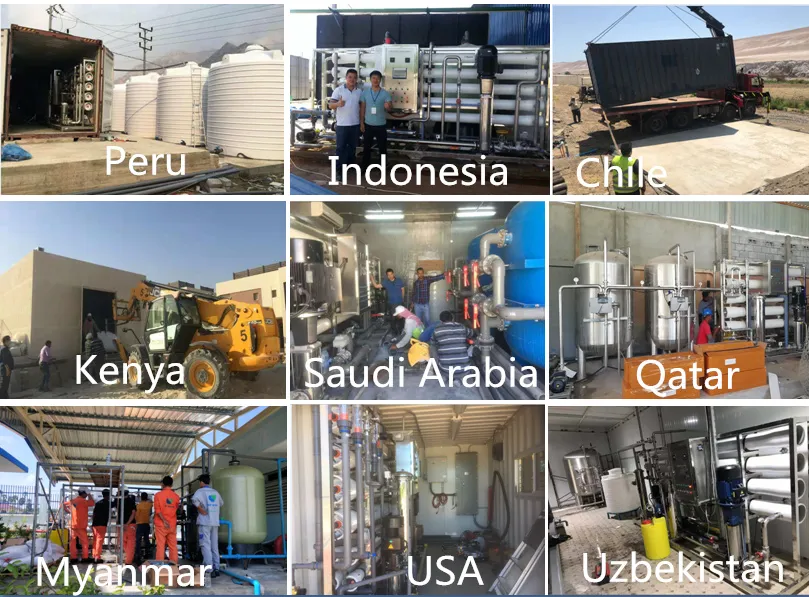

Our projects in many countries
Our Exhibition
FAQ
Q: How Do I Know What Size Unit to Buy?
A: R/O units are rated according to the amount of treated water neededper day or per hour. For example, one type of unit produces 5000 liters of
treated water per day under its design conditions. In reality, conditions frequently vary. Consequently, you should examine water conditions and buy a larger rated unit than needed if any problems.
Q: Material of reverse osmosis system?
A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.
treated water per day under its design conditions. In reality, conditions frequently vary. Consequently, you should examine water conditions and buy a larger rated unit than needed if any problems.
Q: Material of reverse osmosis system?
A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.
Q: What kind of water RO system can treat?
A: city water, underground water, river water, spring water, lake water,brackish water, sea water...
Q: Is this machine easy to install? Will you arrange engineer to help me install?A: This machine is very easy for installation. The machine you received is assembled. You will only need to put material inside to filters, and then backwash, fast rinse filters. It is very easy for you to follow our English instruction and video.
Q: What is packing of thismachine? Is it suitable for shipment?
A: Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
Q: What is warranty
A: Our warranty is one year. If you have any problems in one year, just take photoes to show us. Our engineer team will help you to find problems. If any spare parts need to replace, we will send you new one for free.
Q: How can I pay you?
A: After we confirmed order, I will send you contract sales with our company bank information. You can transfer money to our company bank account by T/T. Or you can place order online.
