6000L /Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

Product Description

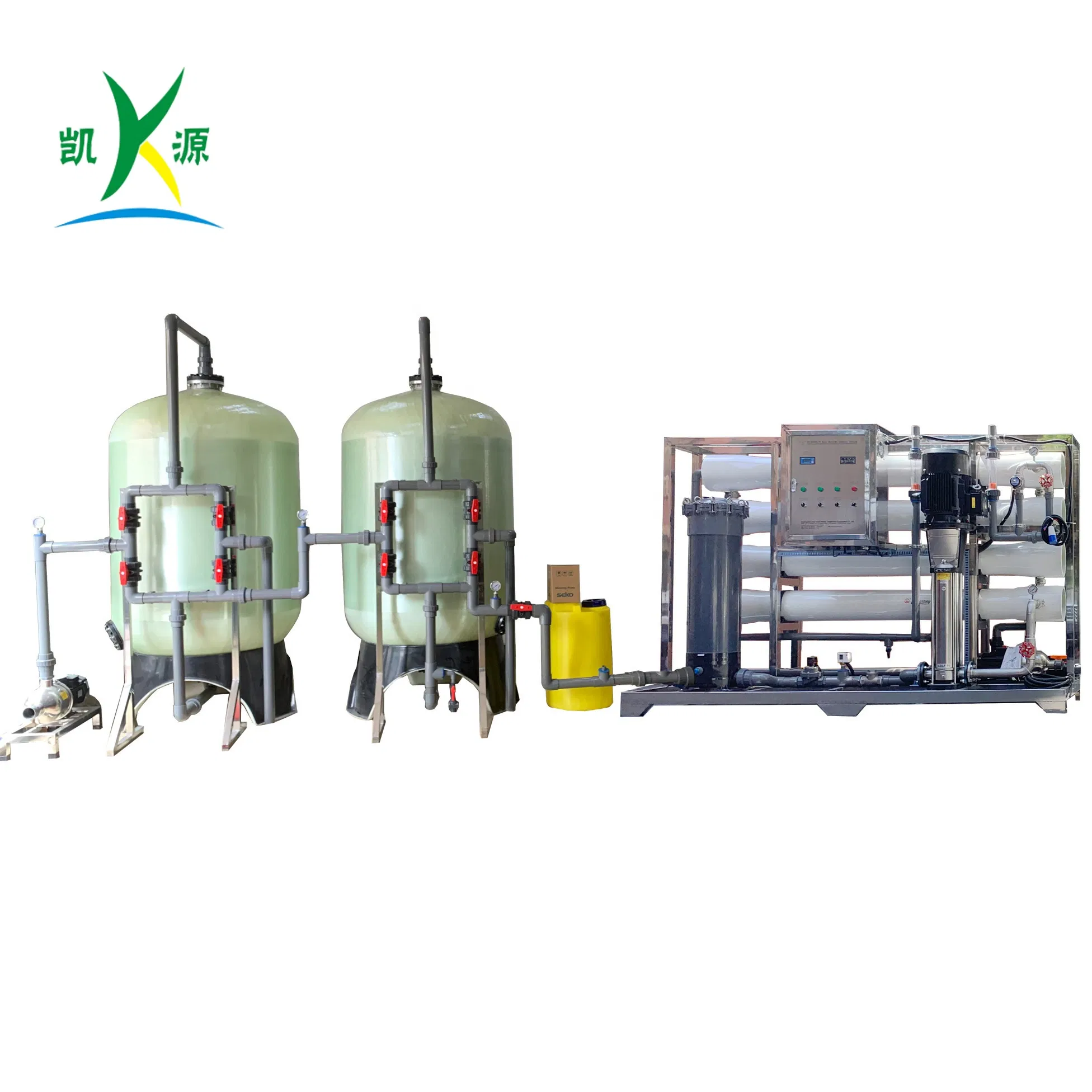

6000L/Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

1.We have the strict machine test for every machine before shipping, to ensure that every machine can operate smoothly.

2.We have the most careful package for every machine with both film and wooden case to ensure every machine will be not destroyed during shipping.

3.We have long-time cooperative shipping company with the best shippping price and service. For some country, the shipping country can help custom clearance.

4.Working in water treatment for more than 12 years, we have lots of experience of customerized product for clients(professional water treatment knowledge), exporting and installating abroad.

our company got many CE,ISO,SGS certificates for the high quality product and the mature technology for reverse osmosis,

so we can help our customers to change the water they have now to the water they want.

5.Serving so mang customers from all over the world and we treat every customers as our good friend, we will invite our customer to the factory for visiting.

Our factory is open to every one who wants to buy/know about water treatment plant.

1.Production description

Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi-permeable membrane.It is effective with asbestos,taste,colour and odour producting chemicals,particulates,total dissolved solids,turbidity and radium.RO system is widely used in water supply treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production, power stations,electronic industries,and medical treatment.It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed water.

Raw/feed/source water: Can be well/ground water, city/tap water, river/lake water,rains water...
Output water application: Human consumption drinking/washing water, agriculture irrigating/drinking water.
indusrtial drinking water, foodstuff(alkaline/mineral bottle water for selling...),
pharmaceutical(need to add 2 stage ro and EDI), chemical industry, electronic industry for terminal process.
Ro system desalination rate:more than 97%

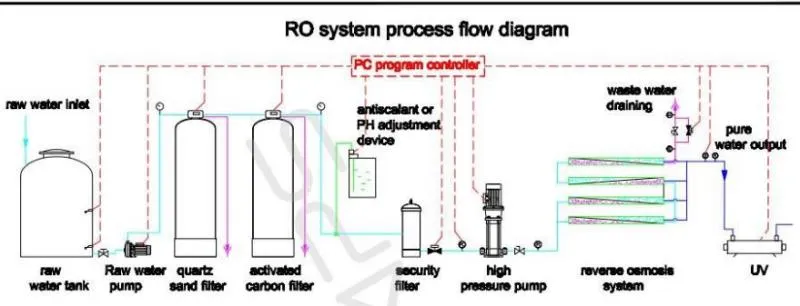

2.Ro system workign process diagram:

(Water softener and ozone generator or UV can be added if you need it. It depends on the quality of raw water )

raw water→raw water tank→raw water pump→sand filter+ carbon filter→ Water softener→security filter→high pressure pump→reverse osmosis system→ water supply points

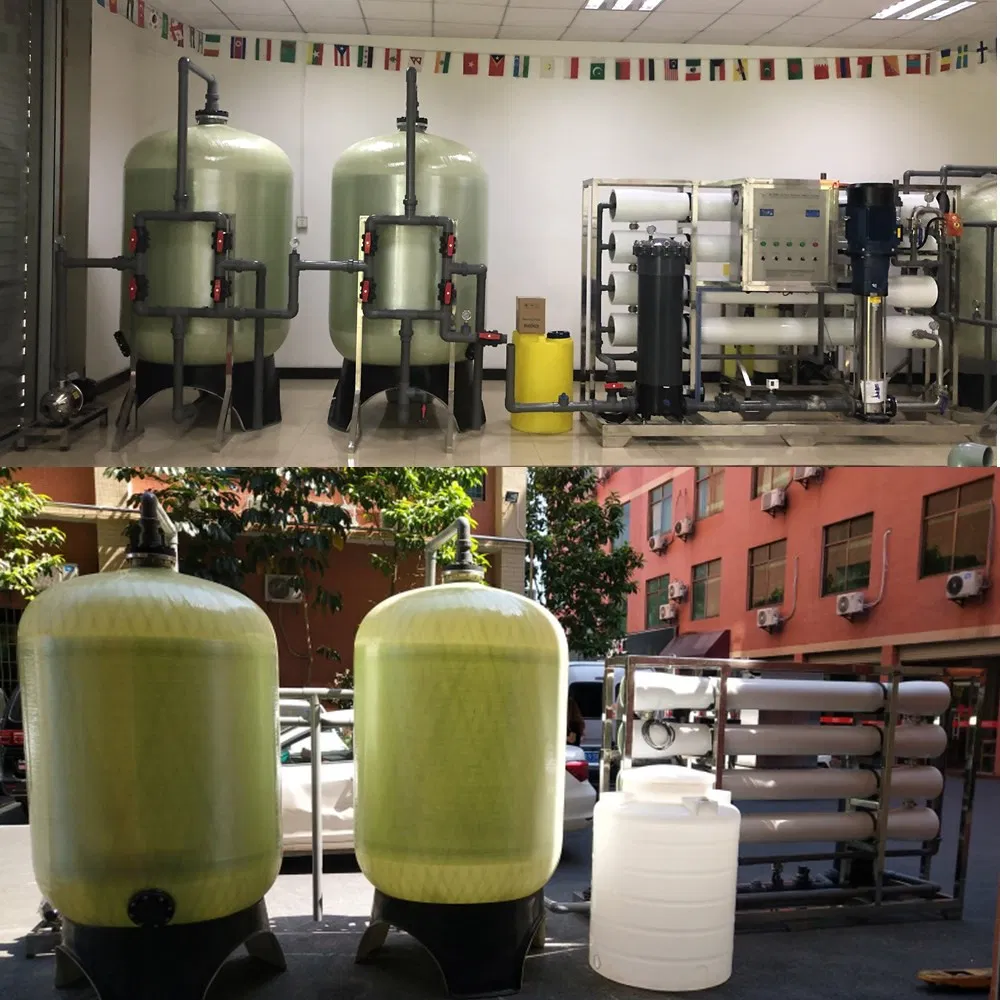

6000L/Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

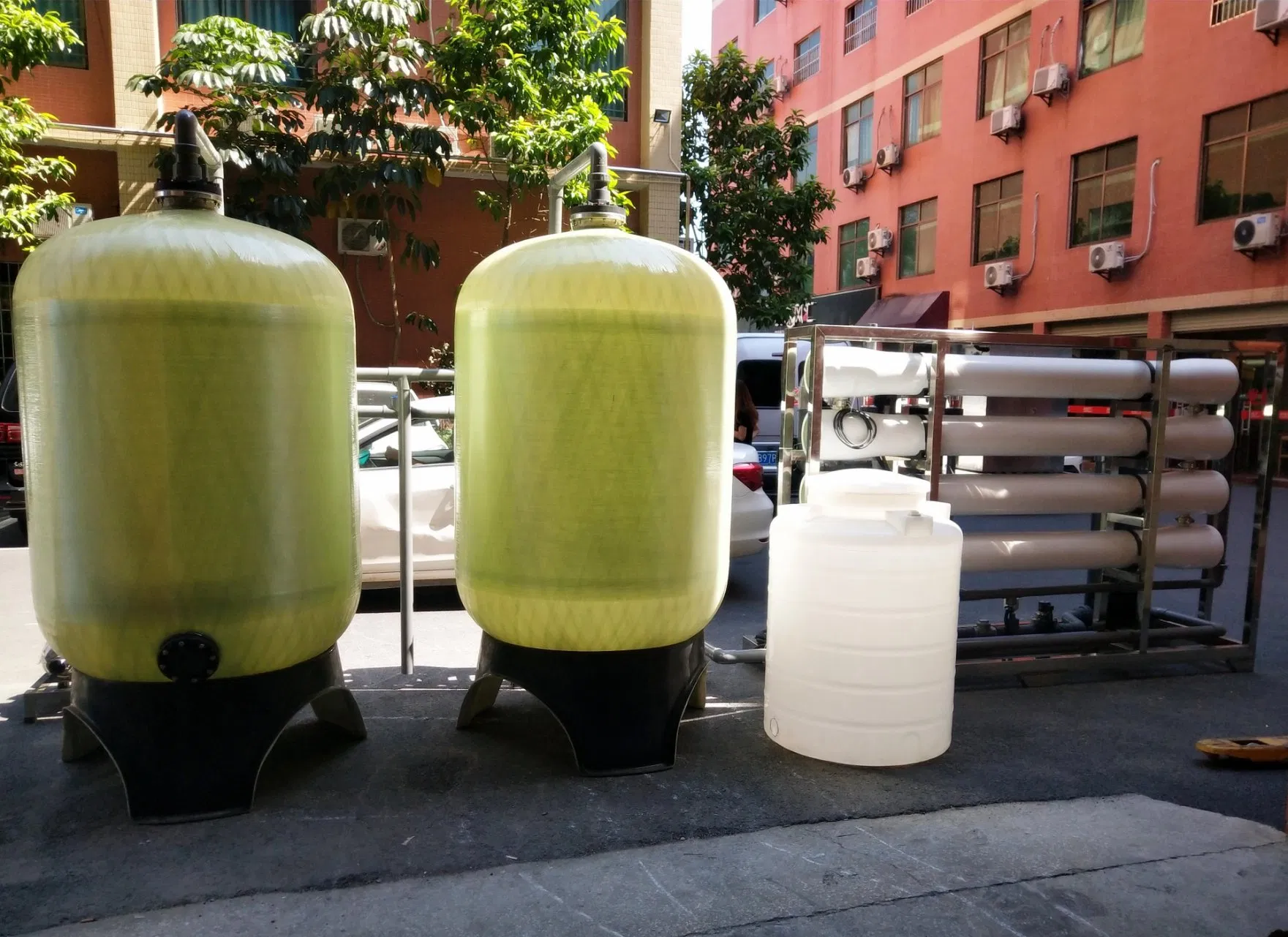

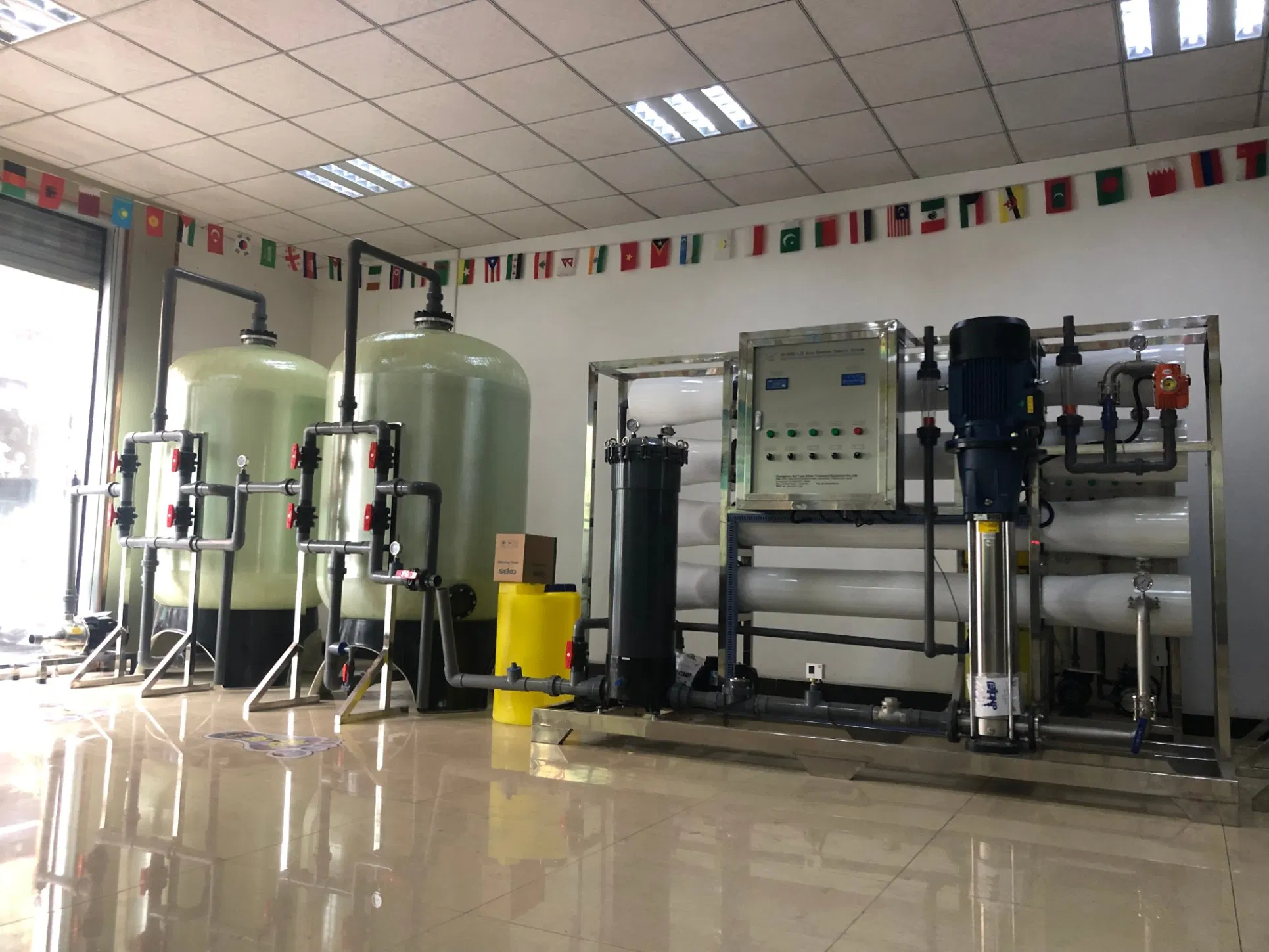

3.The detailed information of 6000LPH ro water treatment plant

Mode	KYRO-6000
Flow rate	6000L/H
Power	About 9.5KW
Voltage	380V/3ph/50Hz (could be customerized)
Desalination rate	≥97%
Recovery rate	50%-70%
Material	FRP,SS-304(316) ,PVC
Configurations	CNP pumps&USA DOW membrane
Certificate	CE&ISO&SGS
Warranty	One year
Payment	TT or West union(30% deposit in advance,70% blance pay before delivery)

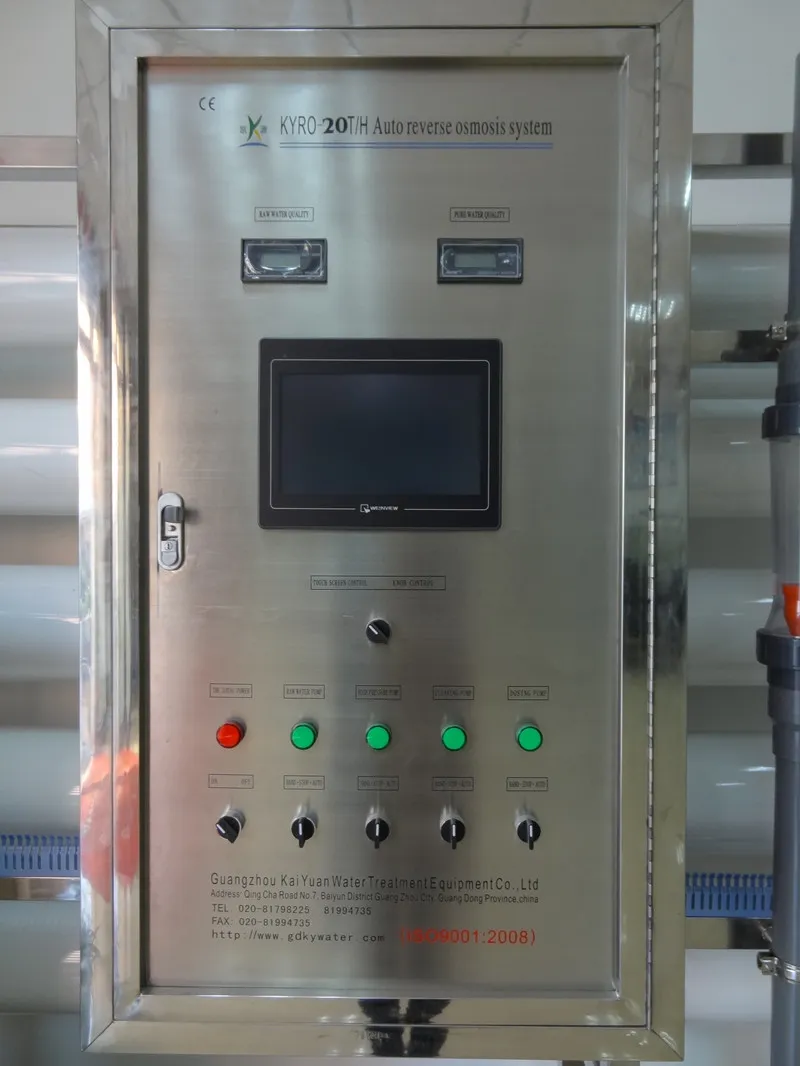

PLC Control System for Optional
6000L/Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

4.Every parts of the water filter ro system

S/N.	Commodity name	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump	Provide needed pressure for every pretreatment filter	We can provide CNP pumps or Grundfos pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm,
7	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	CNP pump, Grundfos optional
8	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA Filmtec Dow

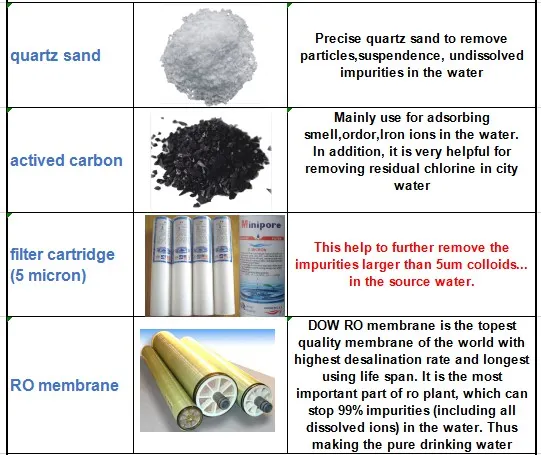

5.The change time of the consumables
6000L/Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

Description	Change time	Weight
Quartz sand	should be replaced every about 15 month	50kg/bag
Activated carbon	should be replaced every about 15 month	25kg/bag
Filter cartridge	should be replaced every about 1 month	4pcs
RO membrane	should be replaced every about 1.5-2 years	4pcs

6.Advantages

1).System can produce water continuously, PLC program controlled, Simple in installation and operation
2). RO system be chosen the import USA DOW membrane
3). Tank level control, automatic stop when the raw water tank without water or pure water tank is full
4). RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.
5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted.
6). Product water quality is continuously monitored by conductivity meter.

7.Application

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice, bottled drinking water
3). Medicine industry: filter for drug liquid
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
6).Human consumption drinking/portable water

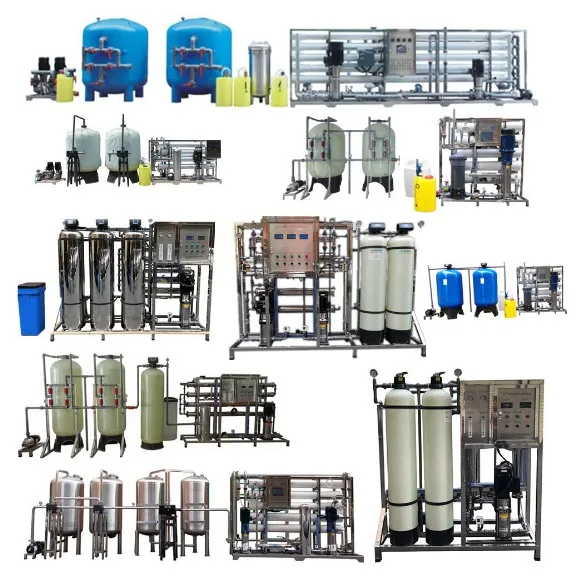

8.Other hotsale capacity ro system/UF system in KaiYuan Water Treatment Company

Model No.	Capacity (M3/H)	Power (kw)	Recovery Rate (%)	Total land area LX W X H (mm)
RO-250	0.25	1.5	50	2500X1000X2800
RO-500	0.5	1.5	50	2500X1000X2800
RO-1000	1	2	50	3500X1200X2800
RO-2000	2	4	50-60	6500X1500x2800
RO-3000	3	4.5	55-65	7500X1500X2800
RO-4000	4	6.5	55-65	7500X1500X2800
RO-5000	5	11	60-70	10000X2500X3500
RO-6000	6	11	60-70	10000X2500X3500
RO-8000	8	18	60-70	10000X3500X3500
RO-10000	10	20	60-70	10000X4000X3800
RO-20000	20	30	70-75	15000X5000X5000
RO-30000	30	40	70-75	20000X6000X5000
RO-50000	50	50	70-75	30000X8000X5000

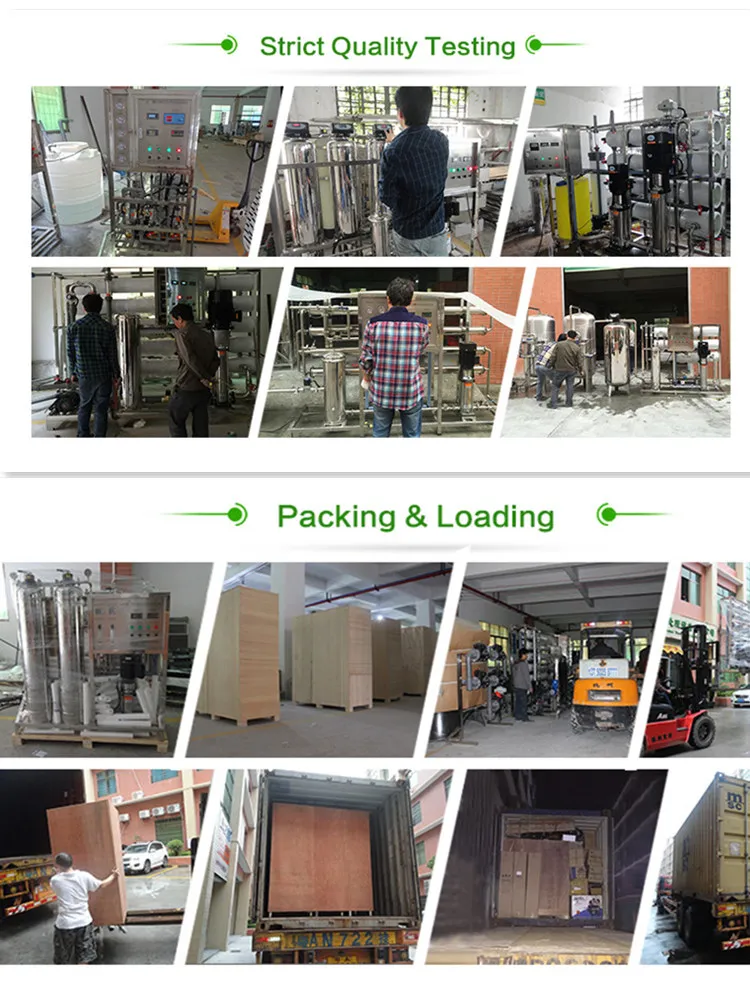

9.Loading&packing datails
6000L/Hour RO Water Treatment Equipment of Membrane Water Filters for Desalination

The good will be strictly testing and packed in wooden case,or can be customized.

10.After-sale services

     1) One Year Warranty
     2)OEM Service Welcomed
     3)Provide English Installation Instruction

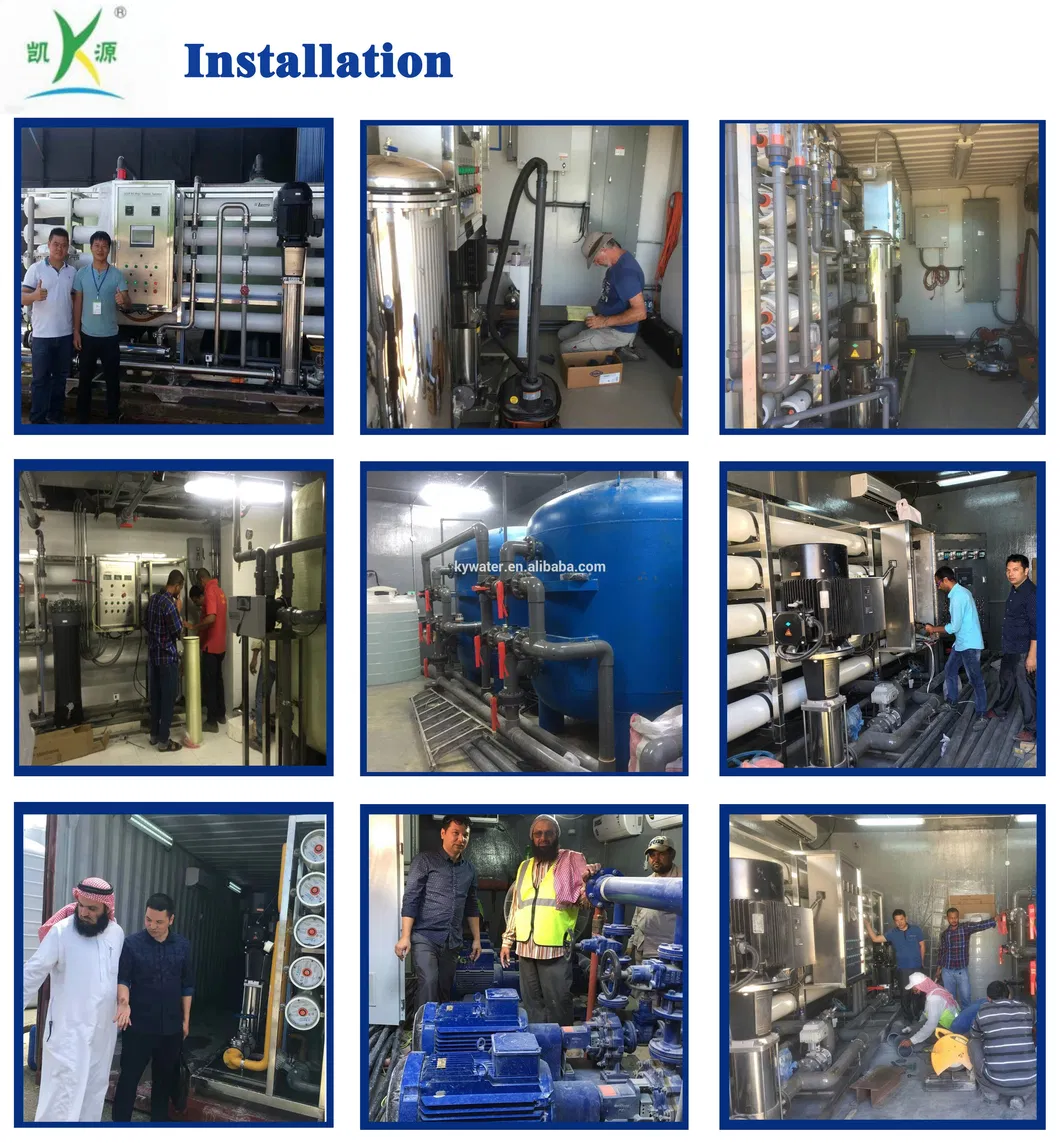

The above machine which we supply it to you, we can give you one year after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the buyer should pay the round air tickets cost and arrange the hotel accommodation as well as the food for seller's engineer. We will send some spare parts to you for free for replacement. Such as activated carbon, sand, pp security filter cartridges etc

11.Company Information

Our company has been engaged in water treatment since 2002 and have our own factory located in Guangzhou city,China.We are specialized in manufacturing reverse osmosis water treatment plant,industrial pure water equipment,ultrapure water equipment, brackish water treatment systems,EDI systems and bottled water filling machines etc.

Our products are sold well not only in domestic, but also in UAE, Saudi Arabia, SouthAfrica, Kazakhstan,Sri Lanka,Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia ,Ghana, Lebanon etc. countries.

We have long-time coorperate&professional shipping company for 10 years.
