Product Description

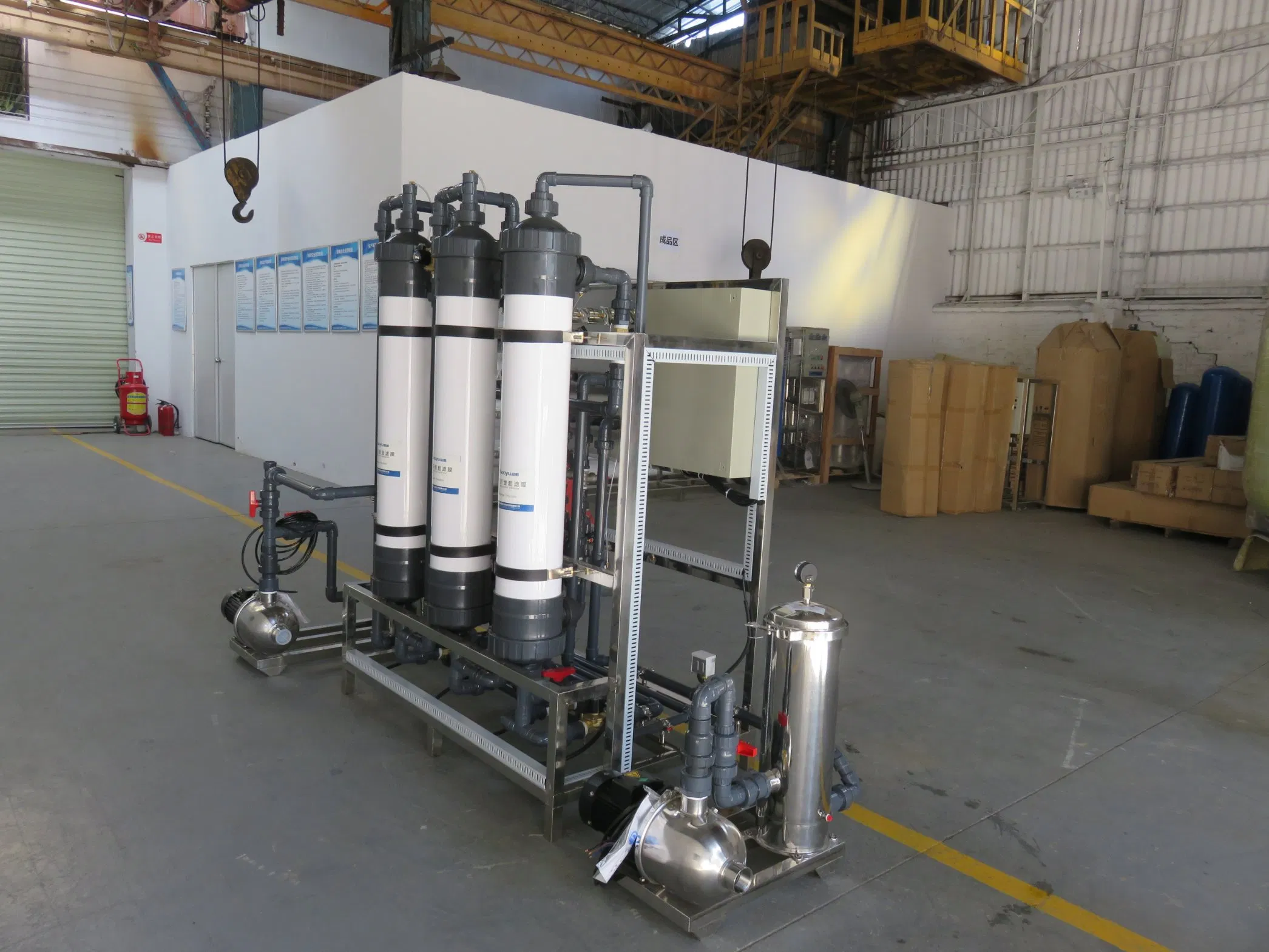

Ultrafiltration water treatment equipment is a membrane separation process driven by pressure. Particles and impurities with a diameter of 0.002-0.1μm can be intercepted through the micropore screening on the membrane surface, which can effectively remove colloids, silicon, proteins, and microorganisms in the water. And macromolecular organics. When the liquid mixture flows through the surface of the membrane under a certain pressure, the solvent and small molecular substances permeate the membrane, while the macromolecular substances are intercepted, thereby achieving size and intermolecular separation and purification. It can be widely used in the separation, concentration and purification of substances. The ultrafiltration process has no phase transformation, no heating, normal temperature operation, energy saving, and particularly suitable for the separation of heat-sensitive substances. The ultrafiltration process is simple, the supporting devices are few, the operation is simple, and the maintenance cost is low. The ultrafiltration membrane is resistant to chemical erosion and has a wide range of PH adaptability. The ultrafiltration device has the largest membrane area per unit volume, the lowest investment cost, and simple cleaning.
| Product name | Ultrafiltration Systems |
| Brand | Volardda |
| Voltage | 380V/50Hz,220V/50Hz |
| Material | FRP/stainless steel |
| Control mode | Manual/Automatic |
| Inlet water quality | TDS≤500ppm |
| Water production | 500L/H-30000L/H |
| Operating temperature | 0≤45ºC |
| Filter rating | 0.002-0.1μm |
| Recovery rate | 75% |
| Desalination rate | 98% |

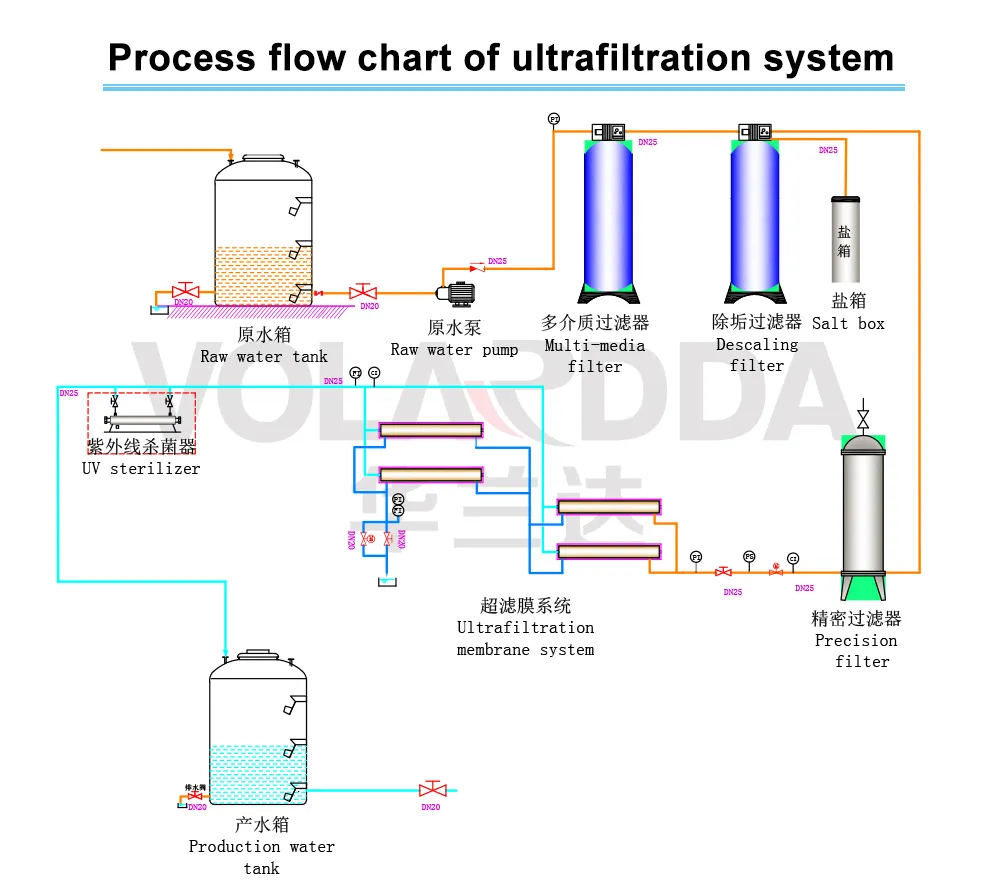

STEP1. Sand Filter: to use sand media down to 0.5-1mm. which filter size can be down to 200micron. some big suspended solids like colloids, rust, mud, impurities etc can be trapped by media bed. and be removed from water.
STEP2. Carbon Filter: can absorb some organism, dissolved air, odor & color matter etc.
STEP3. Softener: use cation exchange resin to remove Calcium, Magnesium etc to make soft water.
STEP4. Micron Filter: use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment. so that more safety for entrance of RO.
STEP5. Ultra-filtration system (UF membrane to trapped most of ions. to demineralize/desalination etc. it will be PURE WATER from output.
1.Mineral water: In the manufacture of mineral water, the ultrafiltration technology will be applied. In the engineering design, the pore size and membrane type of the membrane will be selected according to the analysis report of the water source quality, and the ultrafiltration design will be designed.
2.Food: dairy products, juice, wine, spices and other food production using ultrafiltration technology step by step, such as milk or whey protein and low molecular weight of lactose and separation of the water, fruit juice clarification and to disinfect, wine colored protein, polysaccharide and other colloidal impurities removal, etc., the bacteria removal in the soy sauce, vinegar, is a traditional method shows the advantages of economic, reliable, and ensure the quality.
3.Pharmaceutical: In the pharmaceutical and biochemical production, it is often necessary to separate and purify heat-sensitive substances. Ultrafiltration technology shows its outstanding advantages.Ultrafiltration to separate and concentrate bioactive substances (such as enzymes, viruses, nucleic acids, special proteins, etc.) is quite suitable for drugs extracted from plants and animals (such as alkaloids, hormones, etc.), whose extracts often contain large molecules or solid substances. In many cases, ultrafiltration can be used for separation, so as to improve the quality of products.
4.Pure water, ultra-pure water: primary purification of industrial water, preparation of RO pretreatment with ultra-pure water, terminal treatment with ultra-pure water and ultra-pure water.
5.Environmental protection: deep treatment of industrial wastewater, urban water reuse system, electrophoresis paint, oil recovery.
6.Fermentation: separation and purification of biochemical fermentation broth, concentration and purification of enzymes, clarification and filtration of sugar and xylitol.
1.10 years experience in water treatment.
2.Excellent cooperation partner
3.Own an excellent technical team
4.Advanced R & D capability
5.International management system
6.Located in Guangzhou, convenient export transportation.
Q: Are you trading company or manufacturer ?
A: Yes, we are a manufacture with designing, manufacturing, marketing and exporting(Guangzhou port).We have experience over 10 years.Our plant is 5000 square meters.
Q: What's the information you need to know before order?
A: what's your raw water ?
B: what's the capacity per hour of the equipment ?
C: What's the application of purifier water ?
Q:Which machine should I choose?
A:It depends on your raw water quality and your requirements, you can Initiate an inquiry, we have a professional customer service teams to answer your questions and recommend the product to you.
Q: Do you recruit agents? ?
A: Of course! We sincerely recruit agents, welcome to consult.
Q: How long is your delivery time?
A: Generally it is 15-30 days, Depends on your project.
Q:How can you control the quality and delivery?
A:Production strictly according to CE / ISO standards.
B:All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
Q:What's your warranty?
A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.
