Reverse Osmosis System Two Stage 15tph
Two stage reverse osmosis system 15tphAutomatic inlet water valveRO Water PumpMultiple medium Sand FilterActivated Carbon Filter Dosing Device Dosing Pump Dosing TankCartridge Filter Filter ElementRO System--High Pressure Pump,RO Membrane Membrane Hosing Pressure Gauge Flow Meter Assembly Valves Fra......
Send Inquiry
Product Description
Two stage reverse osmosis system 15tph
Automatic inlet water valve
RO Water Pump
Multiple medium Sand Filter
Activated Carbon Filter
Dosing Device Dosing Pump Dosing Tank
Cartridge Filter Filter Element
RO System--High Pressure Pump,RO Membrane Membrane Hosing Pressure Gauge Flow Meter Assembly Valves Frame
Chemical Washing System Washing Pump Washing Tank
Pure Water tank Vent Filter Manhole
Ozone Sterilizing
Air compressor,oxygen generator,ozone generator
Ozone Mixer
Pipes & Fitting
Electric Control System
Electric Control Box
PLC Programmable
Liquid Level Switch
High and Low Pressure Switch
Conductivity Meter
Electric Appliance
Technical Parameter
Revelant pictures
RO membrane technology introduction
Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.
Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.
According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.
RO system process flow
2. By sea transportation;
3. By air transportation.
FAQ

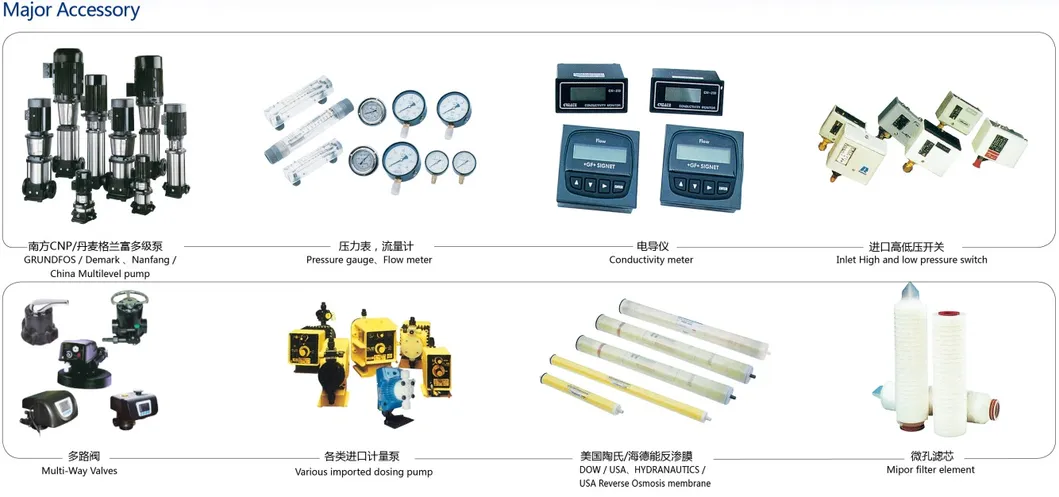

Automatic inlet water valve

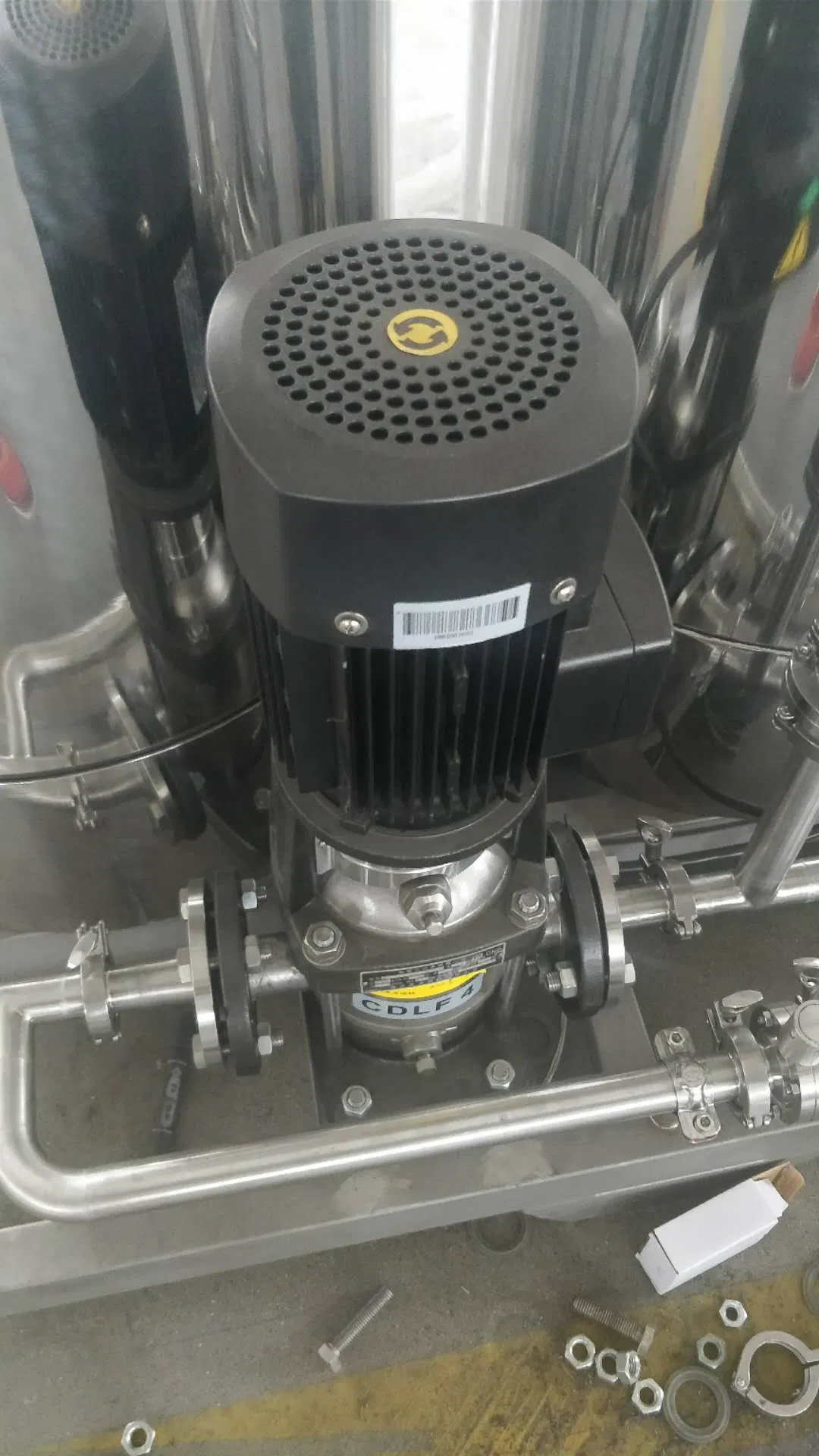

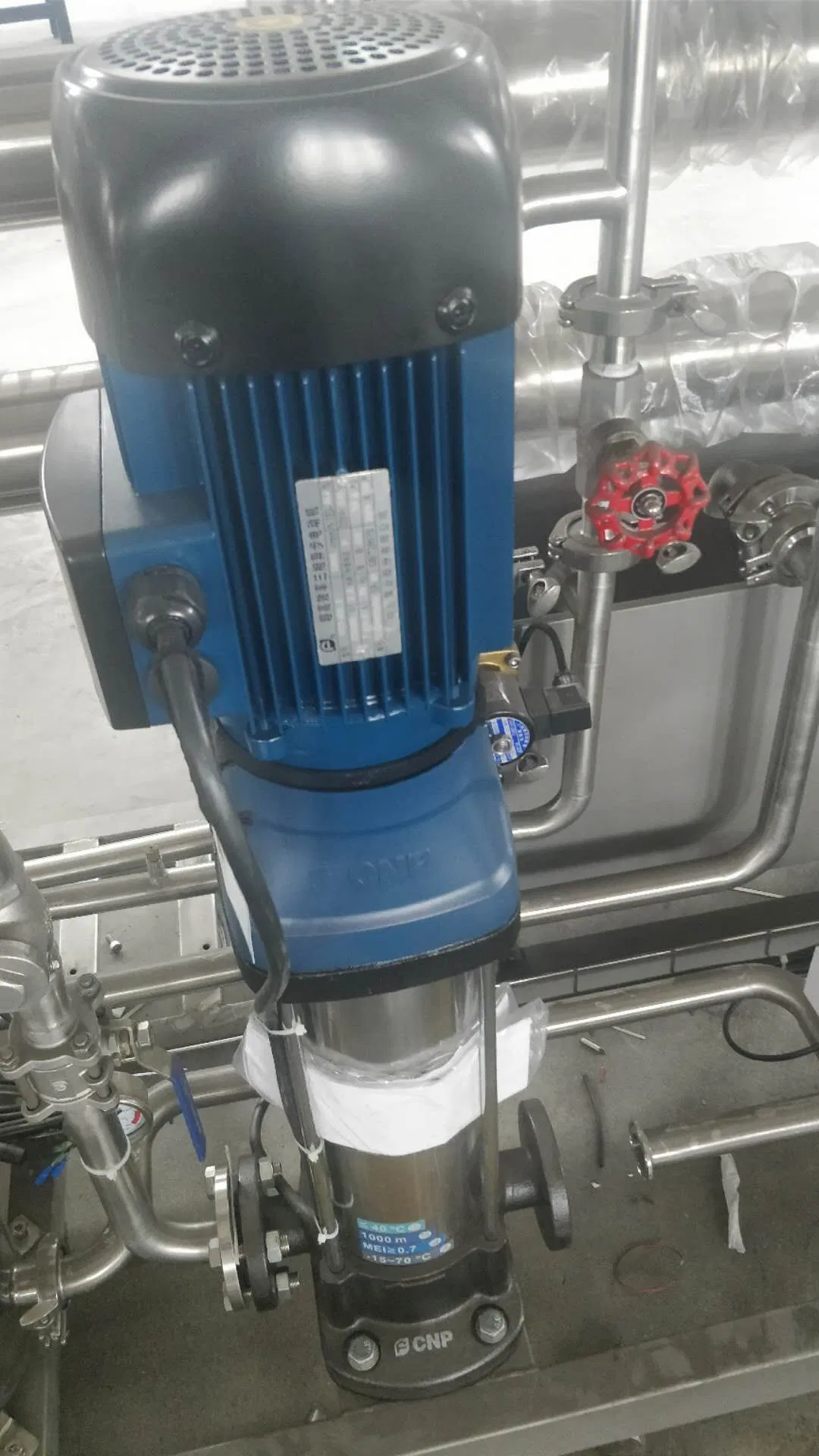

RO Water Pump
Multiple medium Sand Filter
Activated Carbon Filter
Dosing Device Dosing Pump Dosing Tank
Cartridge Filter Filter Element
RO System--High Pressure Pump,RO Membrane Membrane Hosing Pressure Gauge Flow Meter Assembly Valves Frame
Chemical Washing System Washing Pump Washing Tank
Pure Water tank Vent Filter Manhole
Ozone Sterilizing
Air compressor,oxygen generator,ozone generator
Ozone Mixer
Pipes & Fitting
Electric Control System
Electric Control Box
PLC Programmable
Liquid Level Switch
High and Low Pressure Switch
Conductivity Meter
Electric Appliance
Technical Parameter
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension |
| L X W X H(mm) | |||||
| RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
| RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
| RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
| RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
| RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
| RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
| RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
| RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
| RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
| RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
Revelant pictures

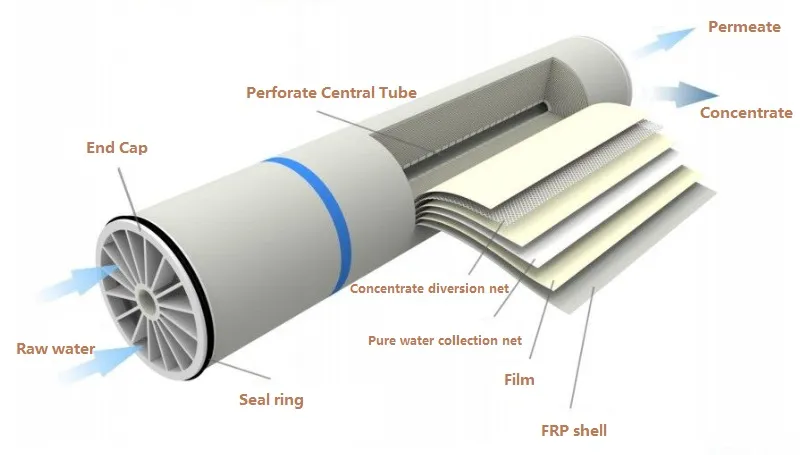

RO membrane technology introduction
Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.
Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.
According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.

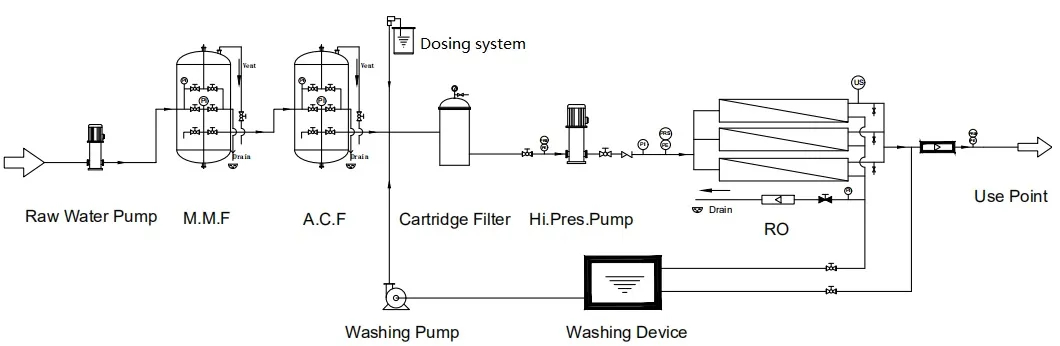

RO system process flow
Single stage RO system

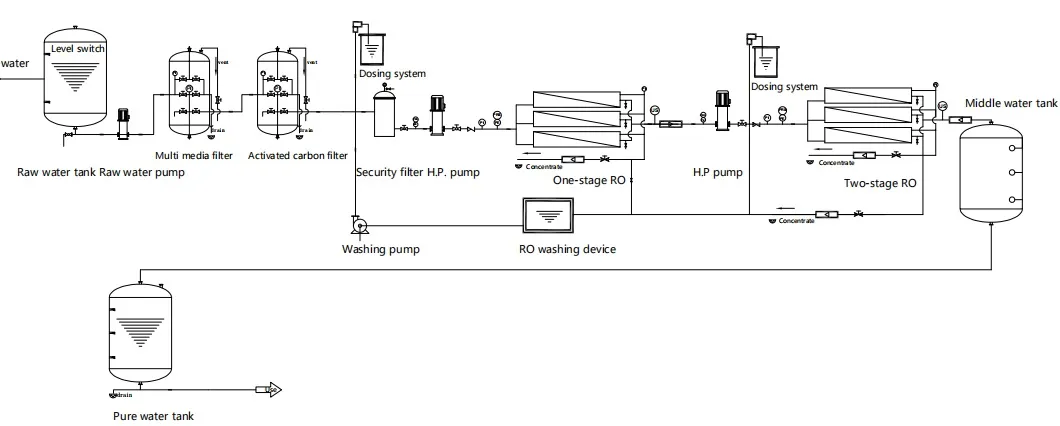

Two-stage RO system

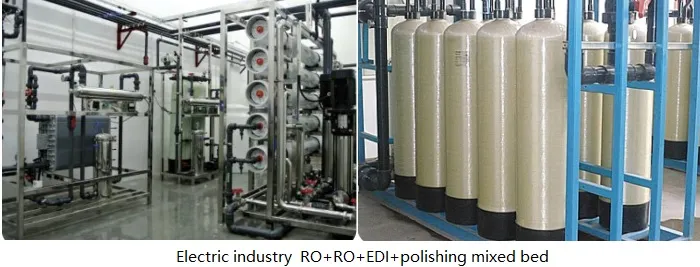

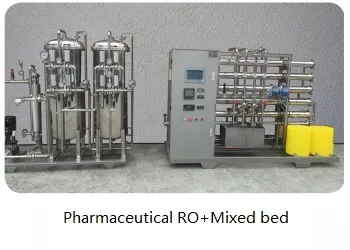

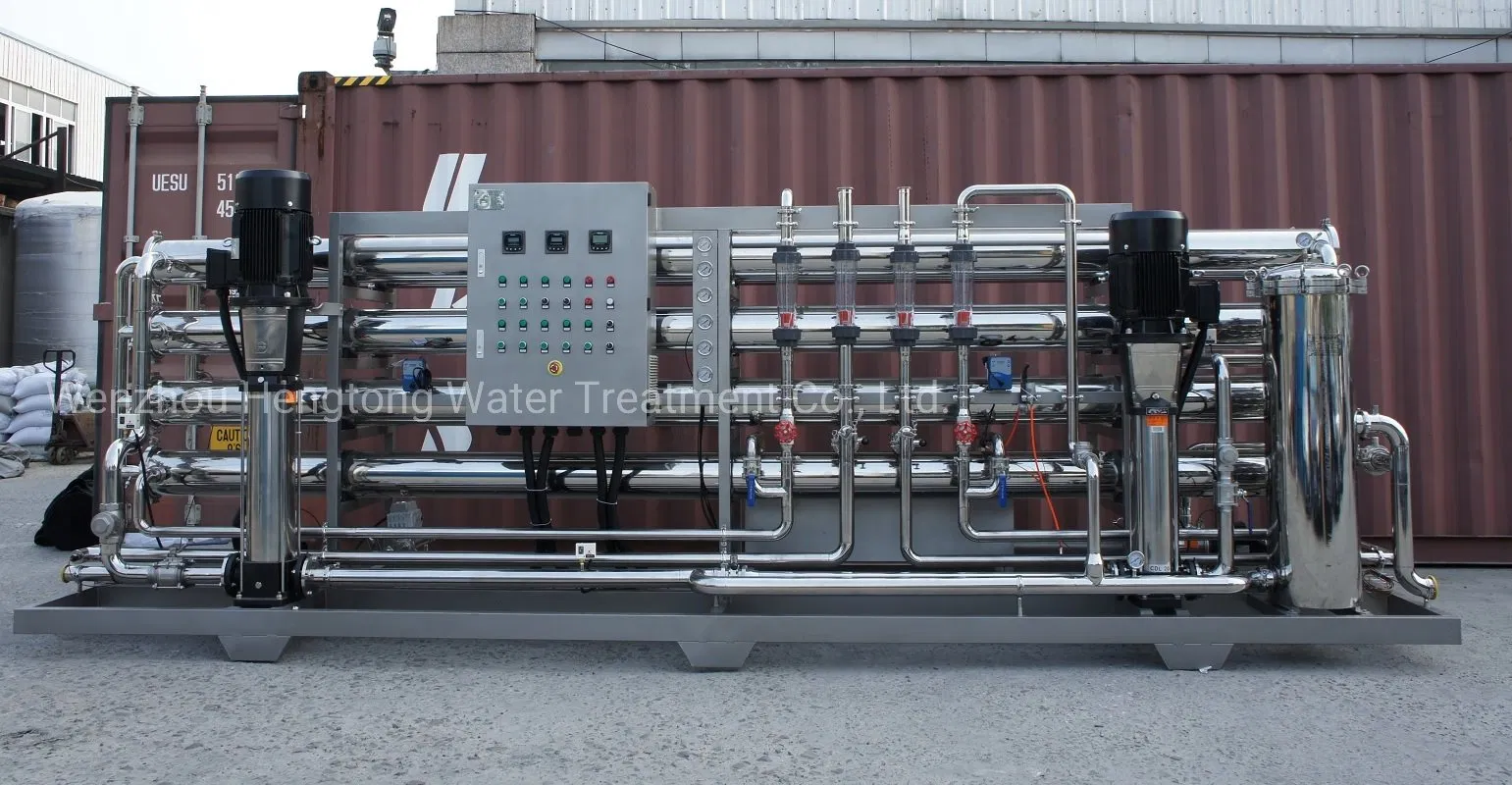

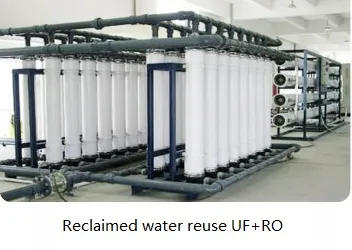

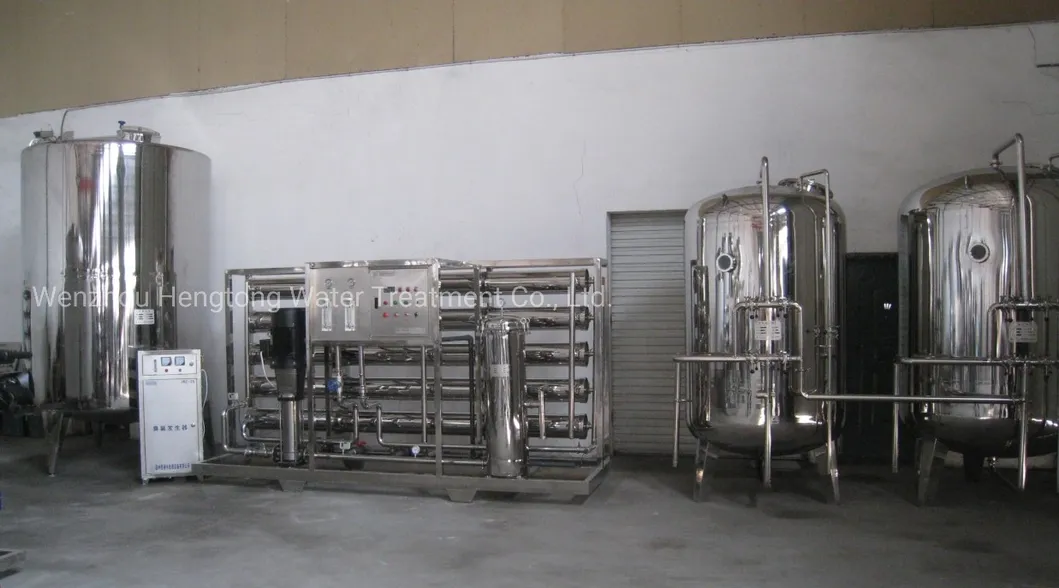

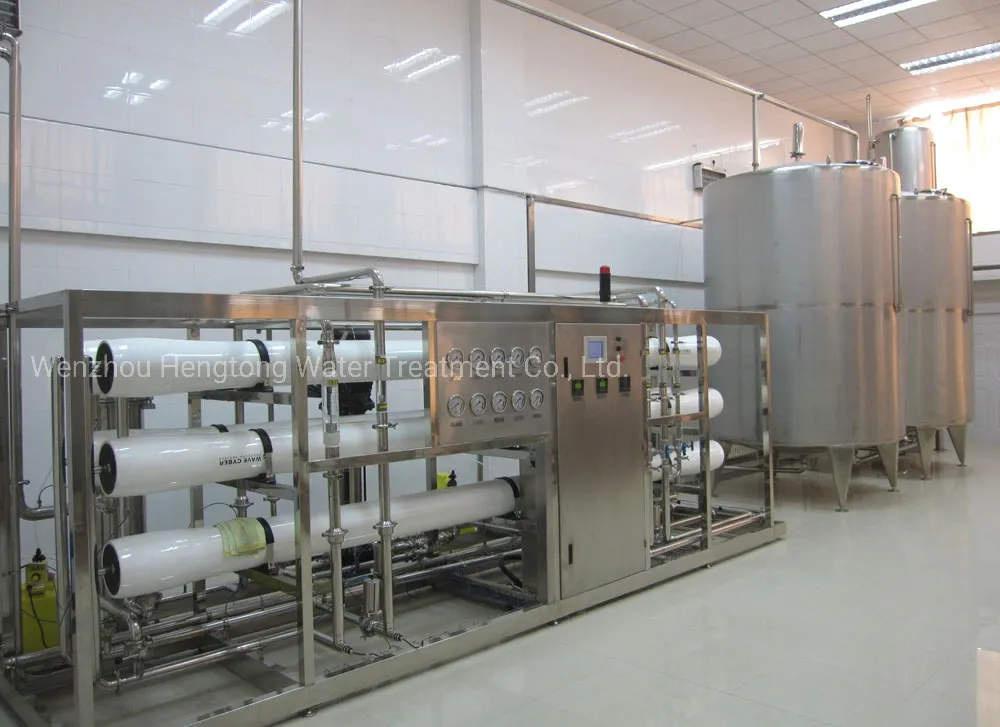

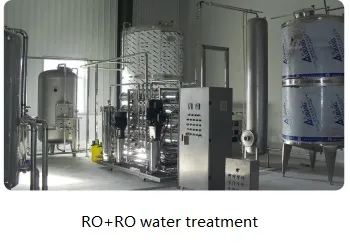

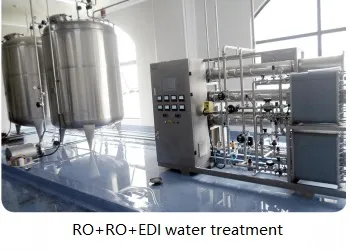

Water treatment equipment show
Shipping ways
1. By express: DHL, UPS, FEDEX, EMS etc, usually for small or regular and urgent orders;2. By sea transportation;
3. By air transportation.
FAQ
1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
For more information
Wenzhou HengTong Water Treatment CO.,LTD.
ADD:No.922,Jinhai 2nd Avenue,Airport New District,Wenzhou, Zhejiang
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
For more information
Wenzhou HengTong Water Treatment CO.,LTD.
ADD:No.922,Jinhai 2nd Avenue,Airport New District,Wenzhou, Zhejiang
