Supplier of UF-0860 Pmembrane Element for Water Treatment Equipment
Performance :(For most feed waters) ModulePermeate Capacity:Permeate Turbidity :Permeate SDI15:UF06802-6 m³/h≤0.1NTU≤2.5UF08602-6 m³/h≤0.1NTU≤2.5UF08803-9 m³/h≤0.1NTU≤2.5Module Type: ModuleUF0680UF0860UF0880Material:High Crystallin......
Send Inquiry
Product Description
Performance :(For most feed waters)
| Module | Permeate Capacity: | Permeate Turbidity : | Permeate SDI15: |
| UF0680 | 2-6 m³/h | ≤0.1NTU | ≤2.5 |
| UF0860 | 2-6 m³/h | ≤0.1NTU | ≤2.5 |
| UF0880 | 3-9 m³/h | ≤0.1NTU | ≤2.5 |
Module Type:
| Module | UF0680 | UF0860 | UF0880 |
| Material: | High Crystallinity PVDF | ||
| Nominal Pore Size: | 0.1µm | ||
| Effective Membrane Area: | 50 m³ | 51 m³ | 77 m³ |
| Fiber Dimensions: | ID(0.7mm), OD(1.2mm) | ID(0.7mm), OD(1.2mm) | ID(0.6mm), OD(1.2mm) |

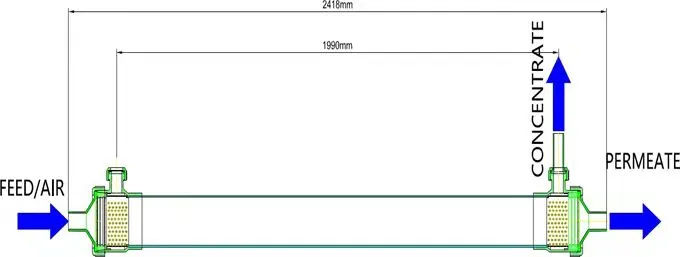

| Module Dimensions: | Φ165m×2418mm | Φ225m×1860mm | Φ225m×2360mm |
| Weight | 30KG(Empty)60KG(water Filled) | 48KG(Empty)83KG(water Filled) | 61KG(Empty)100KG(water Filled) |
Application Data:
| Typical Permeate Range: | 40-120L/m³/h |
| Maximum Applied Feed Pressure: | 5Bar |
| Maximum Transmembrane Pressure: | 2.1Bar |
| Maximum Feed Turbidity : | 300NTU |
| Temperature Range : | 1-40ºC |
| pH Range: | 1-11 for Operating /1-14 for Chemical cleaning |
| Maximum Backwash pressure | 2.5Bar |
| Backwash Range: | 50-150LMH |
| Air Scour pressure: | ≤2.5Bar |
| Air Scour Rate: | 3-8Nm³/h/PC |
| Operating Mode: | Outside to Inside/ Dead end or Cross Flow |
Typical Process Conditions:
| Air Scour Frequency: | Once every 20-60min |
| Air Scour Duration: | 20-60 Seconds |
| Back wash Frequency: | Once every 20-60min |
| Back wash Duration: | 30-90Seconds |
| Cleaning Chemicals: | NaCLO(≤5000ppm), NaOH(≤5%),HCl, H2SO4 or Citric Acid |
Notice:
- All data and information provided in this manual have been obtained from long-term experiment by Wanhua. We confirm the effective and accuracy of the data. assumes no liability for any aftermath caused by user's failure in abiding by the conditions specified in this manual in use or maintenance of membrane products. It is strongly recommended that the user shall strictly abide the designed use and maintenance requirements and keep relevant records.
- The permeate value listed in the table is the average value. The permeate flow of single membrane element is tolerance not exceeding ±15% of the nominal value.
- All wet-type membrane elements have been strictly tested before leaving the factory, and have been treated with 1.0% sodium hydrogen sulfite (10% glycerin antifreeze required in winter) for storage purpose, then sealed with plastic bag in vacuum, and further packed in carton boxes.
- The membrane used should remain wet after being used; In long term suspension, to prevent the breeding of microbes, soak the membrane elements with protective solution is highly recommended, the solution (prepared with RO filtered water) containing 1.0% sodium hydrogen sulfite (foodstuff-purpose).
- Operate low pressure flushing for 15-25 minutes of first use, high pressure flushing for 60-90 minutes when first use (Permeate volume no less than 50% of designed volume). Discard all the permeate and condensed water produced during the first one hour after system start-up.
- During storage time and operation period, it is strictly prohibited to added any chemical medicament that may be harmful to membrane elements. In case of any violation in adding chemical medicament, Wanhua assumes no liability for any damages incurred.
- Along with technical development and product renovation, all information will be subject to modification without prior notification. Please keep notice the website of Wanhua for any updates of the product.
