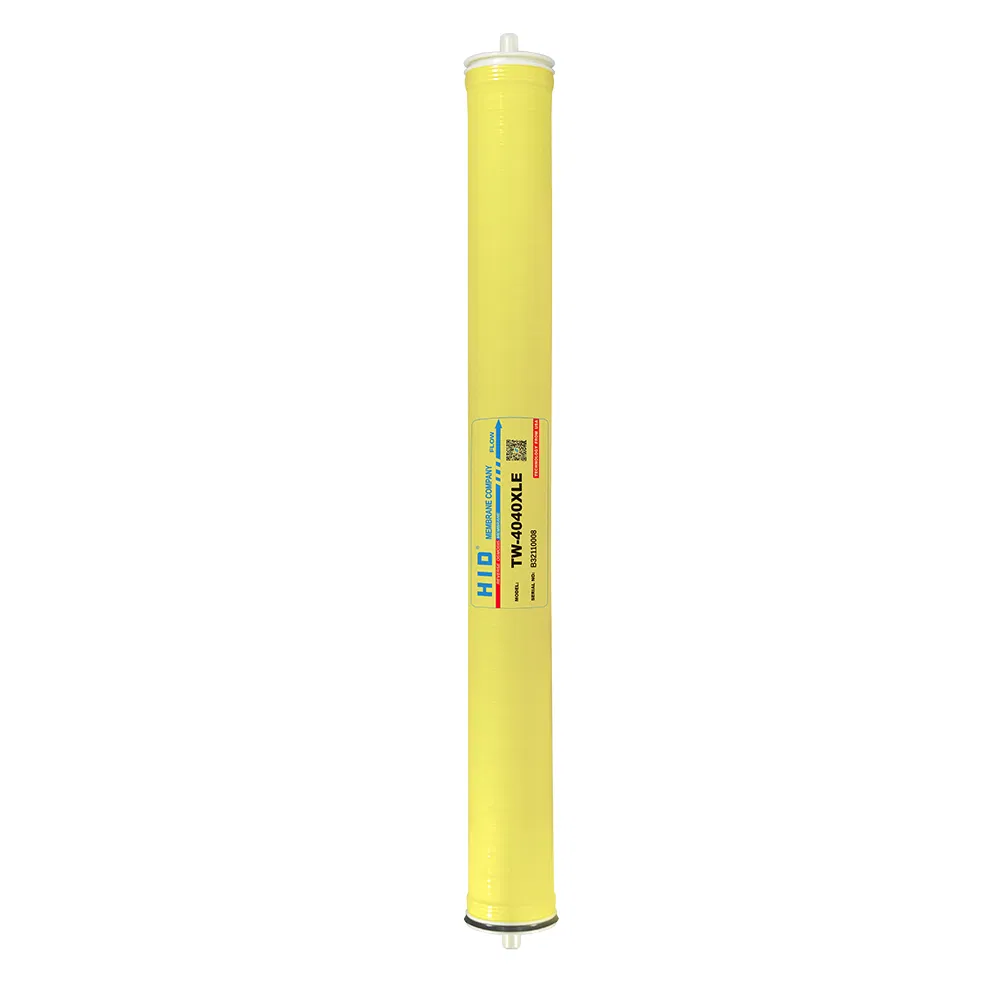

Tw-4040xle HID Industrial Reverse Osmosis 4 Inch RO Membrane 4040
Products Details:HIDTM Industrial Membrane ranks the best brands in China among TFC RO membrane industry. Each membrane is made of HIDTM Brand high quality sheet and goes through stringent manufacturing processes as well as in-house quality inspection & testing before delivery.HID Industrial ser......
Send Inquiry
Product Description
Products Details: ★ HIDTM anti-fouling & high rejection flat sheet (film);
★ lower energy costs (low pressure models) and higher productivity;
★ high stabilized rejection with realized nominal flux;
★ minimize system CAPEX with HIDTM RO membrane excellent performance-price ratio;
★ stringent in-house inspection & testing control.
Membrane Performance Specifications:
1. Permeate flow rate and salt rejection is based on testing conditions: 25C, pH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater
characteristics and operating conditions.
Membrane Operating Limits:
Membrane Dimension:
Customization:
RO Membrane Wrapping Tape - Available √
RO Membrane Center Tube - Available √
RO Membrane Fabric Tricot - Available √
RO Membrane Spacer - Available √
RO Membrane Gasket - Available √
RO Membrane Stickers Design - Available √
RO Membrane Packing Bags - Available √
RO Membrane Packing Cans - Available √
RO Membrane Packing Cartons Design - Available √
About HID:
HID Membrane Co., Ltd.
HID, one of China leading ro membrane MANUFACTURERS, has been making ro membrane for over 11 years, and producing flat sheet for 5 years; so far our ro membranes have well be supplied to worldwide markets with good acceptance!
HID has developed full auto rolling lines for residential / commercial / industrial RO membrane making, with annual output to 5.5 millions pieces, and models from 50GPD/75GPD/100GPD/200GPD, to 300GPD/400GPD/600GPD, and up to 4040/8040!
With our latest auto production line of flat sheets (film) and testing facility, HID offer you the most reliable quality control and cost efficiency!
Our Customers:
FAQ:
Q: Are you a trading company or a manufacturer?
A: We are one of China leading RO membrane manufacturers since 2008, with our OWN auto rolling line and OWN RO flat sheet making line!
Q: Where is your factory? How can I visit?
A: We located in Zhenjiang city of Jiangsu Province, which is west of Shanghai, 1.5 hours by express bullet train available every 30 minutes.
Q: Can we OEM from your factory?
A: Yes. Normally, we export under our brand name HID. If you have any request, we also provide OEM, ODM service.
Q: Can I get some samples? Can I place small order before bulk purchase?
A: We're glad to provide free sample, trial order welcome for first time, please kindly contact us.
Q: How can I place order? How can I pay you?
A: You can contact us by email about your order details, or place order on line. After you confirm our PI, we will request you to pay. T/T (Citibank) and Paypal, Western Union are the most usual ways we are using.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if goods are not in stock, it is according to quantity.
HIDTM Industrial Membrane ranks the best brands in China among TFC RO membrane industry. Each membrane is made of HIDTM Brand high quality sheet and goes through stringent manufacturing processes as well as in-house quality inspection & testing before delivery.
HID Industrial series RO membranes are widely used for filtration of tap water, underground water & brackish water; we well serve the industries including commercial drinking / food water treatment, electronics & chemical works, power plant, etc.
Main Features:HID Industrial series RO membranes are widely used for filtration of tap water, underground water & brackish water; we well serve the industries including commercial drinking / food water treatment, electronics & chemical works, power plant, etc.
3 HIGHLIGHTS
LOW PRESSURE: 150PSI
LOW PRESSURE: 150PSI
HIGH FLUX: 2400GPD
MULTIPLE COMMERCIAL APPLICATION
★ lower energy costs (low pressure models) and higher productivity;
★ high stabilized rejection with realized nominal flux;
★ minimize system CAPEX with HIDTM RO membrane excellent performance-price ratio;
★ stringent in-house inspection & testing control.
Membrane Performance Specifications:
| Model No. | Feed Spacer thickness (mil) | Min. Salt Rejection (%) | Stabilized Salt Rejection (%) | Permeate Flow Rate (GPD) | Test Pressure (psi) | Test water TDS (ppm) |
| TW-4040XLE | 28 | 97.5 | 98 | 2600 | 100 | 750 |
| TW-4040ULP | 31 | 98.2 | 98.8 | 2400 | 150 | 1000 |
| BW-4040LP | 31 | 98.6 | 99.2 | 2400 | 225 | 1500 |
| BW-4040AF | 34 | 98.7 | 99.2 | 2100 | 225 | 2000 |
1. Permeate flow rate and salt rejection is based on testing conditions: 25C, pH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater
characteristics and operating conditions.
Membrane Operating Limits:
| Model No. | Maximum Operating Temperature | Maximum Operating Pressure | Feed Water PH Range, continuous operation | Maximum Feed Water Turbidity | Maximum Feed Water SDI | Chlorine Tolerance |
| TW-4040XLE | 45ºC | 300psi | 2-11 | 1NTU | 5 | <0.1ppm |
| TW-4040ULP | 45ºC | 600psi | 2-11 | 1NTU | 5 | <0.1ppm |
| BW-4040LP | 45ºC | 600psi | 2-11 | 1NTU | 5 | <0.1ppm |
| BW-4040AF | 45ºC | 600psi | 2-11 | 1NTU | 5 | <0.1ppm |

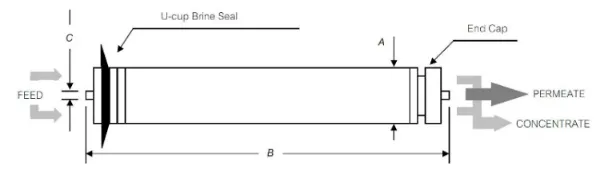

Membrane Dimension:
| Model No. | A (inch/mm) | B (inch/mm) | C (inch/mm) |
| TW-4040XLE | 4.0/100.1 | 40/1016 | 0.75/19.1 |
| TW-4040ULP | |||
| BW-4040LP | |||
| BW-4040AF |
Customization:
RO Membrane Wrapping Tape - Available √
RO Membrane Center Tube - Available √
RO Membrane Fabric Tricot - Available √
RO Membrane Spacer - Available √
RO Membrane Gasket - Available √
RO Membrane Stickers Design - Available √
RO Membrane Packing Bags - Available √
RO Membrane Packing Cans - Available √
RO Membrane Packing Cartons Design - Available √

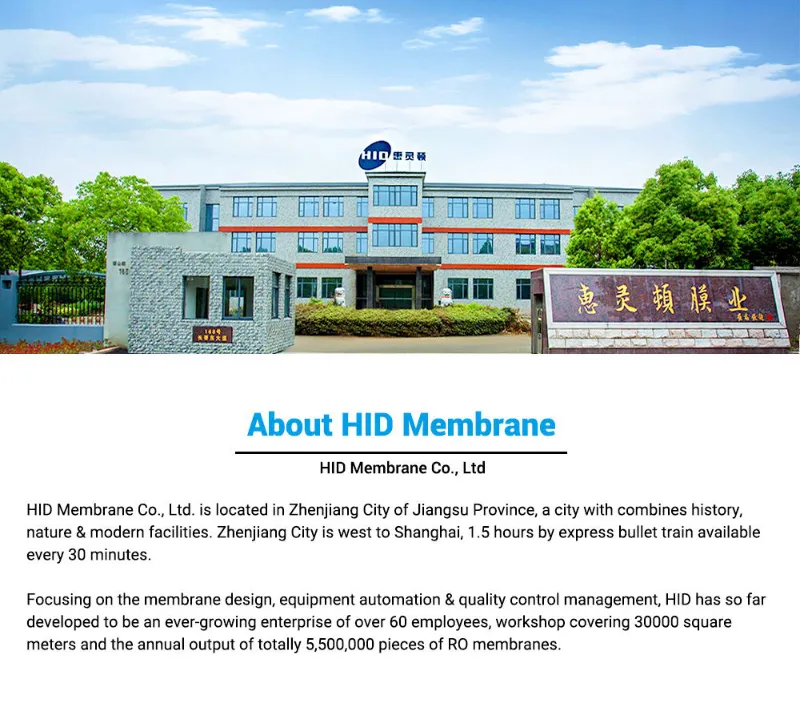

About HID:
HID Membrane Co., Ltd.
HID, one of China leading ro membrane MANUFACTURERS, has been making ro membrane for over 11 years, and producing flat sheet for 5 years; so far our ro membranes have well be supplied to worldwide markets with good acceptance!

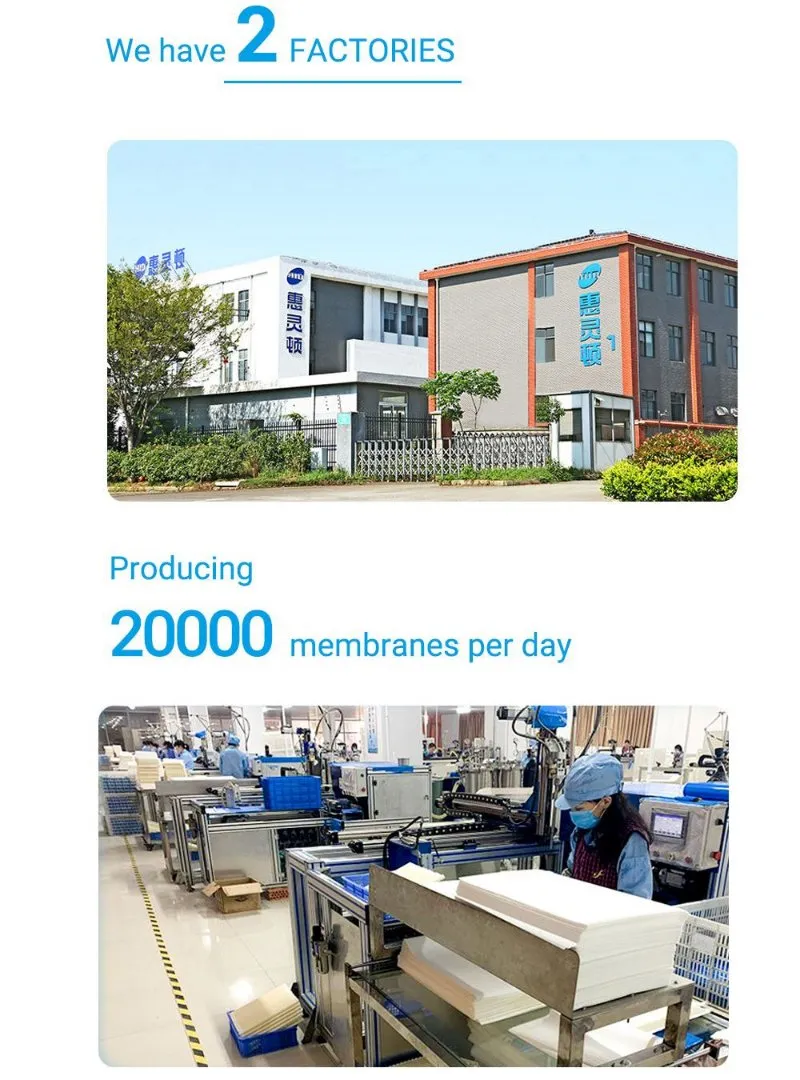

HID has developed full auto rolling lines for residential / commercial / industrial RO membrane making, with annual output to 5.5 millions pieces, and models from 50GPD/75GPD/100GPD/200GPD, to 300GPD/400GPD/600GPD, and up to 4040/8040!

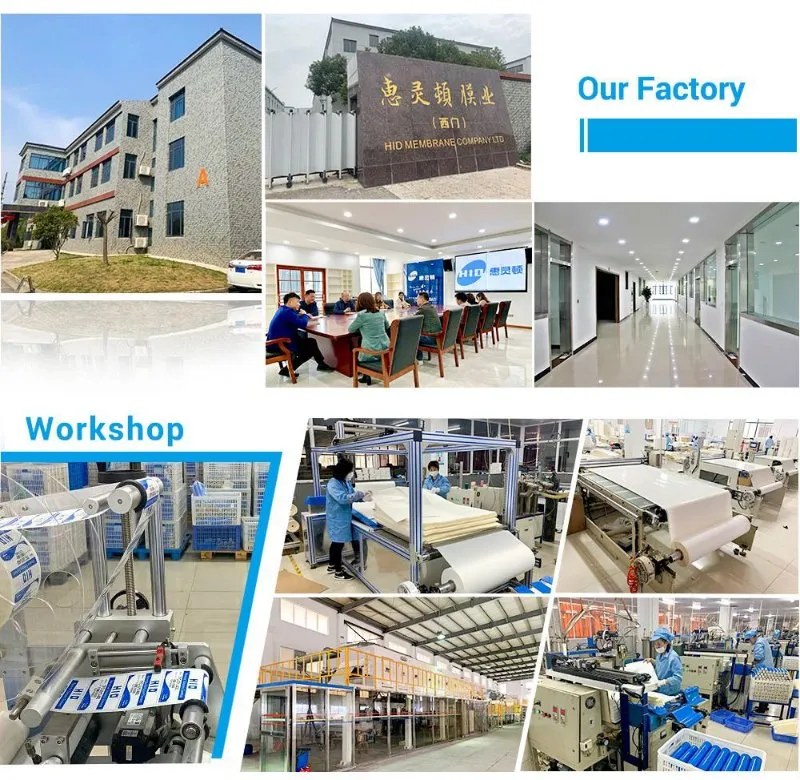

With our latest auto production line of flat sheets (film) and testing facility, HID offer you the most reliable quality control and cost efficiency!
Our Customers:
FAQ:
Q: Are you a trading company or a manufacturer?
A: We are one of China leading RO membrane manufacturers since 2008, with our OWN auto rolling line and OWN RO flat sheet making line!
Q: Where is your factory? How can I visit?
A: We located in Zhenjiang city of Jiangsu Province, which is west of Shanghai, 1.5 hours by express bullet train available every 30 minutes.
Q: Can we OEM from your factory?
A: Yes. Normally, we export under our brand name HID. If you have any request, we also provide OEM, ODM service.
Q: Can I get some samples? Can I place small order before bulk purchase?
A: We're glad to provide free sample, trial order welcome for first time, please kindly contact us.
Q: How can I place order? How can I pay you?
A: You can contact us by email about your order details, or place order on line. After you confirm our PI, we will request you to pay. T/T (Citibank) and Paypal, Western Union are the most usual ways we are using.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if goods are not in stock, it is according to quantity.
