Water Purification Application and 250lph Capacity Small Water Treatment Plant
Water purification application and 250lph capacity small water treatment plant250LPH capacity small water treatment plant <1> System Introduction1.1)Brief Introduction250LPH capacity small water treatment plant is professionally used for turning city water into industrial water.With world lead......
Send Inquiry
Product Description
Water purification application and 250lph capacity small water treatment plant
250LPH capacity small water treatment plant
250LPH capacity small water treatment plant
<1> System Introduction
1.1)Brief Introduction
250LPH capacity small water treatment plant is professionally used for turning city water into industrial water.With world leading Reverse Osmosis technology, this model is professionally used for turning city tap water into drinkable pure water.This kind of equipment adopts professional RO technology and other advanced designs. It obtains customers' favor with various advantages.
1.2)Product Spec.
1.3)Features of 250LPH capacity small water treatment plant
1)Small volume & elegant appearance;
2)Simple installation,operation and maintenance;
3)Reliable quality & high scalability;
4)High water utilization rate with low power consumption.
1.4)RO System
Reverse osmosis technology is a modern high technology that use reverse osmosis to seperate water from solution after it permeates the specially-made semi-transparent membrane though exerting a pressure that is higher than the osmosis pressure on the solution.
According to different osmosis pressure of various materials the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution. It saves more energy than traditional process.
Reserve osmosis/RO water treatment equipment is mainly used in electronic industry, semiconductor industry water treatment, chemical industry, pharmaceutical industry pure water treatment and so on.RO system is widely used in school, hotel, hospital, laboratory and many other public area.
<2> Process Overview of 250LPH capacity small water treatment plant
Raw water - Multimedia filter - Activated carbon filter - Precision filter - RO system - UV sterilizer - Ozone generator - Product water
<3> Components' Introduction
3.1)Functions of the components
1)Multimedia filter: to reduce the pollution index of the original water which can meet the RO system's requirement at a long term.
2)Active carbon filter: To reduce water turbidity and color and purify water.
3)Precision filter: To prevent the material leakage in filter and left suspended solid from entering the membrane system before water enter reverse osmosis equipment through passing activated carbon filter.
4)RO system: almost all solubles salt, colloid, organics will be removed.
5)UV sterilizer: It has the characteristics of efficient sterilization.
6)Ozone generator: To remove residual chlorine from the water, sterilize, disinfect, deodorize and heavy metals.To prevent the formation of carcinogenic chloroform, increase the oxygen content of water, and make ideal pure drinking water.
3.2)Specification of components
<4> Cost Analysis
4.1) Operation Cost
4.2) Wearing Parts' Cost
5.1)Packaging
250LPH capacity small water treatment plant is with international standard export package.
(Wooden Case,Carton Box & Export Neutral Packing available)
5.2)Shipping:
We will choose the most suitable shipping mode according to customers' need.
<6> Our Services
6.1)Installation & Commissioning
As the supplier,we have the responsibility to complete the installation & commissioning for customers before shipment.For customers need,we're available to finish that in customers' requested place.
6.2)Training
We will provide clients technical training,which includes equipment structure & maintenance, control & operation. In this way, the technicians of customers can grasp relevant skills after training.
6.3)Quality Assurance & After-sales
Equipment mechanical part is given total quality assurance within two years from the equipment installation and commissioning completed acceptance.During the warranty period,our company will arrange technologist to call you and ask about the equipment using situation very quarter.Consumable materials and vulnerable parts which are normal wear and tear are not within the warranty.Outside the quality assurance period,we can also provide comprehensive technical support and maintenance services for customer.
<7> Company Information
Founded in 2010,Zhuhai Wangyang Water Treatment Equipment Co,.Ltd. is a high-tech enterprise integrated with R&D,production,selling and engineering installation.we have professional technical team and after-sales team specializing in seawater and brackish water desalination,reclaimed-water recycling, hyper pure water,boiler-feeding water,electroplating metallurgy,etc.
With continuous innovation and good quality guarantee,we have obtained some certificate like ISO9001,CCS,etc.As well,we have our own patent.
We persist in the principle "Customers come first,High-quality service,Excellent product".Integrity is the root of our long-term development while customers' satisfaction is our persistent pursuit.
7.1) Company Picture
7.2) Certificates
7.3) Exhibitions
<8> FAQ
Q1)Are you manufacturing company or trading company?
A:We're a professional manufacturer for water treatment equipment.And always welcome to visit our factory.
Q2)How should I select the plant?
A:It depends on your requested parameters,such as raw water source,water quality,water yield,voltage,etc.
Q3)What's your suggest for maintenance?
A: 1)check all circuit whether damaged;
2)check valve whether malfunctioning phenomenon;
3)check all pipes for leaks;
4)If long time no use,you should add protective solution to protect the reverse osmosis:
4.1)Open inlet which in the front of the high-pressure pump (see illustration), make well the protective solution in the water tank ,then connect with the tank via pipe , start the water tank pump, when the protective solution full filled with reverse osmosis membrane group, turn off the water tank pump, close the inlet. Meanwhile every day to observe, such as protection fluid leakage situation, should replenish the above step.
4.2)Before equipment start-up , protective solution should be clear up.
Q4)Could you offer some info about troubleshooting?
A:Our pleasure in doing that.
1)high-pressure pump:
Each work 200 hours to inspect, pressure whether normal, whether the crankcase short of oil, the pump whether abnormal and other tests, such as abnormal working, in accordance with the manufacturers instructions for maintenance. If do not have maintenance skills, please timely contact with the manufacturer, we will maintenance for client.
2)booster pump:
Maintenance, inspection, refer to the high-pressure pump, the specific details, see the lift pump manual requirements. Equipment failure, if you are able to maintenance and repair, the manufacturer can provide technical support. If do not have skills to repair, made it clear that the cause of the malfunction and fault coverage, please contact the manufacturer.
Q5)What's your payment term?
A:PayPal,T/T,Western Union,L/C available;40% deposit before manufacturing,and the rest should be paid before shipment.
<9> Advantages of Choosing Us
1)Our company has obtained ISO9001 quality management system certificate, Inspection certificate of China classification Society(CCS) and the letter of patent for seawater desalination equipment in container.
2)We are the direct manufacturer. We have our own factory so that we can offer you high quality product with a good price.
3)Owning a self brand "WANGYANG" and a professional practical engineer team.
4)2 years warranty,and total water solution is available.
5)The punctual delivery of goods, quality and quantity guaranteed.
6)8 years experience, OEM&ODM available.
1.1)Brief Introduction
250LPH capacity small water treatment plant is professionally used for turning city water into industrial water.With world leading Reverse Osmosis technology, this model is professionally used for turning city tap water into drinkable pure water.This kind of equipment adopts professional RO technology and other advanced designs. It obtains customers' favor with various advantages.
1.2)Product Spec.
| Water Parameter | |
| TDS of input water | ≤700mg/L(City tap water standard) |
| Inlet flow | 0.625m³/h |
| TDS of output water | ≤50mg/L |
| Outlet flow | 0.25m³/h,equivalent to 5000 liters per day |
| System design | |
| Model | WY-TW-5 |
| Product name | 250LPH capacity small water treatment plant |
| Desalination rate | ≥99.4% |
| Recovery rate | 40% |
| Voltage | 380V/50Hz/three-phase (Customized is available) |
| Power | 1.75KW |
| Operating pressure | 1~2Mpa |
| Protection level | IP54 |
| Control system | Automatic/Manual |
| Main material | SS304 |
| Environment temperature | 0~45ºC |
| Air humidity | 20~90% |
| Maintenance space | The front,right & left 1000mm,the back 700mm |
| Inlet pipeline size | DN25 |
| Out let pipeline size | DN15 |
| Discharge pipeline size | DN15 |
| Assurance | |
| Life span | 10~15 Years |
| Certificate | ISO9001,CCS |
| Warranty | 2 Years |
1.3)Features of 250LPH capacity small water treatment plant
1)Small volume & elegant appearance;
2)Simple installation,operation and maintenance;
3)Reliable quality & high scalability;
4)High water utilization rate with low power consumption.
1.4)RO System
Reverse osmosis technology is a modern high technology that use reverse osmosis to seperate water from solution after it permeates the specially-made semi-transparent membrane though exerting a pressure that is higher than the osmosis pressure on the solution.
According to different osmosis pressure of various materials the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution. It saves more energy than traditional process.
Reserve osmosis/RO water treatment equipment is mainly used in electronic industry, semiconductor industry water treatment, chemical industry, pharmaceutical industry pure water treatment and so on.RO system is widely used in school, hotel, hospital, laboratory and many other public area.

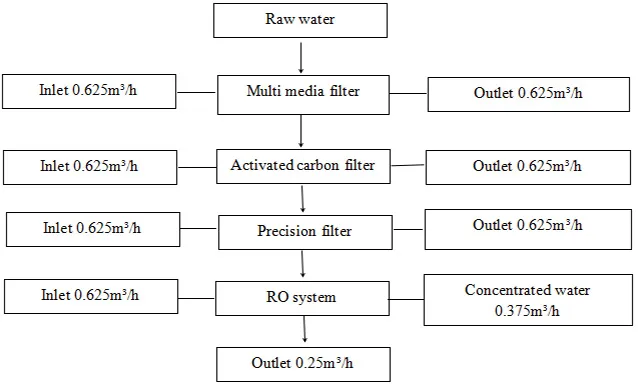

<2> Process Overview of 250LPH capacity small water treatment plant
Raw water - Multimedia filter - Activated carbon filter - Precision filter - RO system - UV sterilizer - Ozone generator - Product water
<3> Components' Introduction
3.1)Functions of the components
1)Multimedia filter: to reduce the pollution index of the original water which can meet the RO system's requirement at a long term.
2)Active carbon filter: To reduce water turbidity and color and purify water.
3)Precision filter: To prevent the material leakage in filter and left suspended solid from entering the membrane system before water enter reverse osmosis equipment through passing activated carbon filter.
4)RO system: almost all solubles salt, colloid, organics will be removed.
5)UV sterilizer: It has the characteristics of efficient sterilization.
6)Ozone generator: To remove residual chlorine from the water, sterilize, disinfect, deodorize and heavy metals.To prevent the formation of carcinogenic chloroform, increase the oxygen content of water, and make ideal pure drinking water.
3.2)Specification of components
| NO. | Name | Description | Material | Quantity | Unit | Manufacturer |
| Part A - Pre-treatment | ||||||
| 1 | Feed pump | 2m3/h,0.55kw, Head of delivery: 30m | Flow components: SUS 316 | 1 | Set | CNP |
| 2 | Multimedia filter | Ø200x1150mm | FRP | 1 | Set | HUAYU |
| 3 | Softening bed | Ø200x1150mm | FRP | 1 | Set | HUAYU |
| 4 | Activated carbon filter | Ø200x1150mm | FRP | 1 | Set | HUAYU |
| 5 | Precision filter | 1m3/h, 1 μm | UPVC | 1 | Set | Yuanteng |
| Part B - RO part | ||||||
| 6 | High pressure pump | 0.7m3/h,1.5kw, Head of delivery: 165m | SUS 304 | 1 | Set | CNP |
| 7 | Reverse osmosis membrane | ULP -4040 | 1 | Piece | Huitong | |
| 8 | Membrane housing | 450PSI, 1 cartridge | FRP | 1 | Piece | Yuanteng |
| Part C - Rinse part | ||||||
| 9 | Rinse tank (Optional) | 8L | Plastic | 1 | Set | WANGYANG |
| 10 | CIP cleaning device | System matching | Combination | 1 | Set | WANGYANG |
| Part D - Instrument | ||||||
| 11 | Pressure gauge | System matching | 1 | Set | WANGYANG | |
| 12 | Flow meter | 0~1m³/h | 1 | Set | From Zhejiang | |
| 13 | Conductivity meter | CCT-3320 | Combination | 1 | Set | Createc |
| 14 | Liquid level switch | System matching | 1 | Set | Spes | |
| 15 | Electrical components | Combination | 1 | Set | Schneider | |
| Part E - Pipeline & valve system | ||||||
| 16 | High pressure valve | System matching | SUS316 | 1 | Set | Beize |
| 17 | Low pressure Valve | System matching | UPVC | 1 | Set | Taiwan Sanli |
| 18 | High pressure Pipeline | System matching | 1 | Set | Bailishi | |
| 19 | Low pressure Pipeline | System matching | UPVC | 1 | Set | Taiwan Sanli |
| Part F - Spare part | ||||||
| 20 | Spare parts | System matching | 1 | Set | WANGYANG | |
| Part G - Specialized tool | ||||||
| 21 | Specialized tool | System matching | 1 | Set | WANGYANG | |
<4> Cost Analysis
4.1) Operation Cost
| RO system | ||||
| 1 | Power consumption | Cost of 1m³ water | 7.2 | Yuan (RMB) |
| 2 | Cost of filter cartridge replacement | Cost of 1m³ water | 0.24 | Yuan (RMB) |
| 3 | Sum | Cost of 1m³ water | 4.44 | Yuan (RMB) |
4.2) Wearing Parts' Cost
| No. | Name | Model | Dosage | Duration | Unit Price | Cost of per hour |
| 1 | RO membrane | ULP-4040 | 1 | 35040 hours | 1000 Yuan (RMB) | 0.03 Yuan (RMB) |
| 2 | Filter cartridge | 20"5μ | 2 pcs. | 2160 hours | 15 Yuan (RMB) | 0.03 Yuan (RMB) |
| 3 | System cost | Wearing parts cost of 1 hour is 0.06 Yuan(RMB) | ||||
| 4 | Cost of 1m³ water | Wearing parts cost of 1im³ water is 0.24 Yuan(RMB) | ||||
<5> Packaging & Shipping
5.1)Packaging
250LPH capacity small water treatment plant is with international standard export package.
(Wooden Case,Carton Box & Export Neutral Packing available)
5.2)Shipping:
We will choose the most suitable shipping mode according to customers' need.
<6> Our Services
6.1)Installation & Commissioning
As the supplier,we have the responsibility to complete the installation & commissioning for customers before shipment.For customers need,we're available to finish that in customers' requested place.
6.2)Training
We will provide clients technical training,which includes equipment structure & maintenance, control & operation. In this way, the technicians of customers can grasp relevant skills after training.
6.3)Quality Assurance & After-sales
Equipment mechanical part is given total quality assurance within two years from the equipment installation and commissioning completed acceptance.During the warranty period,our company will arrange technologist to call you and ask about the equipment using situation very quarter.Consumable materials and vulnerable parts which are normal wear and tear are not within the warranty.Outside the quality assurance period,we can also provide comprehensive technical support and maintenance services for customer.
<7> Company Information
Founded in 2010,Zhuhai Wangyang Water Treatment Equipment Co,.Ltd. is a high-tech enterprise integrated with R&D,production,selling and engineering installation.we have professional technical team and after-sales team specializing in seawater and brackish water desalination,reclaimed-water recycling, hyper pure water,boiler-feeding water,electroplating metallurgy,etc.
With continuous innovation and good quality guarantee,we have obtained some certificate like ISO9001,CCS,etc.As well,we have our own patent.
We persist in the principle "Customers come first,High-quality service,Excellent product".Integrity is the root of our long-term development while customers' satisfaction is our persistent pursuit.
7.1) Company Picture
7.2) Certificates
7.3) Exhibitions
<8> FAQ
Q1)Are you manufacturing company or trading company?
A:We're a professional manufacturer for water treatment equipment.And always welcome to visit our factory.
Q2)How should I select the plant?
A:It depends on your requested parameters,such as raw water source,water quality,water yield,voltage,etc.
Q3)What's your suggest for maintenance?
A: 1)check all circuit whether damaged;
2)check valve whether malfunctioning phenomenon;
3)check all pipes for leaks;
4)If long time no use,you should add protective solution to protect the reverse osmosis:
4.1)Open inlet which in the front of the high-pressure pump (see illustration), make well the protective solution in the water tank ,then connect with the tank via pipe , start the water tank pump, when the protective solution full filled with reverse osmosis membrane group, turn off the water tank pump, close the inlet. Meanwhile every day to observe, such as protection fluid leakage situation, should replenish the above step.
4.2)Before equipment start-up , protective solution should be clear up.
Q4)Could you offer some info about troubleshooting?
A:Our pleasure in doing that.
1)high-pressure pump:
Each work 200 hours to inspect, pressure whether normal, whether the crankcase short of oil, the pump whether abnormal and other tests, such as abnormal working, in accordance with the manufacturers instructions for maintenance. If do not have maintenance skills, please timely contact with the manufacturer, we will maintenance for client.
2)booster pump:
Maintenance, inspection, refer to the high-pressure pump, the specific details, see the lift pump manual requirements. Equipment failure, if you are able to maintenance and repair, the manufacturer can provide technical support. If do not have skills to repair, made it clear that the cause of the malfunction and fault coverage, please contact the manufacturer.
Q5)What's your payment term?
A:PayPal,T/T,Western Union,L/C available;40% deposit before manufacturing,and the rest should be paid before shipment.
<9> Advantages of Choosing Us
1)Our company has obtained ISO9001 quality management system certificate, Inspection certificate of China classification Society(CCS) and the letter of patent for seawater desalination equipment in container.
2)We are the direct manufacturer. We have our own factory so that we can offer you high quality product with a good price.
3)Owning a self brand "WANGYANG" and a professional practical engineer team.
4)2 years warranty,and total water solution is available.
5)The punctual delivery of goods, quality and quantity guaranteed.
6)8 years experience, OEM&ODM available.
<10> Contract
Gwen GU
Zhuhai Wangyang Water Treatment Equipment Co.,Ltd.
Tel: 86-756-8930698
Fax: 86-756-8930695
Mobile: 86-13326656958
